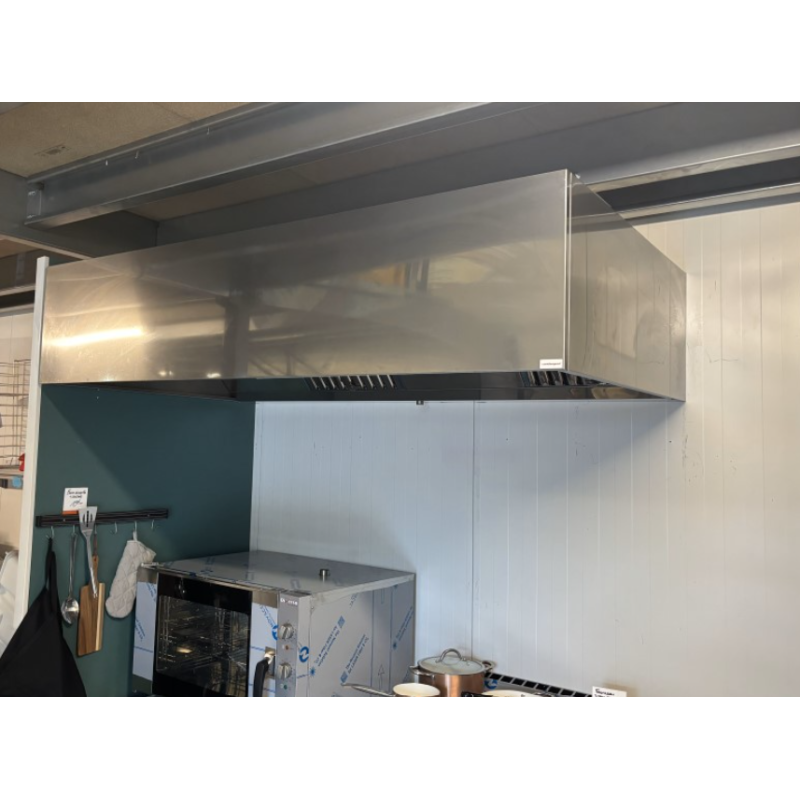

PREMIUM Pack Commercial Rang Hood, Rectangular Professional Motorized 220V

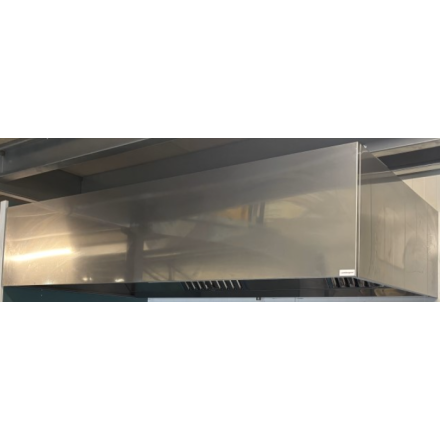

Professional stainless steel kitchen range hood package with motor and speed controller

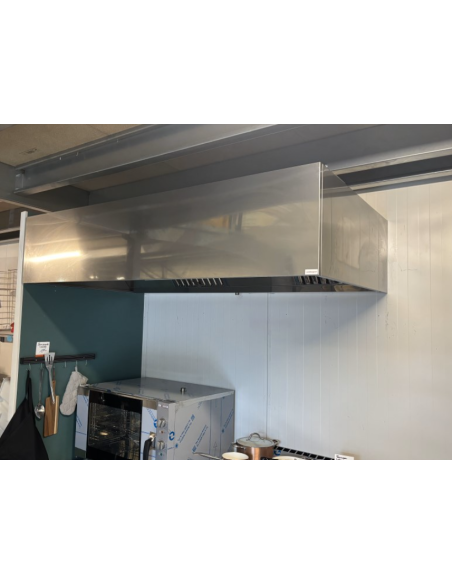

Saftair Alvene High-Capacity Range Hood

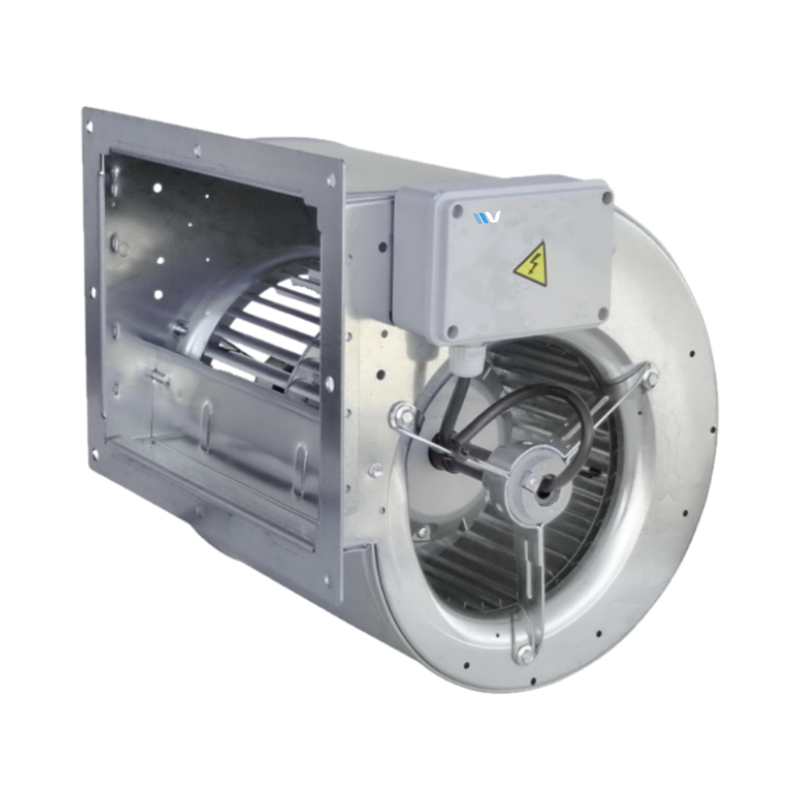

single-phase snail motor, pro range hood

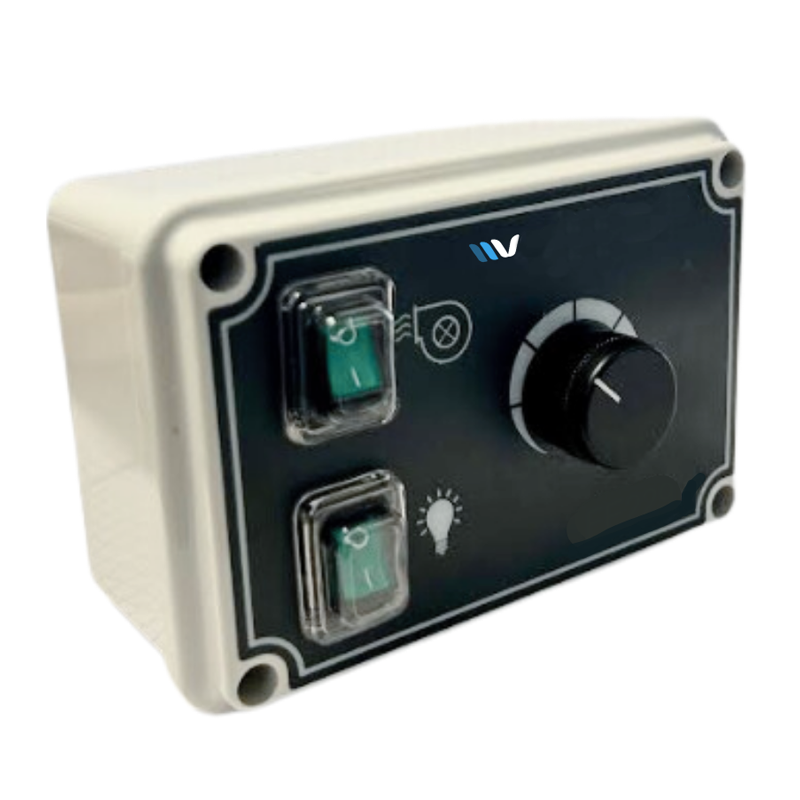

4.5A single-phase voltage regulator for range hood motors, types 7/7, 7/9, and 8/9
PREMIUM Pack Commercial Rang Hood, Rectangular Professional Motorized 220V, vue 5

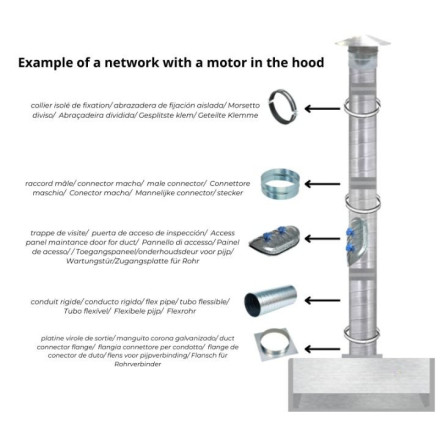

ventilation system diagram

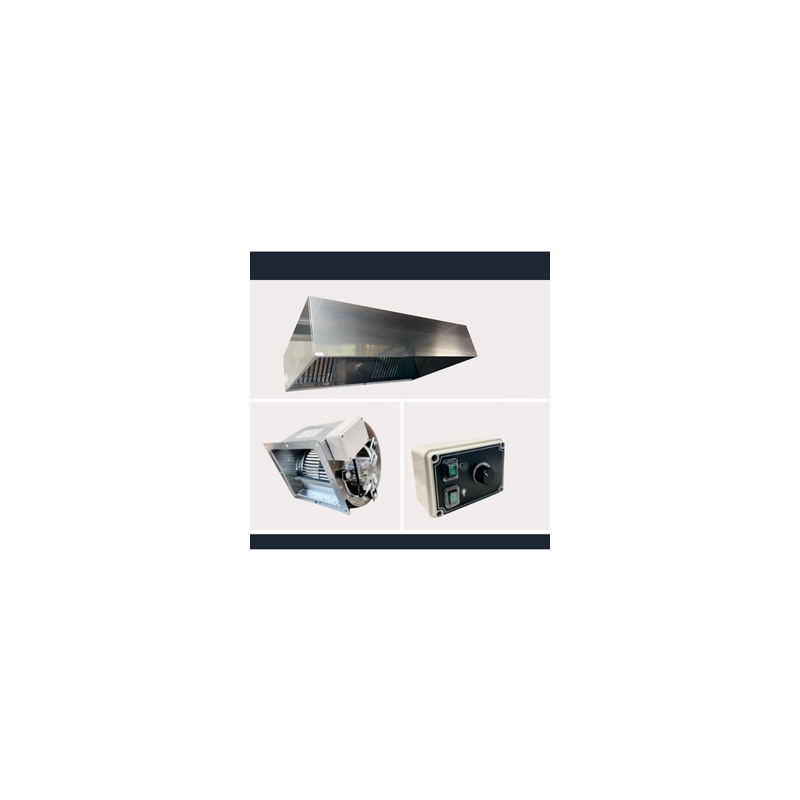

Professional stainless steel kitchen range hood package with motor and speed controller
Saftair Alvene High-Capacity Range Hood
single-phase snail motor, pro range hood
4.5A single-phase voltage regulator for range hood motors, types 7/7, 7/9, and 8/9
PREMIUM Pack Commercial Rang Hood, Rectangular Professional Motorized 220V, vue 5

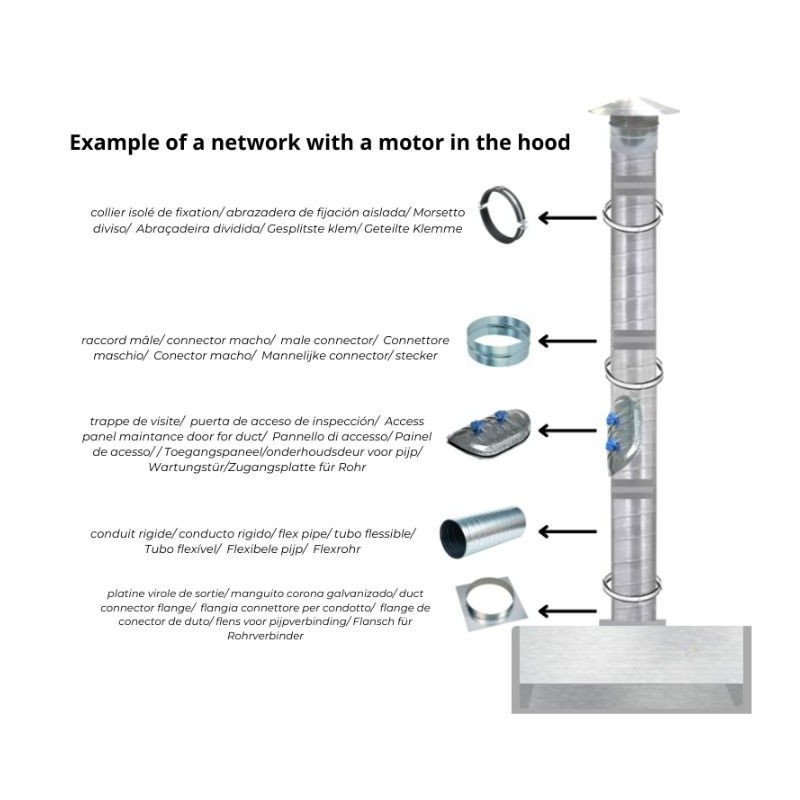

ventilation system diagram

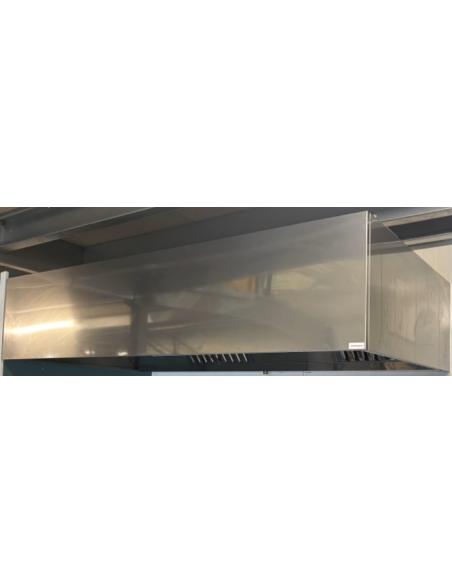

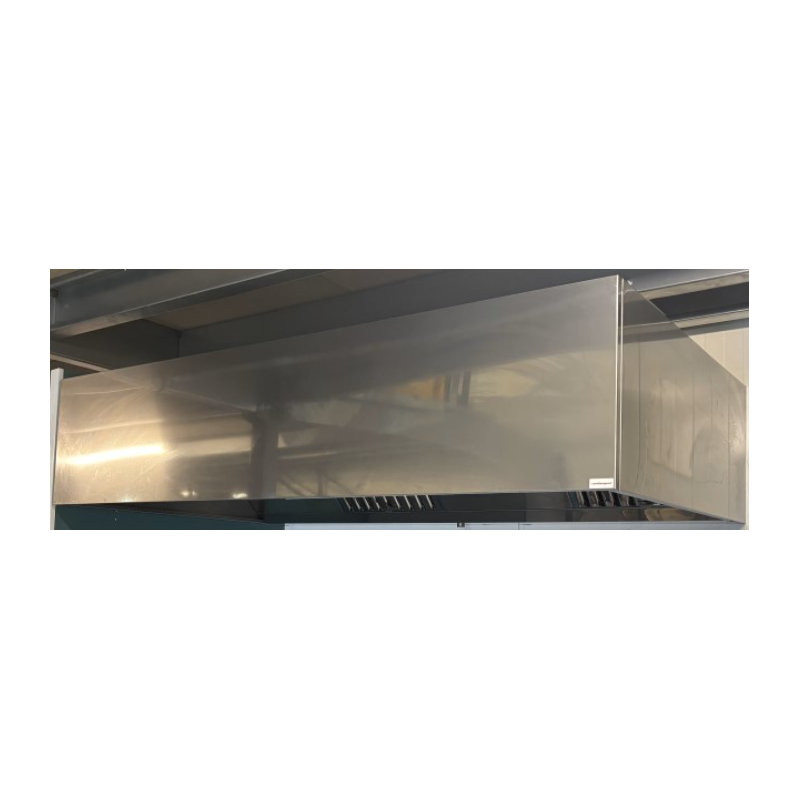

The PREMIUM rectangular commercial hood in stainless steel is built for demanding restaurant and gastronomic kitchens: double-inlet centrifugal fan 7/7 as standard at 1500 m³/h, fan speed controller and built-in lighting, from 1 to 3 metres long.

  • Power supply: 220V / 230V single phase
  • Standard motor: 7/7, 1500 m³/h
  • Motor options: 2600 m³/h or 3000 m³/h
  • Height (front valance): 450 mm
  • Stainless steel filters: 500 x 400 mm
Selected length
OPTION: More powerful engine
In stock
Quantity
787.00 Tax excluded
944,4 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


PREMIUM Pack: Rectangular Professional Motorised Commercial Hood 220V/230V

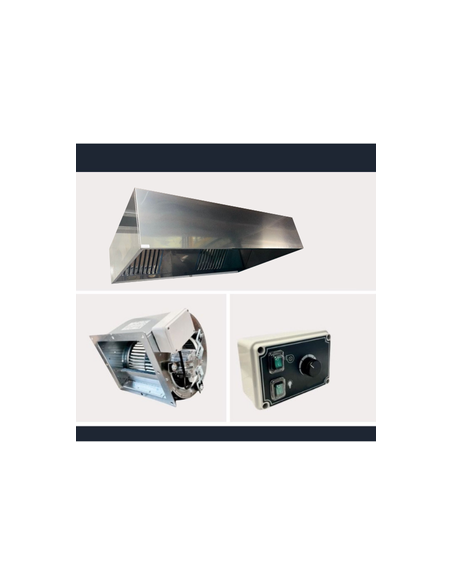

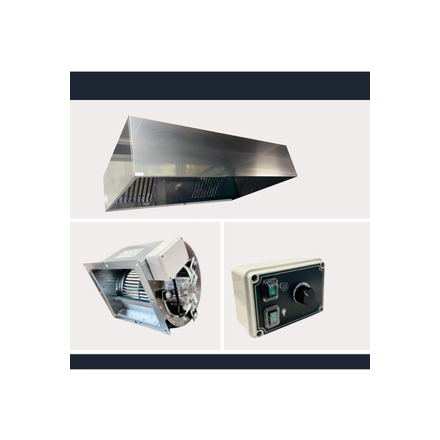

The PREMIUM Pack motorised commercial kitchen hood is an all-stainless-steel extraction hood, supplied with its double-inlet centrifugal fan and fan speed controller, designed for restaurants and open kitchens that want proper fume containment without compromising on finish. Available from 1 to 3 metres long.

A premium hood for kitchens on display

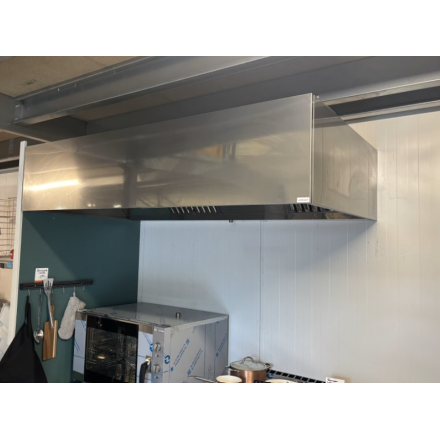

This commercial kitchen hood is built with all-stainless-steel construction and premium components: stainless steel filters, stainless steel end caps, stainless steel drain screw, reinforced fixings. It fits just as well in an open-plan kitchen facing the dining room as in the back-of-house of a fine dining restaurant, with a finish that holds up even under customers' eyes.

Technical specifications

Specification Value
Power supply 220V / 230V single phase
Motorisation Double-inlet centrifugal fan 7/7
Standard motor airflow 1500 m³/h
Motor options 2600 m³/h or 3000 m³/h
Available lengths 1 m, 1.5 m, 2 m, 2.5 m, 3 m
Depth 1000 mm
Height (front valance) 450 mm
Stainless steel filters 500 x 400 mm, 2 to 4 depending on length
Equipment included 230V speed controller, light switch, EVG
Weight 90 kg
Warranty 1 year

Which motor and which duct sizing depending on hood length

The choice of motor and duct diameter depends directly on the length of your PREMIUM hood. For 1 m and 1.5 m versions, the standard 7/7 motor at 1500 m³/h is generally sufficient, with a duct diameter of 250 (250 mm minimum recommended). For longer versions, the sizing changes:

  • 2 metres: duct diameter 315 (minimum 250), standard 1500 m³/h motor
  • 2.5 metres: duct diameter 355 (minimum 315), ideally 2600 m³/h motor
  • 3 metres: duct diameter 400 (minimum 355), ideally 3000 m³/h motor

These duct sizing guidelines also depend on elbows, duct length and the make-up air available in your premises: to be adjusted according to your installation. Above 20 kW of cooking equipment, a 400°C/120 min smoke extraction system becomes mandatory, to be checked against the regulations applicable to your premises.

Installation and connection

This restaurant hood is supplied flat-packed for assembly, in 1 or 2 sections depending on length. The motor is supplied not fitted in the hood: extraction can be from the top or from the rear, depending on your duct configuration. The hood is positioned at 2 metres from the floor. Ducts and connection accessories are not supplied with this pack, see the "To be used with" section below.

Installation guide for 1 to 3 m hoods at télécharger ici

Points to check before ordering

  • The hood length suited to the width of your cooking range (1 to 3 metres available).
  • The planned duct diameter (250 to 400 mm depending on length), and its compatibility with your existing ductwork.
  • The total cooking power of your cooking line: above 20 kW, 400°C/120 min extraction must be planned for.
  • The desired extraction route, from the top or from the rear of the hood.
  • Whether a more powerful motor (2600 or 3000 m³/h) is needed depending on the length chosen.

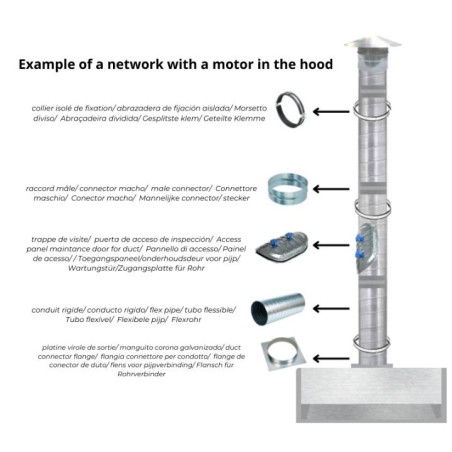

To be used with

For a tighter budget, also see our ECO compact hood pack, or for premises with wood-fired cooking our professional hood pack with wood-fire roof fan.

The PREMIUM hood is the equipment that keeps service running smoothly and gives your kitchen the look of a serious operation.

Product Details

Ventilsogood
Packvoldyn1-3
Selected length
OPTION: More powerful engine
Available Length
1 meter
Available Length
1.5 meters
Available Length
2 meters
Available Length
2.5 meters
Available Length
3 meters
Warranty
1 year
Engine
Centrifugal Fan
Food
230V Mono
Engine power
2,000 to 4,000 m³/h
Engine power
0 to 2,000 m³/h
0657968522947

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

Which motor should I choose for a 3-metre PREMIUM hood pack?

For a 3-metre PREMIUM hood, the 3000 m³/h motor is recommended instead of the standard 7/7 motor at 1500 m³/h, with a 355 mm diameter duct. This ensures good coverage of the capture area without smoke escaping into the kitchen.

Is the motor supplied fitted inside the hood?

No, the double-inlet centrifugal fan is supplied not fitted inside the hood. This allows you to choose the extraction route, from the top or from the rear, depending on your duct configuration and premises.

From what cooking power is a 400°C/120 min extraction system required?

Above 20 kW of cooking equipment, a 400°C/120 min smoke extraction system becomes mandatory. Check the combined power of your cooking appliances to see if your premises are affected.

Does the PREMIUM pack include the connection ducts?

No, ducts and connection accessories are not supplied with this pack. You can find them in the accessories section of the site, in particular the galvanised flat spigot for the hood to duct connection.

At what height should the PREMIUM hood be installed?

The PREMIUM hood is positioned at 2 metres from the floor. This relates to the positioning of the hood itself, as specified by the manufacturer for this range.
