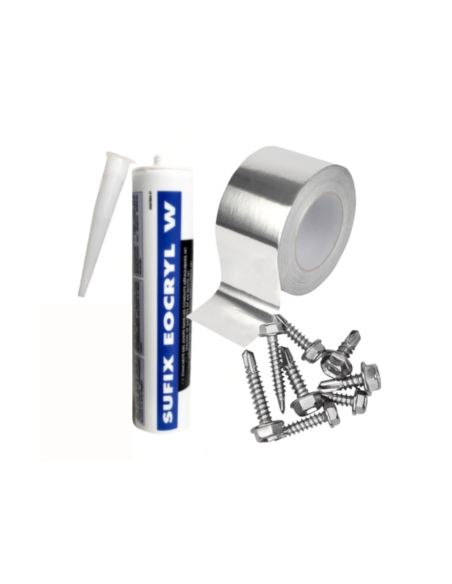

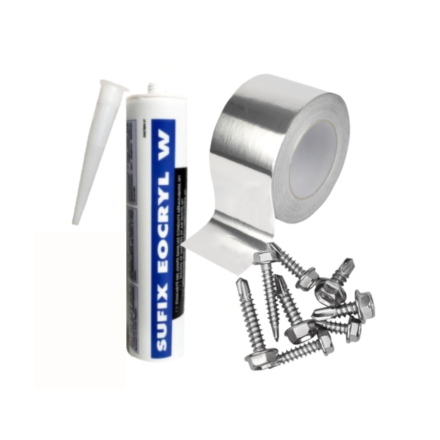

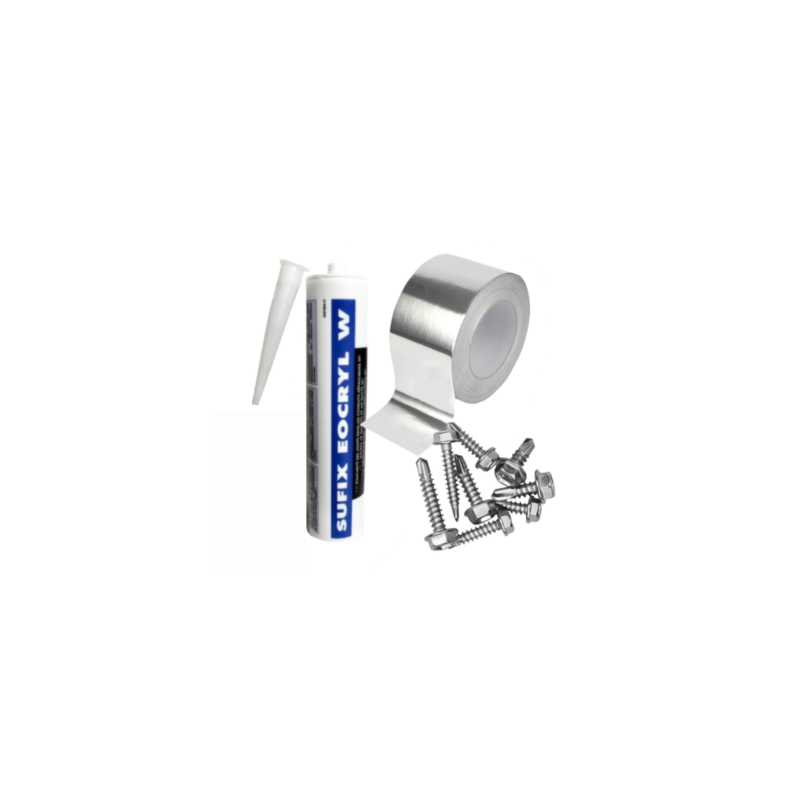

The Hardware and Sealing Kit brings together everything you need to assemble and fix a ventilation ductwork system: sealant cartridge, aluminium tape and a complete set of fixings, enough to cover 6 to 10 m of ductwork depending on the fittings used.

  • Sealant cartridge: fire rating M1
  • Aluminium tape: 5000 mm x 50 mm
  • Small self-drilling screws: 30 x Ø4.8 mm
  • Large self-drilling screws (fan fixing): 6 units
  • Made in: France, 1 year warranty
In stock
Quantity
42.00 Tax excluded
50,4 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The Hardware and Sealing Kit is the essential accessory for neatly assembling the components of a ventilation ductwork system: sealant cartridge, aluminium tape and a complete set of fixings, all in one kit to fix and seal your ducts, spigots and fan boxes.

Hardware and Sealing Kit: what is it used for on a ventilation system?

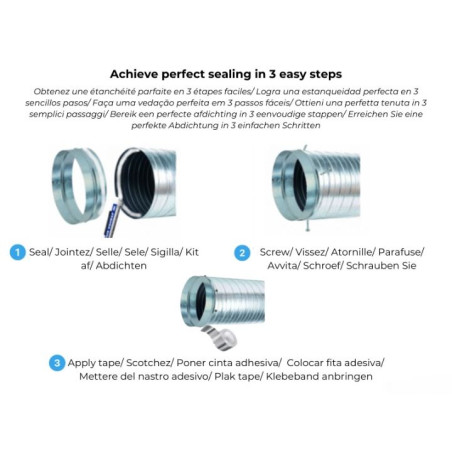

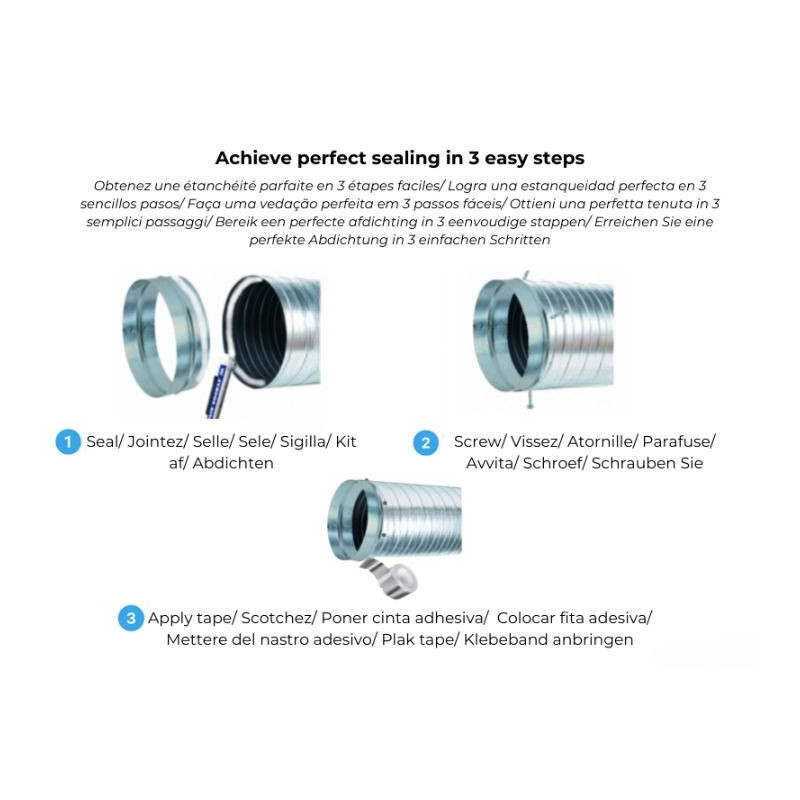

This kit is used to fix the ductwork fittings together: duct onto spigot, connector onto fan box, elbow onto duct. As a rule of thumb, allow 3 screws per fitting assembled. The sealant cartridge then seals the joints to limit air leakage, and the aluminium tape closes off cut edges or protects areas exposed to moisture. Enough to cover between 6 and 10 m of ductwork, depending on the number and type of fittings installed.

Technical specifications

Specification Value
Contents 1 sealant cartridge, 1 roll of aluminium tape, 30 small screws, 6 large screws
Sealant cartridge Fire rating M1
Aluminium tape 5000 mm long x 50 mm wide
Small self-drilling screws 30 units, Ø4.8 mm
Large self-drilling screws 6 units (fan fixing)
Ductwork coverage Approx. 6 to 10 m depending on fittings (guideline)
Made in France
Package weight 1 kg
Warranty 1 year

Aluminium tape: additional sealing

The aluminium tape closes off small air leaks and protects connections along their full length. It sticks directly onto galvanised duct, fan boxes or ductwork, no special tool required, and can be cut to size to follow complex shapes. Handy for touching up an existing joint or reinforcing the sealant cartridge at the most stressed points of the system.

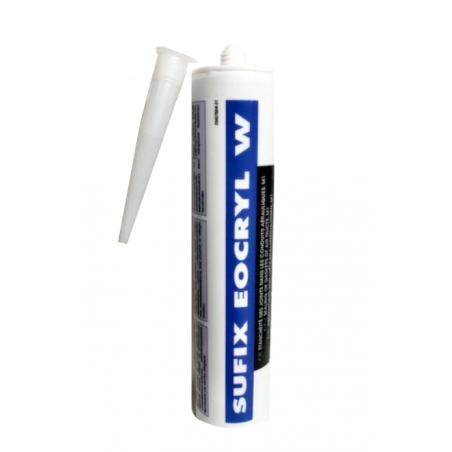

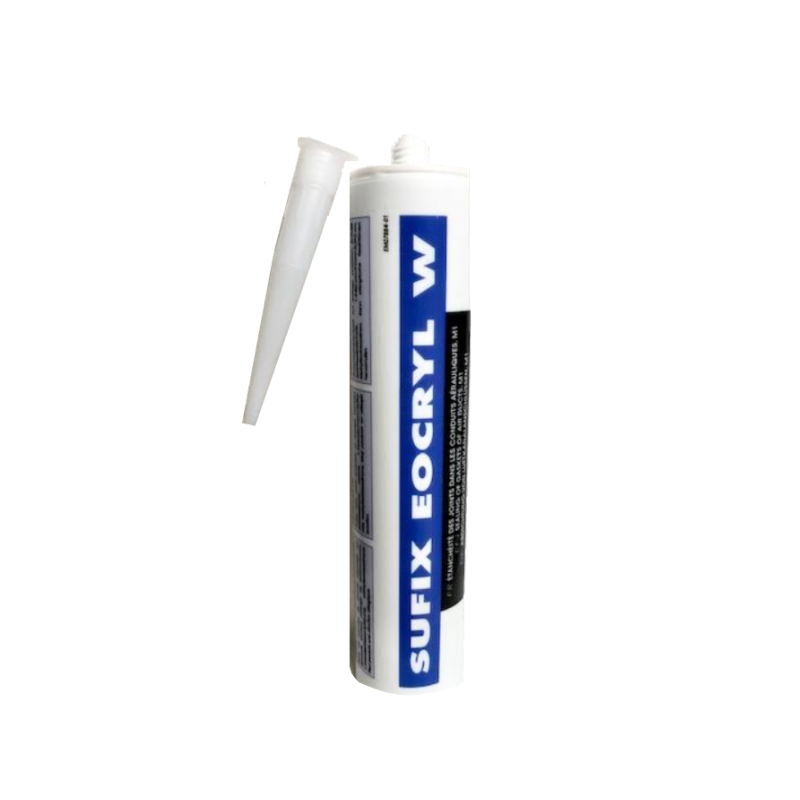

Sealant cartridge: a joint that holds

The sealant cartridge closes the joints between ducts, spigots and fan boxes, with an M1 fire rating. It is easy to apply, directly onto the surfaces to be joined, before or during screwing. A properly sealed joint limits pressure losses caused by leaks and protects the system against moisture ingress over time.

Fixings: securely fixing each fitting

The Ø4.8 mm small self-drilling screws are used to assemble the common components of the system (duct onto spigot, connector onto elbow). The 6 large screws, more robust, are intended for fixing the fan. Together, they minimise the risk of fixings working loose over time, which matters when the system is subject to vibration from a double-inlet centrifugal fan.

Points to check before ordering

  • Number of fittings to assemble on your system, to estimate whether one kit will be enough (guideline: 3 screws per joint)
  • Total length of ductwork to be treated against the stated 6 to 10 m coverage
  • Diameter and type of your ducts or fan boxes, to confirm compatibility with the screws supplied
  • Whether you need additional sealing (acoustic insulation roll, flexible connector) depending on the system configuration

Pairs well with

Product Details

Ventilsogood
kitcartoucheeocryl
Products
Fastening
Manufacturing
Made in France
Warranty
1 year
Package weight
1 kg
0657968991729

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

Does the sealant in the kit meet a fire safety standard?

The sealant cartridge in the Hardware and Sealing Kit has an M1 fire rating. This is the only fire rating information provided for this product: for a precise regulatory requirement on your installation, check your project specification.

How many metres of ductwork can one kit treat?

Allow for 6 to 10 m of ductwork per kit, depending on the number and type of fittings to be assembled (spigots, elbows, fan boxes). This is a guideline: the more joints your system has, the less length you will cover with a single kit.

How many screws are needed per fitting?

As a rule of thumb, allow 3 small self-drilling screws per fitting, for example to fix a duct onto a spigot. The kit supplies 30 small Ø4.8 mm screws and 6 large screws dedicated to fixing the fan.

Is this kit suitable for a mechanical ventilation system, a hood extraction or air conditioning?

The Hardware and Sealing Kit is designed to fix and seal the common fittings of a professional ventilation system: ducts, spigots, fan boxes, connectors. It can be used on a building ventilation installation as well as on a commercial kitchen hood extraction system.

Should the sealant be applied before or after screwing?

The sealant cartridge is applied to the joint between two fittings, generally before screwing, to ensure a proper seal once the parts are tightened. The screws then provide the mechanical fixing of the assembly.
