Installation kit for commercial kitchen hoods and extraction fan boxes
The Commercial Rang Hood Installation Kit: Cabinet-Threaded rods and hardware is a complete D8 mm fixing set of threaded rods and hardware, designed to hang and securely anchor a stainless steel commercial kitchen hood or an extraction fan box to the ceiling and wall. Straightforward to install, it suits most commercial kitchen mounting surfaces.
Technical specifications
| Specification |
Value |
| Kit contents |

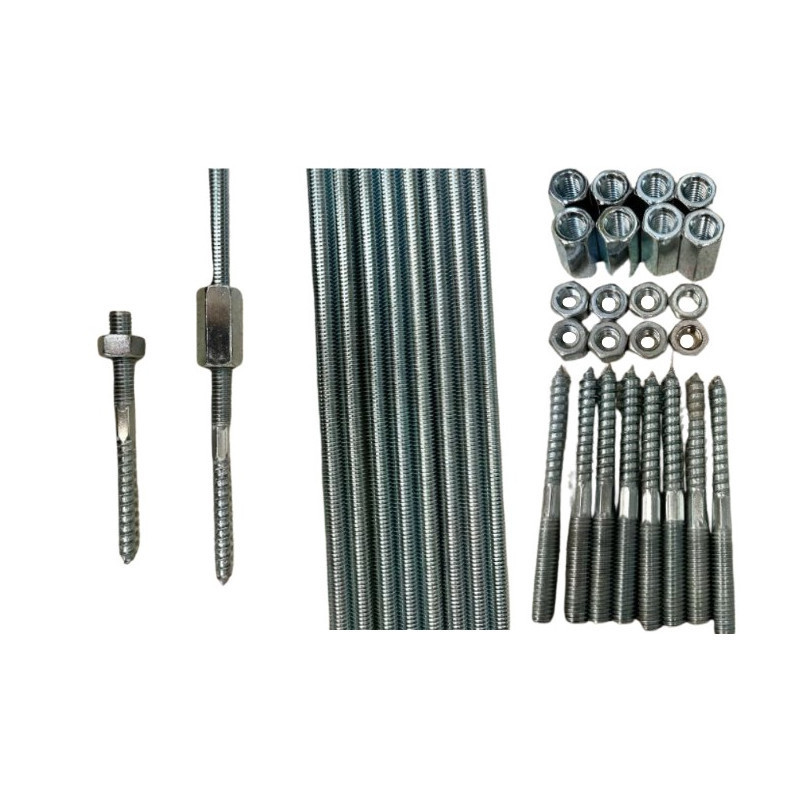

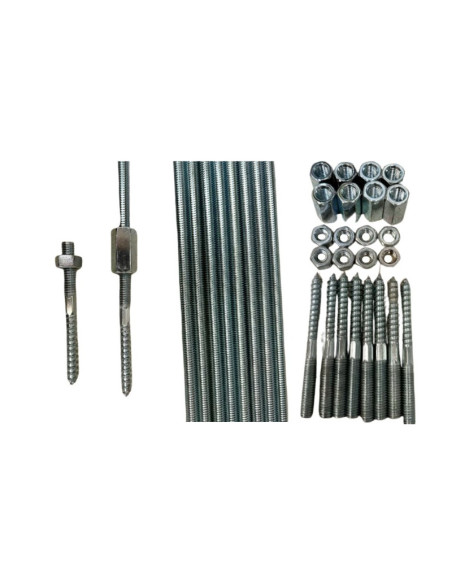

8 x D8 mm nuts, 8 x L20 mm extended nuts, 8 x L120 mm dual-thread screws, 8 x L1000 mm D8 mm threaded rods |
| Diameter |
D8 mm |

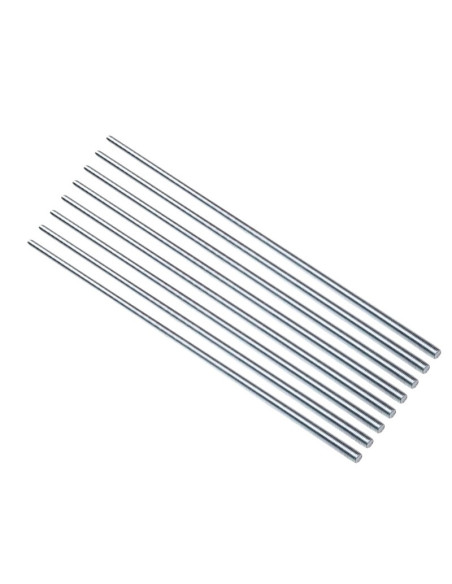

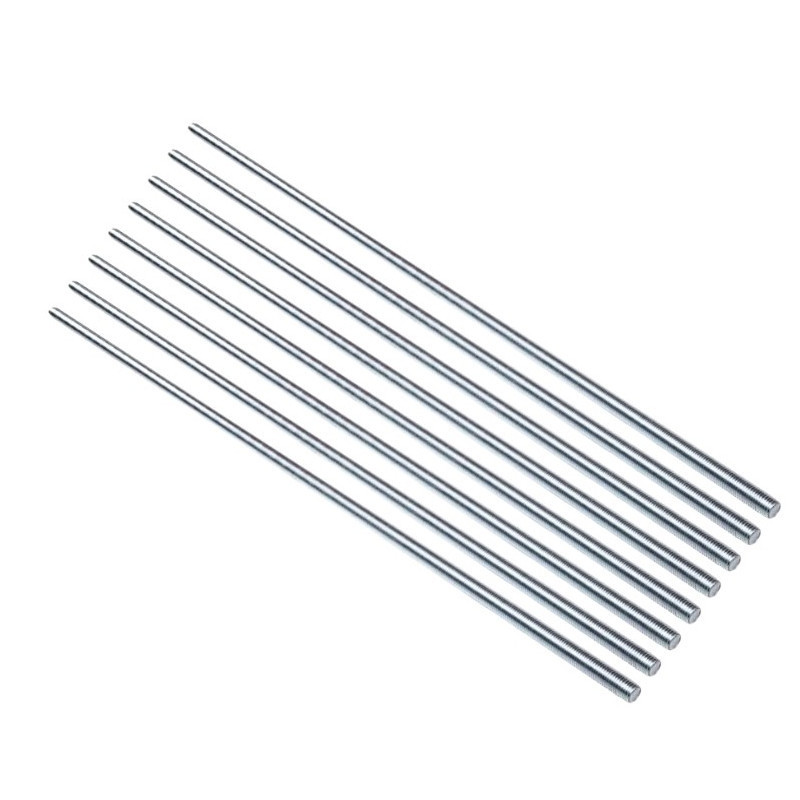

| Threaded rod length |
1000 mm |
| Dual-thread screw length |
120 mm |
| Weight |
1 kg |
| Made in |
France |
Use and compatibility
This kit is used to fix a hood or motorised extraction fan box to the ceiling using the threaded rods, and to a wall using the dual-thread screws. The extended nuts allow two threaded sections to be joined together, for example to extend a rod according to ceiling height. It is suitable for both commercial kitchen hoods and motorised extraction fan boxes, and can also be used to fix duct clips onto your ventilation ductwork.
The D8 mm diameter of this kit is designed for standard hood or extraction box suspension. For mounting a double-inlet centrifugal fan inside the extraction box (vibration management), use a fan mounting frame instead: this installation kit is not designed for that purpose.
Installation and connection

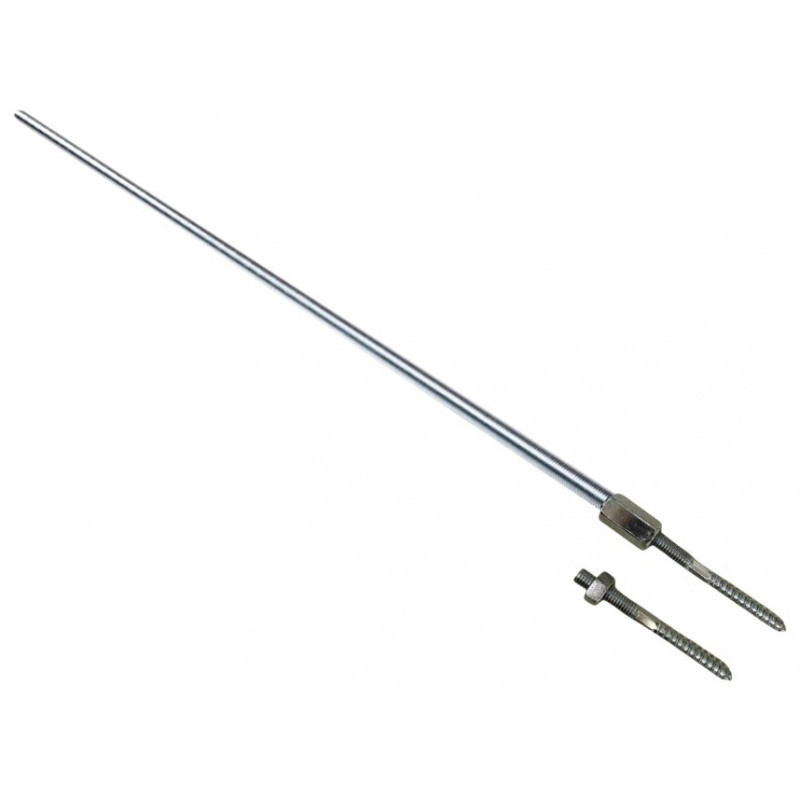

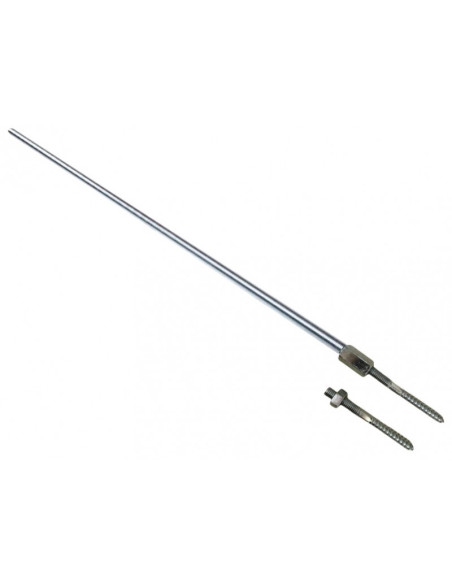

The dual-thread screws are fixed on one side into the ceiling (timber, concrete, brick, breeze block, with a wall plug suited to the surface) and on the other side receive the threaded rod, or the hood directly via a nut. For wall mounting, the same dual-thread screw fixes into the wall. The extended nuts allow two threaded rods to be joined end to end if ceiling height requires it. Drilling and wall plug selection must be adapted to the actual surface in your kitchen: taking measurements before ordering avoids any unpleasant surprises.
Points to check before ordering
- Drilling diameter compatible with D8 mm rods on your surface (concrete, plasterboard, brick, timber)
- Type of ceiling and wall: a suitable wall plug is required, not supplied with this kit
- Actual ceiling height, to determine whether an extended nut connector will be needed between two rods
- Number of kits required depending on the length of your hood or extraction box: to be determined according to your installation, as this kit covers 8 fixing points
- Weight of the hood or extraction box to be suspended, to confirm the number of fixing points required
