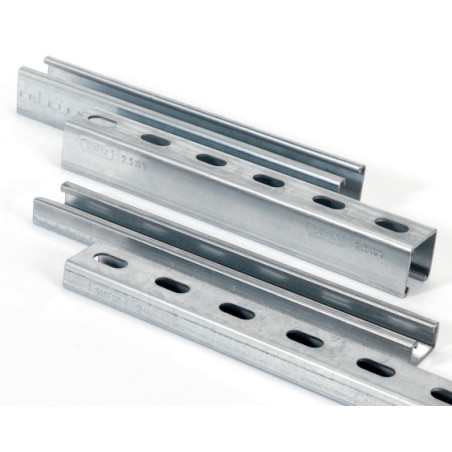

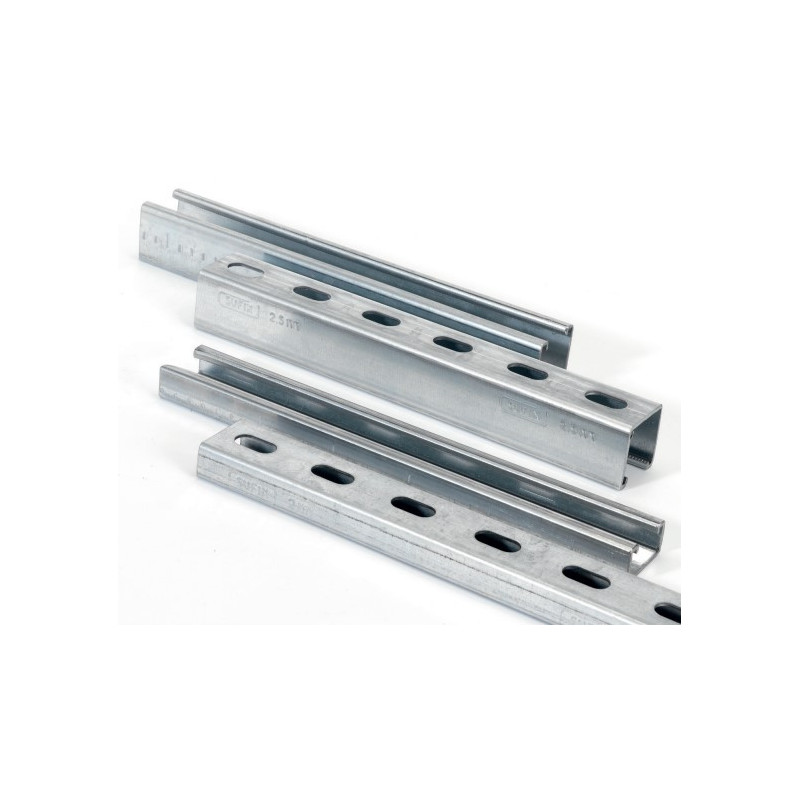

Strut mounting rail

strut rail
strut rail

The perforated slotted strut channel in Sendzimir galvanised steel supports your ducting, pipework and ventilation equipment with complete stability. Made in France, available in 1 or 2 metre lengths and two sections to suit your load.

  • Material: Sendzimir galvanised steel (SZ)
  • Length: 1 metre or 2 metres
  • Dimensions: 41 x 21 mm or 41 x 41 mm, 2 mm thickness
  • Perforations and cm graduation along the full length
  • Made in: France, 1 year warranty
Selected length
Dimension
In stock
Quantity
12.00 Tax excluded
14,4 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


Perforated slotted strut channel: the heavy-duty support for your ventilation installations

The perforated slotted strut channel is a Sendzimir galvanised steel profile designed to support ducting, pipework and ventilation equipment under heavy loads. Available in 1 or 2 metre lengths, it comes in two sections to suit your site requirements.

On site, this strut channel quickly becomes the anchor point for the whole installation: suspended extraction fan box, galvanised ducting, cable tray. Its continuous perforation takes your fixings wherever you need them, with no extra drilling required, and the slotting makes it easy to adjust height or angle.

Technical specifications

Specification Value
Material Sendzimir galvanised steel (SZ)
Type Perforated slotted strut channel
Available lengths 1 metre or 2 metres
Section 1 41 x 21 mm, 2 mm thickness
Section 2 41 x 41 mm, 2 mm thickness
Graduation Continuous, in centimetres, along the side
Made in France
Warranty 1 year
Weight 5 kg

Why choose this strut channel for your installation

This galvanised channel is built to last: Sendzimir galvanising protects the steel from corrosion, a real advantage in commercial kitchens where ambient humidity and grease quickly damage poorly protected metal. The distance between one end of the channel and the first perforation is always identical, which makes it easy to align several lengths end to end on the same installation.

Installing your ventilation equipment at height frees up floor or roof space, and makes access for cleaning and maintenance easier. This is particularly useful for an extraction fan box or a professional mechanical ventilation system that needs regular inspection.

Which section to choose: 41x21 or 41x41?

Both sections share the same 2 mm thickness and the same perforation spacing, but the 41 x 41 mm section offers greater rigidity than the 41 x 21 mm, making it better suited to heavier loads or longer spans. The 41 x 21 mm section is suitable for lighter fixings. As no rated load data is given for this product, please ask our team for advice if you are unsure about sizing your support.

Points to check before ordering

  • Channel length required for your span: 1 or 2 metres, joined end to end if needed
  • Section suited to the weight to be supported: 41 x 21 mm for light loads, 41 x 41 mm for greater rigidity
  • Compatibility with your existing brackets or support consoles
  • Available space for installation at height (ceiling, wall, suspended ceiling)
  • Number of channels needed to distribute the load correctly along the installation

Frequently bought with

You'll find all related products at the bottom of the page.

Product Details

Ventilsogood
railperfcranté
Selected length
Dimension
Products
Fastening
Manufacturing
Made in France
Warranty
1 year
0657968491359

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What is the difference between the 41x21 and 41x41 strut channel?

Both sections of the strut channel are made from Sendzimir galvanised steel, 2 mm thick, with the same perforation and continuous graduation. The 41 x 41 mm section is more rigid and better suited to heavier loads or longer spans, while the 41 x 21 mm is sufficient for lighter fixings.

Can the strut channel be cut on site?

The product data does not specify a recommended cutting tool or method. The channel is perforated along its full length with continuous centimetre graduation, which makes it easier for a suitably equipped professional to mark up and cut on site.

Is this channel suitable for fixing a hood or ventilation fan box?

Yes, this perforated slotted strut channel is designed to support heavy loads such as ducting, pipework or ventilation equipment. It allows wall or overhead installation, which is practical for an extraction fan box or a commercial kitchen hood.

What length of strut channel should I choose?

The channel is available in 1 or 2 metre lengths. For a longer span, channels can be installed end to end: the distance from the end to the first perforation is always identical, which makes it easy to align several channels.

Is the strut channel resistant to corrosion?

The channel is made from Sendzimir galvanised steel (SZ), a treatment that protects the metal from corrosion. It is made in France and comes with a 1 year warranty.
