Network Hardware Kit, 6–10 m

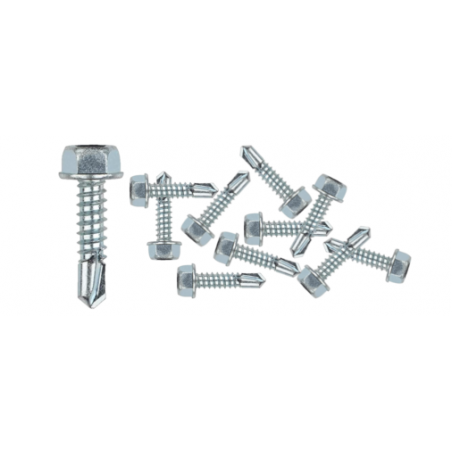

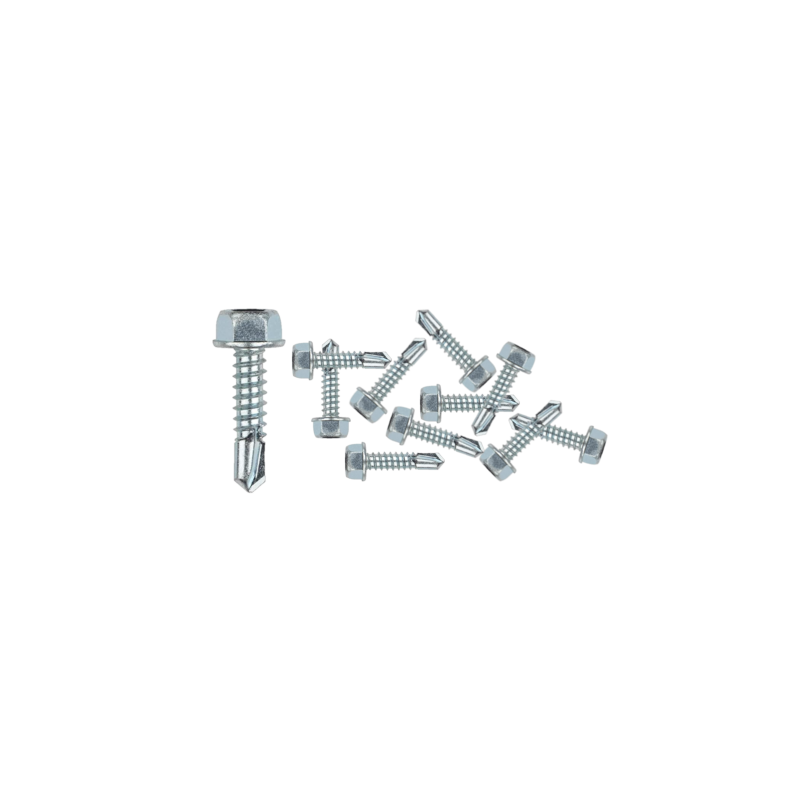

The Network Hardware Kit, 6 à 10 m includes 30 small self-drilling screws, D4.8 mm, for securely fixing together the elements of your galvanised ventilation ductwork, enough to cover 6 to 10 metres of ductwork depending on the fittings installed.
- Quantity: 30 self-drilling screws, D4.8 mm
- Reference dosage: 3 screws per fitting (e.g. duct onto a spigot)
- Coverage: 6 to 10 m of ductwork depending on the number of connections
- Kit weight: 0.1 kg
- Sealing not included (see the related screw and sealing kit)
Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments
Network Hardware Kit, 6 à 10 m, for professional ventilation ductwork
The Network Hardware Kit is a set of self-drilling screws designed to fix together the elements of a professional ventilation duct network: ducts, spigots, elbows and other galvanised fittings. With its 30 screws, it generally covers 6 to 10 metres of ductwork, depending on the number of connections to assemble.
On a ventilation or extraction job, it's often the small detail that makes the difference between an installation that holds and one that leaks or twists out of shape within six months. This kit isn't anything spectacular, but it's what ensures a solid, stable fixing of your galvanised ducts, limiting the risk of them coming loose or shifting once the system is under load.
Technical specifications
| Specification | Value |
|---|---|
| Composition | 30 self-drilling screws, D4.8 mm |
| Reference dosage | 3 screws per fitting (e.g. fixing a duct onto a spigot) |
| Network coverage | 6 to 10 m, depending on the fittings used |
| Kit weight | 1 kg |
| Reference | kitvisserie |
Use and compatibility
This hardware kit is used to assemble the various elements of a galvanised ventilation duct network: ducts, spigots, elbows, dampers or diffusers. The self-drilling screws go straight through the galvanised sheet metal without pre-drilling, which speeds up installation on site. The exact number of screws needed depends on the number of connections in your network: as a guide, allow 3 screws per fitting.
Points to check before ordering
- Total length of your ductwork and number of fittings to secure (ducts, elbows, spigots, tees), to check whether 30 screws will be enough or whether a second kit is needed.
- Whether additional sealing is required: this kit contains only screws, no sealant or aluminium tape.
- Type of ductwork concerned (rigid galvanised steel) and sheet thickness, to confirm that D4.8 mm self-drilling screws are suitable for your substrate.
- Other fixing needs on the same job (fan unit, bracket, frame) that would require a dedicated kit rather than this hardware kit alone.
Pairs well with
- Aluminium tape, 50 m for sealing ductwork joints
- Sealant cartridge for ductwork joints
- Screw and sealing kit if you prefer a kit combining screws and sealing products
- Hood/Fan Box Installation Kit: threaded rods and hardware for fixing the hood or extraction fan box
You might also like
8 other products in the same category:
Customers who bought this product also bought:
Frequently asked questions
What is this hardware kit for and which type of ductwork can it be used on?
This kit is used to fix together the various elements of a galvanised ventilation duct network: ducts, spigots, elbows and other fittings. The 30 self-drilling screws, D4.8 mm, go straight through the galvanised sheet metal, making installation on site easier without any pre-drilling.
How many screws are needed per fitting?
As a guide, allow 3 screws per fitting, for example to fix a duct onto a spigot. To join a connection between 2 elements, allow 6 screws in addition to the joint and aluminium tape. This reference figure helps you estimate how many kits you'll need depending on the number of connections in your network.
Will this kit cover my whole ventilation network?
The kit covers between 6 and 10 metres of ductwork, depending on the number of fittings to assemble. The more connections your network has, the shorter the length a single kit will cover.
Does the kit include sealing for the joints?
No, this kit contains only screws, no sealant or aluminium tape. For sealing the joints, pair it with the aluminium tape or the sealant cartridge, or choose the screw and sealing kit which combines all three.
