Speed controller for 12/12 motor or TH3640 220V

Speed controller with light for a snail motor or hood enclosure for a professional ventilation system

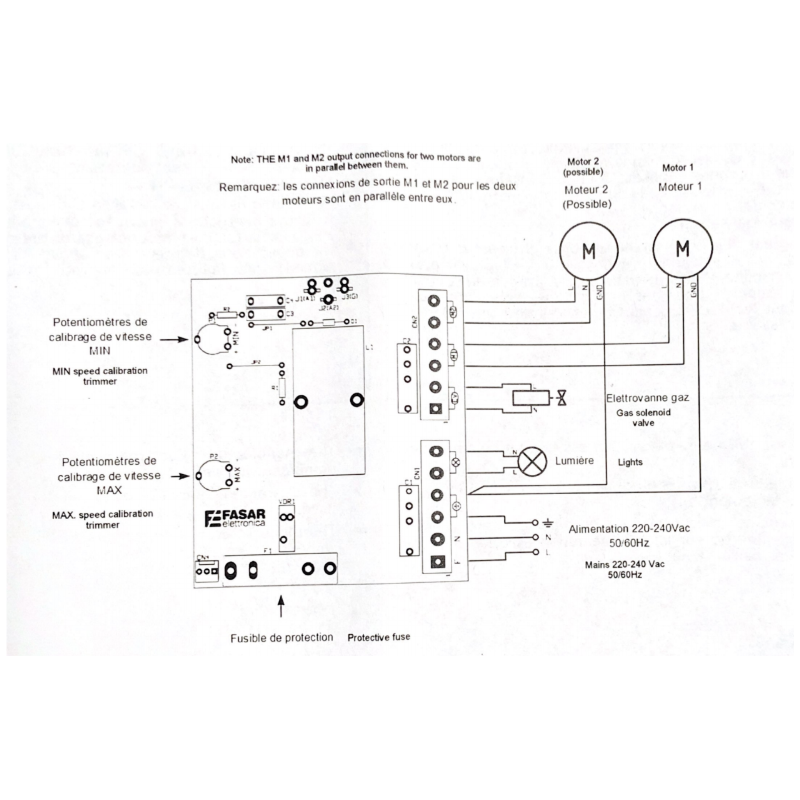

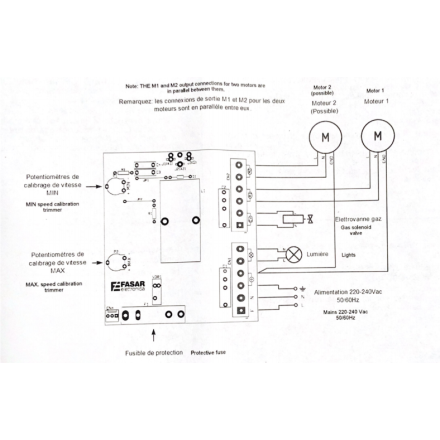

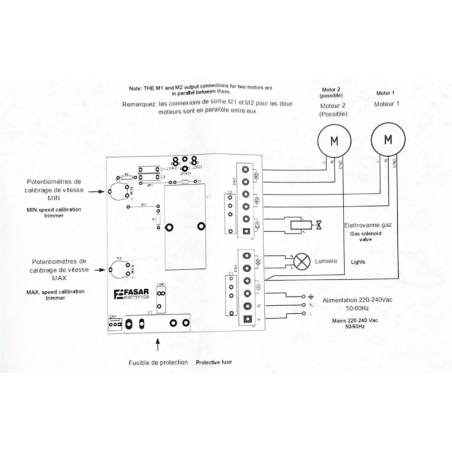

8A Kitchen Dimmer Circuit Diagram

Speed controller with light for a snail motor or hood enclosure for a professional ventilation system

8A Kitchen Dimmer Circuit Diagram

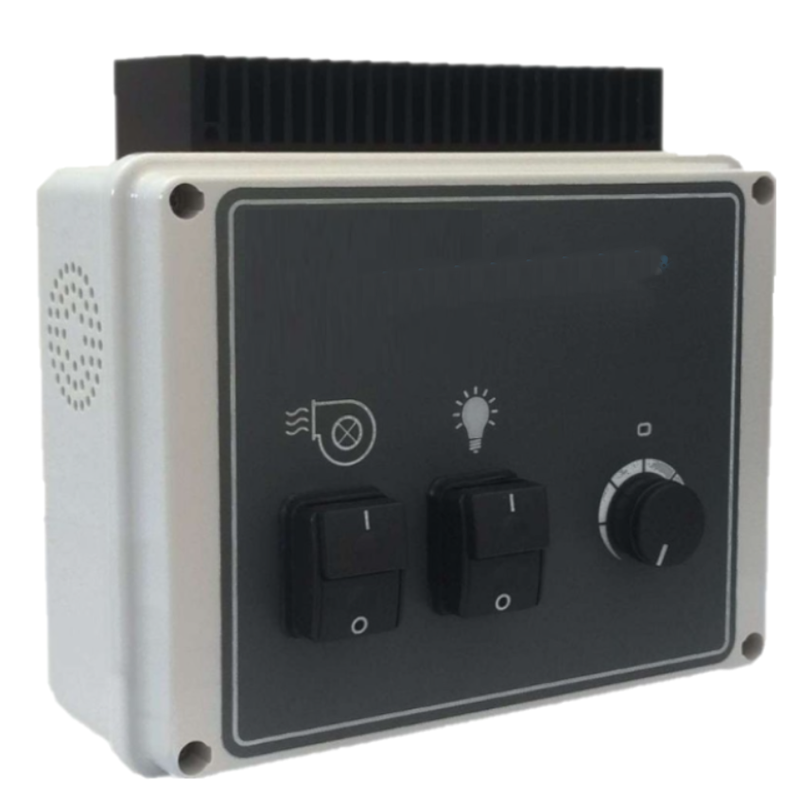

Electronic variable speed drive For motorized enclosures, types 10/10 and 12/12, or Roof fan T40

- Dimensions: W 150 x D 100 (D 110 with buttons) x H 120 mm
- With potentiometer
- Motor on/off button
- Light on/off button
- Power supply: 230 V - 8 A
- Option to connect an electronic ballast (EVG)

Find all related products at the bottom of the page!

Quantity

94.00 Tax excluded

112,8 € TTC

In stock

Fast delivery

Advisers 5 days a week

Payment in 3 or 4 instalments

Description
Product Details

Voltage regulator for single-phase industrial motors, voltage controller for industrial ventilation

Benefits of the Ventilsogood 8A 230V single-phase voltage regulator for 10/10 and 12/12 motors:

• The 8A 230V voltage regulator is perfectly suited for 10/10 and 12/12 single-phase snail-type centrifugal motors with double-ear mounting, roof turrets, and motorized exhaust hoods
• This voltage regulator is designed for range hood motors, roof turrets, and exhaust units rated at less than 8 amps
• Voltage regulator for professional single-phase range hood motors rated at less than 700 watts
• The speed controller’s on/off button provides complete and immediate control over the snail-type motor or exhaust box
• The 8A 230V single-phase voltage regulator improves the motor’s energy efficiency by adjusting the supply voltage to the centrifugal motor or extraction fan as needed
• The voltage regulator helps protect the commercial range hood motor from overloads and voltage spikes, extending the equipment’s service life.
• The regulator allows you to adjust the speed of the screw fan motor according to your needs
• The voltage regulator allows you to connect a light and control it with a dedicated button
• The controller allows you to connect a gas solenoid valve (EVG)

Find related products at the bottom of the page!

Product Details

Brand Fasar

Reference Var8A10-12

Manufacturing: Made in Italy
Warranty: 1 year
Package weight: 1 kg
Food: 230V Mono
Drive Type: Voltage Regulator

ean13 0657968860339
