Electronic variable speed drive ECO for Professional Restaurant Range Hoods

  • On sale!

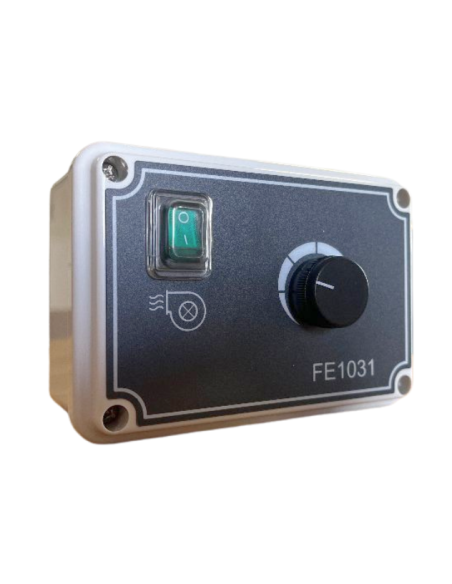

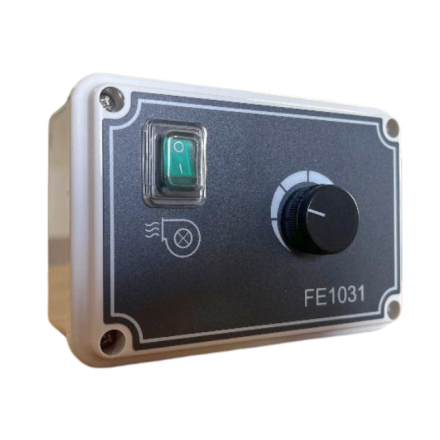

FASAR variable-speed drive

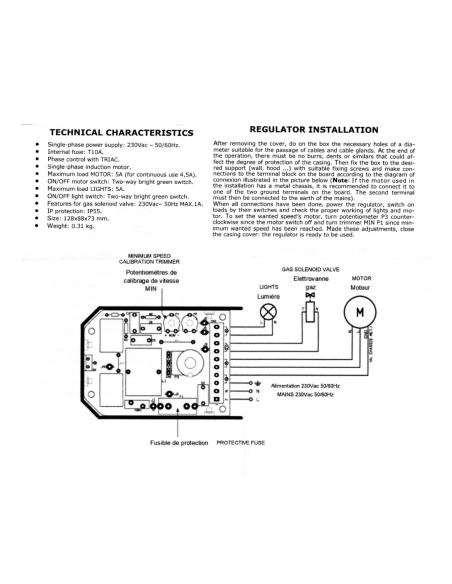

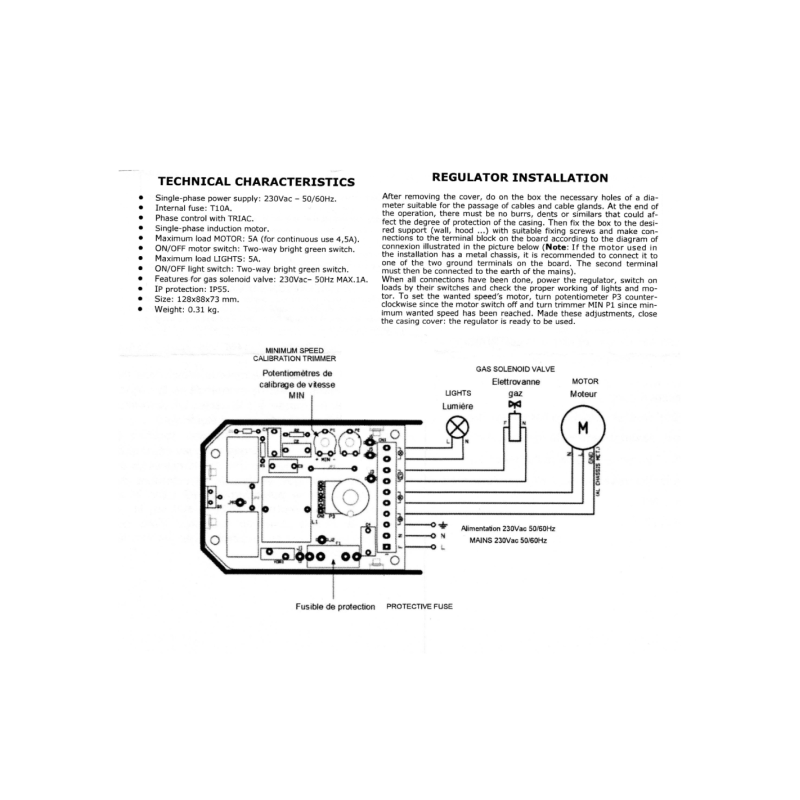

Schematic for a 4.5A variable-speed drive (FE229 FASAR)
FASAR variable-speed drive
Schematic for a 4.5A variable-speed drive (FE229 FASAR)

The Fasar ECO fan speed controller adjusts the speed of your double-inlet centrifugal fan or small extraction fan box up to 4.5 A.
Compatible with motors and fan boxes type 7/7, 7/9, 8/9.

  • Power supply: 230 V single phase
  • Maximum current: 4.5 A
  • Maximum power: 450 W
  • Type: voltage speed controller with potentiometer
  • Manufactured in: Europe (Italy)
Out of stock
Quantity
55.00 65.00 Tax excluded
66 € TTC
Out of stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The Electronic variable speed drive ECO for Professional Restaurant Range Hoods is a single-phase 230 V voltage controller designed to drive a double-inlet centrifugal fan or small extraction fan box for a commercial kitchen hood, up to 4.5 A, with simple adjustment via potentiometer.

In a commercial kitchen, you don't run the extraction at full speed all day. Service peaks come and go, but between peaks, a motor running flat out consumes energy and makes noise for nothing. This ECO speed controller lets you reduce the motor's supply voltage to match actual use, while still giving you full control to increase power when the plancha or fryer are working hard. The ECO suffix here indicates good value for money within the range, while the Base version indicates compatibility with standard motors on the market.

Technical specifications of the ECO fan speed controller

Specification Value
Reference Var4.5AECO
Brand Fasar
Controller type Voltage speed controller
Power supply 230 V single phase
Maximum current 4.5 A
Maximum power 450 W
Manufactured in Europe (Italy)
Warranty 1 year
Package weight 500 g

Which hood motor is this speed controller suitable for?

This voltage controller is designed for single-phase double-inlet centrifugal fans and small motorised fan boxes type 7/7, 7/9 or 8/9, with a rated current below 4.5 A. It features a speed adjustment potentiometer and an on/off switch, giving complete and immediate control over the motor. An output also allows you to connect a gas solenoid valve (GSV), useful for cutting off the gas supply if ventilation stops.

Please note: this speed controller is intended for single-phase 230 V use only. A three-phase 380/400 V motor requires a suitable variable frequency drive, not a voltage speed controller.

Installation and wiring

The speed controller is wired between the mains supply and the hood or extraction fan box motor. Electrical connection must be carried out by a qualified professional: this is in fact a condition for the warranty to apply in full.

Points to check before ordering

  • Check your motor's rated current: it must be 4.5 A or lower, otherwise the speed controller will not hold the load over time.
  • Confirm that your installation is indeed 230 V single phase: a three-phase motor is not compatible with this type of controller.
  • If you need to control a gas solenoid valve, make sure its inrush current is compatible with the controller's GSV output.
  • A motor that hums or struggles to start at very low speed is not necessarily a fault with the controller: stay within the adjustment range recommended in your motor's documentation.

To pair with

Need a different amperage or a smoke extraction function? Browse the full range in our single-phase 230V speed controller category.

Product Details

Fasar
Var4.5AECO
Manufacturing
Made in Italy
Warranty
1 year
Package weight
500 gr
Food
230V Mono
Drive Type
Voltage Regulator
0657968660298

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

Is this ECO fan speed controller suitable for my hood motor?

It is suitable for single-phase 230 V double-inlet centrifugal fans with a rated current not exceeding 4.5 A, typically small sizes such as 7/7, 7/9 or 8/9 and small motorised fan boxes. Always check the current shown on your motor's nameplate before ordering.

Can this speed controller be used with a 400V three-phase motor?

No. This Fasar voltage speed controller is designed exclusively for a single-phase 230 V supply. A three-phase 380/400 V motor requires a suitable variable frequency drive, not a voltage speed controller like this one.

Can a gas solenoid valve be connected to the speed controller?

Yes, this ECO fan speed controller includes a connection option for a gas solenoid valve (GSV), which automatically cuts off the gas supply if ventilation stops.

Who should carry out the electrical connection of the speed controller?

The electrical connection of the speed controller must be carried out by a qualified professional. This is a condition for benefiting fully from the 1 year warranty on this product.

Why does my motor hum at low speed?

Humming at very low speed can occur if the setting falls below the range recommended by the motor manufacturer. There is no universal threshold: refer to your motor's documentation to find its minimum operating speed.
