11A 230V dimmer. 4 speeds + smoke extraction at 400°

230 V Dimmer + Smoke Exhaust Push Button
230 V Dimmer + Smoke Exhaust Push Button
Single-phase speed controller for a 4-position ventilation turret compliant with smoke exhaust standards
230 V Dimmer + Smoke Exhaust Push Button
230 V Dimmer + Smoke Exhaust Push Button
230 V Dimmer + Smoke Exhaust Push Button
Single-phase speed controller for a 4-position ventilation turret compliant with smoke exhaust standards
230 V Dimmer + Smoke Exhaust Push Button

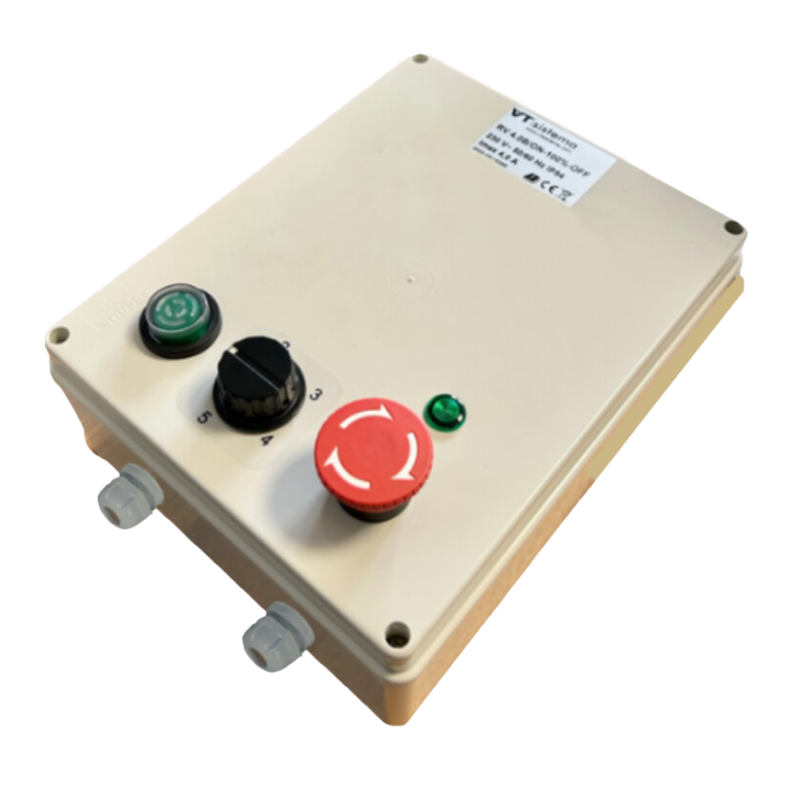

Electronic variable speed drive For 230V 400° roof-mounted turret/2H or motorized housing for professional range hoods

Compatible with most exhaust fans < 7 amps and single-phase “snail” motors or motorized housings.

- Autotransformer speed controller

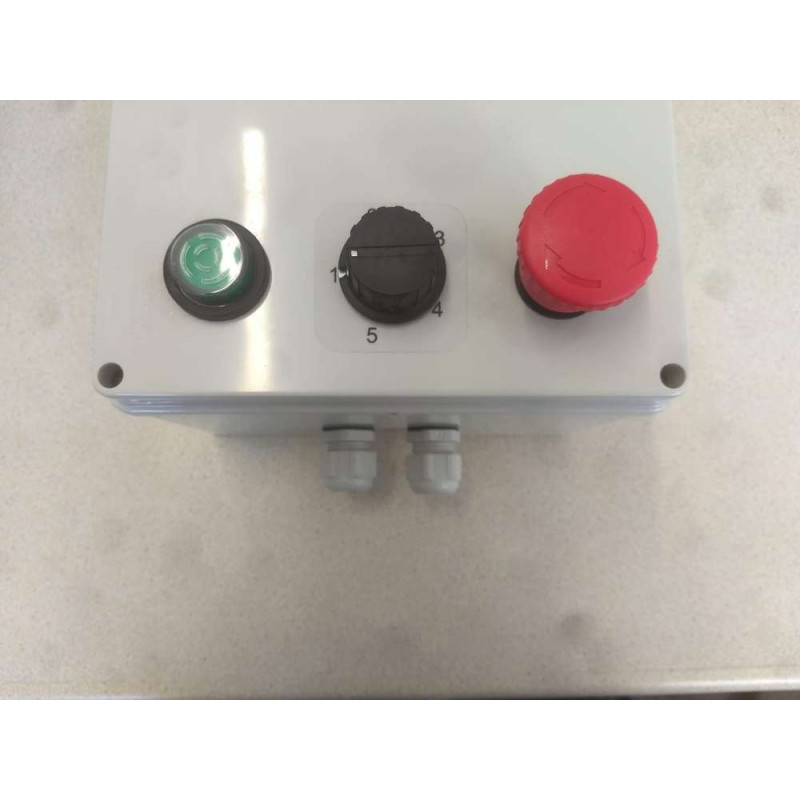

- Turret on/off button + 4 turret speed settings
- Power supply: 230V - 11A - IP54

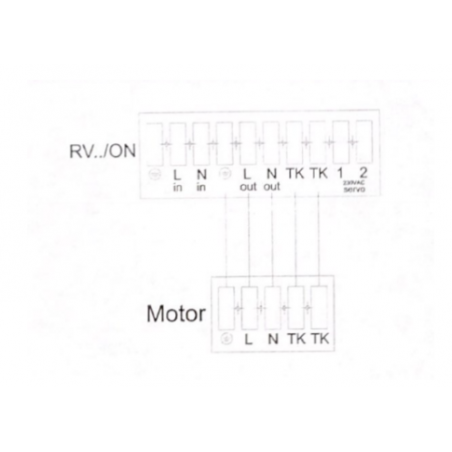

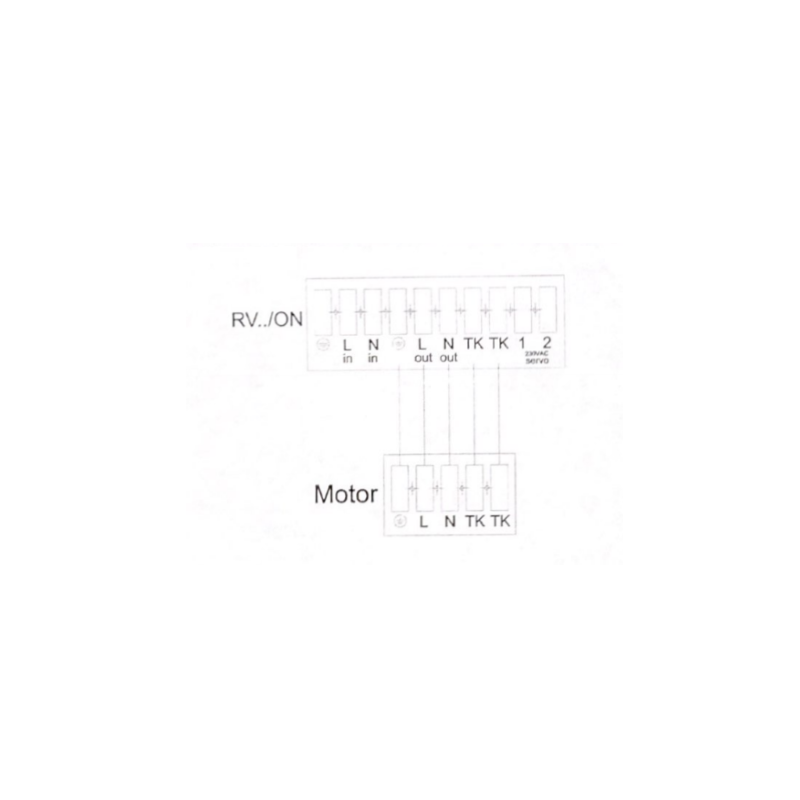

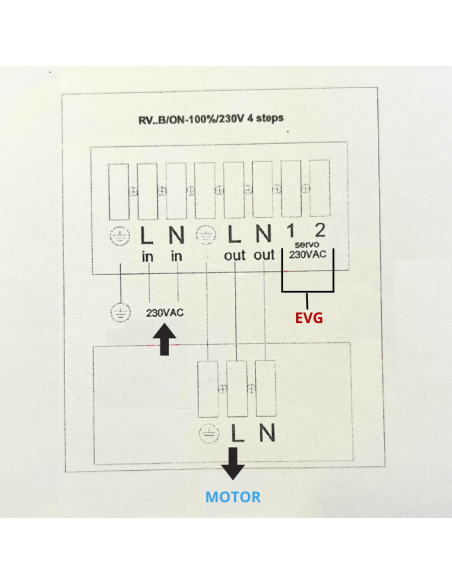

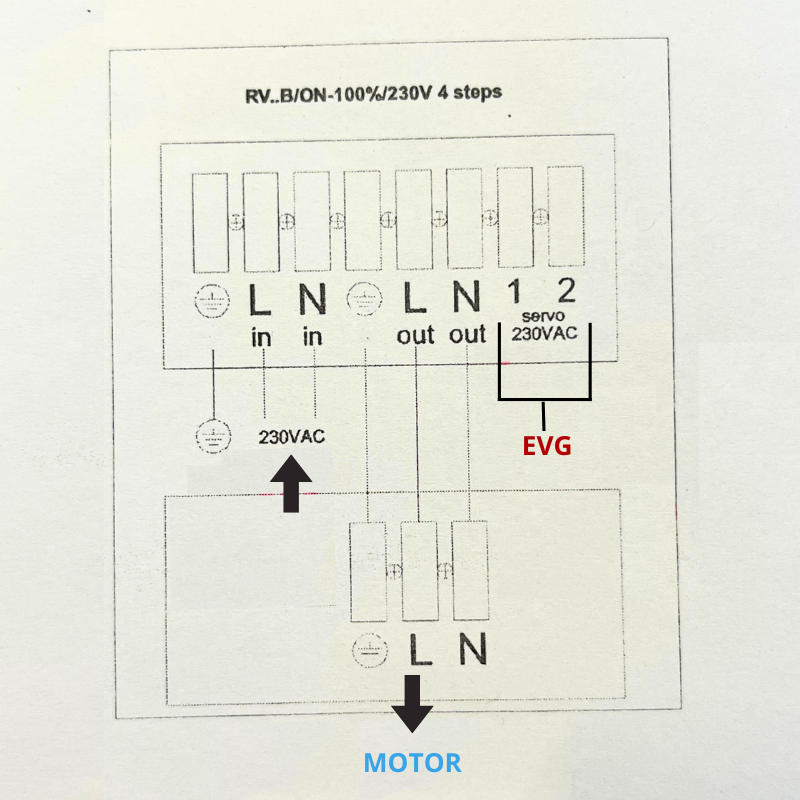

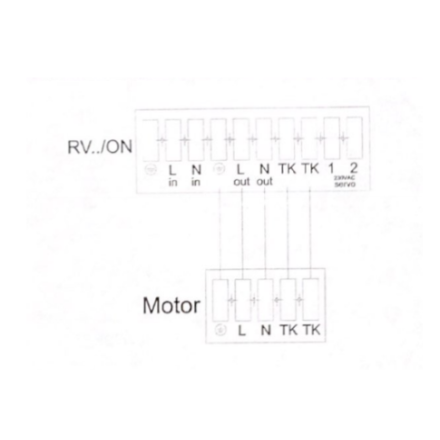

- Option to connect an EVG “see servo 1-2 wiring diagram”
- Compatible with 400° smoke exhaust system standards/2H F400 thanks to its emergency stop button
- Dimensions: W 200 x D 130 (excluding buttons) x H 250 (excluding cable glands)
- Provide electrical protection for the control panel

For all turrets: Prolonged use of the two lower speeds (“1” or “2”), especially in high heat, will irreparably damage the motor (overheating).

Find all related products at the bottom of the page!

In stock
Quantity
389.00 Tax excluded
466,8 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


Voltage regulator for single-phase commercial range hood motors, voltage regulator for commercial ventilation

Benefits of the Ventilsogood 11A 230V single-phase 4-position smoke extraction voltage regulator:

  • • The 230V voltage regulator is compatible with most single-phase, snail-type centrifugal dual-outlet motors, ventilation turrets, and motorized enclosures
  • • This voltage regulator is F400/120-certified (400° for 2 hours) and, when paired with a compatible motor, turret, or unit, enables smoke extraction from your commercial kitchen in the event of a fire via a “punch-button” emergency switch.
  • • The speed controller’s on/off button provides complete and immediate control over the snail-type motor or extraction unit
  • • The 11A 230V single-phase voltage regulator improves the motor’s energy efficiency by adjusting the supply voltage to the centrifugal motor or motor housing as needed
  • • The speed controller helps protect the commercial range hood motor from overloads and voltage spikes, extending the equipment’s service life.
  • • The regulator allows you to adjust the speed of the snail motor with 4 different speed settings
  • • The controller allows you to connect a gas solenoid valve (EVG).

Find related products at the bottom of the page!

Product Details

Ventilsogood
autotransfo11a
Manufacturing
Made in Europe
Warranty
1 year
Package weight
5 kg
Standard
C4 Smoke Exhaust Standard
Food
230V Mono
Drive Type
Autotransformer
0657968486591
