Compact Turbine Unit 9/9, 1.1 kW, 3,000/4,000 m³/h, 220 V, F400/120

400° chamber/2h

Enclosure with 400° smoke exhaust motor/2H

Enclosure with 400° smoke exhaust motor/2H

Enclosure with 400° smoke exhaust motor/2H

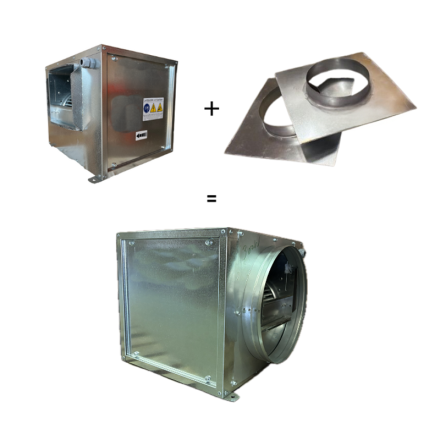

square-to-round adapter flange

Compact Unit, 3,900 m³/h, 220 V, 400° Standard/2h

Enclosure with 400° smoke exhaust motor/2H

Enclosure with 400° smoke exhaust motor/2H

Enclosure with 400° smoke exhaust motor/2H

400° chamber/2h

Enclosure with 400° smoke exhaust motor/2H

Enclosure with 400° smoke exhaust motor/2H

Enclosure with 400° smoke exhaust motor/2H

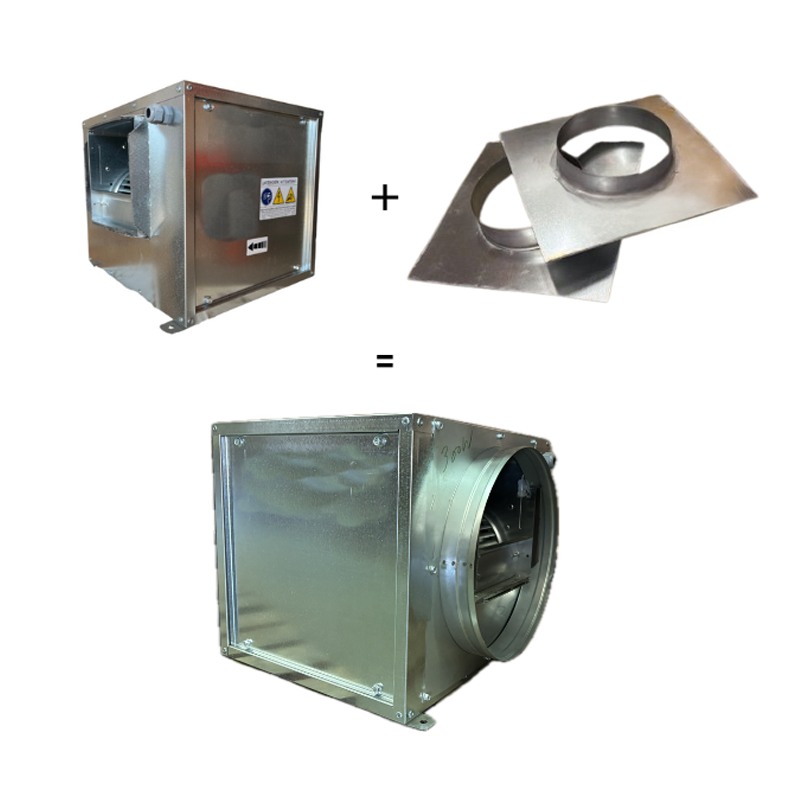

square-to-round adapter flange

Compact Unit, 3,900 m³/h, 220 V, 400° Standard/2h

Enclosure with 400° smoke exhaust motor/2H

Enclosure with 400° smoke exhaust motor/2H

Enclosure with 400° smoke exhaust motor/2H

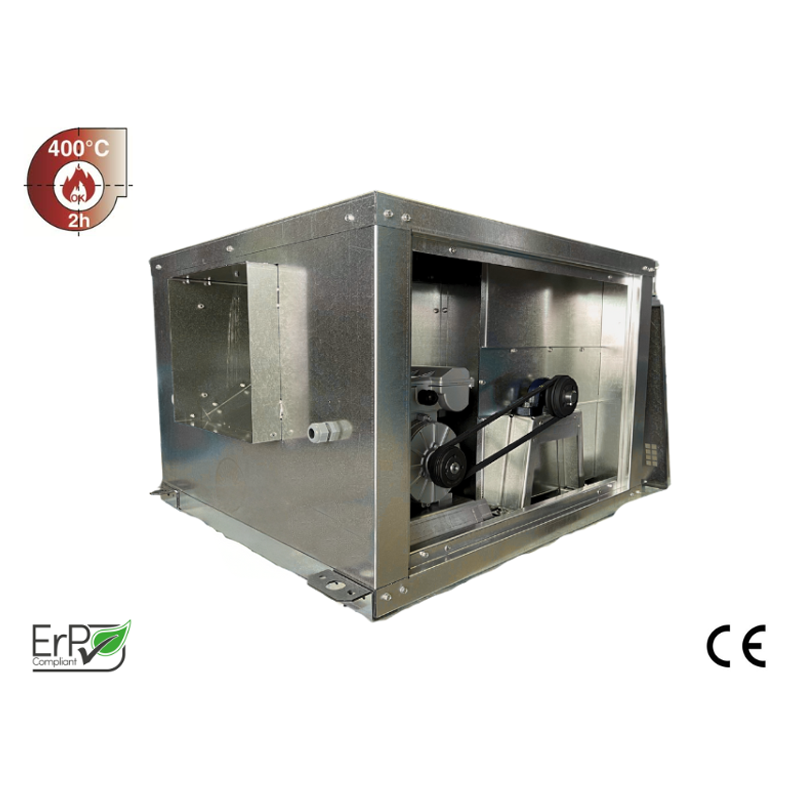

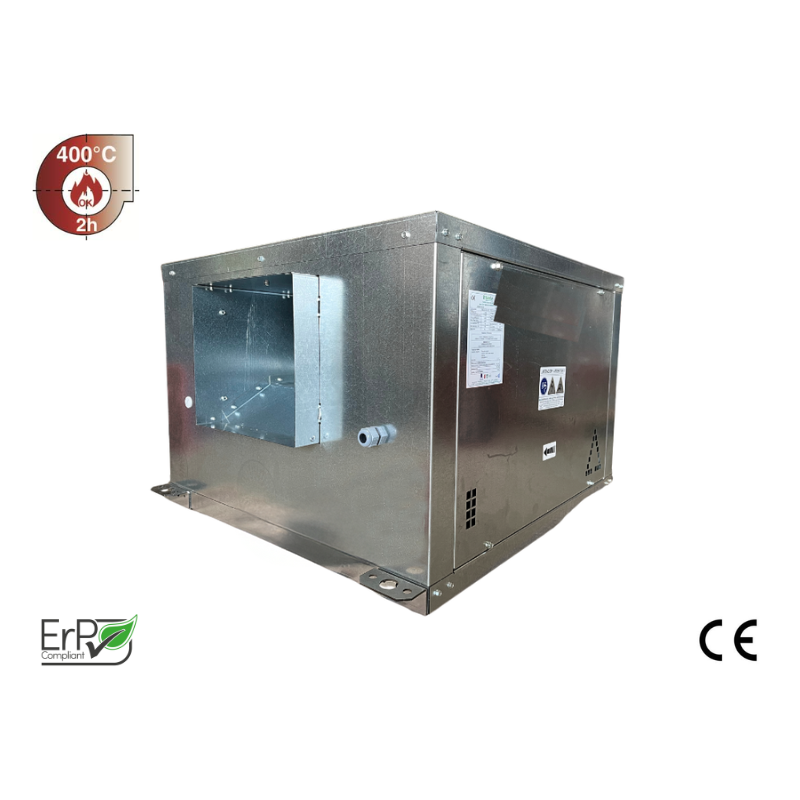

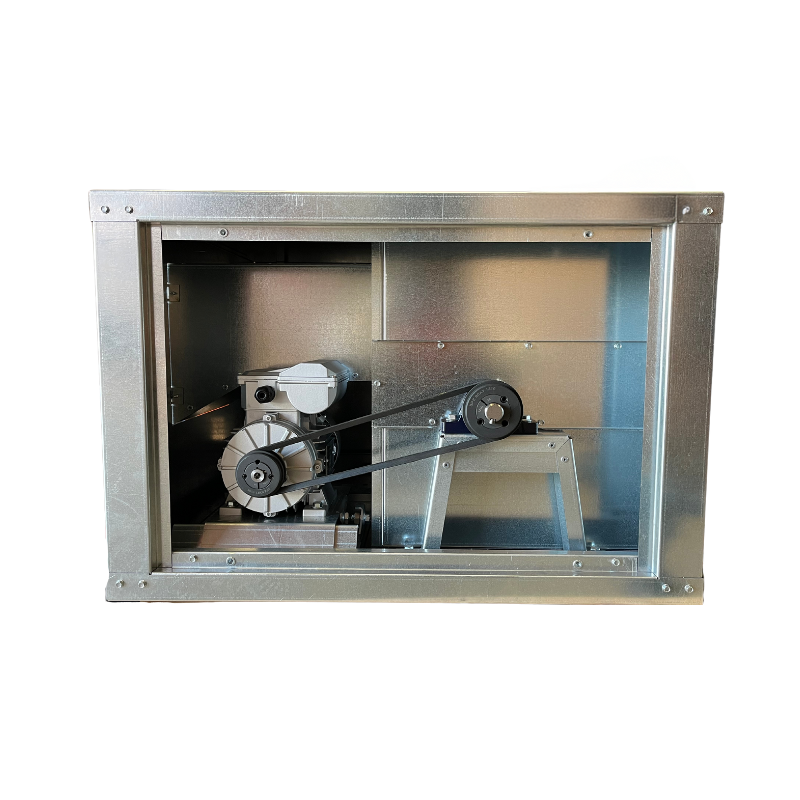

Compact motorized unit—Standard 400°/2h —9/9—220V for range hoods or C4 mechanical ventilation systems.

- Complies with Smoke Exhaust Standard 400/F120 for cooking ranges with a power rating > 20 kW (gas or electric) in open-concept kitchens.

- Supplied with 2 inlet and outlet sleeves if necessary.
- 230V, 9/9 fan, 1100W, 5A, 4P, CE

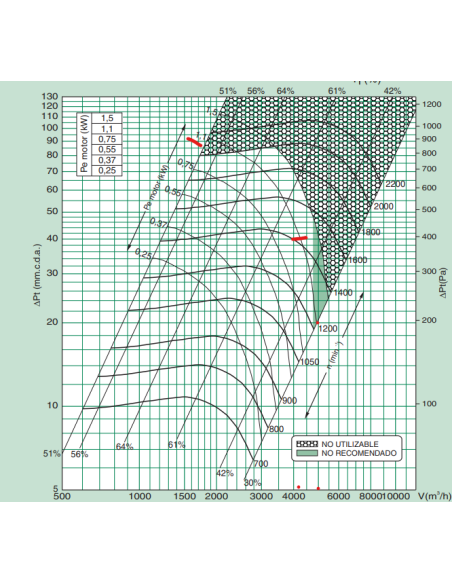

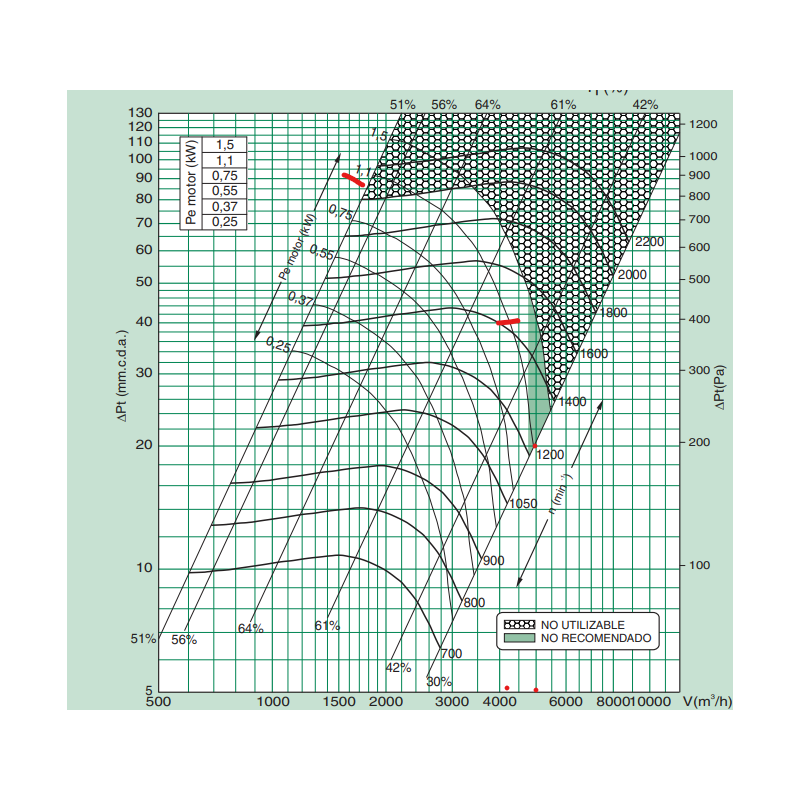

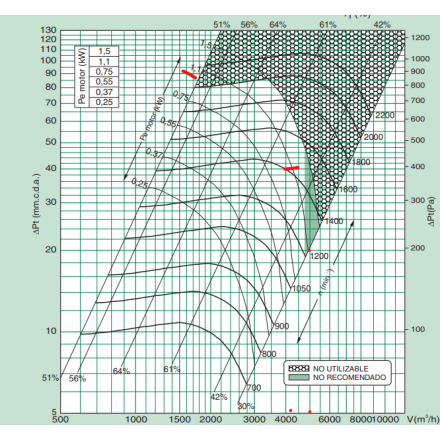

- Airflow: 4,000 m³/h at 400 PA - Max 5,000 m³/h
- RPM: 1,410

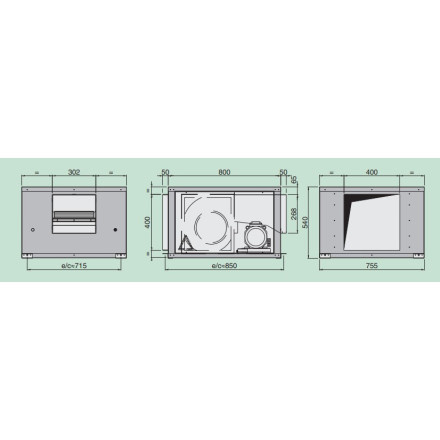

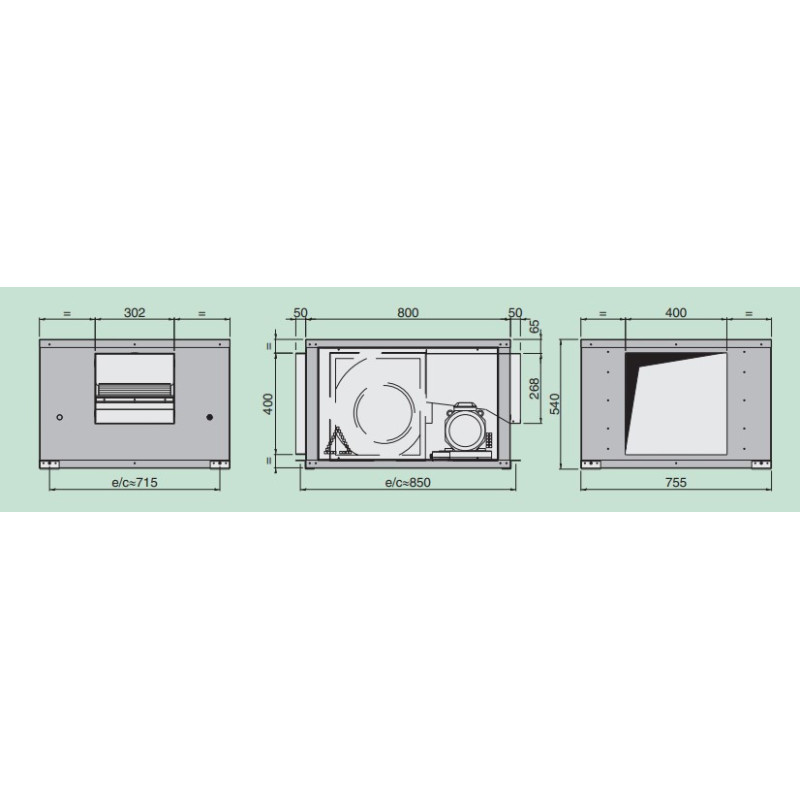

- Dimensions: W 800/850 x D 755 x H 540 mm
- 2 removable panels
- Rectangular inlet/outlet supplied with 2 sleeves (diameter of your choice)to be installed
- dB: 86
- AT-type impeller

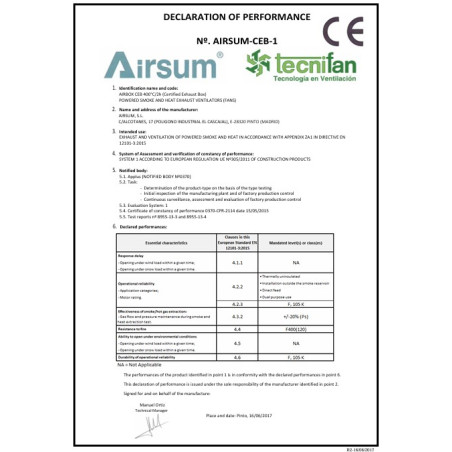

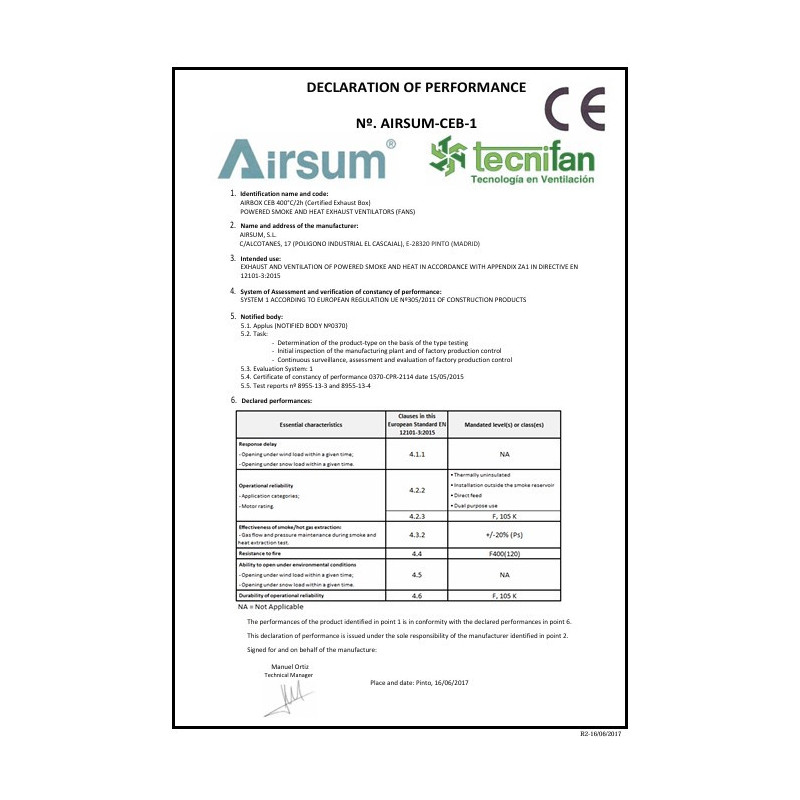

- F400° smoke exhaust standard/2H

MANUFACTURING/DELIVERY TIME: 3 WEEKS.

Similar product (not 400°)/2h:10/10 230V soundproof enclosure

Find all related products at the bottom of the page!

Fastening

Diameter

Quantity

943.00 1,228.00 Tax excluded

1131,6 € TTC

In stock

Fast delivery

Advisers 5 days a week

Payment in 3 or 4 instalments

Description
Product Details

Motorized Exhaust Unit for Stainless Steel Range Hoods in Restaurants and Professional Kitchens

Benefits ofthe C4 motorized unit Ventilsogood 3,500 m³/h single-phase for restaurant ventilation:

• Perfectly sized for a stainless steel restaurant range hood under 3 meters
• Powerful 1,100-watt motorized unit with an average extraction volume of 3,500 m³/h
• F400/120-certified motor housing (400° for 2 hours) enabling smoke extraction from the kitchen in the event of a fire

Find all related products at the bottom of the page!

Product Details

Brand Tecnifan

Reference Caisson99400

Fastening
Diameter
Manufacturing: Made in Spain
Warranty: 1 year
Package weight: 90 kg
Engine: Motorized cabinet
Standard: C4 Smoke Exhaust Standard
Food: 230V Mono
Engine power: 2,000 to 4,000 m³/h
Cabinet Type: Enclosure with motor

ean13 0657968075320
