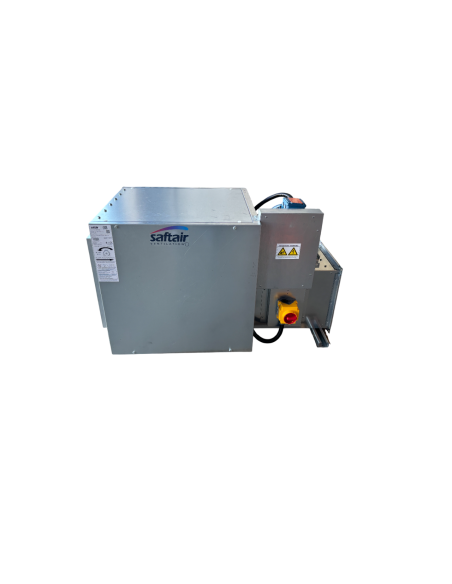

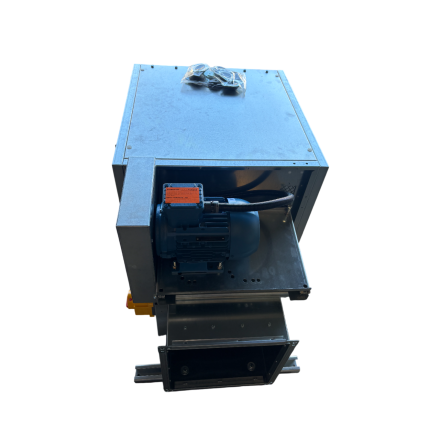

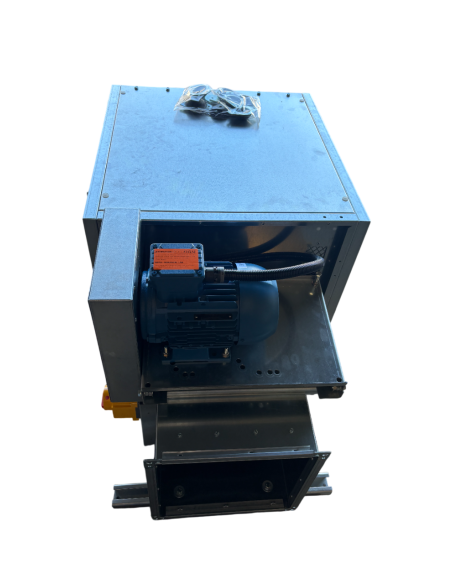

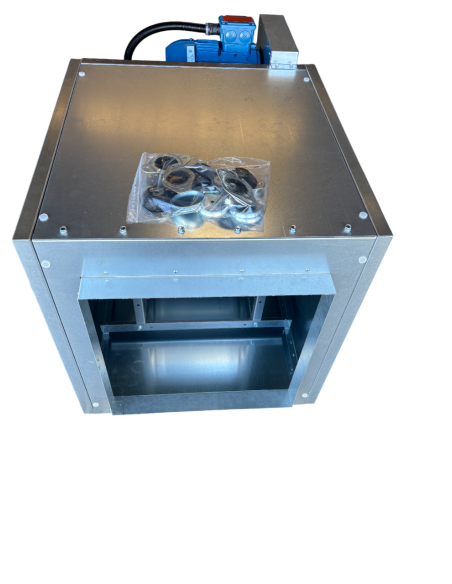

Engine Exhaust Box, 5,000/22,000 m³/h, 400°, Smoke Exhaust
Engine Exhaust Box, 5,000/22,000 m³/h, 400°, Smoke Exhaust
Dof Dor 315 Saftair Enclosure

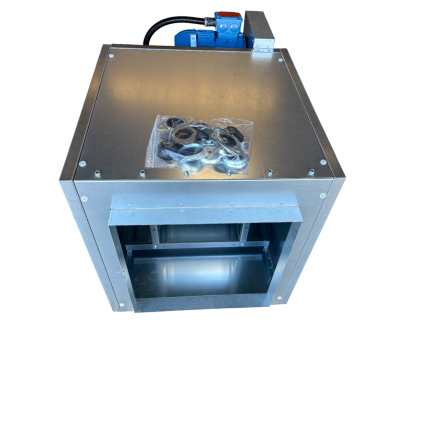

Engine Exhaust Box, 5,000/22,000 m³/h, 400°, Smoke Exhaust

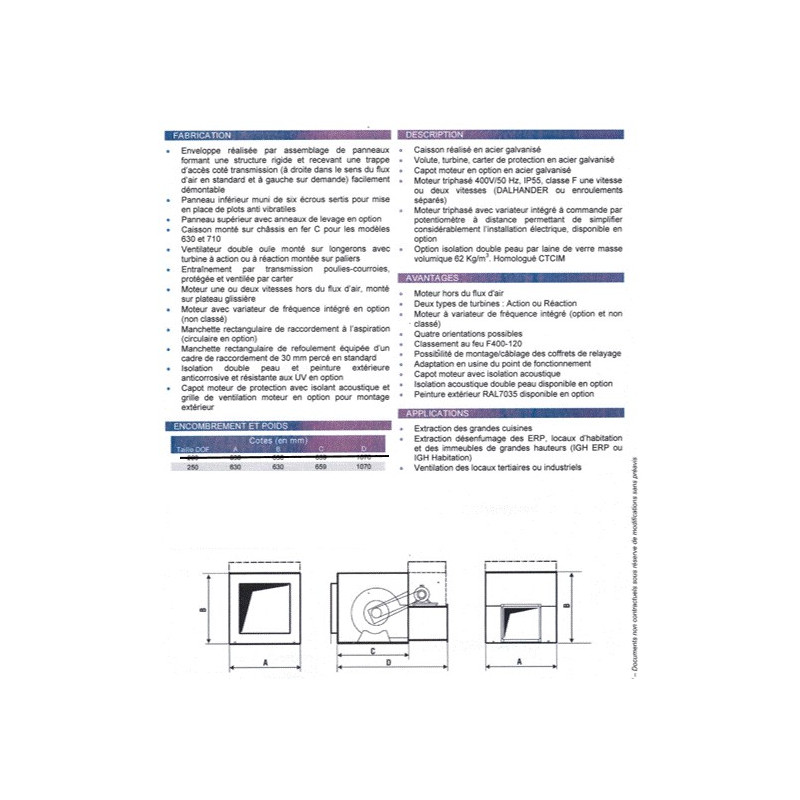

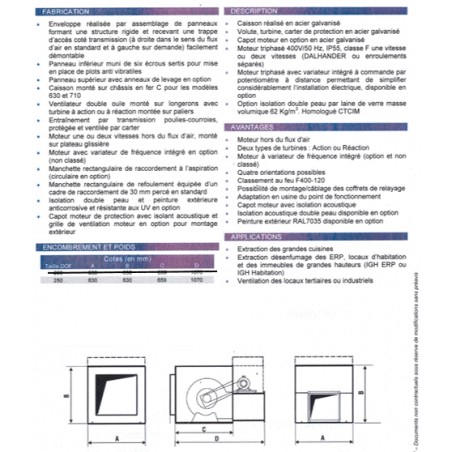

Saftair Enclosure Instructions
Engine Exhaust Box, 5,000/22,000 m³/h, 400°, Smoke Exhaust
Engine Exhaust Box, 5,000/22,000 m³/h, 400°, Smoke Exhaust
Powerful three-phase exhaust fan housing for theaters, movie theaters, and factories

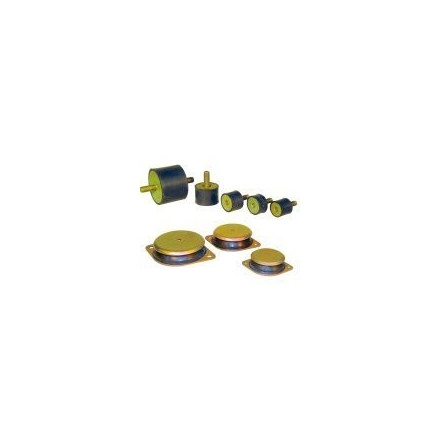

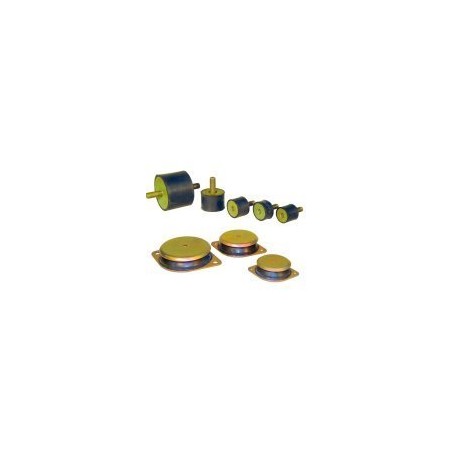

Saftair part
saftair r'chef dof dor
Engine Exhaust Box, 5,000/22,000 m³/h, 400°, Smoke Exhaust
Engine Exhaust Box, 5,000/22,000 m³/h, 400°, Smoke Exhaust
Dof Dor 315 Saftair Enclosure
Engine Exhaust Box, 5,000/22,000 m³/h, 400°, Smoke Exhaust
Saftair Enclosure Instructions
Engine Exhaust Box, 5,000/22,000 m³/h, 400°, Smoke Exhaust
Engine Exhaust Box, 5,000/22,000 m³/h, 400°, Smoke Exhaust
Powerful three-phase exhaust fan housing for theaters, movie theaters, and factories
Saftair part

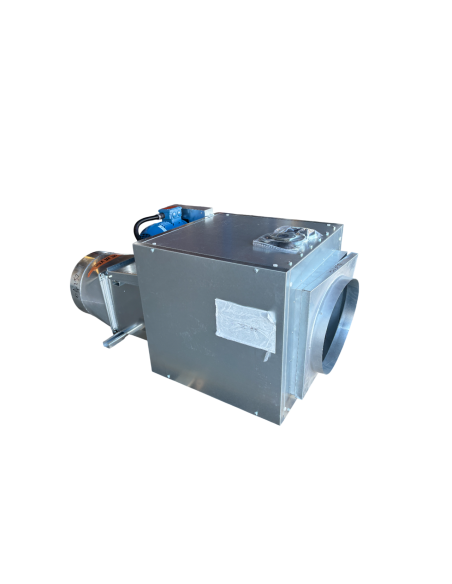

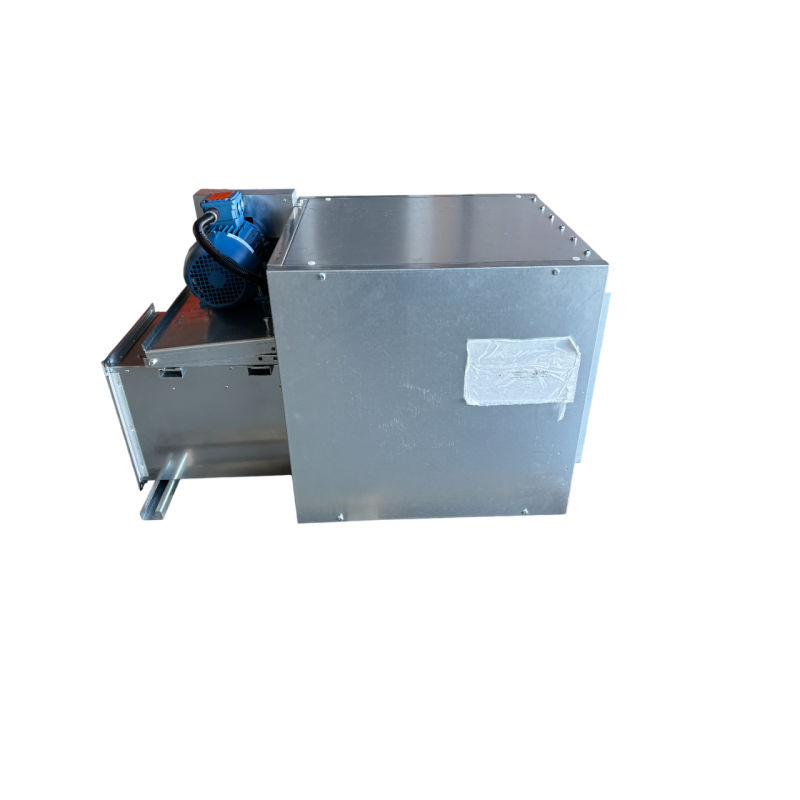

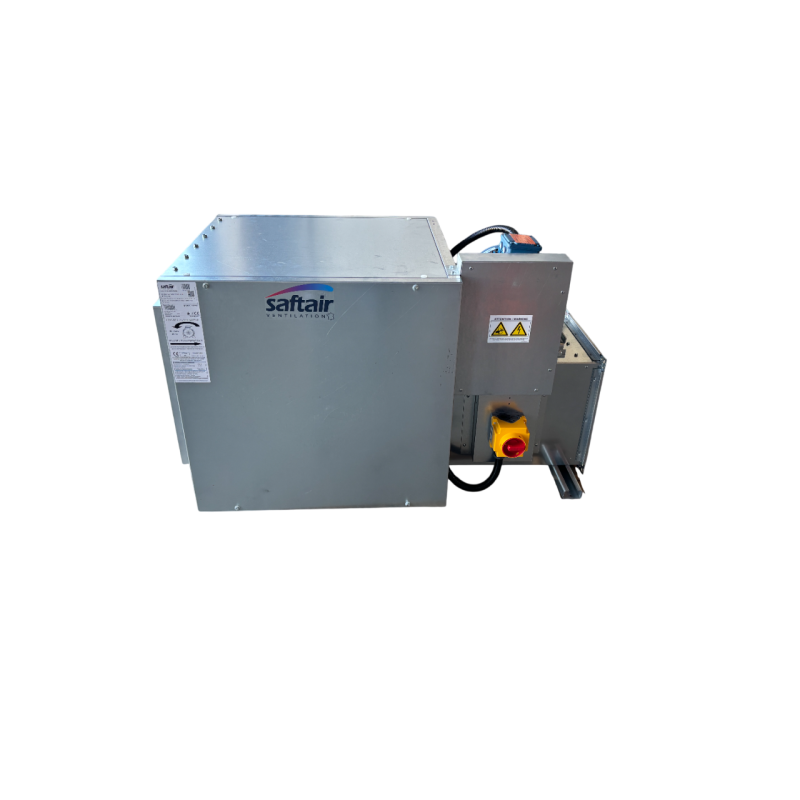

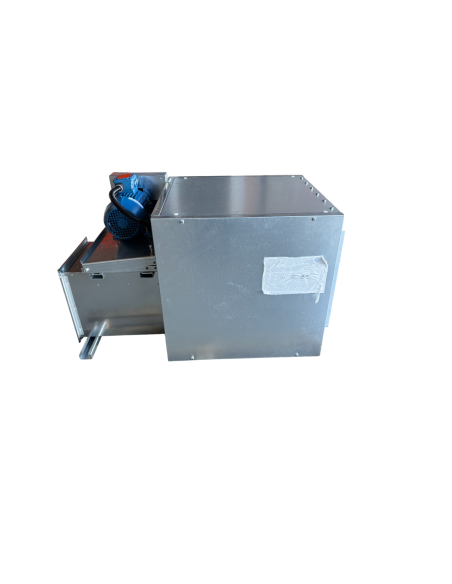

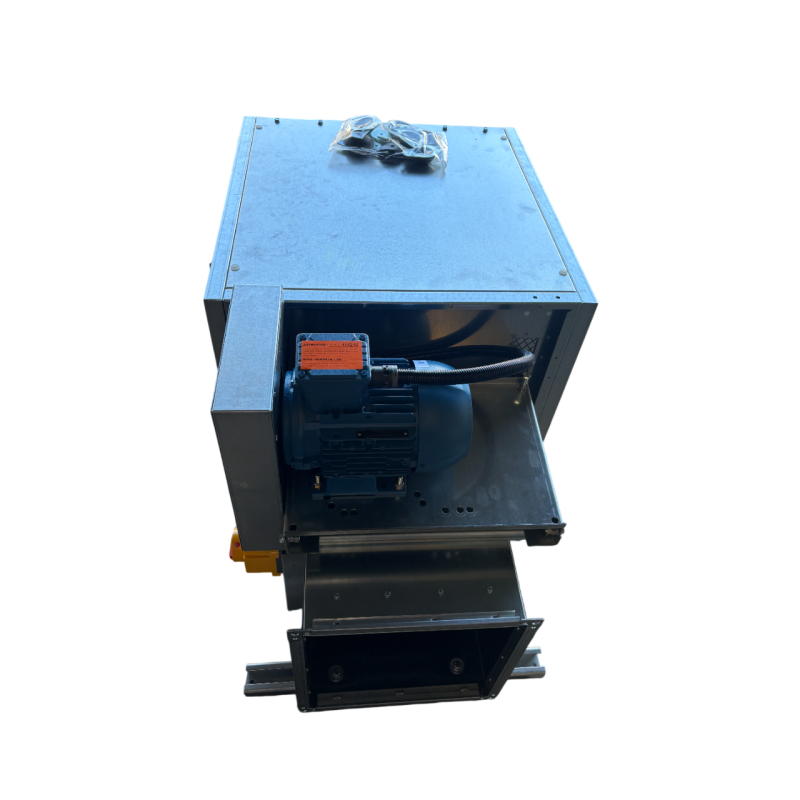

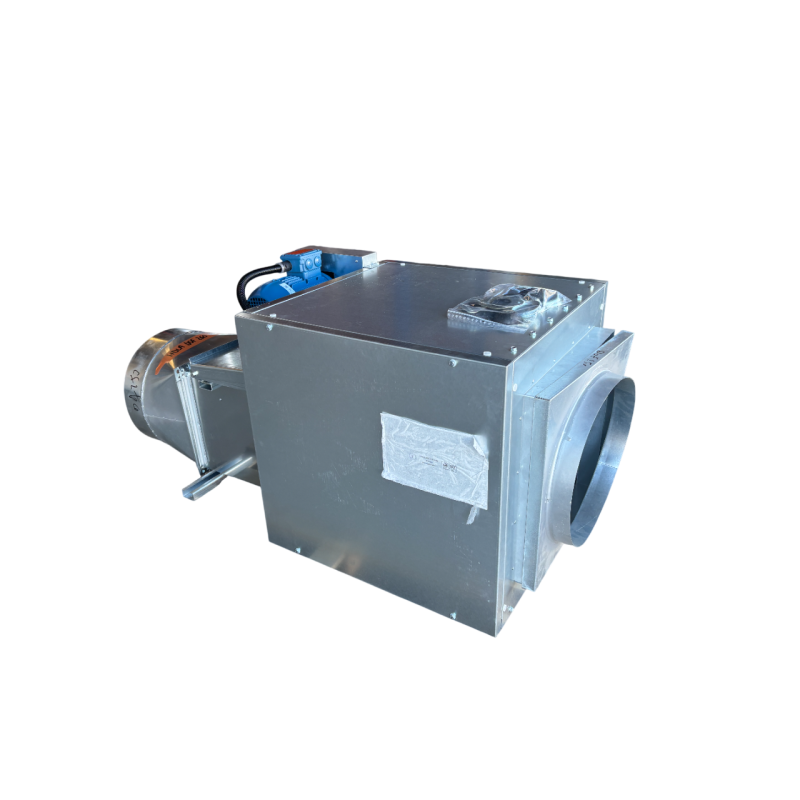

Exhaust cabinet with a motor located outside the airflow. PV 400°/2h, compliant with fire safety standards

- Dimensions (linear version): Height 630 x Width 630 x Length 1070

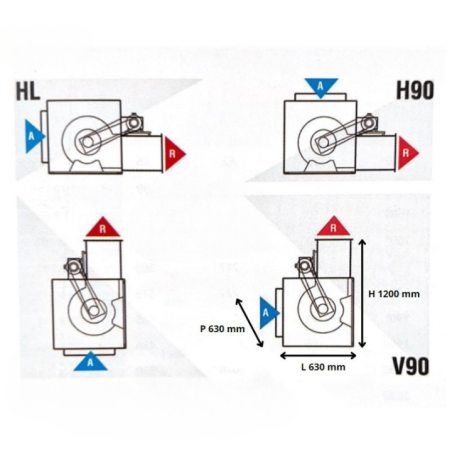

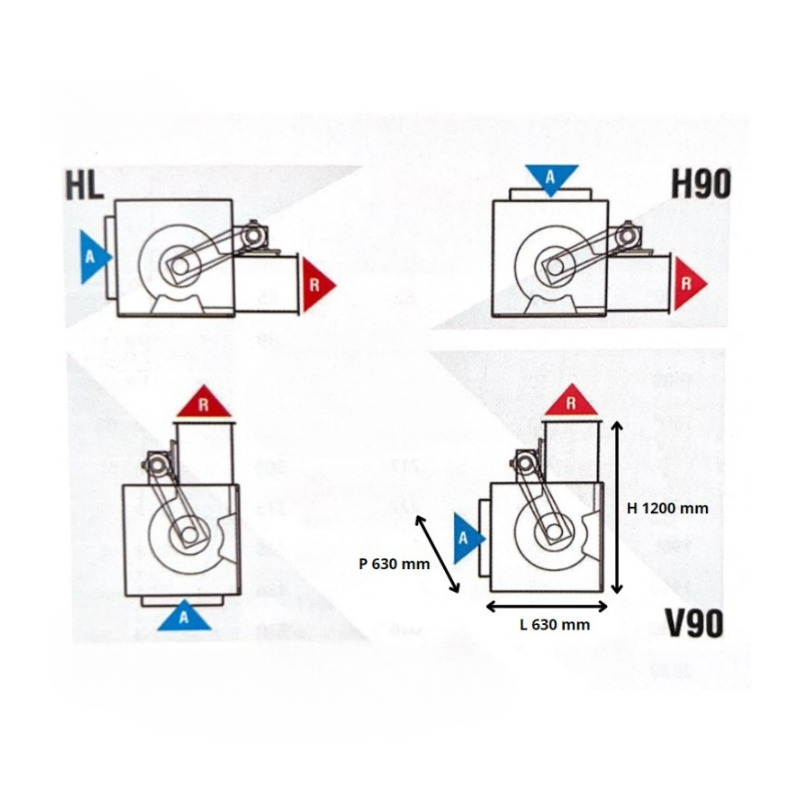

- Available in inline or 90° configurations. Can be installed horizontally or vertically

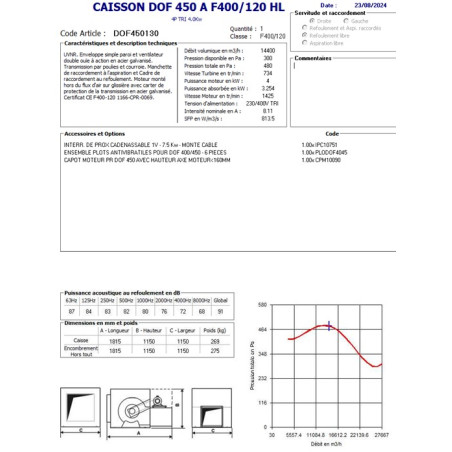

- Power: 4 kW - 1,430 rpm - 380 V - 6,000 to 22,000 m³/h depending on system constraints
- Depending on system constraints: 16,000 to 450 Pa

Each unit is custom-built; a technician will contact you after you place your order.

- Recommended duct diameters: 700,
- Sold without accessories and without the intake and discharge conversion parts.
- CE - 1-year warranty
- Can be used for exhaust ventilation in restaurant kitchen hoods and public facilities with over 20 kW of installed cooking equipment.

This product requires professional installation to qualify for the manufacturer’s warranties

Manufacturing lead time: 10 days on average; this product is custom-configured upon request based on the ductwork and equipment under the hood.

In stock
Quantity
3,280.00 Tax excluded
3936 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


Motorized exhaust unit for stainless steel range hoods in restaurants and commercial kitchens

Benefits of the three-phase Ventilsogood motor unit for restaurant ventilation:

  • • Perfectly sized for a large-capacity central stainless steel restaurant range hood
  • • Powerful exhaust unit with a very high airflow capacity
  • • Each motor unit is custom-built to fit your existing ductwork
  • • A technician will configure the exhaust unit to match your electrical system after you place your order

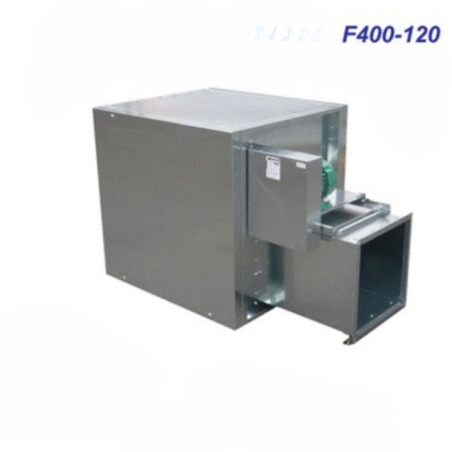

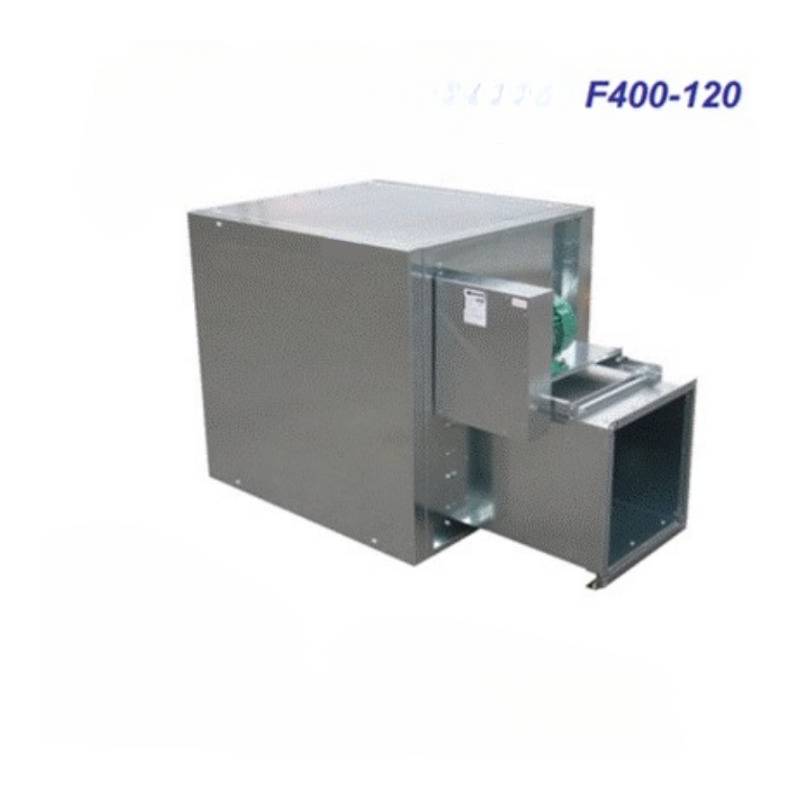

  • • F400/120-certified (400° for 2 hours) motor unit enabling smoke extraction from the kitchen in the event of a fire

This motorized unit efficiently extracts greasy vapors, smoke, and cooking odors from stainless steel range hoods in professional kitchens for restaurants, fast-food outlets, kebab shops, snack bars, food trucks, crêperies, and brasseries.

Find all related products at the bottom of the page!

Product Details

SAFTAIR
CMdof450
Warranty
1 year
Package weight
100 kg
Engine
Motorized cabinet
Standard
C4 Smoke Exhaust Standard
Food
380V Three-Phase
Engine power
More than 6,000 m³/h
Cabinet Type
Enclosure with motor
0657968620384
