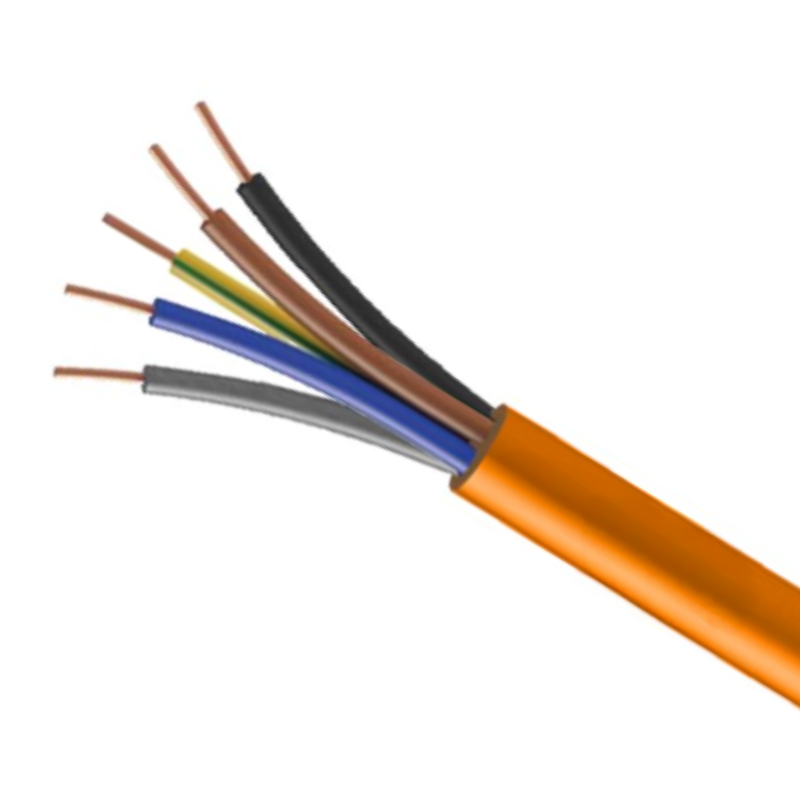

CR1 5*1.5mm Fire-Resistant Cable

CR1 fire-resistant 5G cable, 1.5 mm, three-phase 380 V and single-phase 230 V
CR1 fire-resistant 5G cable, 1.5 mm, three-phase 380 V and single-phase 230 V

The CR1 fire-resistant cable protects the power supply to your fan motors and roof units in the event of a fire. Sold by the metre, it can be installed for both single-phase and three-phase supplies.

  • Composition: 5 cores of 1.5 mm²
  • Wiring: 220 V (3 cores) or three-phase 380 V (5 cores)
  • Compatibility: up to 3000 W single-phase 220 V, up to 8000 W three-phase 220 to 400 V
  • Supplied by the metre (1 unit = 1 metre)
  • Smoke extraction standard: F400/120 or C4/120
In stock
Quantity
5.25 Tax excluded
6,3 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The CR1 5x1.5 mm² fire-resistant cable is a power cable designed for ventilation equipment that must remain operational in the event of a fire, such as roof extract fans or double-inlet centrifugal fan motors. Sold by the metre, it can be wired for either 220 V single-phase or 380 V three-phase supplies.

Technical specifications of the CR1 fire-resistant cable

Specification Value
Composition 5 cores of 1.5 mm²
Single-phase wiring 220 V (3 cores used)
Three-phase wiring 380 V (5 cores used)
Single-phase motor compatibility up to 3000 W at 220 V
Three-phase motor compatibility up to 8000 W at 220 to 400 V
Standard Smoke extraction standard C4/120 and F400/120
Supplied by the metre (1 unit = 1 metre)
Weight N/A

Why use a fire-resistant cable for your ventilation motors

A fan motor or roof extract fan fitted to a smoke extraction system must remain powered even if the fire reaches the duct. This is exactly the purpose of the CR1 cable: it keeps the power supply running to the equipment during a fire, allowing enough time to evacuate the premises safely. It is typically installed between the relay control panel and the motor, or upstream of an extraction fan box fitted for smoke extraction duty.

Installation and wiring

The cable is wired using 3 cores for a 220 V single-phase supply, or 5 cores for a 380 V three-phase supply. The 1.5 mm² sizing covers motors up to 3000 W single-phase and 8000 W three-phase, provided the installation's wiring standard (and cable length) is respected. The electrical connection must be carried out by a qualified professional, which is also a condition for the warranty to apply.

Points to check before ordering

  • Check the actual power rating of the motor or roof unit to be supplied (in W), to stay within the cable's compatibility limits
  • Confirm whether the installation is 220 V single-phase or 380 V three-phase, in order to choose the correct number of cores used
  • Calculate the total cable length required between the relay control panel and the motor, as the cable is sold by the metre
  • Check with your design consultant or building control body the exact standard required for the project (C4 or F400/120), as these two classifications are not interchangeable
  • Look for the orange sheath on the cable to confirm it is a genuine CR1 cable, and not a standard electrical cable

Identifying a CR1 cable

A CR1 cable is instantly recognisable by its orange sheath: this coloured outer covering is what sets it apart from a standard electrical cable. If the cable already installed in your system is black, it does not meet fire safety standards and should be replaced.

Pairs well with

For a complete smoke extraction installation, consider the SAFTAIR 5000/8000 m3/h 400° three-phase extraction fan box, or for a kitchen extraction hood, the F400/120 pack for a 2.5 to 3 m hood with double-inlet centrifugal motor and 220V speed controller.

Product Details

Ventilsogood
cableCR1anti-feu
Products
Cable
Package weight
1 kg
Standard
F400/120
0657968462687

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

Is the CR1 5x1.5mm cable suitable for a 380 V three-phase motor?

Yes, the CR1 fire-resistant cable uses all 5 cores (1.5 mm²) for a 380 V three-phase wiring setup, and only 3 cores for a 220 V single-phase setup. It is suitable for extraction motors up to 8000 W three-phase (220 to 400 V) and up to 3000 W single-phase, depending on the cable run length.

How is the CR1 fire-resistant cable sold?

The CR1 cable is sold by the linear metre: one unit ordered corresponds to one metre of cable. You need to calculate the total length required between the power source (such as the relay control panel) and the motor or roof unit to be connected.

Which standard does this CR1 cable meet?

This CR1 cable meets the C4/120 or F400/120 smoke extraction standard, depending on its technical data sheet.

Who can connect the CR1 cable to my ventilation motor?

The electrical connection of the CR1 cable must be carried out by a qualified professional. This is a condition for the warranty on the supplied equipment to apply, whether it's a double-inlet centrifugal motor, a roof extract fan or an extraction fan box.

How can I tell a CR1 cable apart from a standard electrical cable?

It's very simple: the CR1 cable always comes with an orange outer sheath, which makes it instantly identifiable. If your current cable is black, it definitely does not meet fire safety standards and should be replaced with a compliant CR1 cable.
