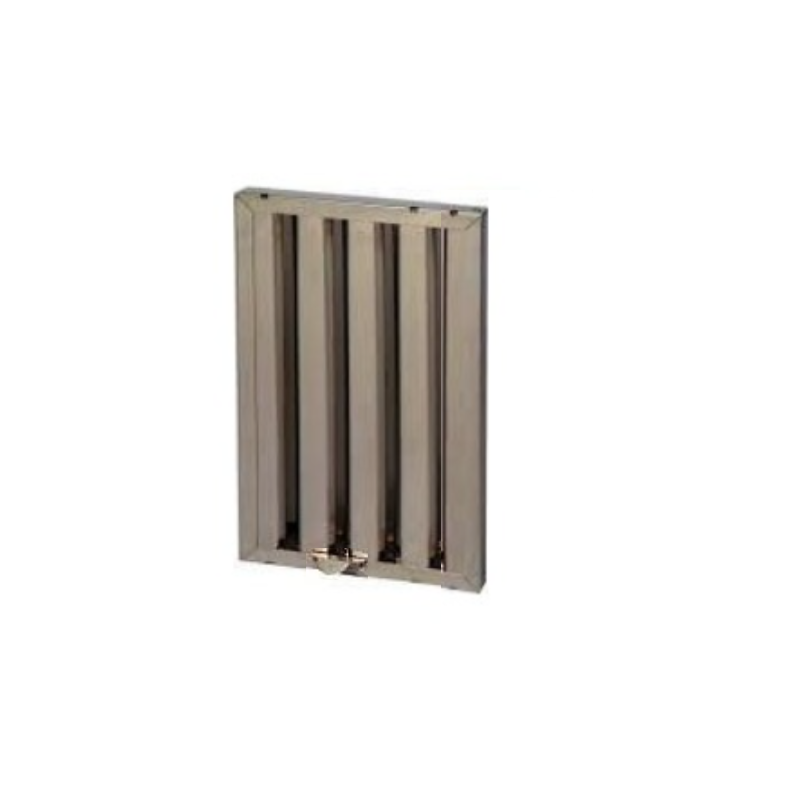

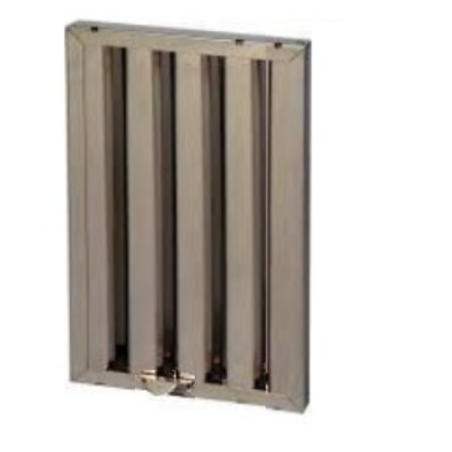

The half-size baffle filter L 250 x H 400 x D 25 mm is a stainless steel baffle filter designed for commercial kitchen hoods fitted with several filter modules side by side. Made in Italy, it slots into a half-module space to complete or replace a full-width row of filters.
Baffle filter: grease capture by impact
The baffle filter, also known as an impingement filter, captures grease by forcing air through a series of stainless steel baffles that make the particles change direction. The grease deposits on the baffle surfaces by impact and is then drained down into the hood's grease collection tray. This principle differs from mesh filters, which trap grease by simple physical barrier through the metal mesh and which deteriorate with repeated washing: after a certain number of cycles, they no longer provide optimal filtration. The baffle filter does not lose its filtering performance over time.
Why a half-size 250 mm format
A half-size filter format, 250 mm wide, lets you complete an installation made up of several filters side by side without having to replace the whole row. It fits hoods where the front panel is divided into 250 mm modules, alongside a full-width 500 mm filter.
Maintenance and cleaning the baffle filter
This half-size baffle filter is dishwasher safe. If the filter is heavily soiled, it is best to soak it beforehand with a degreasing product before putting it through the machine: this softens the grease deposits so they do not risk clogging the dishwasher's drain.
Technical specifications
| Specification |
Value |
| Dimensions |
L 250 x H 400 x D 25 mm |
| Type |
Stainless steel baffle filter |
| Handle |
Yes |
| Made in |
Italy |
| Weight |
2 kg |
| Warranty |
1 year |
Points to check before ordering
- Measure precisely the width (250 mm), height (400 mm) and thickness (25 mm) of the existing filter housing, including the handle if it protrudes beyond the frame.
- Check the orientation of the baffles relative to the hood's airflow direction before fitting.
- Check that the hood accepts side-by-side 250 mm half-module fitting, rather than a single full-width filter.
- Count the number of filters needed to cover the whole front of the commercial kitchen hood.
- Confirm the exact dimensions of the filter housing before ordering, as the fitting can vary depending on the hood model.
