Check valve

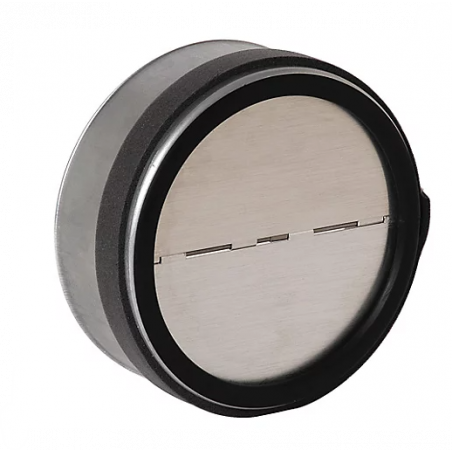

Professional ventilation system overpressure check valve

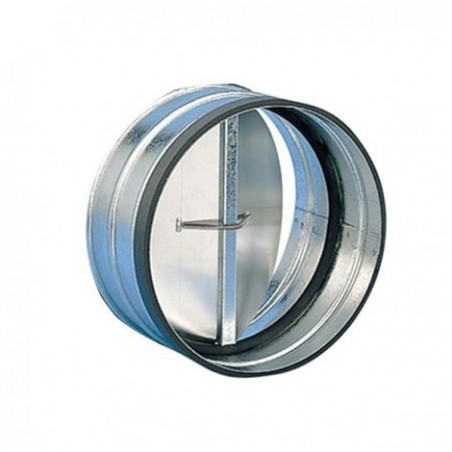

ventilation system pressure relief valve
Professional ventilation system overpressure check valve
ventilation system pressure relief valve

The galvanised check valve fits directly inside your duct to stop air flowing back the wrong way, a handy feature on an external outlet or a network shared by two fans. Made in France, available in 8 diameters.

  • Diameter: from 160 to 500 mm
  • Material: galvanised steel + sealing gasket
  • Fixing: self-tapping screws, fitted inside the duct
  • Made in: France
  • Weight: 5 kg
Diameter
In stock
Quantity
22.00 Tax excluded
26,4 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The check valve is a galvanised steel component that fits inside a ventilation duct to allow air to flow in one direction only, available in 8 diameters from 160 to 500 mm.

What is a check valve for a ventilation duct used for

This galvanised check valve blocks the return of cold or stale air into your network. In practice, it prevents two common issues: outside air being pushed back in when the duct opens onto a wind-exposed façade, and unwanted air exchange when two fans share the same discharge duct. Air flows one way only, never the other: that's the whole point of this component.

Technical specifications

Specification Value
Material Galvanised steel
Available diameters 160, 200, 250, 315, 355, 400, 450, 500 mm
Fixing Self-tapping screws + sealing gasket
Fitting Inside the duct, galvanised male end
Made in France
Weight 5 kg (1 kg parcel)

Use and compatibility

This check valve is suited to professional mechanical ventilation systems or commercial kitchen hood extraction networks, anywhere a one-way air flow needs to be guaranteed. It is typically fitted at the outlet of a duct discharging outside, to prevent cold air returning in winter or draughts getting in on windy days. It is also used in more complex networks, where several fans join onto the same discharge duct: without a check valve, air from an idle fan can travel back up through the duct of the running fan.

Installation and connection

The check valve is fitted inside the existing duct, on the galvanised male end. It is fixed using self-tapping screws, with the supplied gasket ensuring a seal at the joint. Installation doesn't require major work: it's a simple upgrade to an existing network. Any electrical connections on the network (fan, speed controller) should be left to a qualified professional to keep the warranty valid.

Points to check before ordering

  • The exact diameter of your current duct, to choose the right reference among the 8 available (160 to 500 mm).
  • The direction of air flow in your network, to fit the check valve the right way round.
  • Your network configuration: a simple duct to the outside, or a network shared by several fans.
  • The space available inside the duct for fitting the component, particularly on a network already fitted with elbows or other accessories.

Goes well with

Product Details

Ventilsogood
clapetAR
Diameter
Products
Valve
Manufacturing
Made in France
Package weight
1 kg
0657968250390

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

Is the check valve suitable for a network with two fans on the same duct?

Yes, this is one of the typical uses for this check valve: it stops air travelling back up the duct of the idle fan when two fans share the same outlet. It is fitted inside the common duct to ensure air flows only in the right direction.

How is the check valve fixed inside the duct?

The check valve fits inside the existing duct, on the galvanised male end, and is fixed using self-tapping screws. A sealing gasket is supplied to ensure a seal at the joint, with no major work needed on the existing network.

What diameter check valve should I choose?

The check valve is available in 8 diameters, from 160 to 500 mm, to suit most professional ventilation ducts. Measure the exact diameter of your existing duct before ordering, to ensure a correct fit.

Is the check valve made in France?

Yes, this check valve is made in France. It is made from galvanised steel, a material known for its resistance to wear and to the conditions found in a professional ventilation network.
