The adjustable circular diffuser provides supply or extract air in your mechanical ventilation systems, commercial kitchens or commercial premises, with fine jet adjustment via its central screw. Available in 9 diameters from 160 to 560 mm.

  • Connection diameter: from 160 to 560 mm
  • Use: supply and extract air (vertical or horizontal air throw)
  • Body: aluminium
  • Central cones: galvanised steel
  • Fixing: ABS clips for flexible duct, screws not included
Diameter
In stock
Quantity
55.00 Tax excluded
66 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The adjustable circular diffuser is a ceiling diffuser that directs the air throw vertically or horizontally, for both supply and extract air, available in 9 diameters from 160 to 560 mm to suit most ventilation networks.

A versatile diffuser for supply and extract air

This adjustable circular diffuser is suitable for ventilation installations, professional mechanical ventilation systems, commercial kitchens and commercial premises. Its central adjustment screw allows you to adjust the position of the inner cone to change the direction and opening of the air flow, whether supply or extract, depending on your comfort or air renewal requirements.

Technical specifications

Characteristic Value
Function Supply and extract air
Air throw Adjustable, vertical or horizontal orientation
Available diameters 160, 200, 250, 315, 355, 400, 450, 500, 560 mm
Body Aluminium
Central cones Galvanised steel
Central adjustment screw ABS (Ø ≤ 315 mm) or galvanised steel (Ø > 355 mm)
Fixing clips ABS, to hold a flexible duct onto the diffuser neck
Fixing Via the diffuser neck, onto a plenum or duct, by screws (not included)
Weight 1 kg

Points to check before ordering

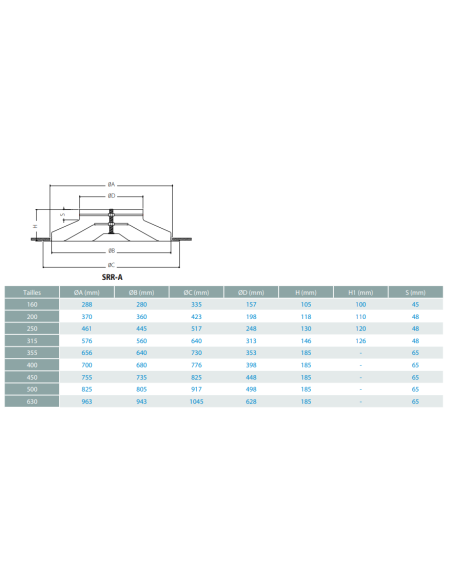

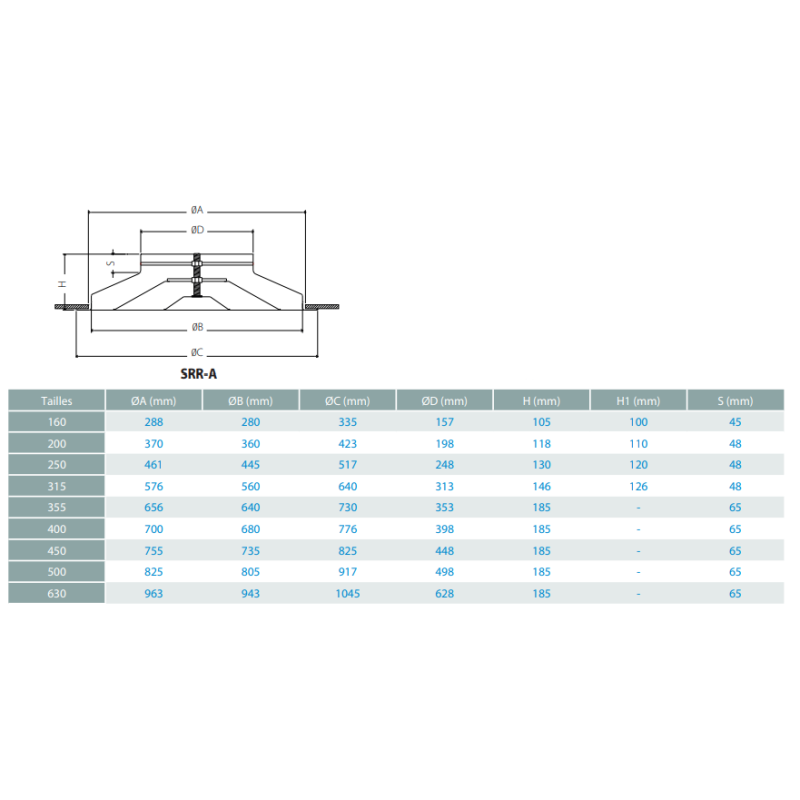

  • Connection diameter: this is the diameter of the intake opening, not the diameter of the assembled diffuser, which will be noticeably larger. Check the size table before placing your order.
  • Existing duct diameter: measure your current duct to select the matching neck diameter from the 9 sizes available.
  • Intended use: supply or extract, the orientation of the air throw (vertical or horizontal) is set via the central screw depending on your installation.
  • Fixing screws: the screws for fixing onto a plenum or duct are not included, please plan for these separately.
  • Flexible duct: if you are connecting a flexible duct, the built-in ABS clips hold the duct onto the diffuser neck.

Pair with

You'll find all related products at the bottom of the page.

Product Details

Ventilsogood
diffuseurair
Diameter
Products
Grille / Air Inlet / Diffuser
0657968246249

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What is the difference between the stated diameter and the actual size of the adjustable circular diffuser?

The stated diameter (from 160 to 560 mm) refers to the connection diameter, i.e. the intake opening on the diffuser neck. Once assembled, the diffuser is noticeably larger than this neck diameter: please refer to the size table on the product page before ordering.

Is the adjustable circular diffuser suitable for both supply and extract air?

Yes, this ceiling diffuser works for both supply and extract air, with an adjustable air throw in vertical or horizontal position thanks to its central adjustment screw.

Can a flexible duct be connected to this diffuser?

Yes, the diffuser is fitted with ABS fixing clips that hold a flexible duct onto its neck. Fixing onto a plenum or duct is done with screws, not included with the product.

How do you adjust the orientation of the diffuser's air flow?

Adjustment is made via the central screw, in ABS up to 315 mm diameter and in galvanised steel above 355 mm. It allows you to adjust the position of the central cone to change the opening and direction of the air throw.
