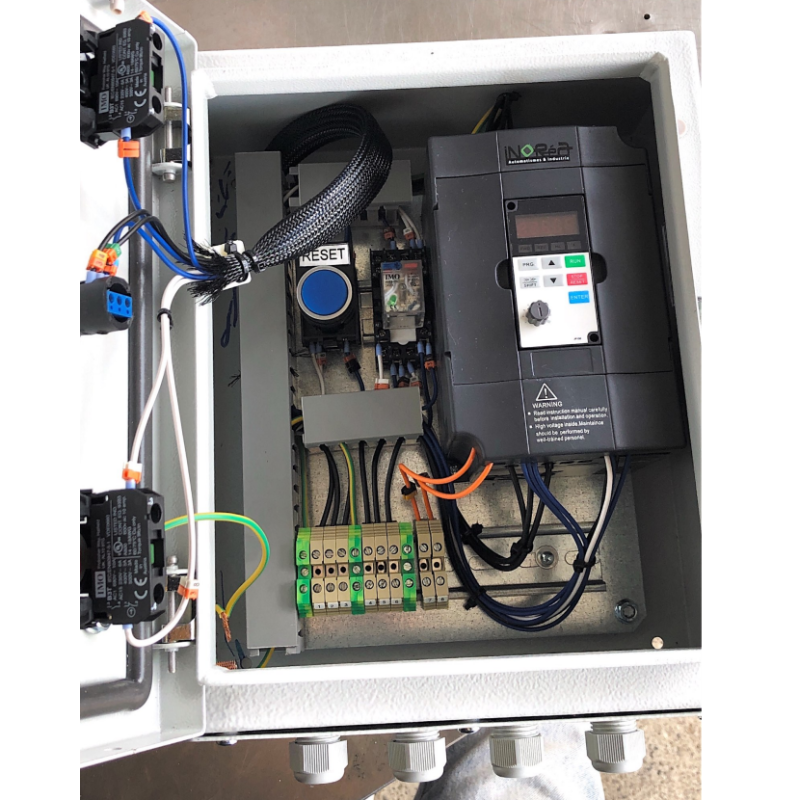

1.5 kW TRI Drive, IP55 + Smoke Exhaust System

Three-phase speed controller for 400° turret/2h professional ventilation systems

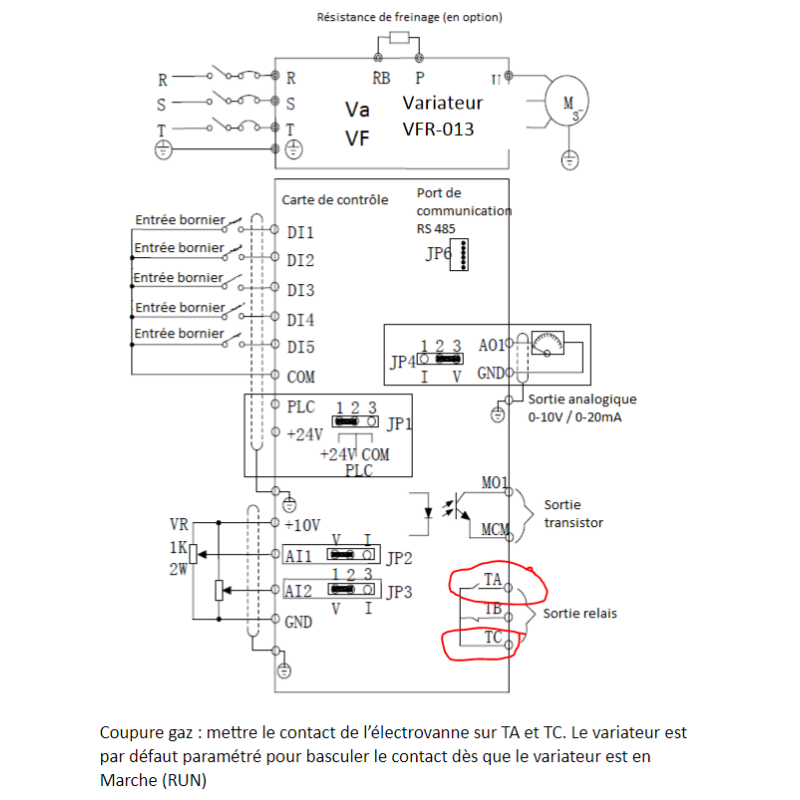

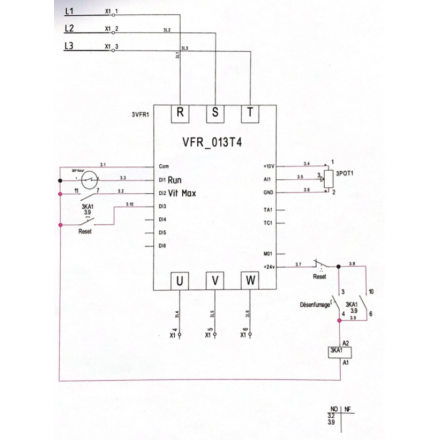

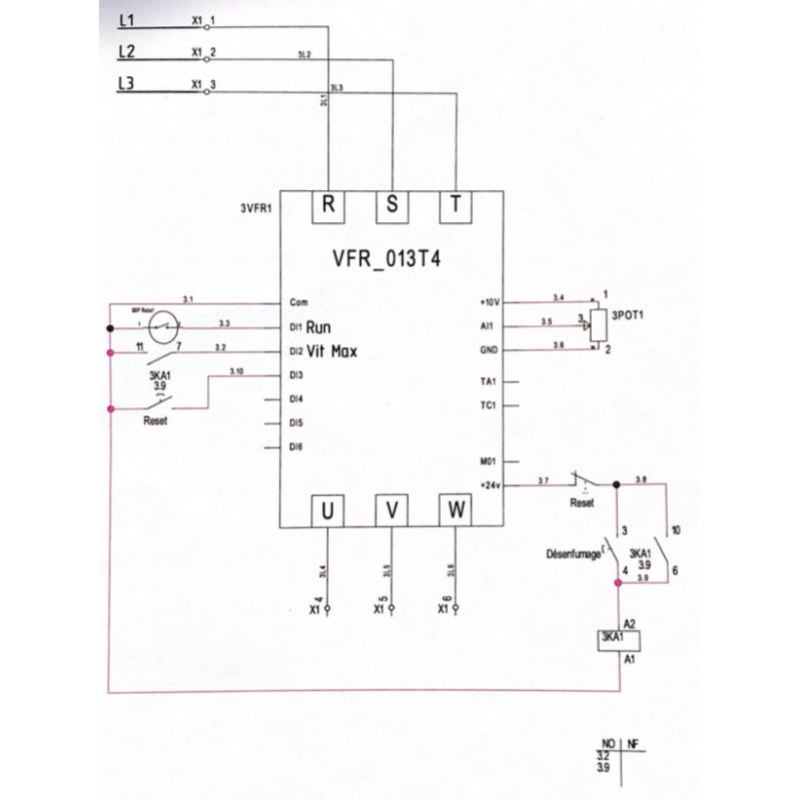

Circuit Diagram for a Three-Phase Kitchen Hood Inverter
Kitchen Trier Variable-Speed Drive Diagram
frequency converter for a restaurant
Sermes variable-speed drive for three-phase turret
1.5 kW TRI Drive, IP55 + Smoke Exhaust System, vue 6

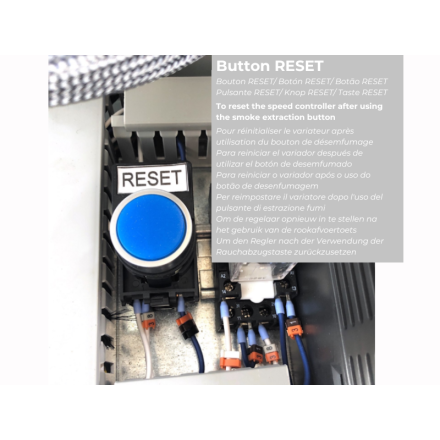

Variable-Speed Drive Manual
Dimmer Manual
Dimmer Manual
Three-phase speed controller for 400° turret/2h professional ventilation systems

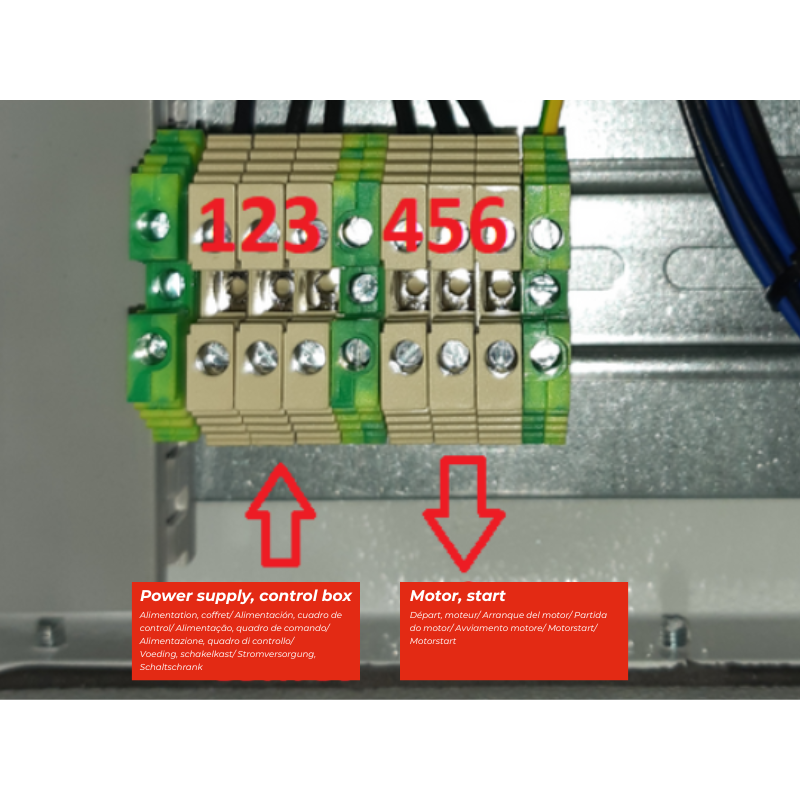

Circuit Diagram for a Three-Phase Kitchen Hood Inverter
Kitchen Trier Variable-Speed Drive Diagram
frequency converter for a restaurant
Sermes variable-speed drive for three-phase turret

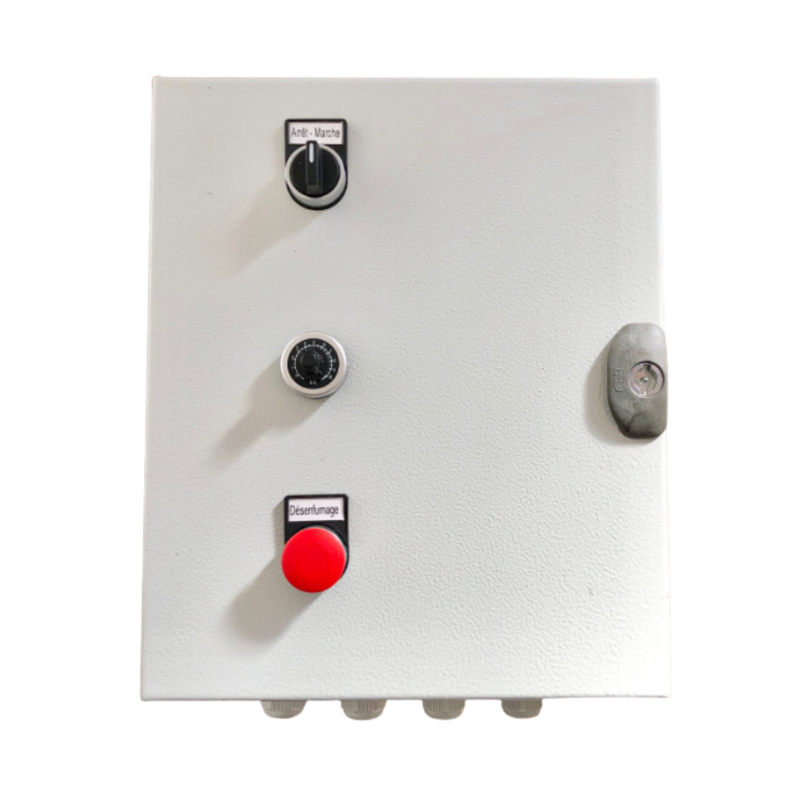

1.5 kW TRI Drive, IP55 + Smoke Exhaust System, vue 6

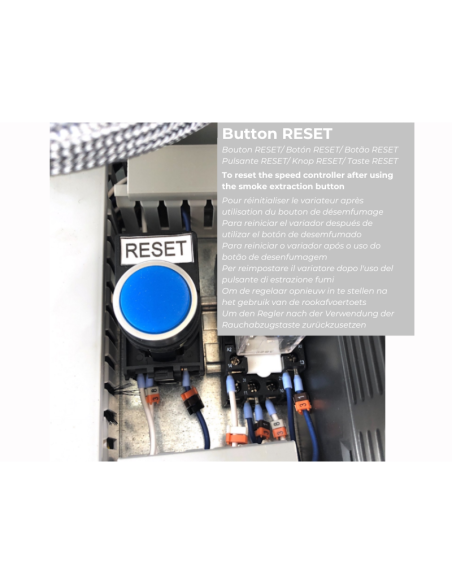

Variable-Speed Drive Manual

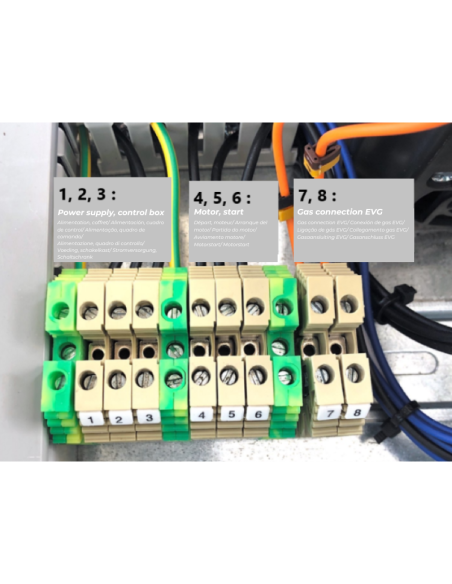

Dimmer Manual
Dimmer Manual

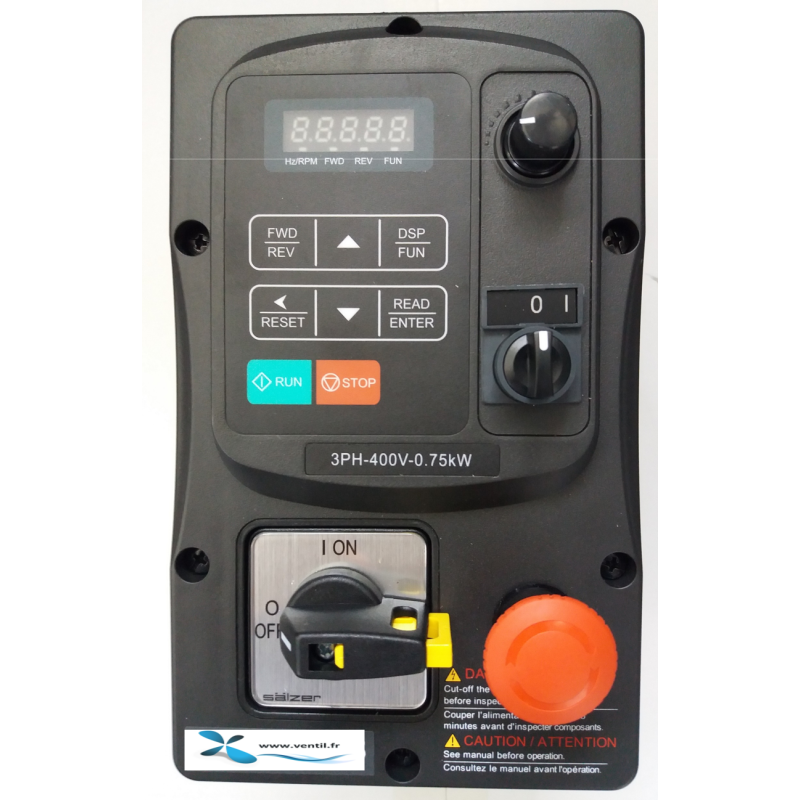

The 1.5 kW three-phase frequency inverter VTRI15CDP regulates the speed of your TRI three-phase hood or roof fan motor and provides the smoke extraction function in the event of fire, with an emergency stop button.

  • Power supply: 380 V three-phase (TRI)
  • Compatible power: up to 1.5 kW
  • Protection rating: IP55
  • Standard: F400/120
  • Package weight: 6 kg
In stock
Quantity
600.00 Tax excluded
720 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments

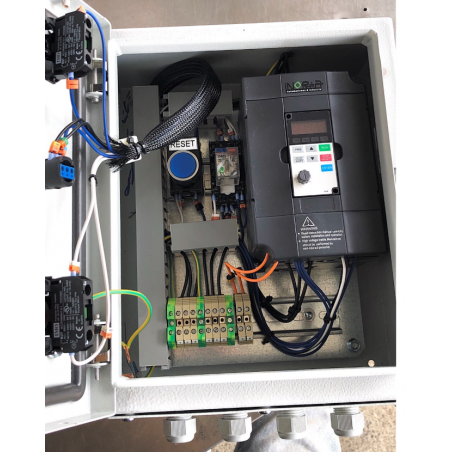

The 1.5 kW three-phase frequency inverter VTRI15CDP regulates the speed of a double-inlet centrifugal fan motor, an extraction fan box or a three-phase roof fan, while also providing a smoke extraction function for your commercial kitchen. Power supply 380 V, protection rating IP55.

Frequency inverter for three-phase commercial kitchen hood motor, voltage controller for professional ventilation

This three-phase frequency inverter, also known as a frequency converter, is compatible with three-phase motorised extraction fan boxes and roof fans under 1.5 kW. It is rated F400/120 (400°C, 2 hours): when paired with a suitable motor, roof fan or fan box, it enables smoke extraction from your commercial kitchen in the event of fire, via an emergency stop button that forces operation at full speed. This model can also be connected to EVG gas valves.

The inverter's on/off switch gives you complete, immediate control over the double-inlet centrifugal fan motor or extraction fan box. The three-phase voltage controller adjusts the motor's power supply according to requirements, improving energy efficiency. It also protects the motor against overloads and voltage spikes, extending the lifespan of your equipment, which comes with a 1-year warranty. The result: you can adjust the fan motor speed to suit your activity, without putting strain on the installation.

Technical specifications

Specification Value
Reference VTRI15CDP
Power supply 380 V three-phase (TRI)
Compatible power up to 1.5 kW
Inverter type Frequency inverter
Protection rating IP55
Smoke extraction standard F400/120 (400°, 2h)
Dimension 300 mm
Package weight 6 kg
Other references EVG, SERMES

Use and compatibility

This 1.5 kW three-phase-to-three-phase inverter is installed on a commercial kitchen ventilation system supplied with 380 V. It is suitable for three-phase double-inlet centrifugal fan motors, extraction fan boxes and roof fans with a power rating not exceeding 1.1 kW: above this, choose a more powerful version from the range. It does not replace a single-phase to three-phase inverter if your mains supply is single-phase.

- Compliant with the 400°C/2H smoke extraction standard (built-in forced operation) F400
- For three-phase fan box motors and three-phase roof fans < 1.5kW
- Dimensions: L 250 x D 160 x H 300 mm
- Can be connected to an EVG (gas valve)
- IP55 enclosure with mounting brackets for surface fitting
- Supplied with cable glands for connection

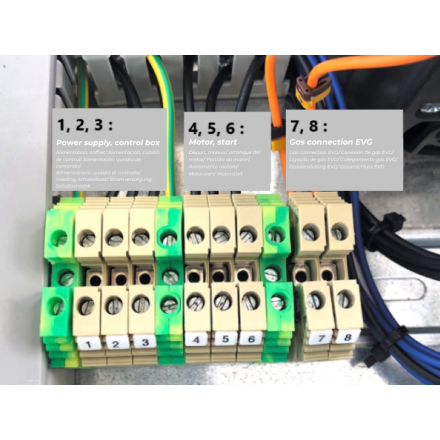

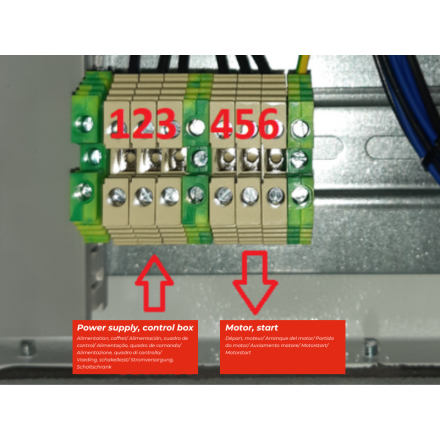

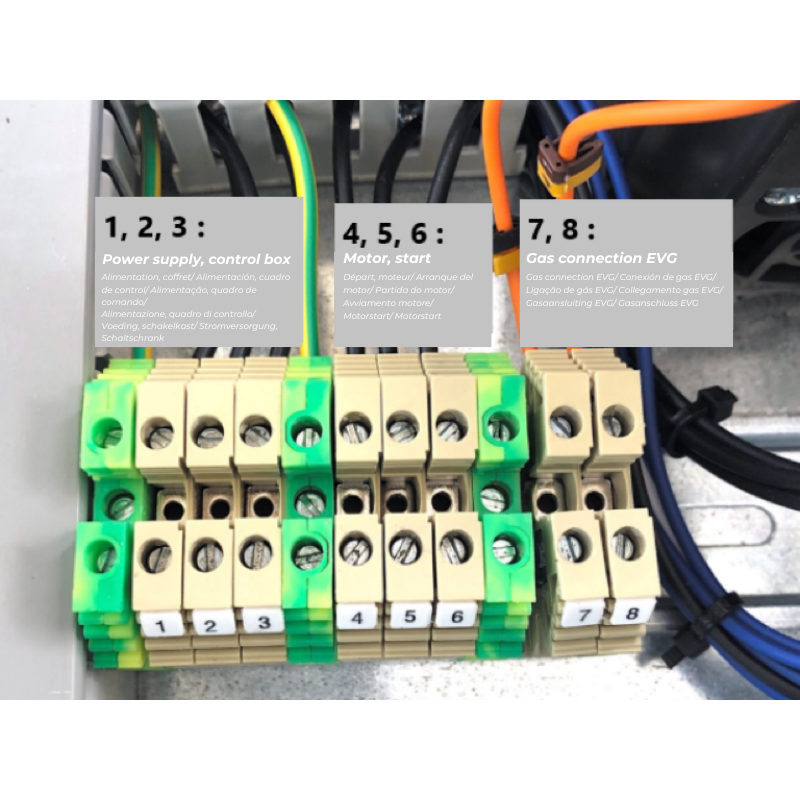

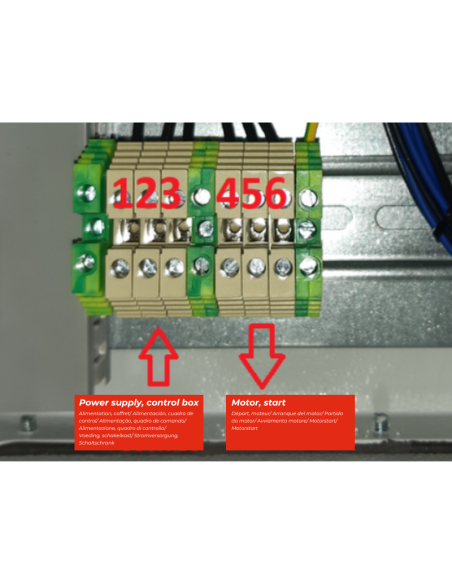

Installation and wiring

Electrical connections must be carried out by a qualified professional; this is a condition for maintaining the warranty.

Points to check before ordering

  • Check that your motor, fan box or roof fan is supplied with 380 V three-phase power and not single-phase.
  • Confirm that your motor's power rating does not exceed 1.1 kW, otherwise the inverter will be undersized.
  • Check that your installation is compatible with the F400/120 standard required for your premises.
  • Check the available space for the enclosure before installation.

Find all related accessories at the bottom of the page!

To be used with

Find related products at the bottom of the page!

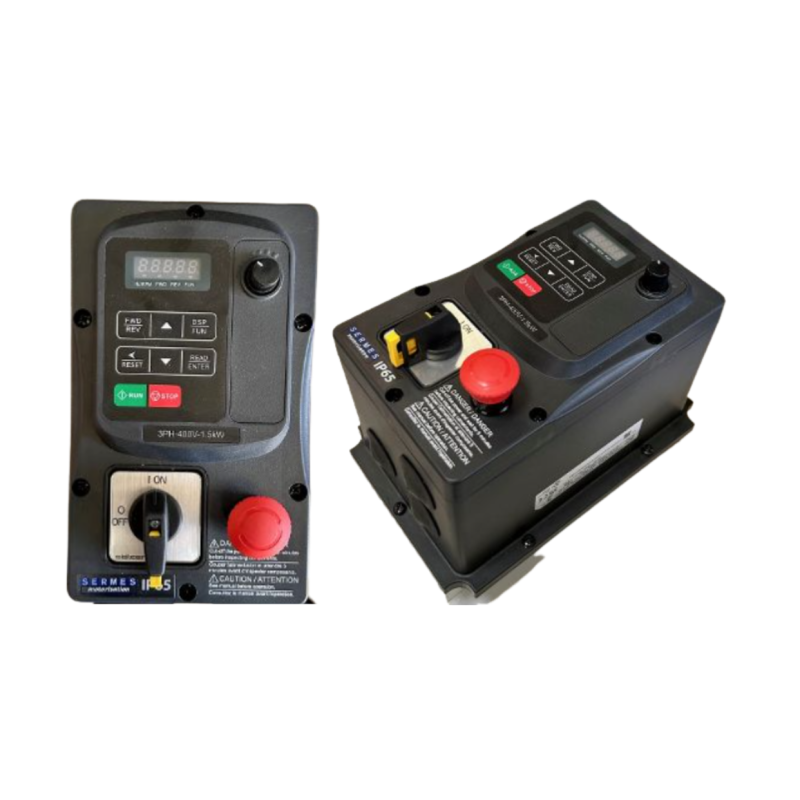

(in case of stock shortage: model replaced by the higher-range SERMES model, same power: see last photo, black model)

Product Details

Ventilsogood
VTRI15CDP
Warranty
1 year
Package weight
6 kg
Standard
F400/120
Food
380V Three-Phase
Drive Type
Electronic variable frequency drive
0657968805927

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What is the difference between a voltage controller and a frequency inverter?

A frequency inverter, like this VTRI15CDP model, adjusts the supply frequency of the three-phase motor to precisely regulate its speed, with better energy efficiency. A simple voltage controller reduces the voltage sent to the motor, a less precise method that offers less protection for a three-phase motor.

Is this inverter compatible with my existing three-phase roof fan or fan box?

Yes, this 1.5 kW 380V frequency inverter is compatible with three-phase motorised extraction fan boxes and roof fans under 1.5 kW, regardless of brand, provided the motor power does not exceed the 1.1 kW limit.

Does this inverter meet smoke extraction standards for public-access premises?

This VTRI15CDP inverter is rated F400/120, meaning it withstands 400°C for 2 hours. When paired with a suitable motor, roof fan or fan box, it enables smoke extraction from your commercial kitchen in the event of fire.

Does the inverter protect the motor against overloads?

Yes, the VTRI15CDP inverter protects the motor against overloads and voltage spikes by adjusting the power supply according to requirements. This regulation helps extend the lifespan of your fan motor or extraction fan box.

What does the emergency stop button on this inverter do?

The emergency stop button forces the motor to run at full speed in the event of fire, providing the smoke extraction function for your commercial kitchen. It is used with a motor, roof fan or fan box suited to this function.
