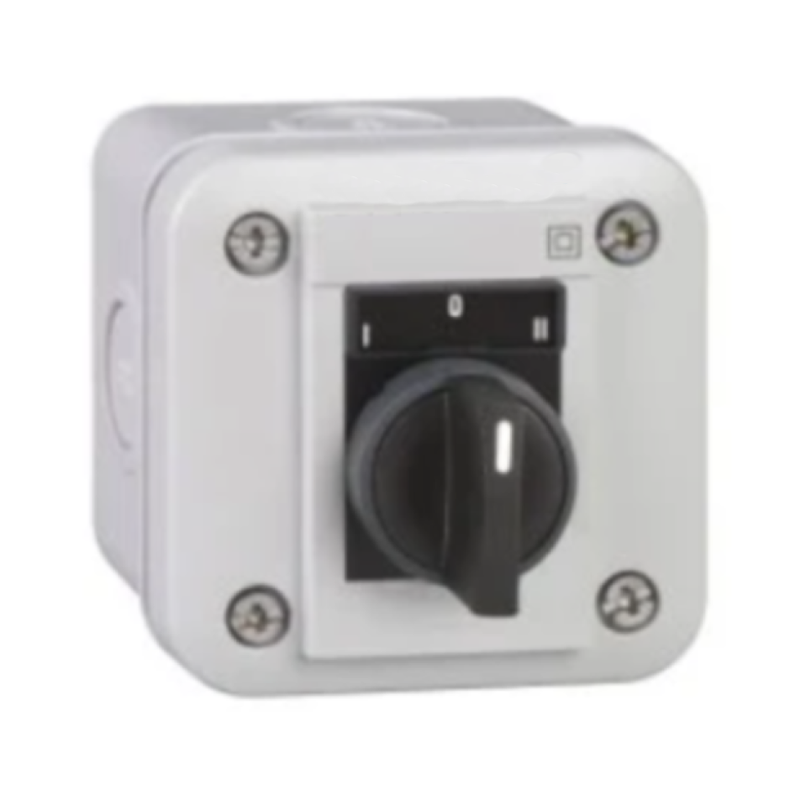

2-speed button

2-speed start button for a professional ventilation motor
2-speed start button for a professional ventilation motor

The 3 phase 2-speed button lets you control low speed and high speed on your 3 phase 230/380V roof extract fan from a front-mounted switch, so you can adjust airflow to match service rush in the kitchen.

  • Type: 2-position button / switch (low speed/high speed)
  • Enclosure: PVC IP65 for surface mounting
  • Motor supply: 3 phase 230/380V
  • Manufactured in: France
  • Warranty: 1 year if fitted by a professional with suitable overload protection
In stock
Quantity
100.00 Tax excluded
120 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


3 phase 2-speed button for roof extract fan

The 3 phase 2-speed button is a control switch that lets you manually switch between low speed and high speed on a 3 phase roof extract fan, so you can match extraction airflow to the real pace of your commercial kitchen.

Please note: this switch is intended as a like-for-like replacement of an existing unit only. It is a simple selector button, with no built-in overload protection or current adjustment.

Technical specifications

Specification Value
Type 2-position switch (low speed / high speed)
Power supply 3 phase 230/380V
Enclosure PVC, IP65 rated, surface mounting with cable glands
Overload protection Not included
Manufactured in France
Weight 0.5 kg (1 kg packaged)
Warranty 1 year, subject to conditions (see below)

Use and compatibility

This switch is fitted on a front panel to control the 3 phase motor of a 2-speed roof extract fan, typically in restaurant, fast-food, takeaway or pancake house kitchens, where activity varies between background running and a service rush requiring more airflow. It is intended as a like-for-like replacement for an existing switch on a roof fan already fitted with this type of control, not for fitting onto a fan that did not previously have one.

Installation and wiring

The PVC IP65 enclosure is surface mounted close to the roof extract fan, with cable glands for cable entry. The switch controls the 3 phase motor from the front panel, simply toggling between the two speed positions.

Important: this button contains no overload protection against overheating or overcurrent. A suitable overload protection device for the fan in question must be fitted alongside it. Without this protection, the warranty does not apply. Electrical connection must be carried out by a qualified professional, which is an essential condition for the 1 year warranty to apply.

Points to check before ordering

  • Check that your existing roof extract fan is indeed fitted with a 3 phase 2-speed switch to be replaced like-for-like, and not a variable frequency drive or a lockable isolator switch, which are different devices.
  • Confirm the supply voltage of your roof fan motor (3 phase 230/380V).
  • Arrange or check for suitable overload protection matched to the power rating of your roof fan, which must be fitted alongside this switch.
  • Have the electrical connection carried out by a qualified professional, as required for the warranty.
  • Check that a suitable surface-mounting location is available near the roof fan for this IP65 enclosure.

To pair with

Browse our 2-speed roof extract fans compatible with this type of control, including the T4048-TRI 2-speed roof extract fan 2000 to 4200 m³/h, the T4548-TRI 2-speed roof extract fan 2600 to 5200 m³/h and the T5048-TRI 2-speed roof extract fan 3800 to 7500 m³/h. If you need a solution with built-in overload protection and a smoke extraction control button, see the 2-speed starter with smoke extraction button.

Product Details

Ventilsogood
comm2Vtri
Products
Button / Switch
Manufacturing
Made in France
Warranty
1 year
Package weight
1 kg
0657968327184

You might also like

8 other products in the same category:

Frequently asked questions

Do I need to add overload protection alongside this switch?

Yes, this is essential. This 2-speed button has no built-in overload protection against overheating or overcurrent. A suitable overload protection device must be fitted alongside it to match your roof fan, otherwise the warranty does not apply.

Will this switch fit any 2-speed roof fan?

This switch is intended as a like-for-like replacement for a unit already fitted on a 3 phase 230/380V roof fan with the same type of control. Check the voltage and wiring setup of your existing roof fan before ordering.

Does the 1 year warranty apply if I fit the switch myself?

The 1 year warranty only applies if fitting is carried out by a qualified professional and suitable overload protection is installed alongside the switch. Electrical connection by a professional remains an essential condition.

What type of enclosure is suitable for outdoor or roof-level fitting?

The switch comes in a PVC enclosure rated IP65, designed for surface mounting with cable glands, suitable for installation close to the roof extract fan.
