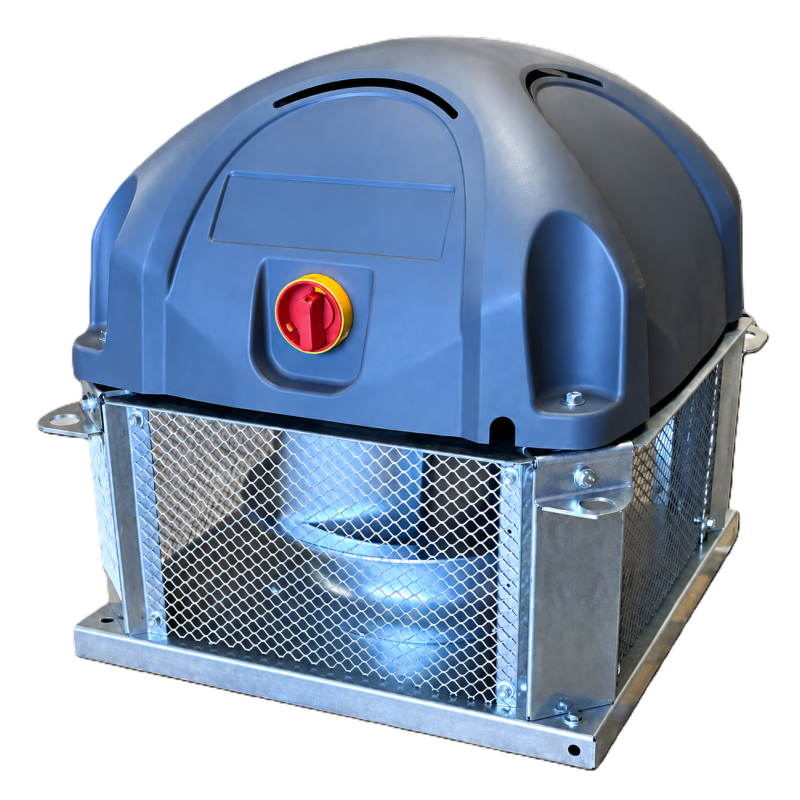

Roof fan T5056-TRI 2-speed exhaust fan, 3,500–7,000 m³/h

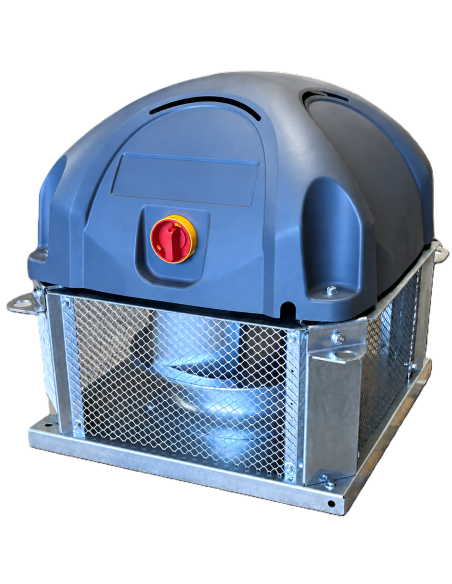

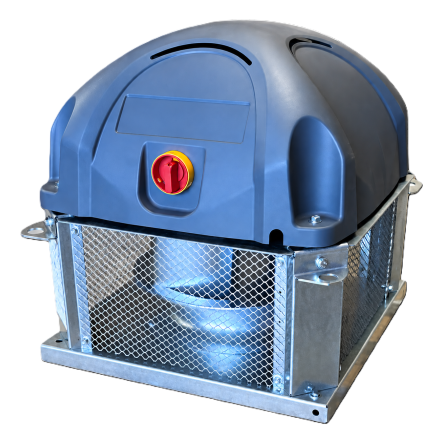

Saftair THF 5056 Wall- or Roof-Mounted Turret for Professional Ventilation Systems

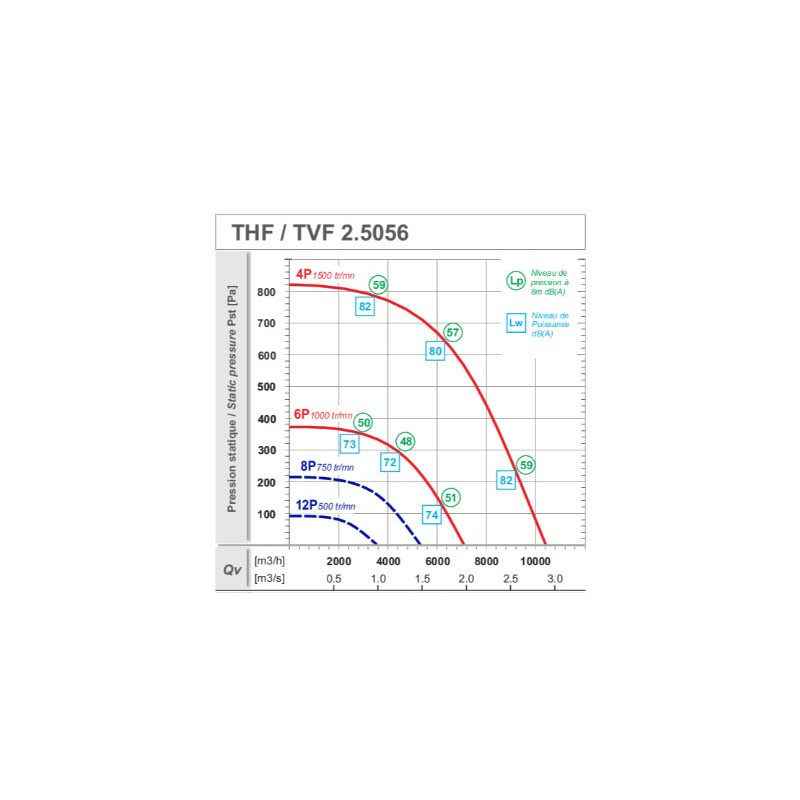

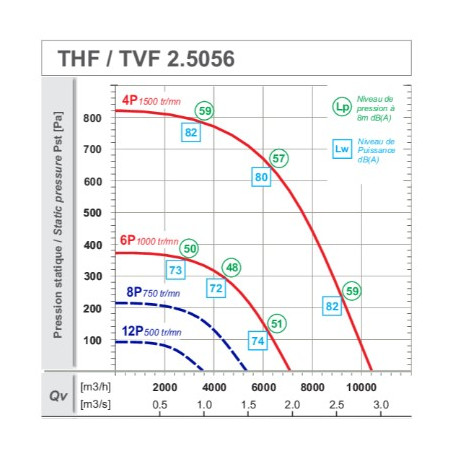

roof extractor curve ventil.fr

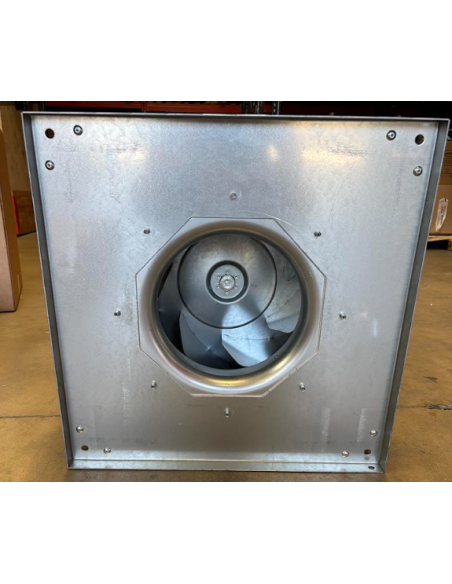

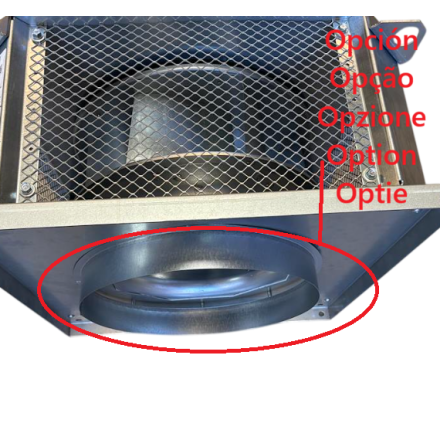

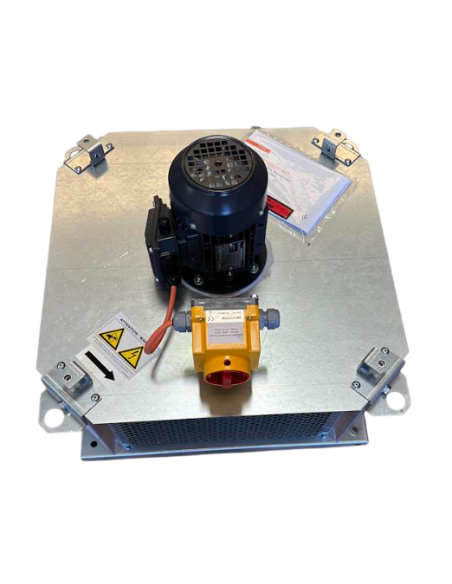

Roof fan T50/56-TRI 2-speed

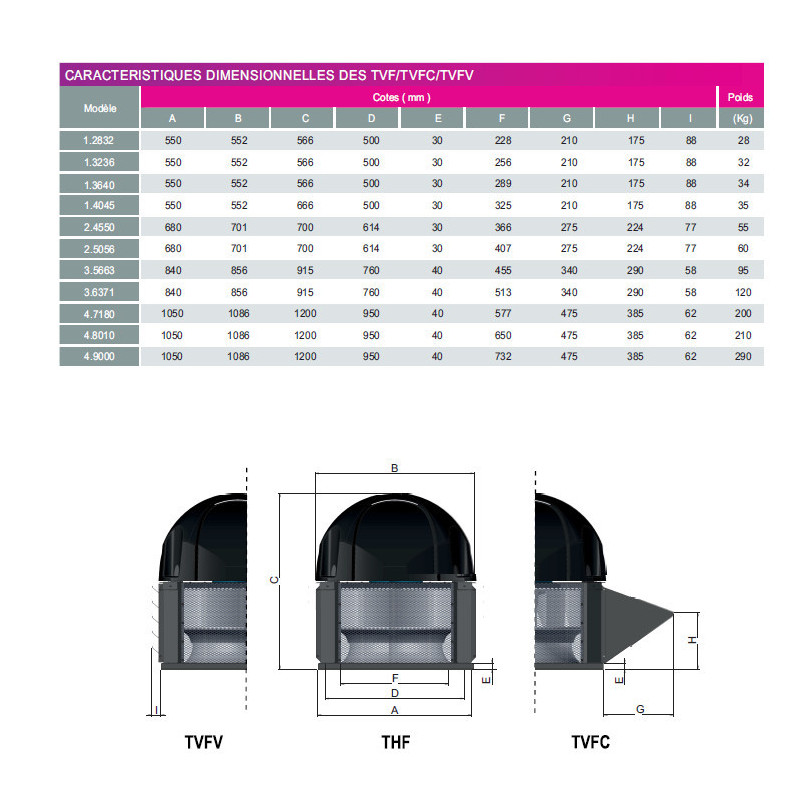

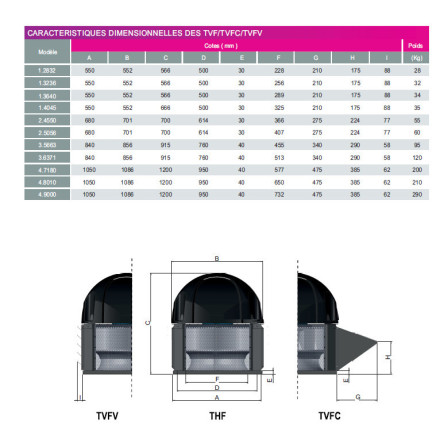

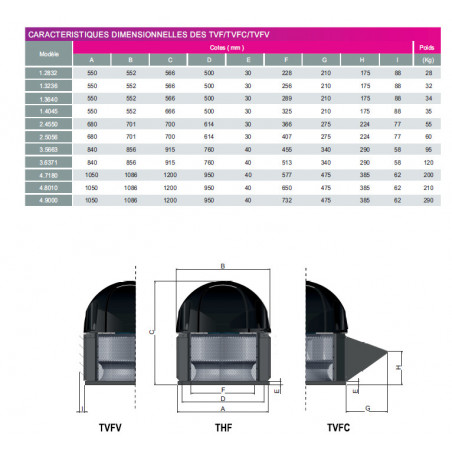

Roof turret dimensions

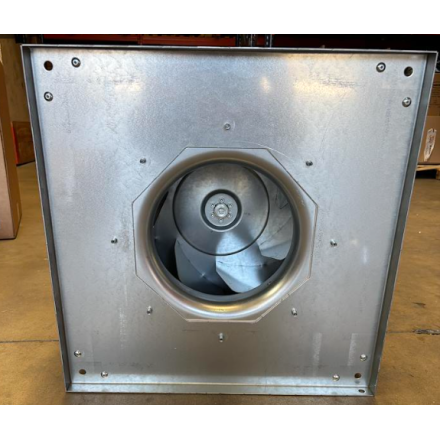

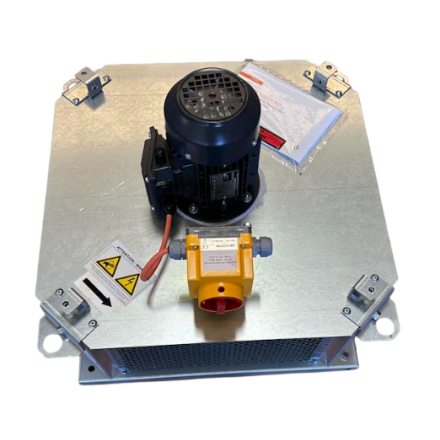

Roof fan T50/56-TRI 2-speed

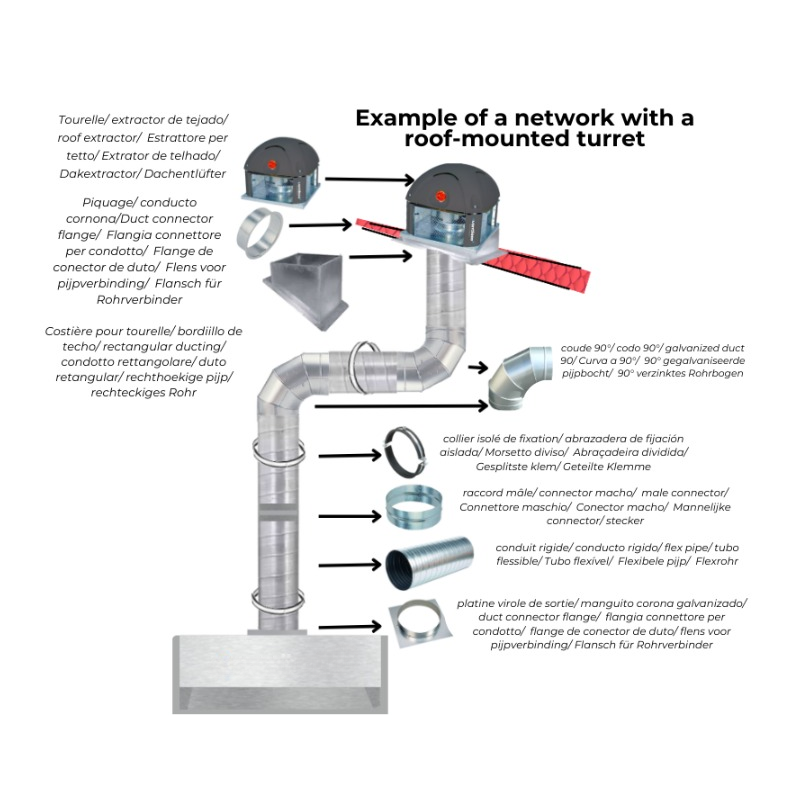

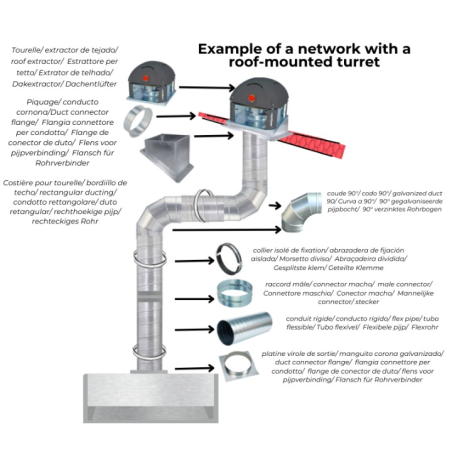

Installation Diagram for a Ventilation System with a Roof Turret

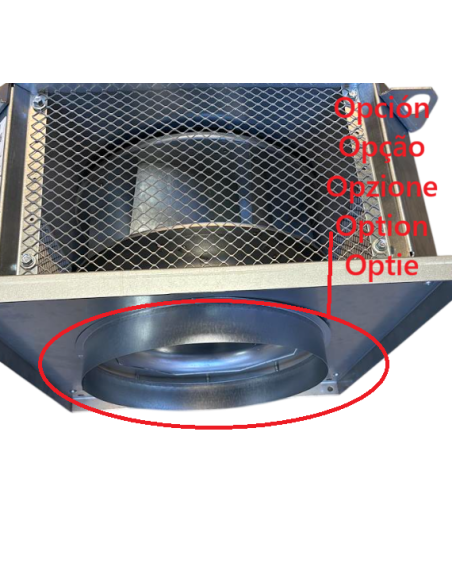

Roof fan T50/56-TRI 2-speed

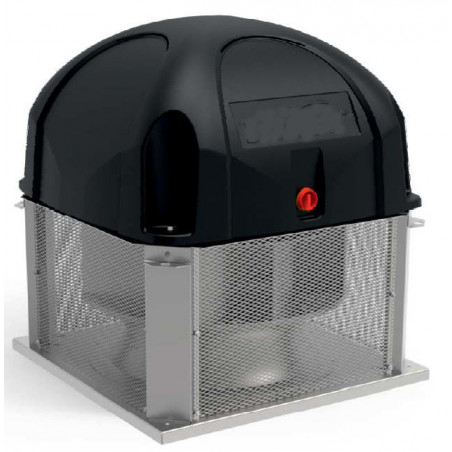

T5056 TRI with bird-proof protective mesh
Saftair THF 5056 Wall- or Roof-Mounted Turret for Professional Ventilation Systems
roof extractor curve ventil.fr
Roof fan T50/56-TRI 2-speed
Roof turret dimensions
Roof fan T50/56-TRI 2-speed
Installation Diagram for a Ventilation System with a Roof Turret
Roof fan T50/56-TRI 2-speed
T5056 TRI with bird-proof protective mesh

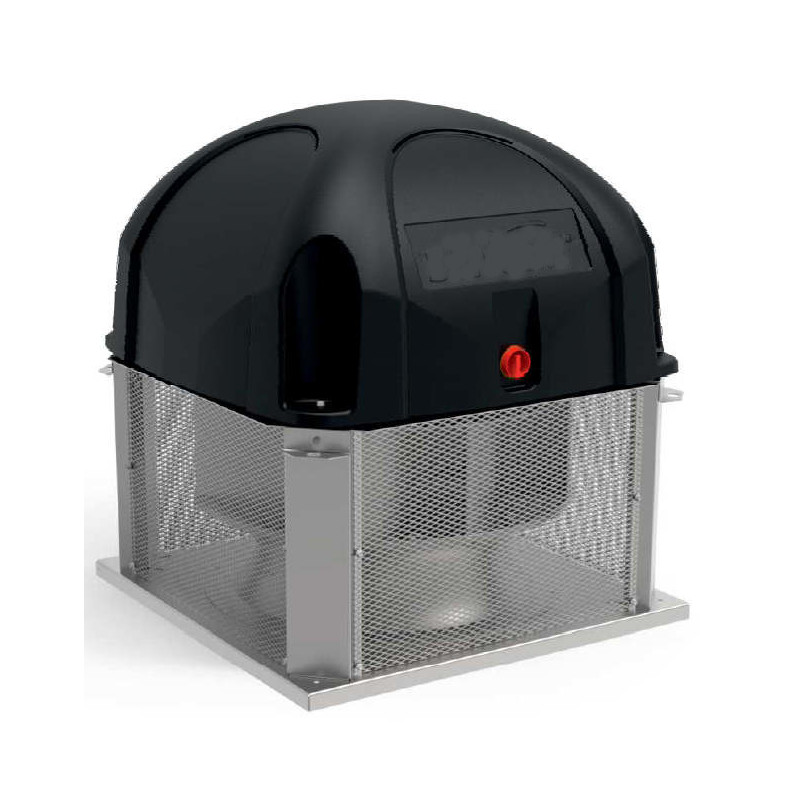

 Roof fan Horizontal discharge extraction fan Saftair 3,800–7,500 m³/h

- Dimensions: L 680 x W 680 x H 700 mm
- Roof fan 400°/2h Fire safety/smoke exhaust standards
- Wired proximity switch
- Recommended duct diameter: 450 to 600 mm
- Weight: 50 kg
- Made in France - CE
- 6–12-pole Dahlander
- Protective and bird-proof mesh

Speed 1:
- Power: 150 W - 3000 m³/h - 1 A
- Power supply: 230/380 V
- RPM: 500

Speed 2:
- Power: 750 W - 7,000 m³/h - 2.40 A
- Voltage: 230/380 V
- RPM: 1,000

Production/delivery time: 1 to 2 weeks.

Similar product: Roof fan t5048

1-year warranty if installed by a professional. Made in France.

In stock
Quantity
1,324.00 Tax excluded
1588,8 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


Roof fan Saftair T5056 Exhaust Fan – 3,500 to 7,000 m³ Three-phase/h

Roof fan Roof-mounted unit with horizontal discharge for professional ventilation and smoke extraction systems.

A high-performance, quiet ventilation turret

The Ventilsogood T5056 exhaust fan is designed for commercial installations requiring an airflow rate between 3,500 and 7,000 m³/h. Its 6/12-pole three-phase motor offers ultra-quiet operation while ensuring excellent durability. Thanks to its 2-speed system, this roof ventilation unit adapts perfectly to the varying exhaust needs of your premises.

Key features of the Ventilsogood T5056 exhaust tower

  • Two operating speeds: adjust the power and exhaust volume according to the activity.
  • Powerful and quiet motor —runs slowly at low speed to reduce noise.
  • Made in France: a guarantee of quality and reliability.
  • Bird-proof mesh integrated into the design.
  • F400/120 certification (400°C for 2 hours)—ideal for smoke extraction in commercial spaces.

Applications of the Ventilsogood T5056 roof vent

Perfect for air extraction in commercial kitchens, workshops, warehouses, or commercial buildings, this ventilation turret ensures optimal and safe air renewal. Its robustness and efficiency make it the benchmark roof exhaust fan for demanding installations.

Product Reference: Ventilsogood T5056 – Professional Roof ExhaustRoof fan

Discover our entire line of 2-speed roof ventilation units in our online store

Product Details

SAFTAIR
T5056tri2V612
Manufacturing
Made in France
Warranty
1 year
Package weight
55 kg
Engine
Roof fan roof
Standard
C4 Smoke Exhaust Standard
Food
380V Three-Phase
Engine power
2,000 to 4,000 m³/h
Engine power
More than 6,000 m³/h
0657968303287
