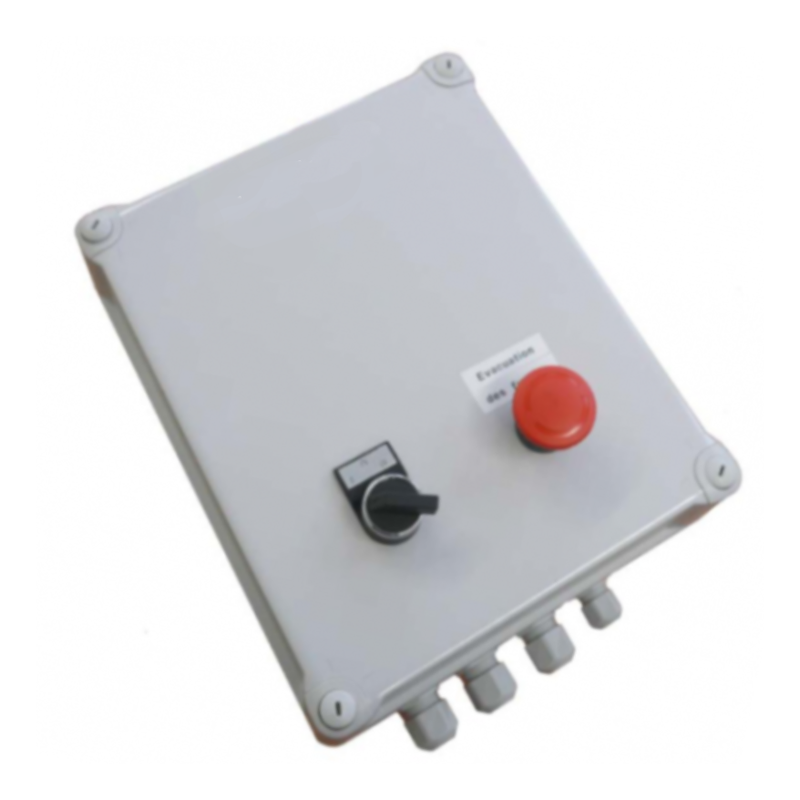

2-Speed Starter + Smoke Exhaust Button

2-speed starter with smoke extraction button for ventilation motor
2-speed starter with smoke extraction button for ventilation motor

Control your roof extract fan in 2 speeds and trigger smoke extraction in one action with the mushroom head emergency button: the control station that keeps up with the pace in a busy commercial kitchen, even at peak service.

  • Brand: Saftair
  • Power supply: 380 V three-phase
  • Switching: 2 speeds (low speed / high speed)
  • Protection: thermal, overload and overcurrent, MAX 4 kW 380 V three-phase
  • Enclosure: IP65, surface mounting with cable glands
  • Standard: F400/120 smoke extraction
In stock
Quantity
699.00 Tax excluded
838,8 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The 2-speed starter with smoke extraction button is a three-phase Saftair control unit for roof extract fans: it runs the motor at low or high speed and triggers forced running in the event of a fire, for 2-speed extract fans fitted in commercial kitchens.

A 2-speed switch designed for commercial kitchens

This three-phase 2-speed switch is wall mounted and gives control to the kitchen staff: low speed for quiet service, high speed as soon as the plancha and fryer are running flat out. The lunchtime rush never catches your extraction system off guard.

Mushroom head button and smoke extraction

In addition to 2-speed switching, the unit includes a mushroom head emergency button for forced running. When paired with a suitable roof fan and motor, it enables smoke extraction from the kitchen or premises in the event of a fire. The product is rated F400/120 (resistance to 400°C for 120 minutes).

Technical specifications

Specification Value
Brand Saftair
Power supply 380 V three-phase
Starter type 2-speed starter
Smoke extraction standard F400/120
Protection Thermal, overload and overcurrent, MAX 4 kW 380 V three-phase
Protection rating IP65
Enclosure material PVC (main enclosure) / ABS (1-speed starter), with cable glands
Dimensions (W x H x D) 225 x 275 x 160 mm
Package weight 2 kg

Installation and wiring

The ABS IP65 enclosure is wall mounted, with cable glands for cable entry. WHEN ORDERING, PLEASE SPECIFY THE CALIBRATION (rated current for low and high speed) AND THE MOTOR TYPE (2-winding or Dahlander): these two pieces of information determine how the starter is set up. Upstream protection is mandatory and is the installer's responsibility. Electrical connection must be carried out by a qualified professional.

≃

Benefits of the IP65 enclosure

The IP65 enclosure allows installation in a commercial kitchen, an environment where humidity and airborne grease can damage fragile equipment. The built-in thermal protection continuously monitors motor overheating and overcurrent, to protect the motor in case of a fault.

Points to check before ordering

  • Check that your roof fan runs on 2 speeds and not a single speed.
  • Identify your roof fan's motor type (2 independent windings or Dahlander): this information is required to configure the starter.
  • Note the rated current for low speed and high speed of your motor for calibration.
  • Confirm that your installation supplies 380 V three-phase.
  • Check that your motor's power stays under the MAX 4 kW 380 V three-phase supported by this starter.

To pair with

1-year professional warranty, subject to terms and conditions.

Product Details

Ventilsogood
demarreur2Vcppg
Forced march
Forced march
Products
Button / Switch
Manufacturing
Made in France
Warranty
1 year
Package weight
2 kg
Standard
F400/120
Food
380V Three-Phase
Drive Type
Starter
0657968115477

You might also like

8 other products in the same category:

Frequently asked questions

What is the difference between a Dahlander motor and an independent-winding motor for this starter?

The motor type determines how the 2-speed starter is configured. That is why, when ordering, you are asked to specify the motor type (2 independent windings or Dahlander) fitted to your roof fan, along with the rated current at low and high speed.

Is this starter suitable for any 2-speed roof fan?

This Saftair starter is designed for 2-speed three-phase 380V extract roof fans, with thermal protection rated up to MAX 4 kW (a higher-power model can be supplied on request). The exact calibration (rated current at low and high speed) and the motor type must be specified when ordering so the unit can be set up correctly for your roof fan.

Does the mushroom head button also protect the motor against overcurrent?

Yes, the unit includes thermal protection against motor overheating and overcurrent, in addition to the forced-running function of the mushroom head button for smoke extraction. Upstream protection remains mandatory and is the installer's responsibility.

Which smoke extraction standard does this starter comply with?

The product is rated F400/120 (resistance to 400°C for 120 minutes). When paired with a suitable roof fan and motor, it enables smoke extraction from the kitchen in the event of a fire.

Does this 2-speed starter need to be installed by a professional?

Yes, the electrical connection of the starter must be carried out by a qualified professional. Upstream protection is also the installer's responsibility.
