Roof turret skirting

Saftair side panel for TH36/40/45/50 turret

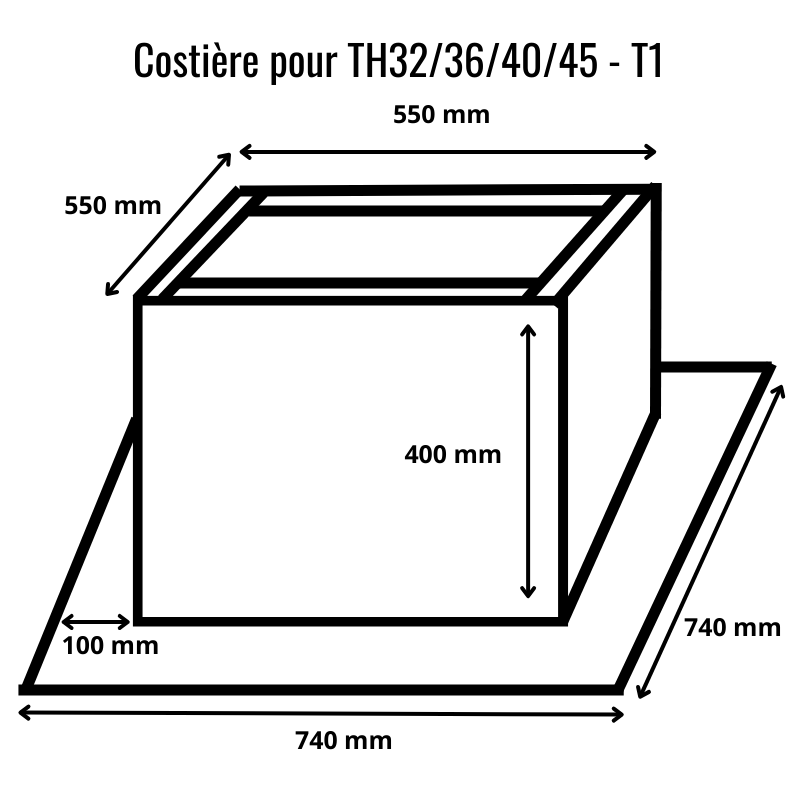

Dimensions for roof flange, TH 32, 36, 40, 45 extraction turret, 230V, 380V

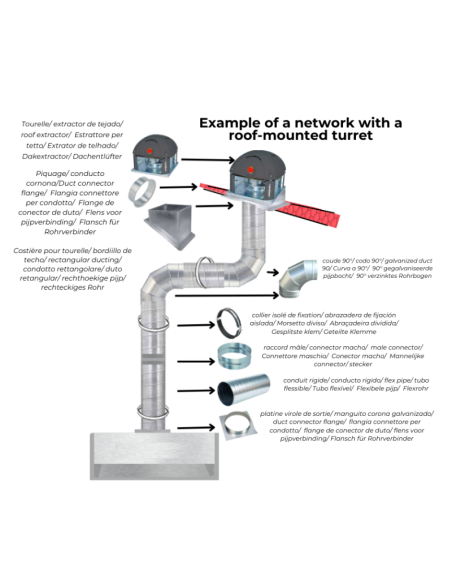

Side panel for extraction turret

Saftair side panel for TH36/40/45/50 turret

Dimensions for roof flange, TH 32, 36, 40, 45 extraction turret, 230V, 380V

Side panel for extraction turret

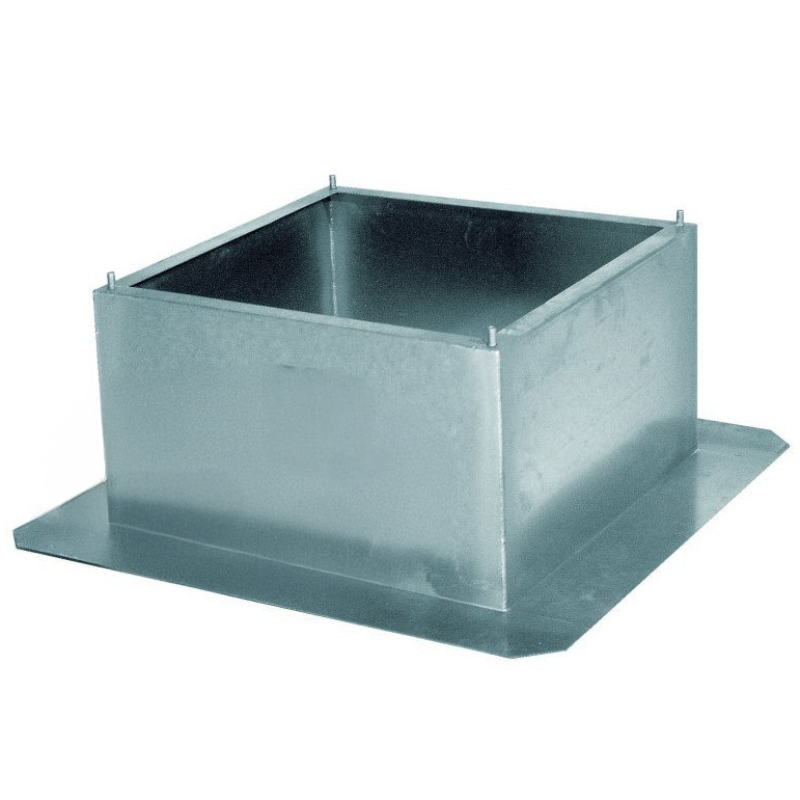

Saftair mount for flat or sloped roofs.

- Compatible with our exhaust turrets (except T11 and T25) or those from SAFTAIR or France air since 2022.
- Can be adapted to other brands if the base of the exhaust turret is larger than the roof edge.
- Supports a slope of up to 5%
- 4 mounting points (bolted) for attaching the exhaust turret to the roof curb.
- 3 Dimensions:

T1: Mounting frame: W 550 x D 550 mm

T2: Mounting frame: W 680 x D 680 mm

T3: Mounting frame: W 840 x D 840 mm

For a sloped roof, please SPECIFY YOUR ROOF SLOPE ( % d) WHEN PLACING YOUR ORDER; same price, delivery time ~ 2 weeks.

Fastening

Quantity

336.00 Tax excluded

403,2 € TTC

In stock

Fast delivery

Advisers 5 days a week

Payment in 3 or 4 instalments

Description
Product Details

Roof turret bracket, mounting bracket for ventilation turrets on flat or low-slope roofs

Benefits of the Ventilsogood exhaust vent flashing:

• The roof vent flange ensures a perfect seal between the vent and the roof, preventing water infiltration
• The flashing allows for quick and precise installation of the roof vent, thanks to its tailored design
• Made from durable materials, the flashing extends the service life of the entire ventilation system
• Designed to fit various types and sizes of roof vents, offering a versatile solution
• The roof turret bracket ensures a more secure attachment of the turret, optimizing its operation and efficiency
• The flashing protects the base of the vent from the elements, dust, and debris
• Provides additional support for the vent, enhancing its stability on the roof
• The exhaust turret flashing provides a neat, professional finish to the turret’s installation on the roof
• Helps ensure compliance with applicable building and safety codes

Discover other products like thisT40 ventilation turretor thisventilation deflector.

Product Details

Brand SAFTAIR

Reference COSTIERE

Fastening
Products: Fastening
Manufacturing: Made in France
Package weight: 25 kg

ean13 0657968082304
