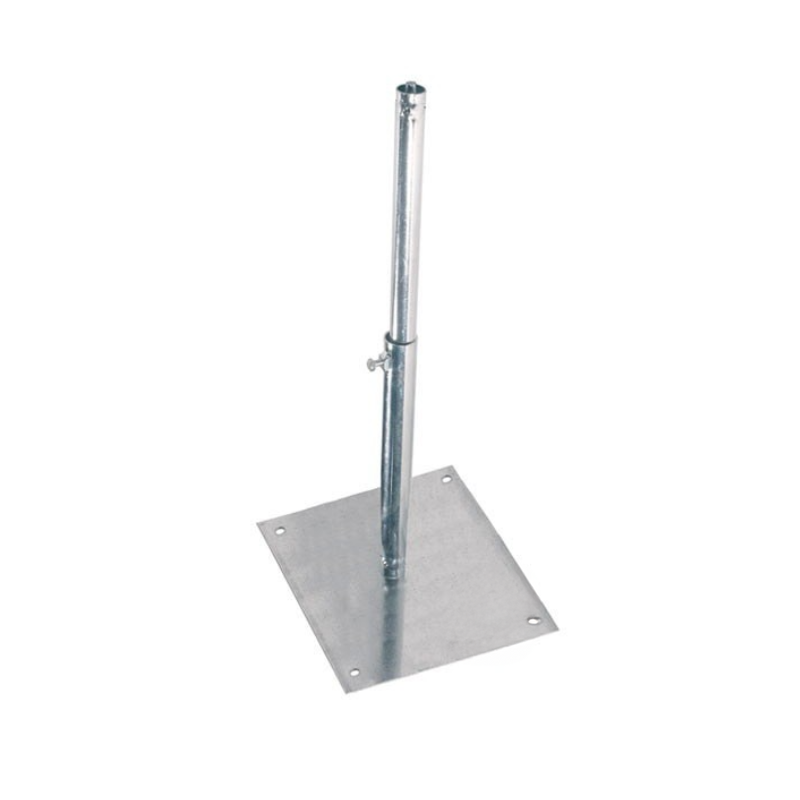

Terrace Duct Support Foot

Deck support leg with insulated clamp for duct mounting

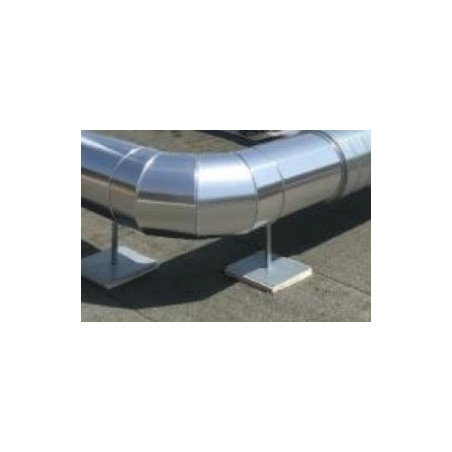

Terrace Duct Support Foot, vue 2
Deck support leg with insulated clamp for duct mounting

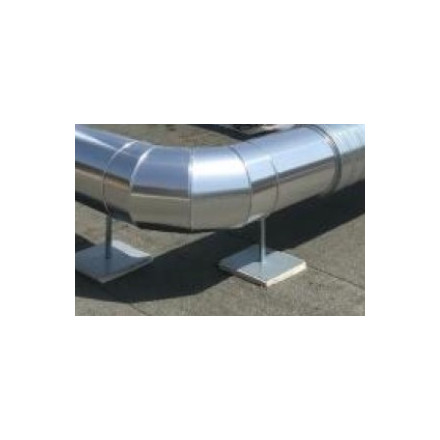

Terrace Duct Support Foot, vue 2

The Terrace Duct Support Foot in galvanised steel raises and stabilises your ventilation ducts on flat roofs, with an adjustable height of 230 to 430 mm and compatibility with duct diameters from 80 to 800 mm.

  • Base dimensions: 300 x 300 mm
  • Adjustable telescopic height: 230 to 430 mm
  • Compatible duct diameter: 80 to 800 mm
  • Thread: M8, extendable with a threaded rod
  • Insulated fixing clamp: not supplied
In stock
Quantity
18.00 Tax excluded
21,6 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The Terrace Duct Support Foot is a galvanised steel fixing accessory that supports and raises circular ventilation ducts installed on a flat roof, with an adjustable telescopic height of 230 to 430 mm and compatibility with diameters from 80 to 800 mm.

Why fit your ducting on a terrace duct support foot?

On a flat roof, ducting laid directly on the surface will always end up moving, vibrating or damaging the waterproofing. The Terrace Duct Support Foot solves this simply: it raises the duct, keeps it aligned along its full run and avoids any direct contact with the roof's waterproof membrane. A solid installation that copes without issue with the weight of the ducting and its vibrations over time. For a ventilation run extending over several metres, allow for a support foot roughly every 3 linear metres, as a guide depending on the weight and rigidity of your duct.

Technical specifications

Specification Value
Base dimensions 300 x 300 mm
Adjustable height 230 to 430 mm (telescopic foot)
Compatible duct diameter 80 to 800 mm
Thread M8
Material Galvanised steel
Insulated fixing clamp Not supplied
Weight 5 kg
Warranty 1 year

Installation and connection

The foot sits on the 300 x 300 mm base, then adjusts in height via its telescopic system to follow the slope of the roof or set the level of the duct. The M8 thread takes an insulated fixing clamp, to be selected according to the exact diameter of your duct (compatible from 80 to 800 mm): it is not supplied with the foot. Need a bit more height? The foot can be extended with an additional threaded rod, but keep the extension length reasonable: the further the assembly is stretched, the less rigid it remains, and a poorly supported duct will eventually vibrate or go out of alignment. Precise height adjustment allows clean alignment with the rest of the ventilation run, without forcing the connections.

Points to check before ordering

  • The diameter of your duct (between 80 and 800 mm), to choose a suitable insulated fixing clamp (not supplied with this foot)
  • The slope and available height on your flat roof, to compare with the 230 to 430 mm adjustment range
  • The number of feet needed along the length of your run: fit roughly every 3 linear metres, to be adjusted according to the weight of the duct
  • Compatibility with a circular duct, as the foot is designed for this type of cross-section
  • The condition of your roof's existing waterproofing before fitting the base on it

To pair with

For more options, browse our ventilation accessories.

Product Details

Ouestventil
piedsuppterras
Products
Fastening
Warranty
1 year
0657968750050

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

Do I need a fixing clamp with the terrace duct support foot?

Yes. The Terrace Duct Support Foot has an M8 thread that takes an insulated fixing clamp, to be selected according to the exact diameter of your duct, compatible from 80 to 800 mm. This clamp is not supplied with the foot: it must be ordered separately to match your duct.

What height of foot should I choose for my flat roof?

The Terrace Duct Support Foot is telescopic and adjusts from 230 to 430 mm. This range allows it to adapt to your roof configuration: simply measure the required height between the base and the duct before adjusting, depending on the slope and space available on your terrace.

Can the terrace duct support foot be extended?

Yes, the foot can be extended with an additional threaded rod if the 230 to 430 mm height is not sufficient. However, keep the extension length reasonable: the further the assembly is stretched, the less rigid it remains, which risks weakening the support of the duct.

How many feet do I need for my ducting run?

As a guide, allow for a Terrace Duct Support Foot roughly every 3 linear metres of run. This figure should be adjusted according to the weight of your duct, the number of elbows and the configuration of your flat roof.

Does the terrace duct support foot fit all duct diameters?

The Terrace Duct Support Foot is adaptable to any circular duct diameter between 80 and 800 mm. Its 300 x 300 mm base and M8 thread allow an insulated clamp suited to your duct to be fitted, for stable support along the full length of the run.
