Anti-vibration panel for exhaust hood
The anti-vibration panel absorbs vibration from your extraction fan box and noticeably reduces the noise transmitted to the roof or terrace. It can be cut to size to fit your fan box or brackets, and is built to last both outdoors and indoors.
- Dimensions: L 500 x D 500 x H 45 mm
- Compatibility: all our ventilation fan boxes, can be cut to size
- Material: recycled SBR rubber
- Temperature resistance: -35°C to 80°C
- Use: indoor or outdoor, panels can be joined together
Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments

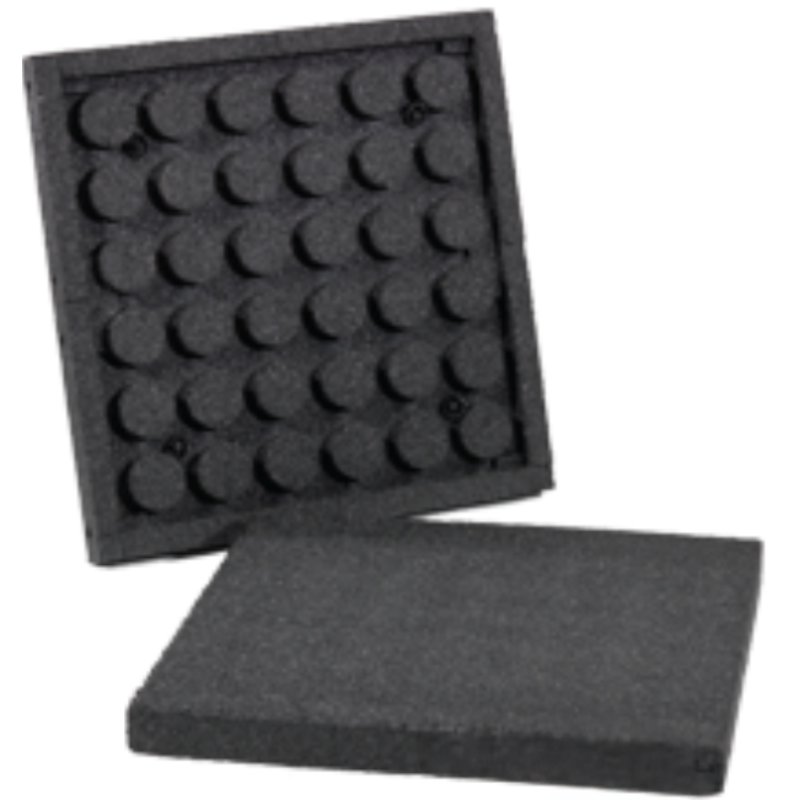

The anti-vibration panel is a recycled rubber support placed under an extraction fan box or roof fan support, to absorb its vibration and limit the noise transmitted to the roof, terrace or building structure. 500 x 500 mm format, can be cut to size to match the dimensions of your fan box.
Why fit an anti-vibration panel under your motor box

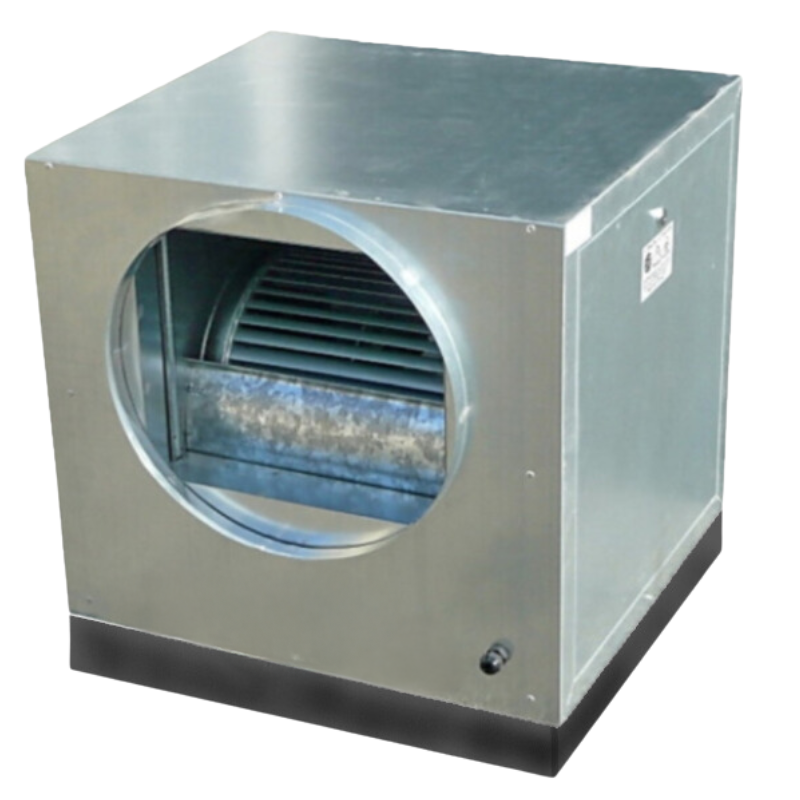

An extraction fan box in operation generates vibration which, when transmitted directly to the floor or roof, can create an annoying resonance noise, particularly during peak service or with continuous operation. The anti-vibration panel acts as a buffer between the base of the fan box and its support: it absorbs a large part of this vibration and prevents the noise from spreading to the premises below.
These 500 x 500 mm panels are ideally suited for setting up roof walkways and for dampening vibration from outdoor units or ventilation fan boxes. They are easy to cut to size to match the exact dimensions of your fan box: you can also use them in strips under a bracket or angle support, or simply position them at the four corners of the fan box.
Technical specifications
| Specification | Value |
|---|---|
| Dimensions | 500 x 500 x 45 mm (length x depth x thickness) |
| Material | Recycled SBR rubber |
| Compatibility | All our ventilation fan boxes, panel can be cut to size |
| Temperature range | -35°C to 80°C |
| Weight | 5 kg |
| Use | Indoor or outdoor |
Use and compatibility
This panel suits all our ventilation fan boxes, not just the common 7/7, 9/9 or 10/10 formats. Thanks to its ability to be cut to size, it adapts to the actual dimensions of the fan box you are installing, whether small or larger. It simply sits under the fan box, with no mandatory fixing required, which makes maintenance or motor replacement easier when the time comes.
Another popular use: placed on its own or joined to other panels using standard fixings, it serves as excellent roof protection. Its cells and grooves help water drainage, a detail that matters for maintaining watertightness during maintenance access along a roof walkway.
Points to check before ordering
- Measure the actual footprint of your fan box to determine whether a single 500 x 500 mm panel is enough, or whether several will need to be cut to cover the full area.
- If you prefer support at the four corners rather than a solid panel, it can easily be cut into strips to fit under each bracket or angle support.
- If installing outdoors, make sure the location stays within the stated temperature range (-35°C to 80°C), particularly on a roof exposed to direct sun.
- For joining several panels together to form a roof walkway, standard fixings are required, not supplied with the panel.
Frequently bought together
A small accessory, but one that really changes the noise levels around your extraction fan box: robust, easy to fit or cut to size, and ready to withstand temperature swings all year round.
You might also like
8 other products in the same category:
Customers who bought this product also bought:
Frequently asked questions
What is the difference between an anti-vibration panel and anti-vibration pads?
An anti-vibration panel forms a solid sheet under the whole fan box, whereas pads are placed individually under each leg. The 500 x 500 mm panel can be cut to size to match your fan box and spreads the load across the whole surface, which simplifies fitting with no mandatory fixing required.
Which fan box sizes is this panel compatible with?
This anti-vibration panel is compatible with all our ventilation fan boxes, not just the 7/7, 9/9 or 10/10 formats. As it is easy to cut to size, you can adapt it to the actual dimensions of your fan box, whether small or large.
Can this panel be used outdoors on a roof terrace?
Yes, the anti-vibration panel is designed for indoor or outdoor use and withstands a temperature range of -35°C to 80°C. It also provides excellent protection for roof walkways, as its cells and grooves help water drainage.
Can several panels be joined together?
Yes, anti-vibration panels can be joined together using standard fixings, not supplied. This allows you to create a continuous roof walkway or cover the footprint of a larger fan box than a single panel allows.
Can the panel be cut to use it other than as a solid sheet?
Yes, the 500 x 500 mm panel is easy to cut to size to match your fan box. You can also cut it into strips to use under brackets or angle supports, or simply position it at the four corners of the fan box rather than as a full sheet.
