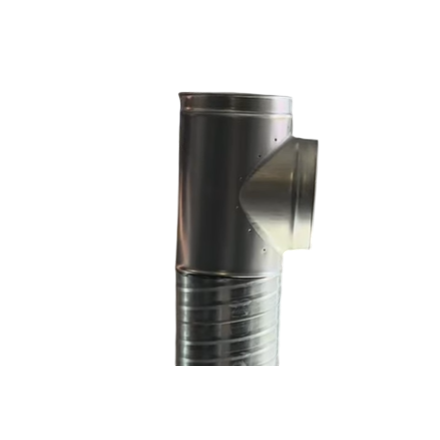

90° galvanized steel tee

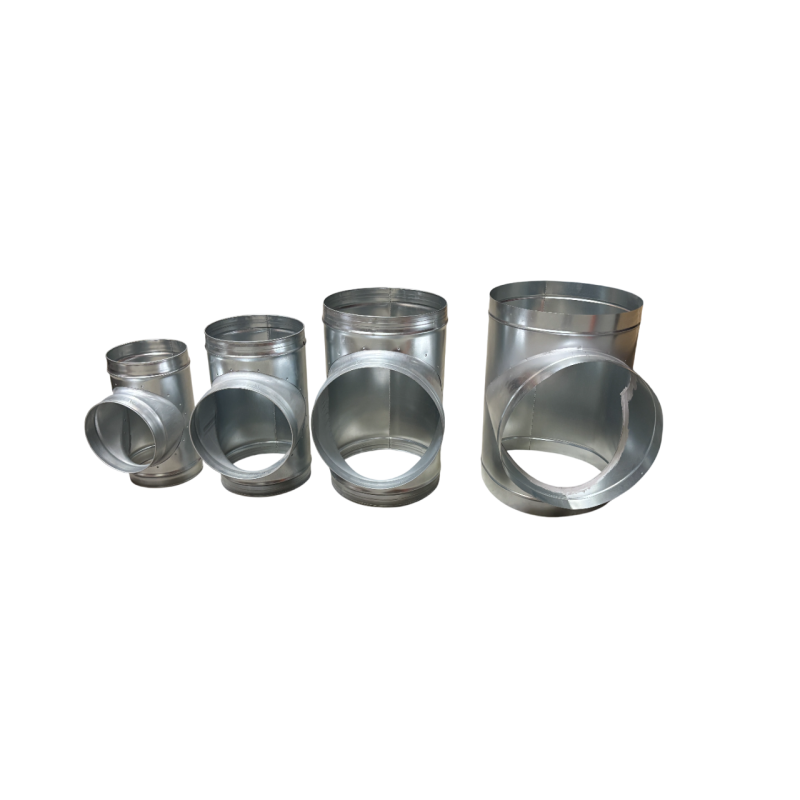

Galvanized steel T-fitting for ventilation systems

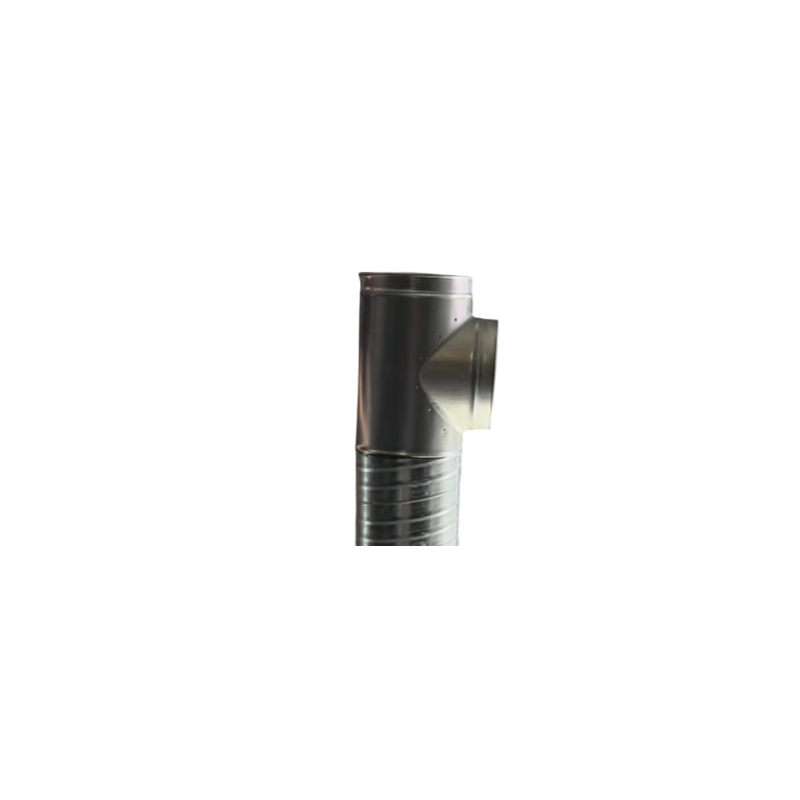

90° galvanized steel tee, vue 2

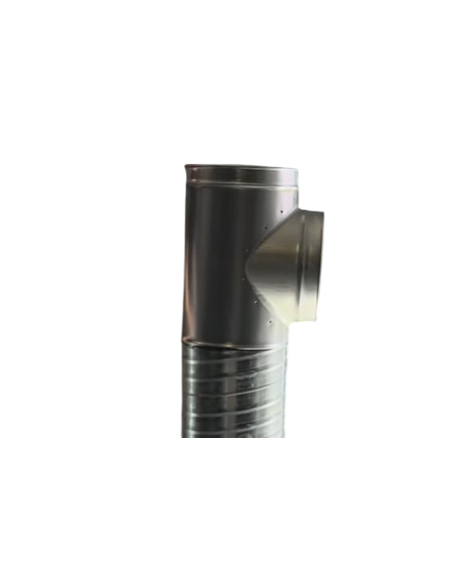

90° galvanized steel tee, vue 3
Video

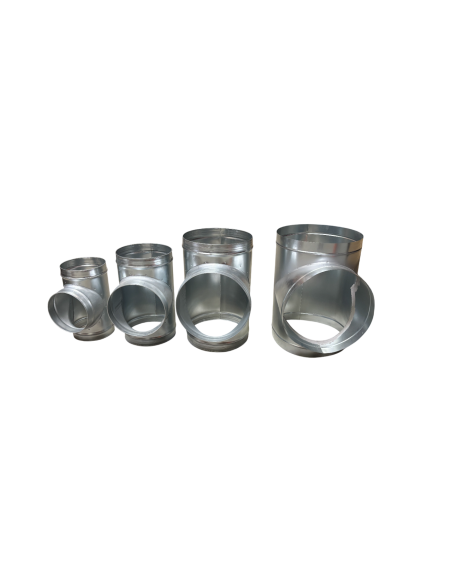

Galvanized steel T-fitting for ventilation systems
90° galvanized steel tee, vue 2
90° galvanized steel tee, vue 3

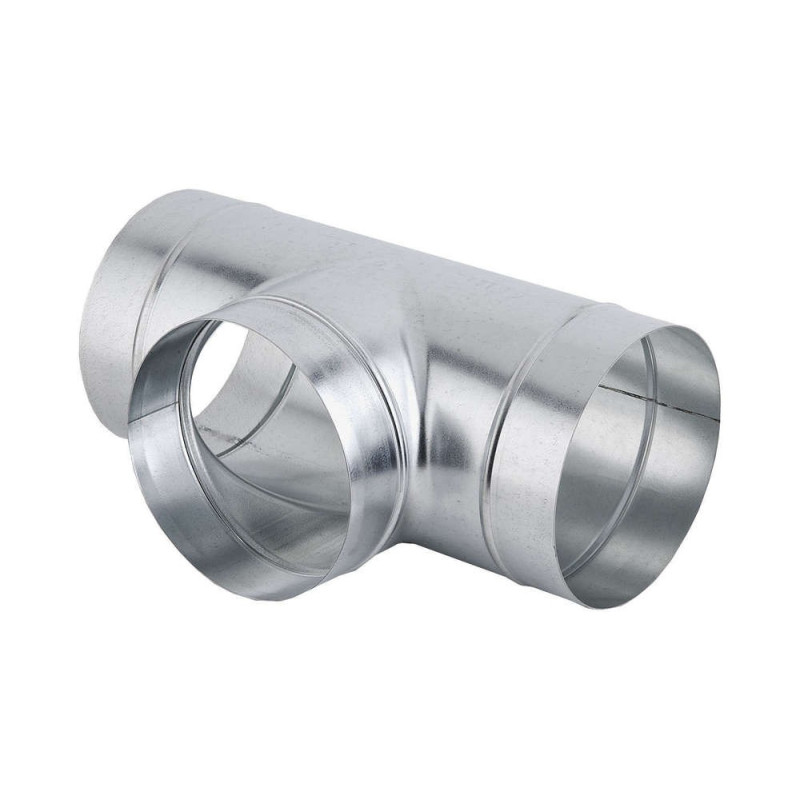

Galvanized steel tee to connect two ducts or two hood outlets

The 90° galvanized steel tee connects two perpendicular ducts or acts as an elbow with an inspection hatch, available in 15 diameters from 80 to 800 mm to suit your ductwork.

  • Material: galvanized steel
  • Manufactured in: France
  • Diameter: choice from 80 to 800 mm
  • Fitting type: male, to be paired with a female connector at the branch
  • Package weight: 1 kg
Diameter
In stock
Quantity
19.00 Tax excluded
22,8 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The 90° galvanized steel tee is a connecting fitting for professional ventilation ductwork that allows you to join two perpendicular ducts or create an elbow fitted with an inspection hatch, available in 15 diameters from 80 to 800 mm.

Technical specifications

Material Galvanized steel
Manufactured in France
Diameter 80, 100, 125, 160, 200, 250, 315, 355, 400, 450, 500, 560, 630, 710, 800 mm
Fitting type Male fitting
Package weight 1 kg

Use and compatibility

This galvanized branch tee is used to combine or split an airflow between two ventilation ducts fitted at a right angle. On a commercial kitchen project (restaurant, takeaway, kebab shop, pancake house, pub) as well as on a commercial ventilation system, it allows you to extend an existing installation or redirect a duct without having to dismantle everything. When used as an elbow, its inspection hatch makes it easier to access the duct for cleaning or checking, a point particularly valued on grease extraction systems that require regular maintenance.

Installation and connection

The galvanized tee is fixed to ducts using self-tapping screws, a sealing gasket and/or aluminium tape. As this is a male fitting, remember to fit a female connector between the branch and the tee for a correct fit. Installation remains straightforward for any installer familiar with ventilation ductwork, with no complex tools required.

Points to check before ordering

  • The diameter of the tee must match exactly that of your existing ducts (80 to 800 mm available).
  • Make sure you have a female connector available for assembly, as this fitting is male.
  • As a general guide, the airflow balance between the two outlets depends on the duct sections chosen: a diameter that is too small on one branch can generate additional pressure losses, to be adjusted according to your system.
  • Check the available clearance, particularly when used as an elbow with an inspection hatch, to maintain clear access for maintenance.
  • Make sure you have the sealing materials required (gasket, aluminium tape, self-tapping screws) if not included with your order.

Frequently bought together

Product Details

Ventilsogood
Tgalva
Diameter
Products
Galvanized T-bar
Manufacturing
Made in France
Package weight
1 kg
0657968293786

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

Which diameter of galvanized tee should I choose for my system?

The diameter of the galvanized tee must match exactly that of your existing ducts. This model is available in 15 diameters, from 80 to 800 mm, to suit most professional ventilation systems, whether for kitchen extraction or a commercial ventilation network.

Can the galvanized tee be used as an elbow?

Yes, the 90° galvanized steel tee can be used as an elbow fitted with an inspection hatch. This dual function makes it easier to access the duct for maintenance or checking, an advantage on a kitchen extraction system that requires regular cleaning.

Do I need an additional connector to fit this galvanized tee?

Yes, the galvanized tee is a male fitting. You need to fit a galvanized female connector between the branch and the tee to ensure a correct fit with your existing ducts.

How do I fix the galvanized tee to my ducts?

The galvanized tee is fixed using self-tapping screws, along with a sealing gasket and/or aluminium tape depending on the level of airtightness required for your system.

Is this galvanized tee suitable for a commercial kitchen?

Yes, this galvanized tee is suitable for commercial kitchen extraction systems (restaurant, takeaway, kebab shop, pancake house, pub) as well as commercial ventilation networks, provided you choose the diameter that matches your ducts.
