Suspension cables + self-locking pulleys (4)

suspension cable for range hood, hood, and duct
suspension cable for range hood, hood, and duct

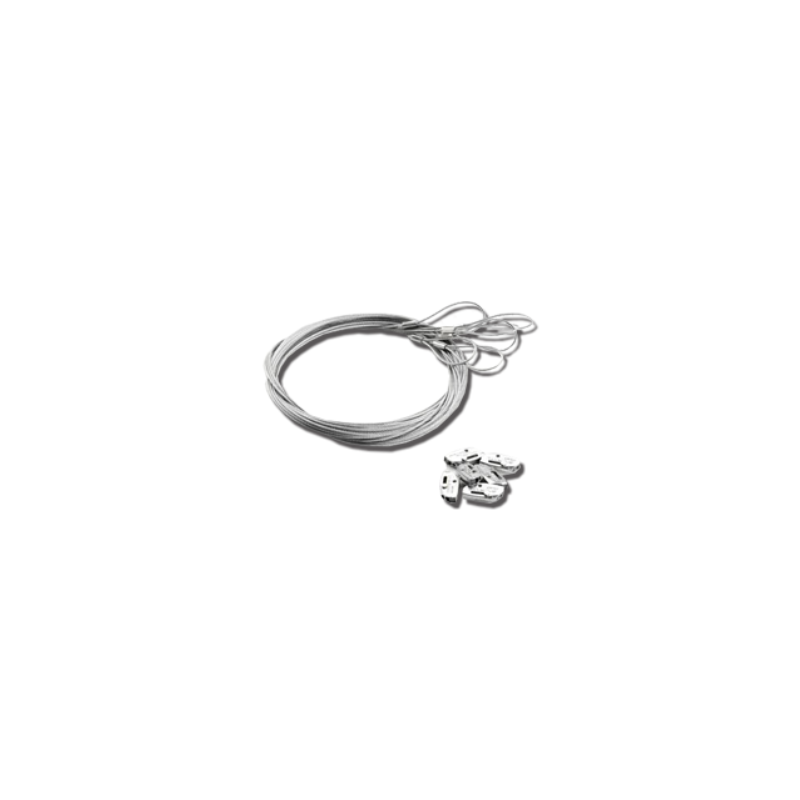

Suspend your ventilation ducting, extraction fan boxes or suspended ceilings safely with this kit of 4 x 3 m cables and their self-locking pulleys, rated up to 35 kg per cable, with no tools or complicated drilling required.

  • Length: 4 x 3 m (12 linear metres of cable in total)
  • Cable diameter: 1.5 mm, galvanised steel
  • Pulley: Sufix side release type, key-free release
  • Max load: 35 kg per cable
  • Made in: France
In stock
Quantity
25.00 Tax excluded
30 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The Suspension cables + self-locking pulleys (4) kit is a suspended fixing solution for ventilation ducting, extraction fan boxes and technical equipment, with a load rating of 35 kg per cable and tool-free adjustment.

A suspension kit designed to save you time

No more spending hours screwing in threaded rods: this cable suspension system tensions and locks in one simple action thanks to the self-locking pulley. Simply pull the cable to adjust the height, and the pulley locks the position automatically. To lower or dismantle, just press the release button, no key or tool needed. A real time saver on site or during maintenance work.

Technical specifications

Specification Value
Kit contents 4 x 3 m cables + 4 locking pulleys (12 linear metres total)
Cable diameter 1.5 mm
Cable material Galvanised steel
Pulley type Sufix, side release
Working load 35 kg per cable
Release Key-free, push-button
Package weight 200 g
Made in France

What is it used for?

This suspension kit is suitable for pipework and mechanical ventilation or extraction ducting as well as air conditioning cassettes, radiant panels, suspended ceilings, lighting, light fittings or signage elements. It's the accessory always kept in the van: just as handy for fixing an extraction fan box as for refitting a suspended ceiling.

Installation and connection

Each cable is fixed at a high anchor point, then the equipment clips onto the self-locking pulley, which locks the cable at the required height. No welding, no multiple drilling: a single anchor point per cable is enough. Remember to spread the kit's 4 cables across 4 fixing points for a stable, balanced suspension, especially on long ducting or a heavier fan box.

Points to check before ordering

  • Check the total weight of the equipment to be suspended: with 4 cables rated at 35 kg each, do not exceed the combined allowable load, spread across the 4 anchor points.
  • Check the strength of the upper anchor point (ceiling, structure, framework): the cable cannot compensate for a weak support.
  • Check the available height between the anchor point and the equipment: each cable measures 3 m, to be adapted to your configuration.
  • For heavy ducting or a heavy fan box, anchor on all 4 cables rather than 2 to limit overhang.

Frequently bought with

Product Details

Ventilsogood
cabledesuspension
Products
Fastening
Manufacturing
Made in France
Package weight
200 grams
0657968962101

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What load can a suspension cable in this kit support?

Each cable in the kit has a working load of 35 kg, thanks to the Sufix side release pulley. With the 4 cables spread across 4 anchor points, you can suspend heavier equipment by balancing the load across all fixing points.

How many cables are needed to suspend a ventilation duct?

The kit supplies 4 x 3 m cables with their pulleys, allowing you to create 4 anchor points. For ducting or an extraction fan box, spreading the suspension across several points improves stability, especially on longer runs or slightly heavier equipment.

How do you adjust the cable height without tools?

The self-locking pulley automatically locks onto the cable at the required height: simply pull the cable to tension it. To dismantle or readjust, a push-button releases the cable without needing a key or any specific tool.

Is this kit suitable for an air conditioning cassette or a suspended ceiling?

Yes, this kit of suspension cables and self-locking pulleys is used for pipework, mechanical ventilation ducting, air conditioning cassettes, radiant panels, suspended ceilings, lighting and signage, within the 35 kg per cable limit.

Are the cables corrosion resistant?

The cables are made of 1.5 mm diameter galvanised steel, suitable protection for standard indoor use. The kit is made in France.
