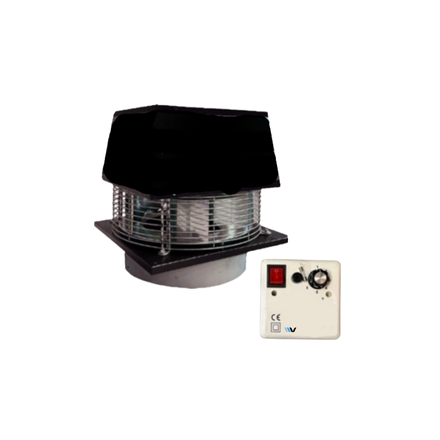

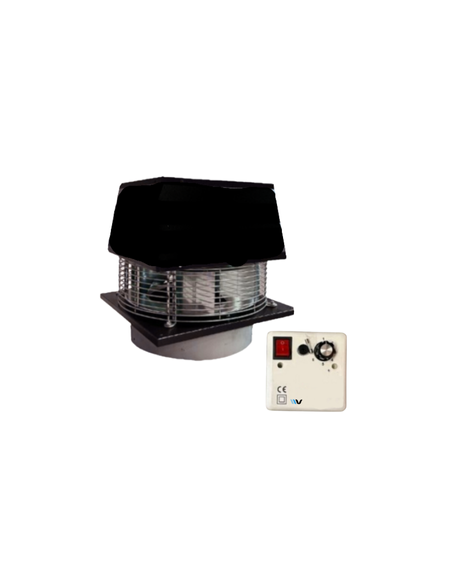

Roof fan T25 exhaust fan - 2,500 m³/h - 230 V + variable-speed drive - Wood-burning stove compatible

Roof fan T25
Roof fan T25 exhaust fan - 2,500 m³/h - 230 V + variable-speed drive - Wood-burning stove compatible

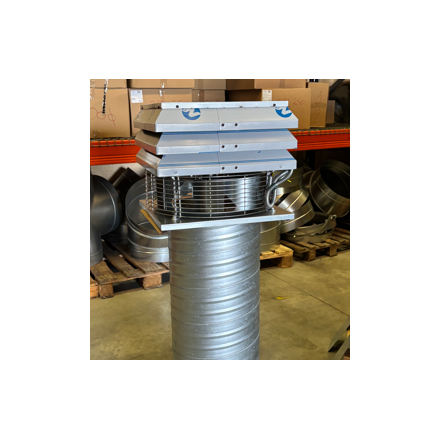

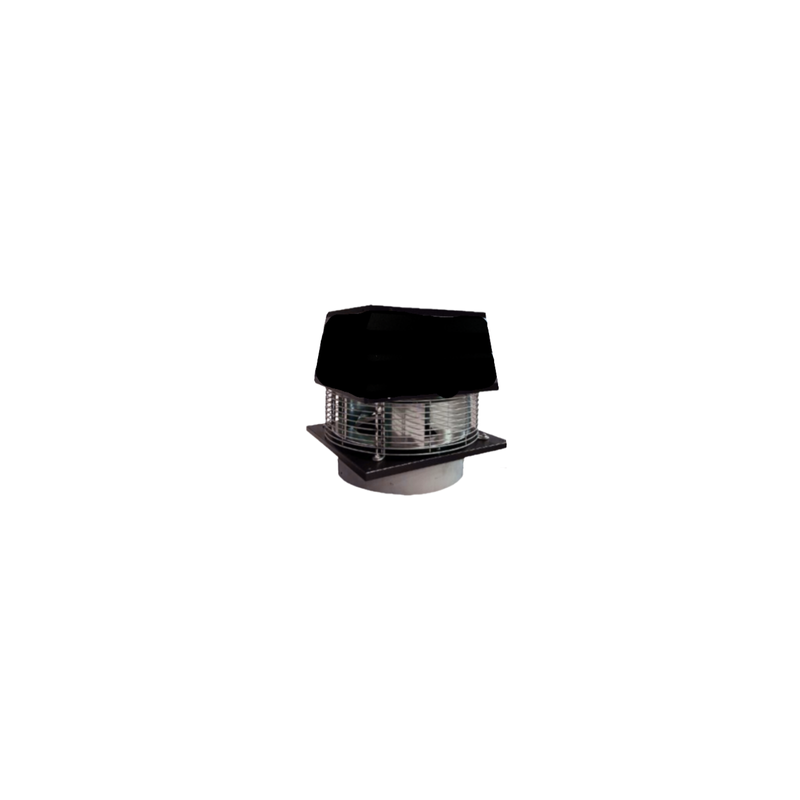

Roof fan Saftair roof

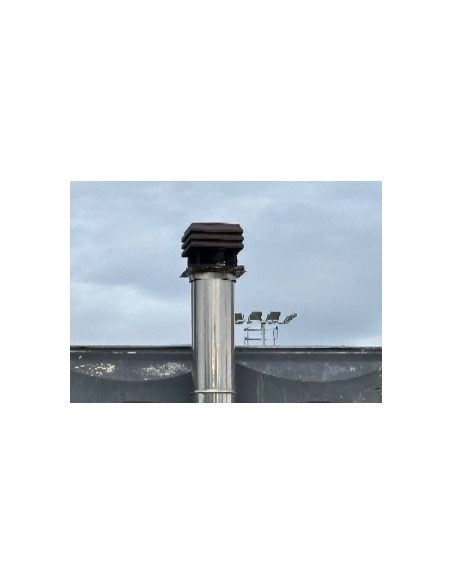

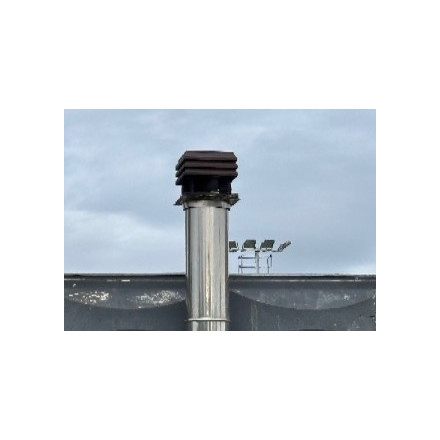

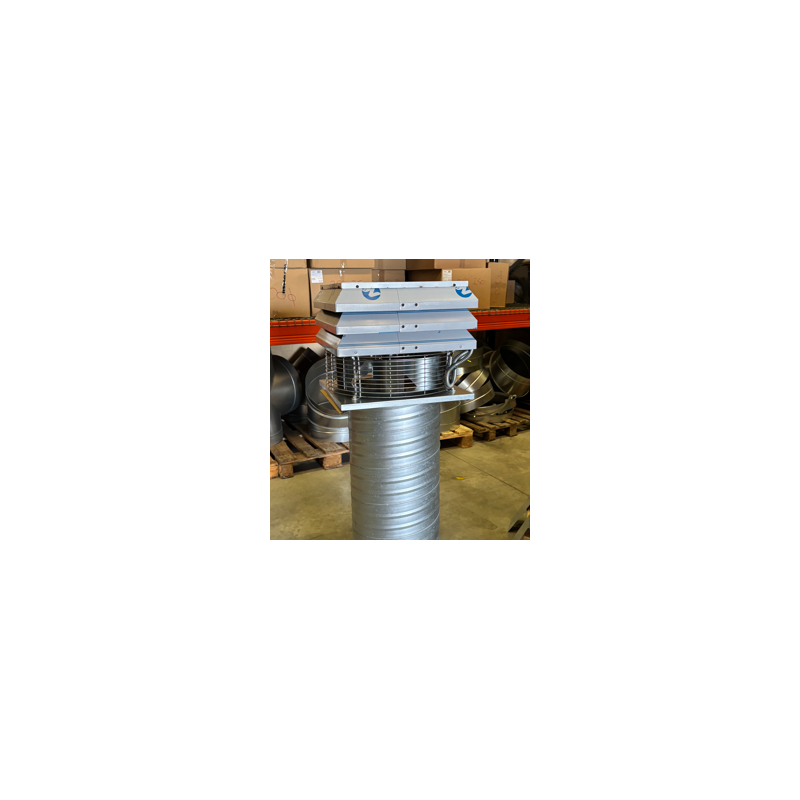

Roof fan T25 Ventilsogood, mounted on a roof

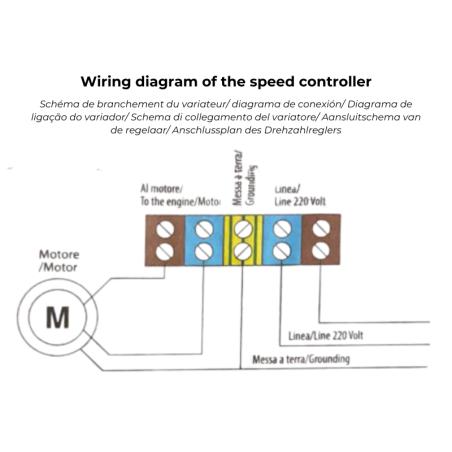

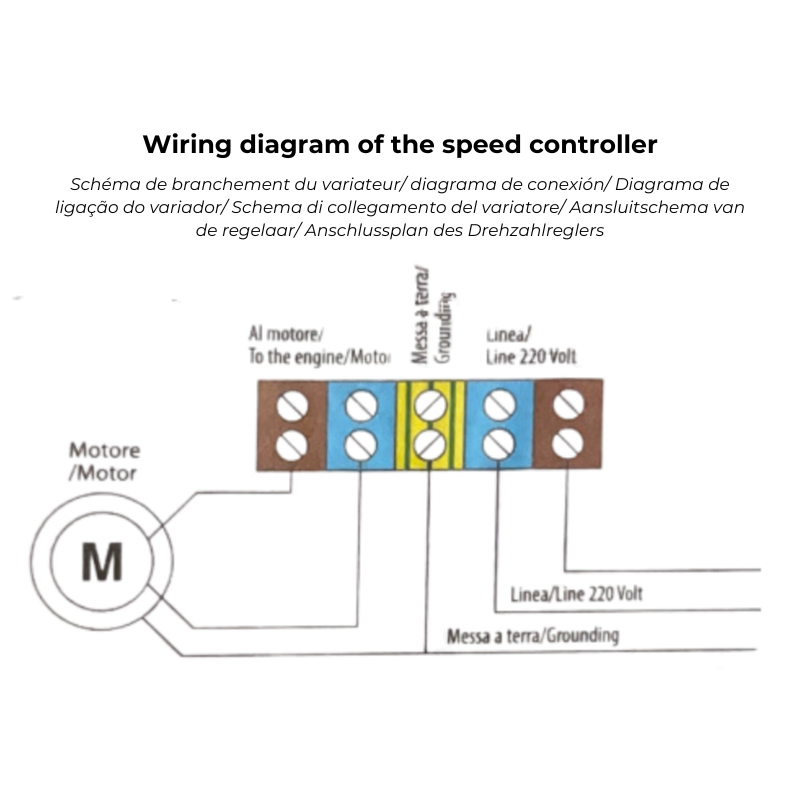

inverter wiring diagram

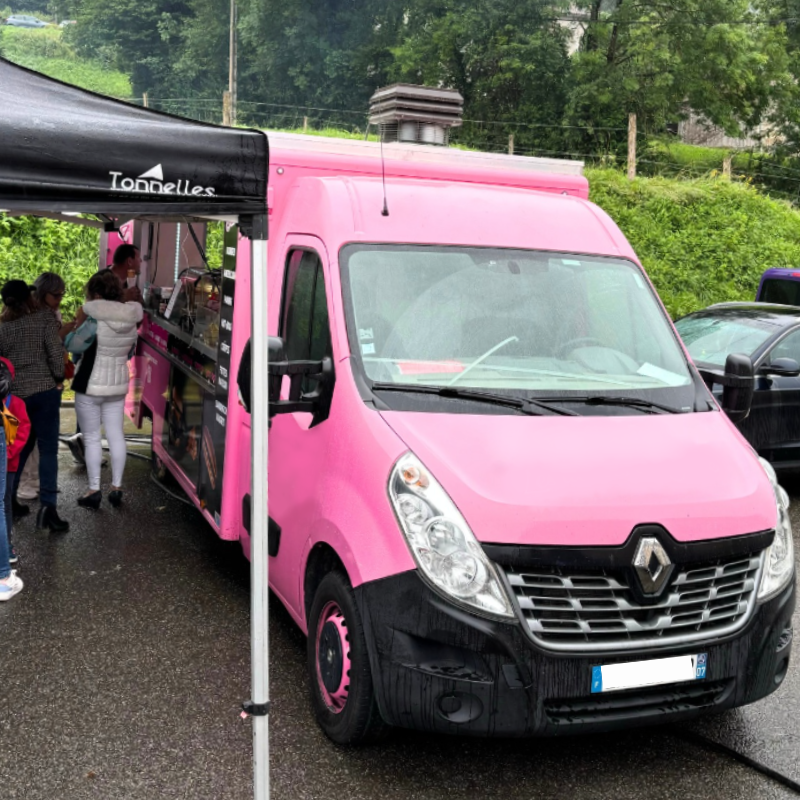

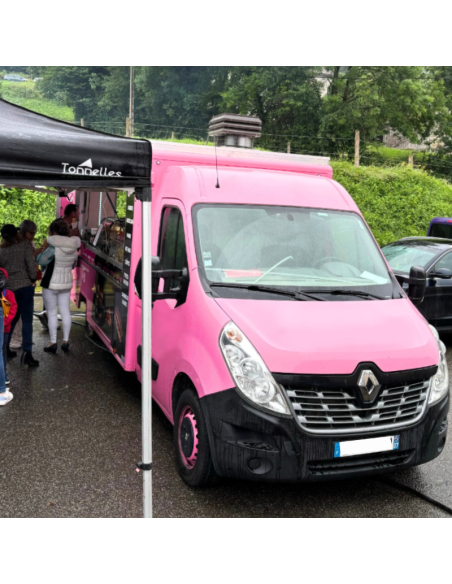

Roof fan Ventilsogood T25 rooftop unit mounted on a food truck

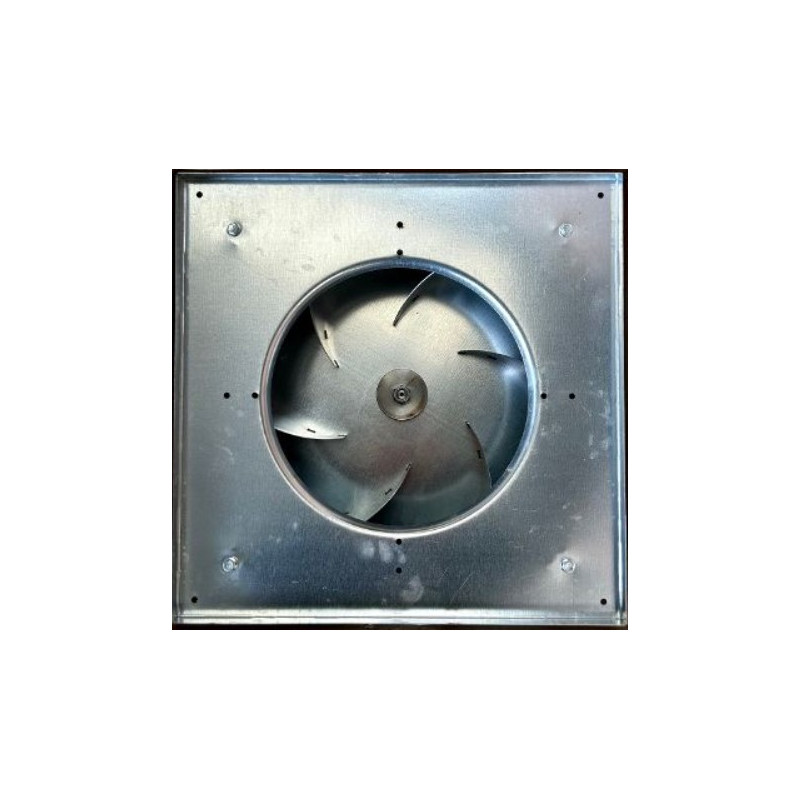

single-phase turret base

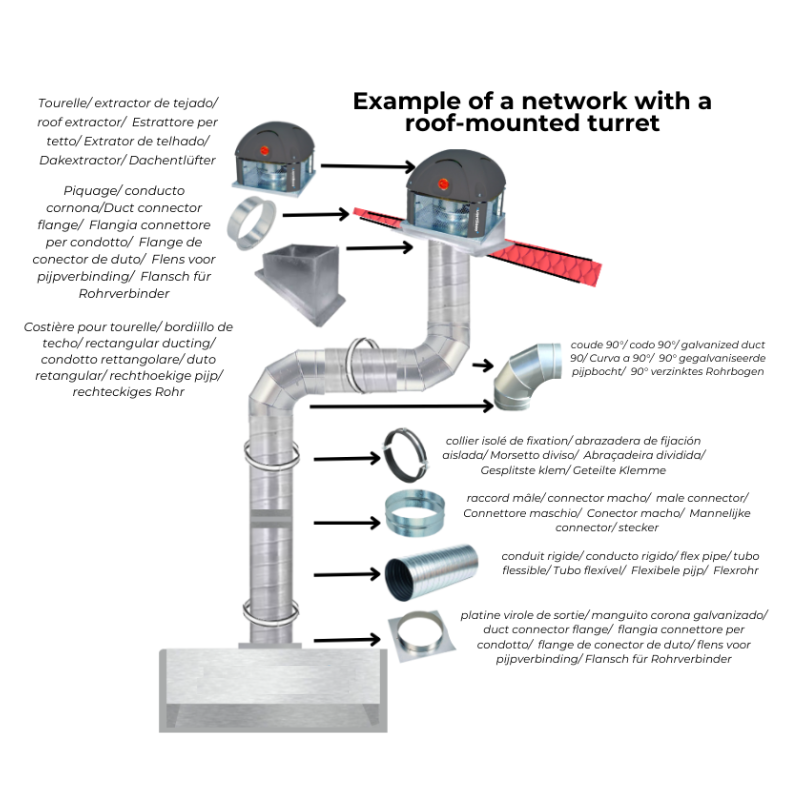

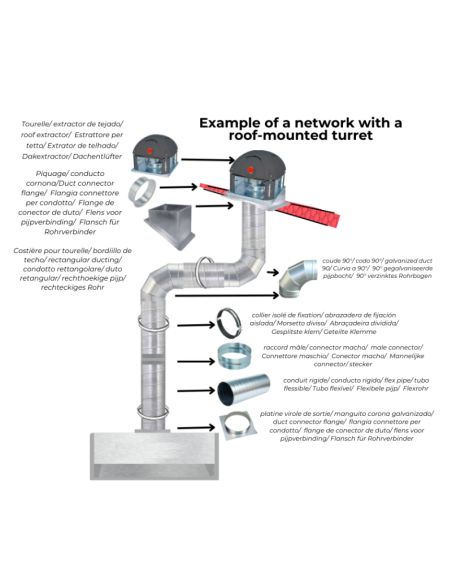

Installation Diagram for a Ventilation System with a Roof Turret

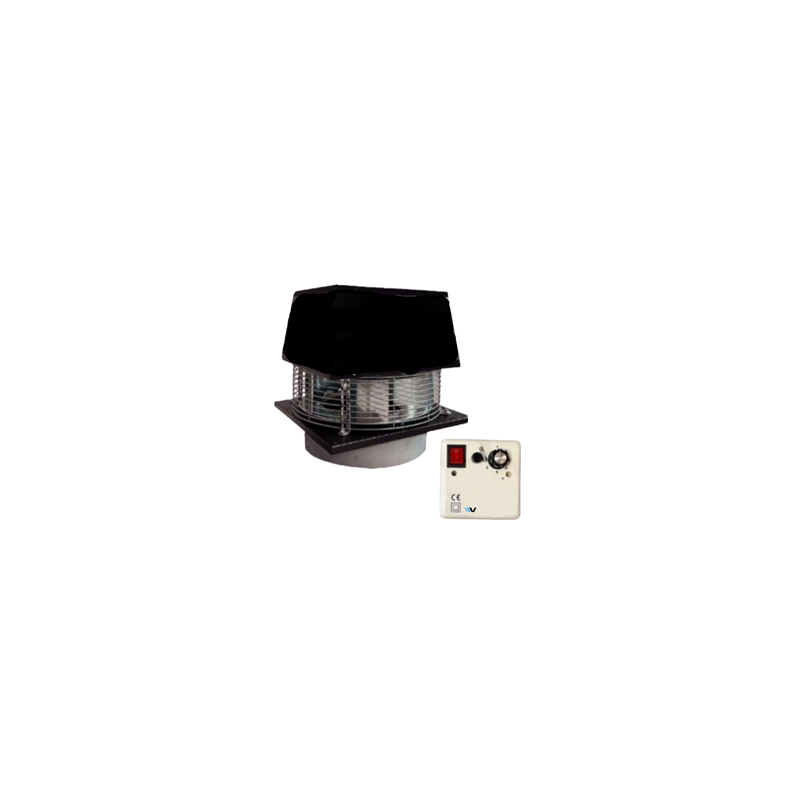

Roof-mounted exhaust fan for wood-fired cooking with a speed control
speed controller for a single-phase extraction turret
T25 Roof Turret Capacitor

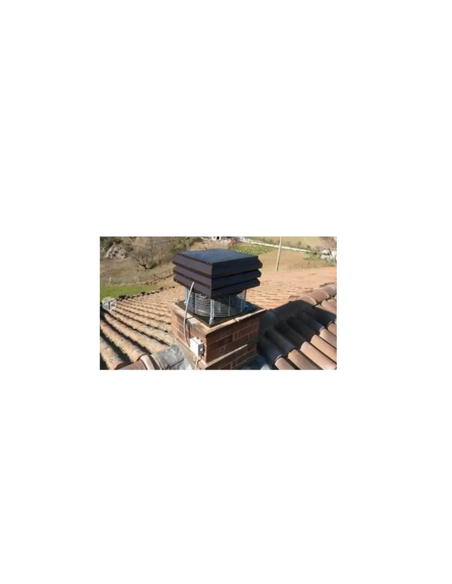

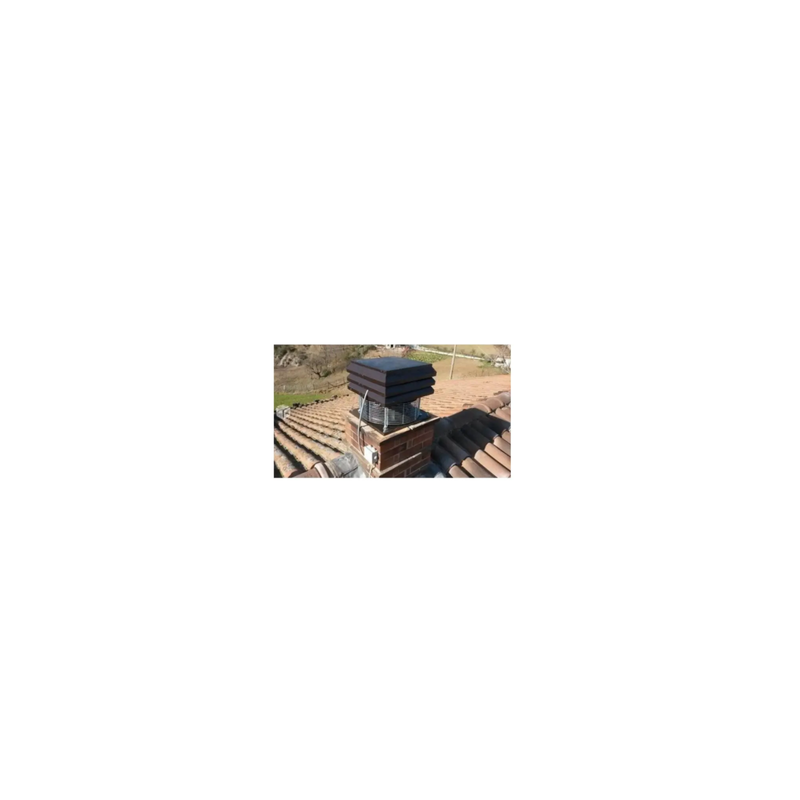

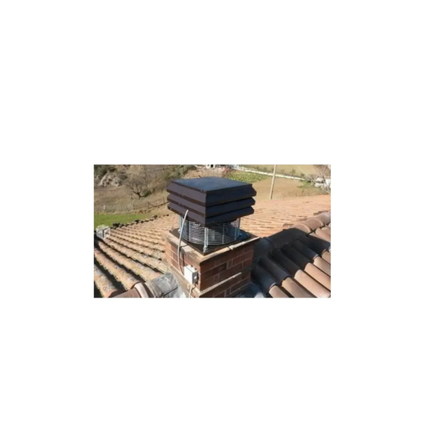

Roof fan Ventilsogood T25 rooftop unit mounted on a sloped roof

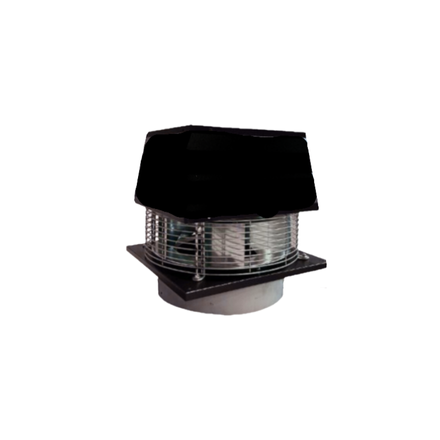

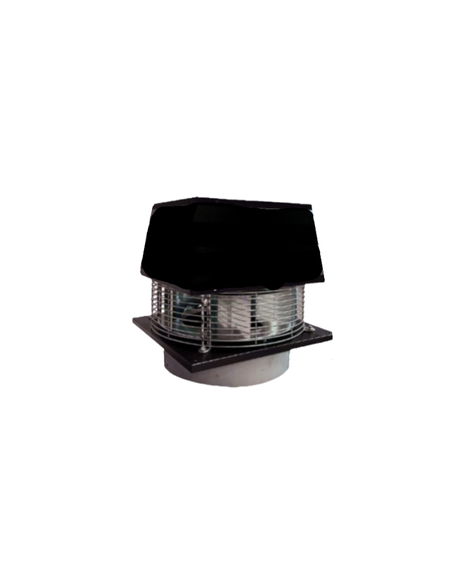

Roof fan Ventilsogood T25 roof unit with bird-proof guard

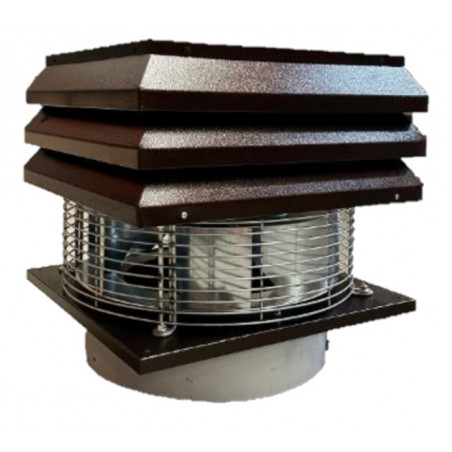

single-phase turret for a wood-fired kitchen stove
Roof fan T25
Roof fan T25 exhaust fan - 2,500 m³/h - 230 V + variable-speed drive - Wood-burning stove compatible

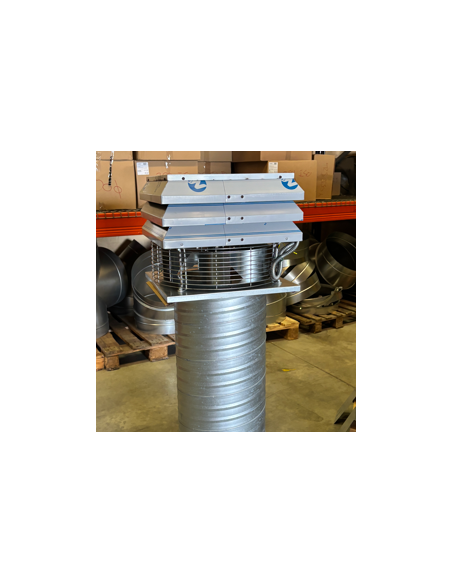

Roof fan Saftair roof
Roof fan T25 Ventilsogood, mounted on a roof

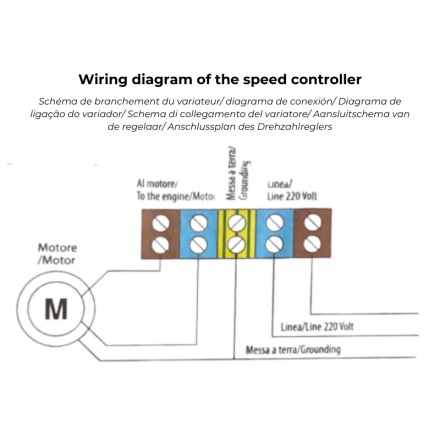

inverter wiring diagram
Roof fan Ventilsogood T25 rooftop unit mounted on a food truck

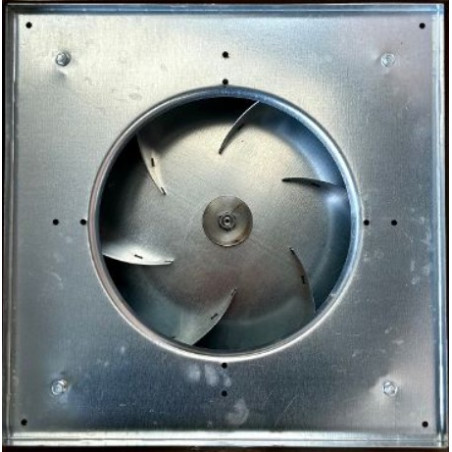

single-phase turret base
Installation Diagram for a Ventilation System with a Roof Turret

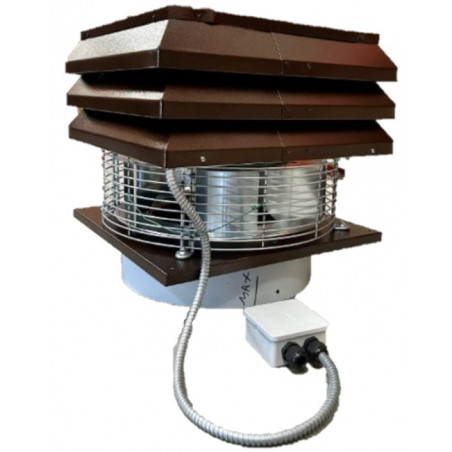

Roof-mounted exhaust fan for wood-fired cooking with a speed control
speed controller for a single-phase extraction turret

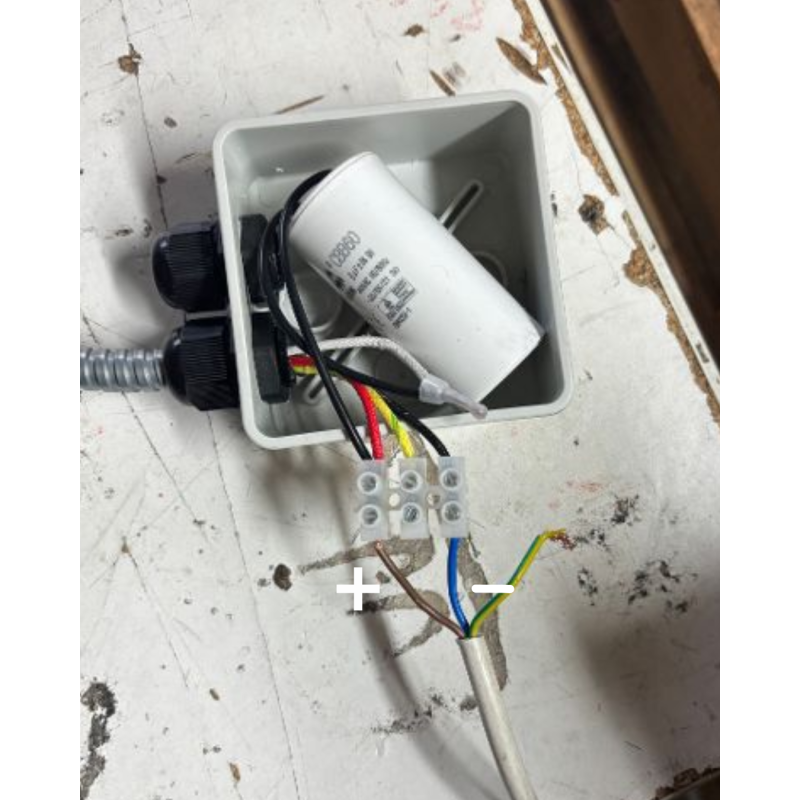

T25 Roof Turret Capacitor
Roof fan Ventilsogood T25 rooftop unit mounted on a sloped roof
Roof fan Ventilsogood T25 roof unit with bird-proof guard
single-phase turret for a wood-fired kitchen stove

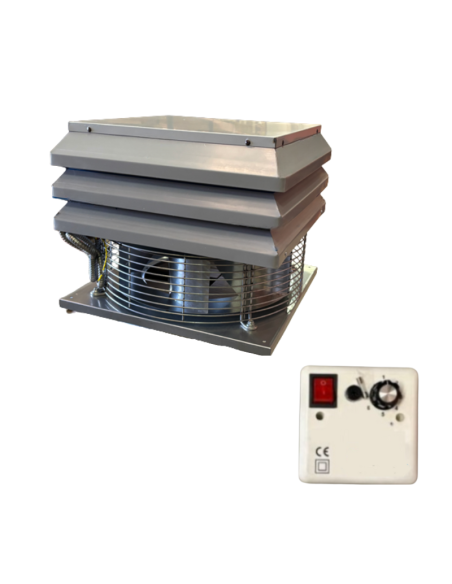

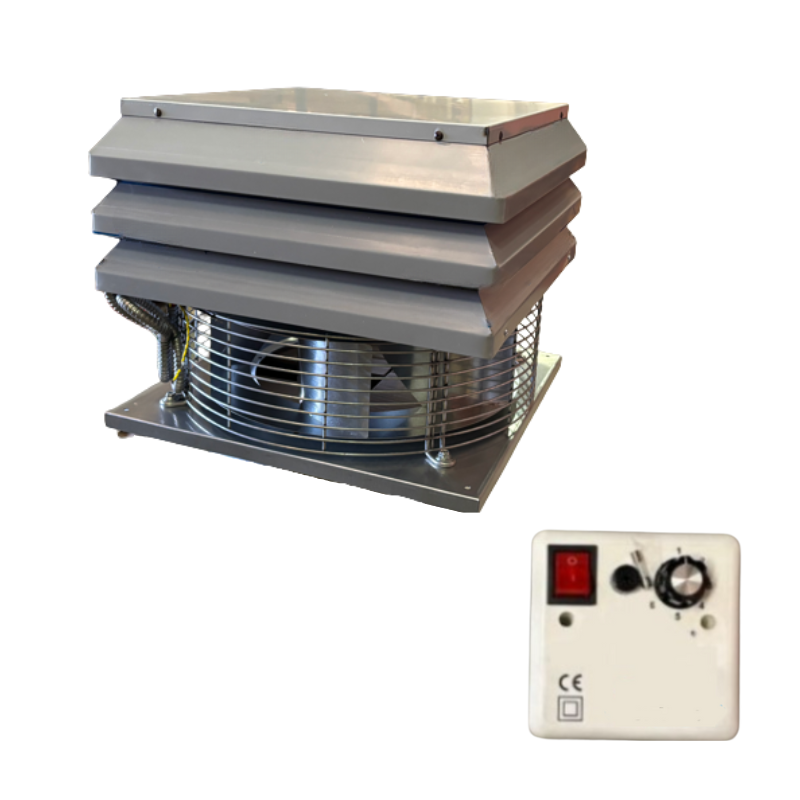

The T25 wood-burning stove roof extract fan delivers a flow rate of 2,500 m³/h with a 200 W motor, supplied with a 6-speed controller, suitable for wood-fired cooking up to 300°C provided the installation distance is respected.

  • Flow rate: 2,500 m³/h
  • Motor power: 200 W
  • Supply: 230 V single-phase
  • Inlet diameter: 250 mm, compatible with 250, 315 (ideal), 355 or 400 mm ducting
  • 6-speed controller included (autotransformer)
In stock
Quantity
499.00 Tax excluded
598,8 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments

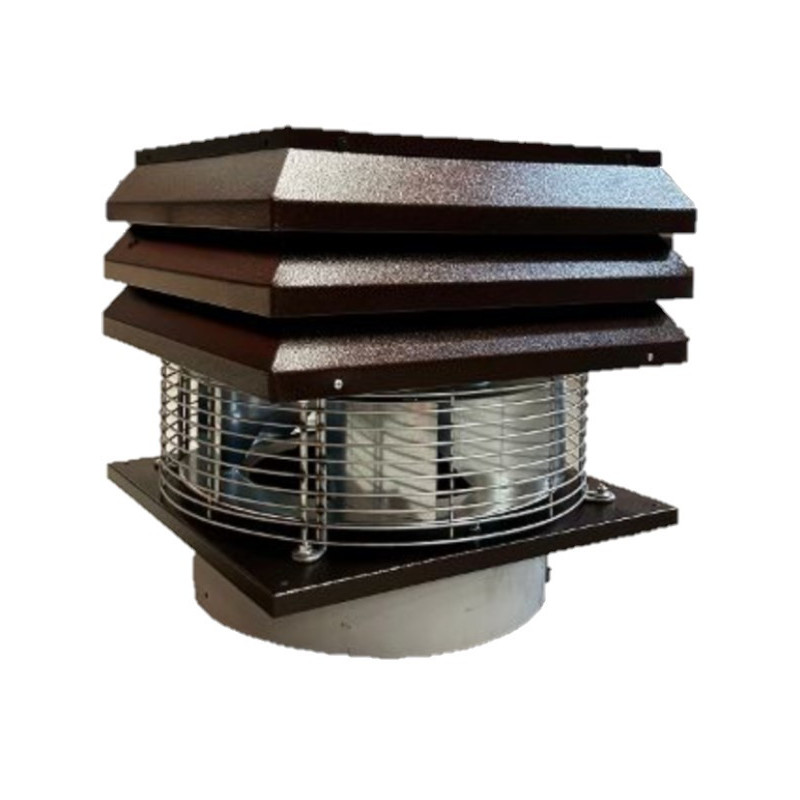

The T25 roof fan is a 2,500 m³/h roof extract fan for commercial kitchen hoods, supplied with a 6-speed controller, designed to withstand a maximum temperature of 300°C... ideal for wood-fired or charcoal cooking such as Churrasqueira-style grills.

T25 roof fan: technical specifications

Specification Value
Flow rate 2,500 m³/h
Motor power 200 W
Supply 230 V single-phase
Max admissible temperature 300°C
Inlet diameter 250 mm (flat connector not included)
Duct compatibility 250, 315, 355 or 400 mm
Dimensions 430 x 430 x H 400 mm
Controller supplied 6-speed, autotransformer type
Weight 11 kg (package 15 kg)
Warranty 1 year

Wood-burning use: what the T25 roof fan covers (and what it doesn't)

The T25 roof fan withstands a maximum temperature of 300°C, which allows use with wood-fired or charcoal cooking. We strongly recommend installing it at a minimum of 3 metres above the hood for this specific use. It can also be used for any type of traditional cooking, with a hood fitted with 2 to 5 filters depending on the ducting chosen.

The roof fan and its controller are not compatible with the F 400°/2h smoke extraction standard. For use subject to this requirement (public-access premises, regulatory smoke extraction), you will need to choose an approved F400/120 model, such as the Alvène EMMOS45 5,400 m³/h F400 roof fan or the T32 2,000 m³/h 400°/2h roof fan, which are not part of the same range as the T25.

Installation and connection

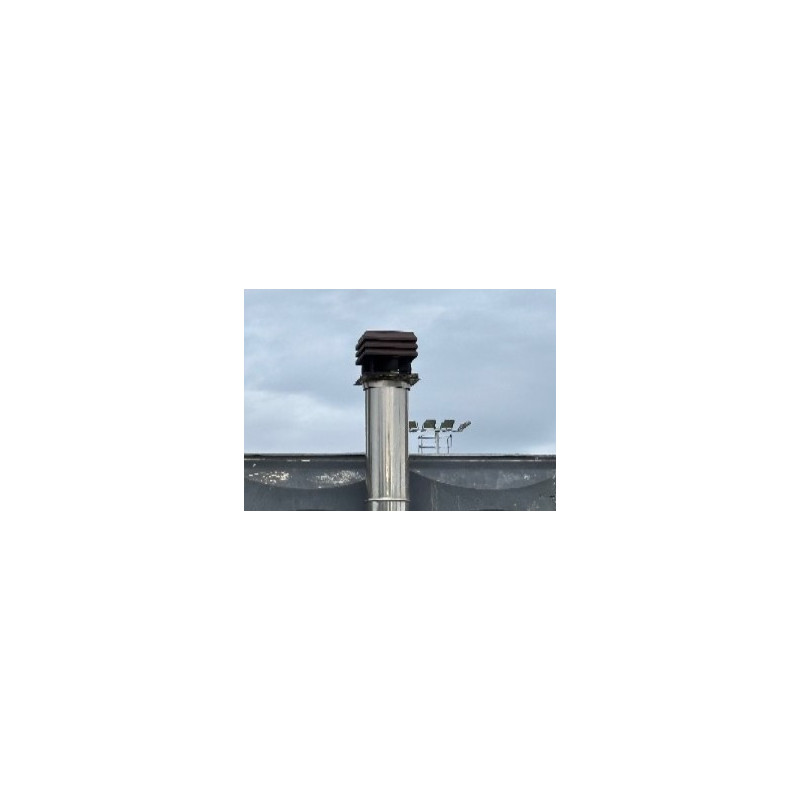

The T25 roof fan is fitted on the roof or on a wall, with horizontal discharge, depending on the building configuration. The protective mesh fitted as standard prevents birds from entering the duct.

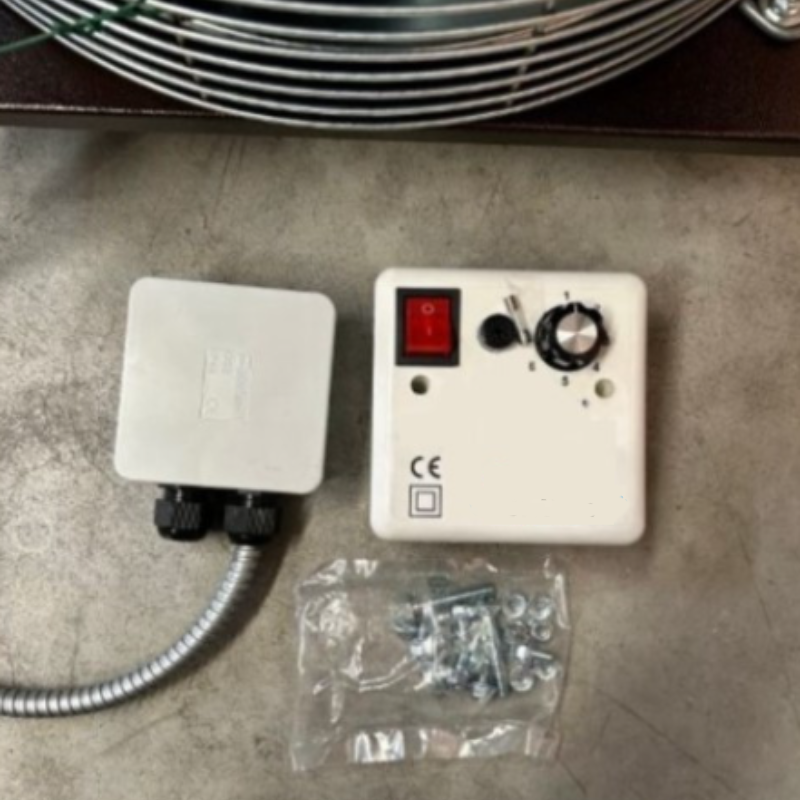

The 6-speed controller supplied (autotransformer) is installed alongside the unit: always start on position 6, then reduce the speed gradually as required. VentilSoGood supplies this equipment without carrying out installation: fitting (at the very least the electrical connection) must be entrusted to a qualified professional, who must comply with the standards in force for this type of equipment and wood-burning use.

Points to check before ordering

  • Diameter and length of your existing duct: the T25 accepts 250, 315, 355 or 400 mm, and the fan's inlet diameter is 250 mm (315 mm ducting is ideal; a flat connector will be required).
  • Number of filters and hood length: the T25 is suitable for a hood fitted with 2 to 4 filters depending on the ducting, as a guide only, to be adjusted according to the system's pressure losses.
  • Intended use: wood/charcoal fire or traditional cooking.
  • Need for regulatory F400/120 smoke extraction: the T25 does not meet this requirement, check the suitable model before ordering.
  • Roof space required: dimensions 430 x 430 x H 400 mm, to compare with the available space and the discharge configuration (roof or wall).

Recommended with

To connect the T25 roof fan to your hood, consider the 2-metre galvanised steel rigid duct and the flat connector for the hood/duct link.

Product Details

Ventilsogood
tourellefeuboist25
Warranty
1 year
Package weight
15 kg
Engine
Roof fan roof
Food
230V Mono
Engine power
2,000 to 4,000 m³/h
0657968370265

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What is the difference between the T25 wood-burning roof fan and an F400/120 smoke extraction approved roof fan?

The T25 roof fan withstands a maximum temperature of 300°C for regular use with wood-fired or charcoal cooking. It is not compatible with the F400/120 smoke extraction standard (400°C for 120 minutes), which requires a specifically approved model such as the Saftair Th3236 F400 roof fan. The two ratings are never interchangeable.

Why install the T25 roof fan at a minimum of 3 metres above the hood for wood-fired cooking?

This minimum distance of around 3 metres applies only to wood or charcoal cooking use, to allow for the heat generated by this type of cooking. It is a condition of the product warranty, which applies if the installation is carried out by a professional respecting this distance and with a hood fitted with filters (baffle or mesh type).

What duct diameter should be chosen for the T25 roof fan?

The T25 roof fan has a 250 mm inlet diameter and accepts 250, 315, 355 or 400 mm ducting. For good airflow and to help cool the unit, we recommend 315 or 355 mm ducting. The diameter choice depends on the length of the ductwork, the number of elbows and the number of filters in your hood: the longer or more bent the ductwork, the more a larger diameter helps limit pressure losses.

Is the 6-speed controller supplied with the T25 sufficient?

The controller supplied is a 6-speed autotransformer, which should always be started on position 6 before gradually reducing speed as needed. It is sized to work with the T25's 200 W motor in 230 V single-phase use. Always keep the roof fan running during wood or charcoal cooking to prevent it from overheating and the motor from melting.

How many filters or what hood length is the T25 roof fan suitable for?

The T25 roof fan can be used for any type of cooking with a hood fitted with 2 to 4 filters depending on the ducting chosen. This is a guideline to be adjusted according to the actual system configuration (length, elbows, diameter chosen) to maintain sufficient extraction airflow.
