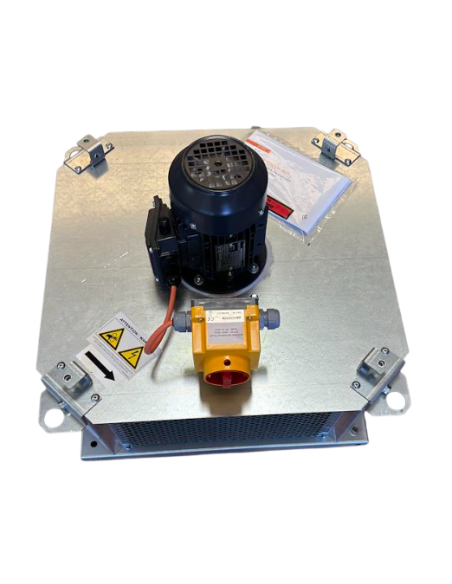

Roof fan T71 4T exhaust system - 22,000 m³/h - TRI - 400°/2h

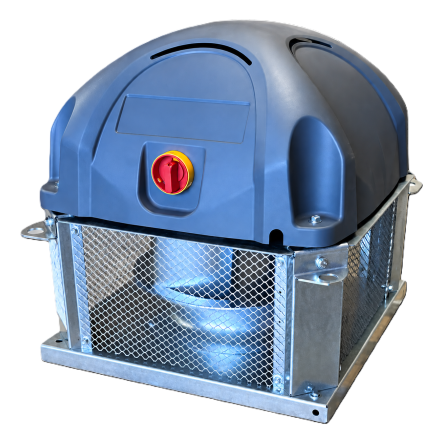

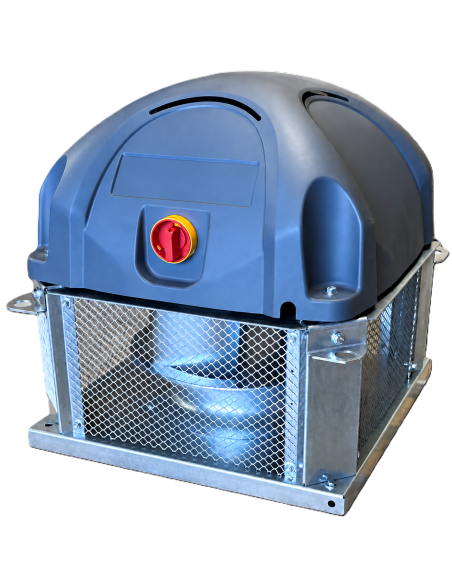

Saftair THF TVF 6371, 4-pole sorting

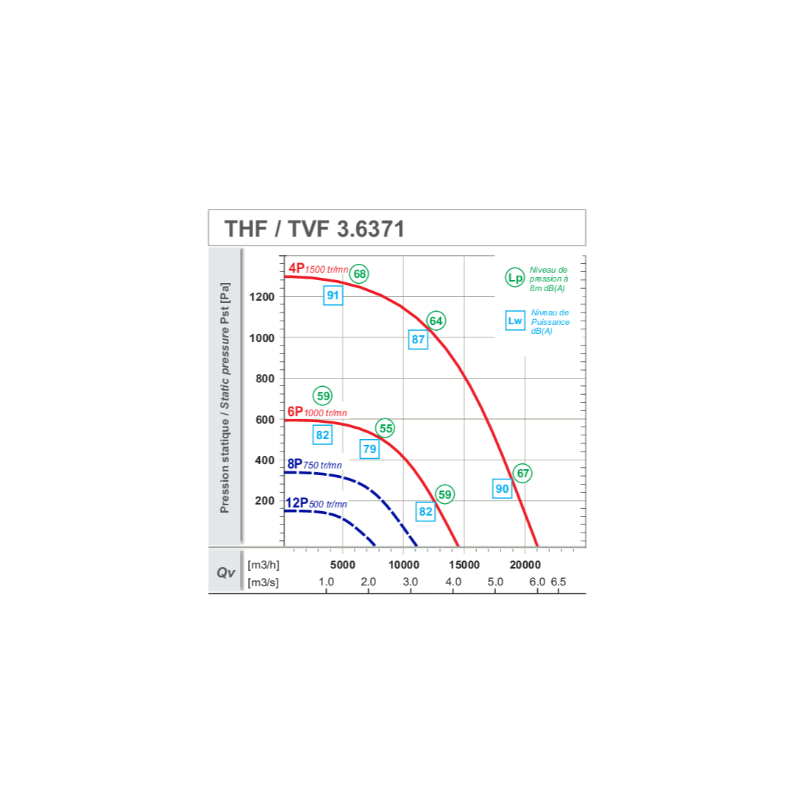

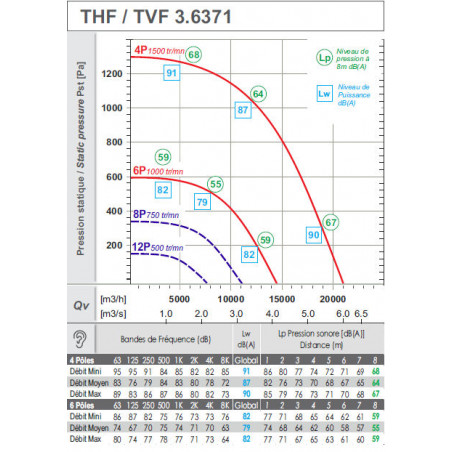

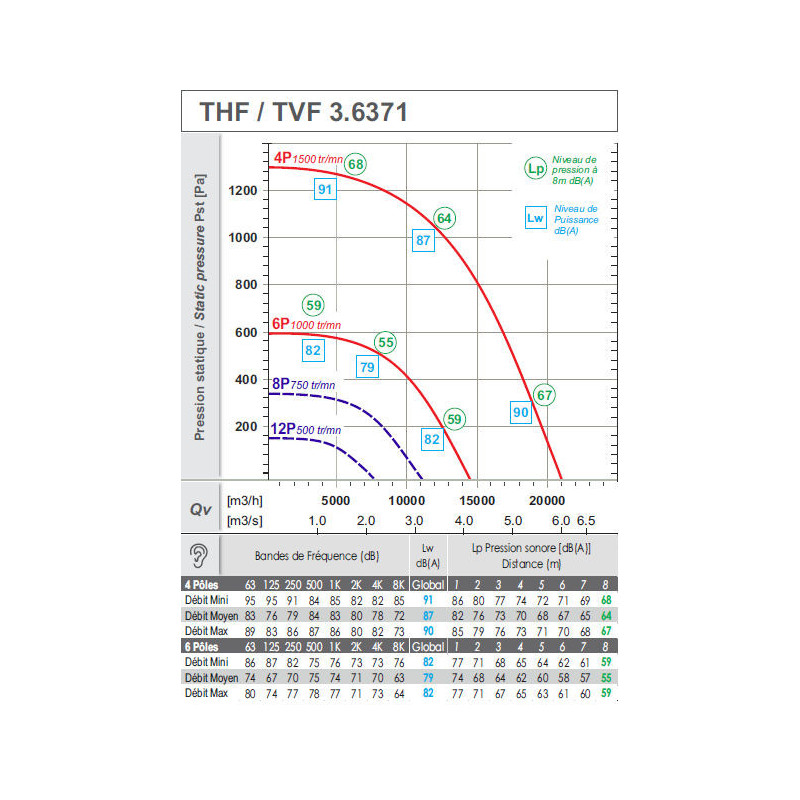

Ventilsogood T71 4T Roof Turret Engine Performance Curves

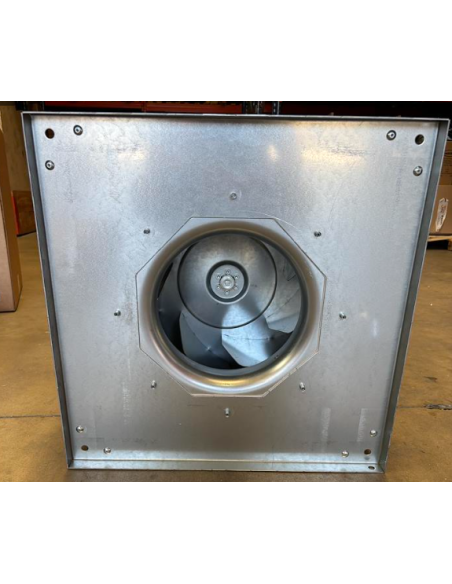

Roof fan T71 4T-TRI 22,000 m³/h 400°/2h

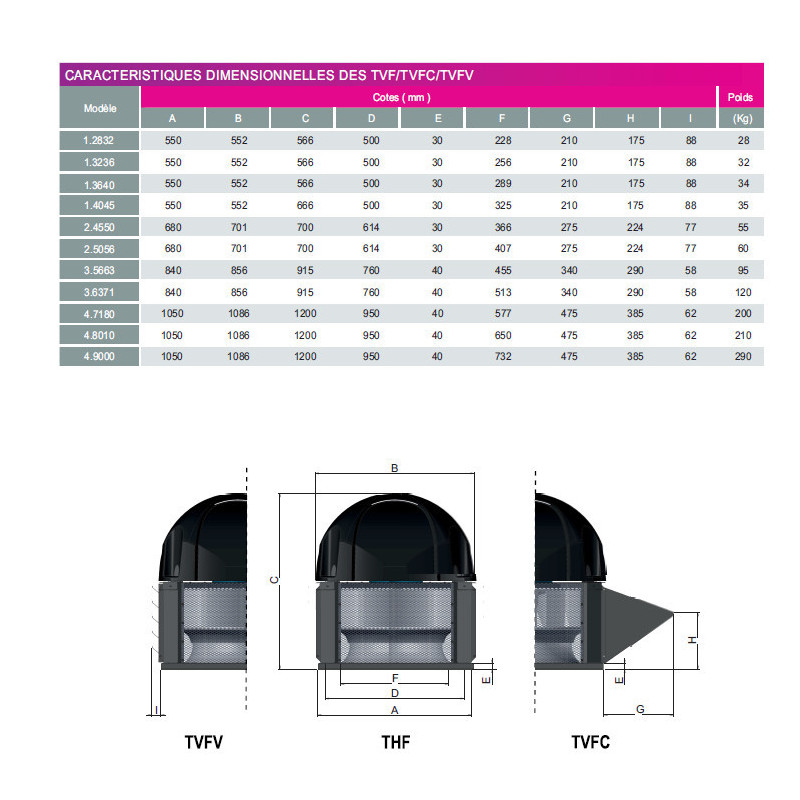

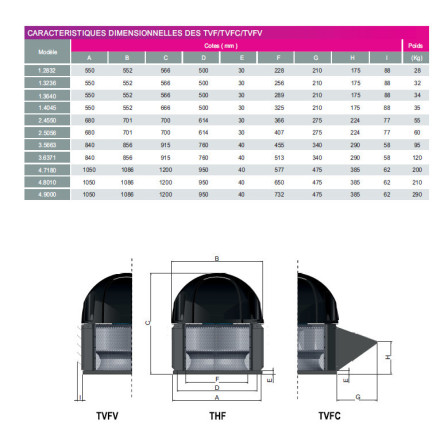

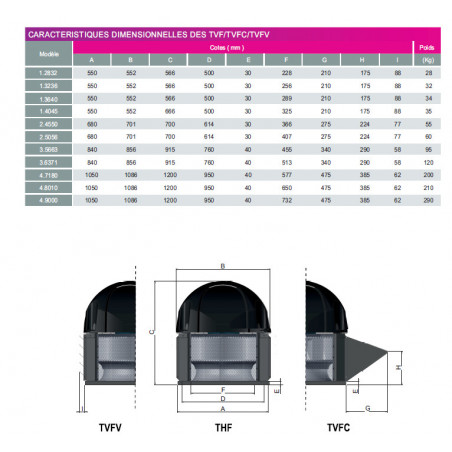

Dimensions of Roof Turrets Ventilsogood

Roof fan T71 4T-TRI 22,000 m³/h 400°/2h

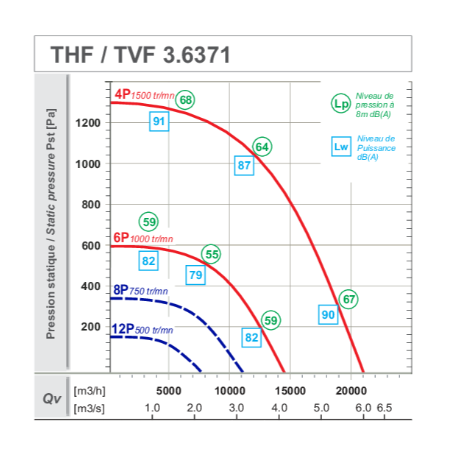

6-pole turret curve Equivalent: TH Saftair France Air Simoun Alvene Emmos Vim.

Roof fan T71 4T-TRI 22,000 m³/h 400°/2h

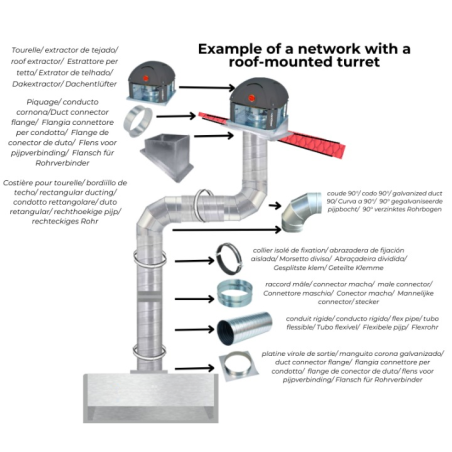

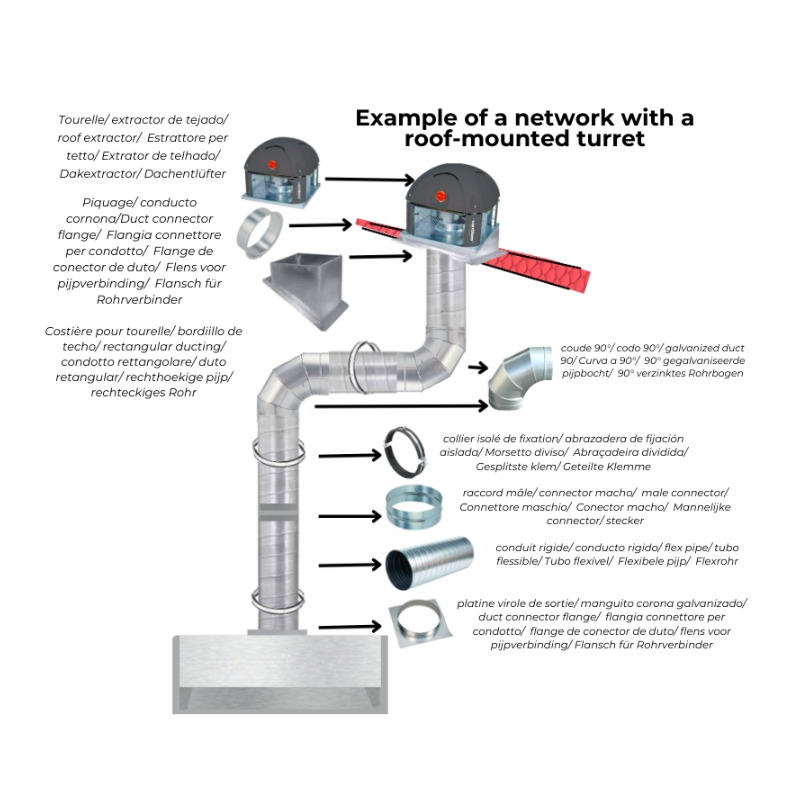

ventilation system turret assembly diagram Equivalent: TH Saftair, France Air Simoun, Alvene, Emmos, Vim.

Roof fan T71 4T exhaust system - 22,000 m³/h - TRI - 400°/2h

Saftair THF TVF 6371, 4-pole sorting

Ventilsogood T71 4T Roof Turret Engine Performance Curves

Roof fan T71 4T-TRI 22,000 m³/h 400°/2h

Dimensions of Roof Turrets Ventilsogood

Roof fan T71 4T-TRI 22,000 m³/h 400°/2h

6-pole turret curve Equivalent: TH Saftair France Air Simoun Alvene Emmos Vim.

Roof fan T71 4T-TRI 22,000 m³/h 400°/2h

ventilation system turret assembly diagram Equivalent: TH Saftair, France Air Simoun, Alvene, Emmos, Vim.

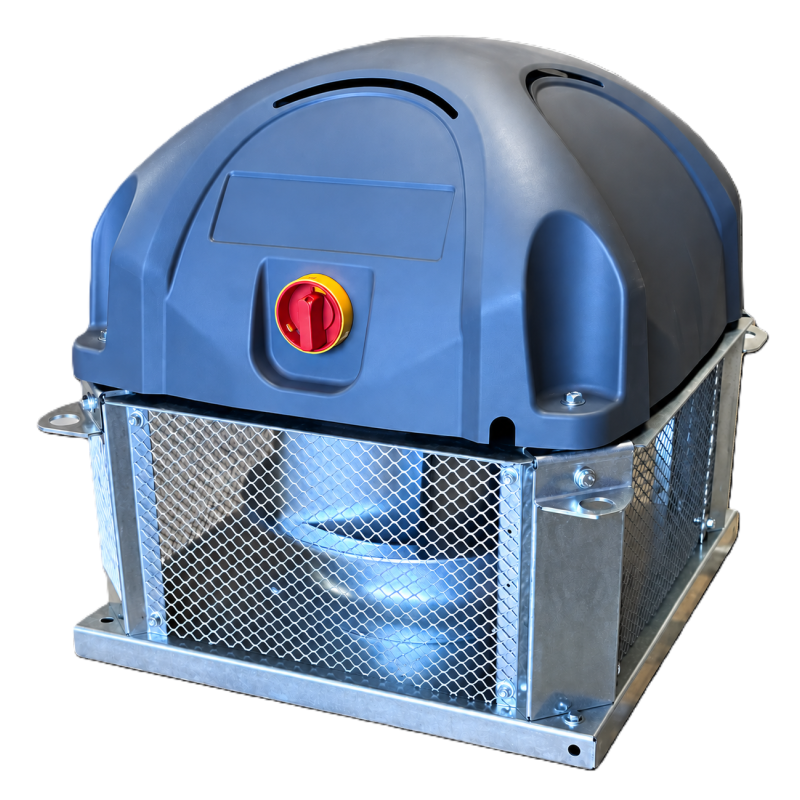

Roof fan T71 4T exhaust system - 22,000 m³/h - TRI - 400°/2h

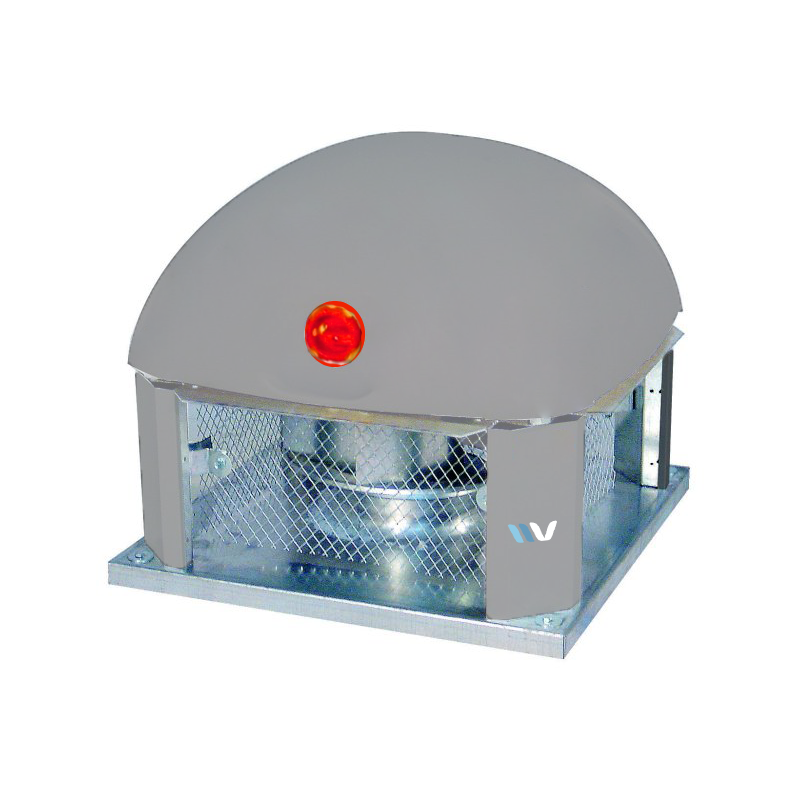

Roof fan Horizontal discharge exhaust fan Saftair - 22,000 m³/h

- Dimensions: L 860 x W 840 x H 915 mm
- Power: 5,500 W - max. 22,000 m³/h - 10.4 A
- Power supply: Three-phase - 380 V
- 4-pole
- Weight: 80 kg
- Protective and bird-proof mesh
- Wired proximity switch
- F400/120 smoke extraction certification (open kitchen exceeding 20 kW)
- Made in France
- It is mandatory to provide thermal protection suitable for the equipment
- Compatible with a 5.5 kW single-phase/three-phase or three-phase/three-phase variable frequency drive
- Equivalents: Alvène EMMOS, Saftair TH, France air SIMOUN, Vim TE or TC, ..

Manufacturing/delivery time: 1 to 2 weeks.

1-year warranty, provided the product is installed by a professional and a dedicated circuit with thermal protection is set up.

Quantity

2,198.00 Tax excluded

2637,6 € TTC

In stock

Fast delivery

Advisers 5 days a week

Payment in 3 or 4 instalments

Description
Product Details

Roof fan T71 Professional Exhaust System, 22,000 m³/h - Professional Restaurant & Kitchen Ventilation

Roof fan High-Performance Ventilation for Professional Range Hoods

The Ventilsogood T71 extraction turret is the ideal solution for your professional ventilation system. This roof-mounted exhaust fan with horizontal discharge combines power, reliability, and compliance with fire safety standards.

Technical Specifications of the T71 Exhaust Turret

Optimal extraction flow rate: 22,000 m³/h for efficient removal of cooking fumes and odors
Professional-grade sizing: suitable for stainless steel restaurant range hoods ranging from 7 to 10 linear meters
Powerful three-phase motor: 5,500 watts, ensuring high-performance continuous extraction
Made in France: high-quality ventilation turret with F400/120 certification
Smoke extraction system: certified for 400°C for 2 hours for fire safety
Integrated protection: bird screen included on the roof exhaust fan
Dimmer compatibility: works with single-phase/three-phase or three-phase/three-phase dimmers

Applications in Professional Kitchens

This roof-mounted exhaust hood is ideal for installation on the roof or facade of all types of food service establishments: traditional restaurants, fast-food outlets, kebab shops, snack bars, crêperies, brasseries, and commercial kitchens.

Advantages of the roof-mounted exhaust fan Ventilsogood

Sturdy, quiet, and reliable, this professional ventilation turret ensures optimal extraction of cooking fumes and odors. Its horizontal discharge system facilitates installation while accommodating architectural constraints.

Discover our complementary products and professional ventilation accessories at the bottom of the page.

Product Details

Brand SAFTAIR

Reference T63714Ptri

Manufacturing: Made in France
Package weight: 70 kg
Engine: Roof fan roof
Standard: C4 Smoke Exhaust Standard
Food: 380V Three-Phase
Engine power: More than 6,000 m³/h

ean13 0657968783935
