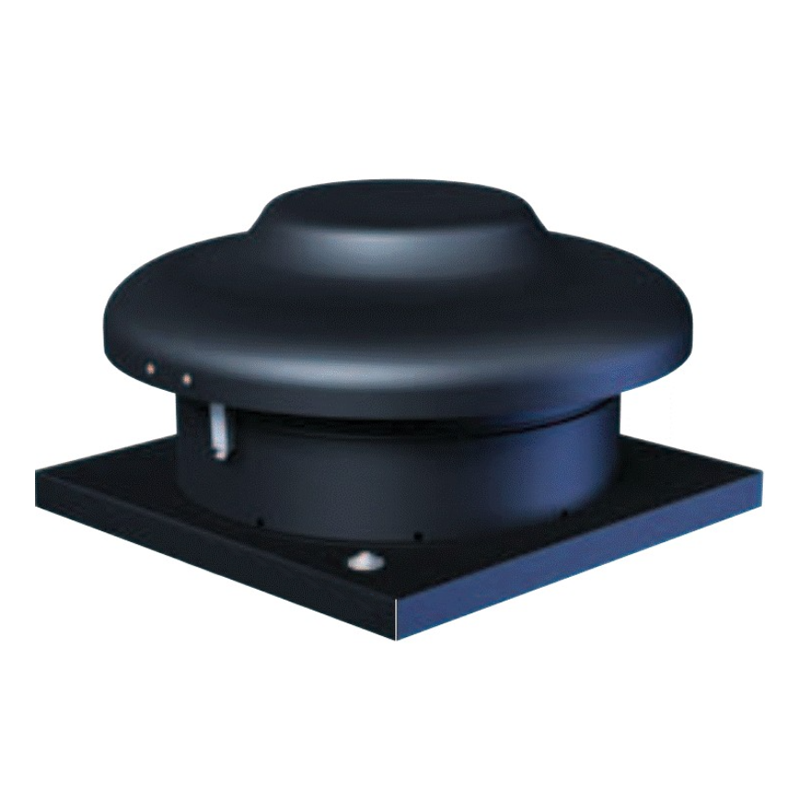

Roof fan T11 exhaust fan - 1,100 m³/h - 220 V

  • On sale!
Roof fan T11 exhaust fan - 1,100 m³/h - 220 V
Roof fan Ventilsogood Roof Base for the T11 for a small kitchen

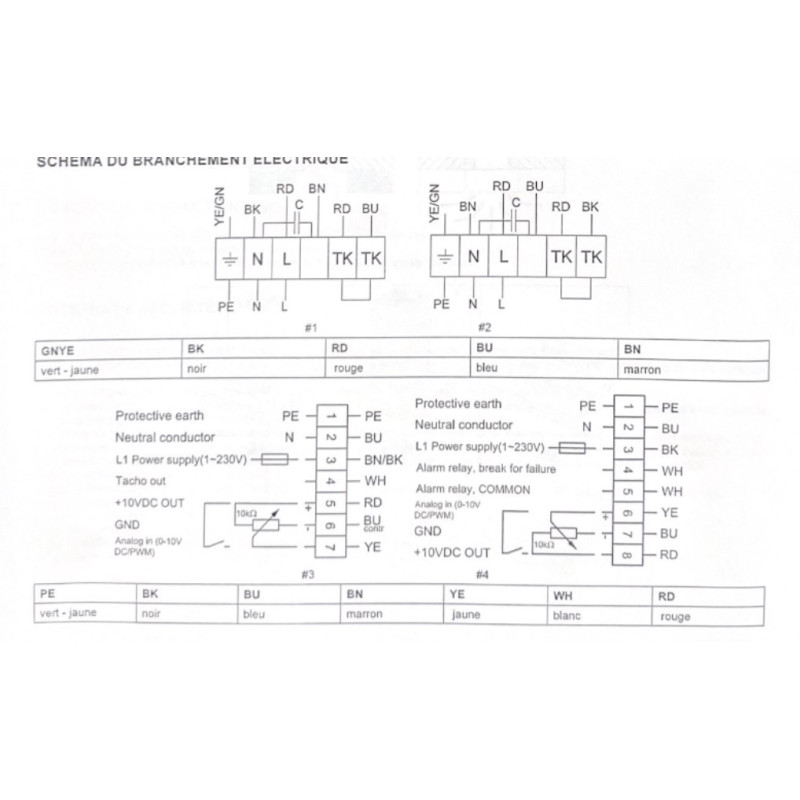

Electrical Wiring Diagram for the T11 West Single-Phase Turret

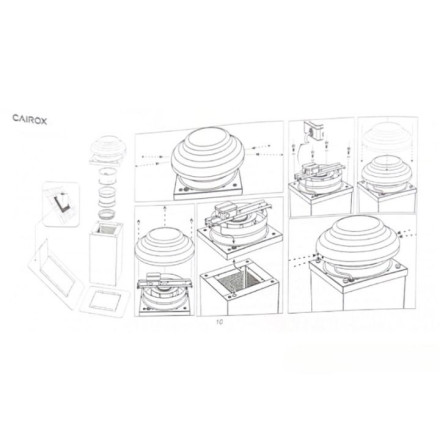

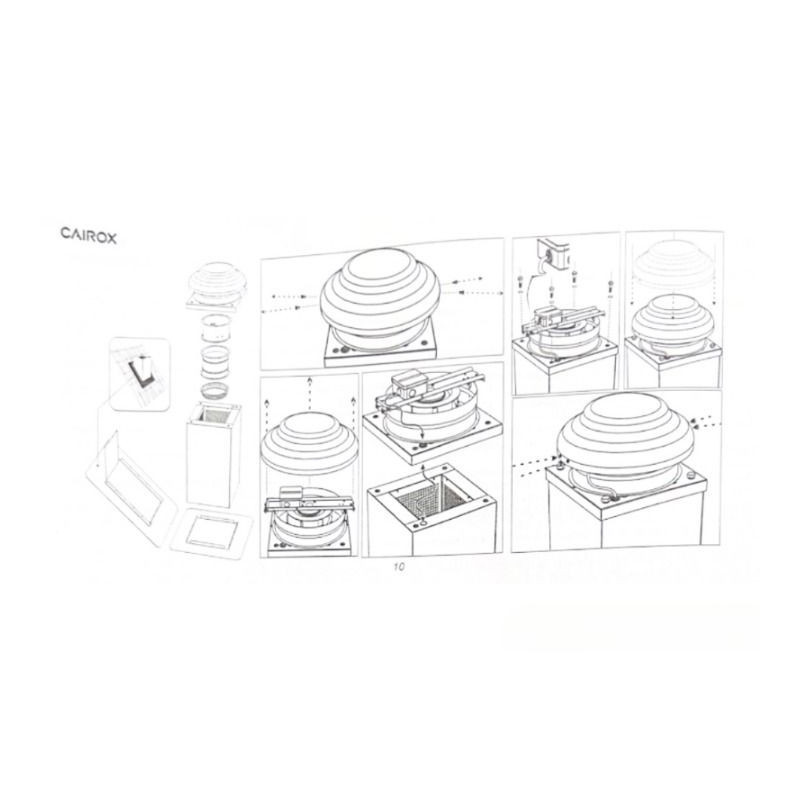

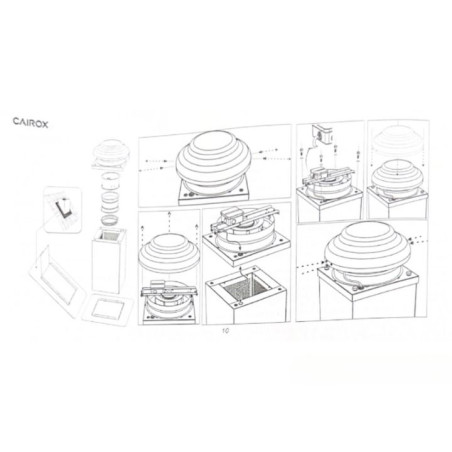

T11 Turret Assembly Diagram

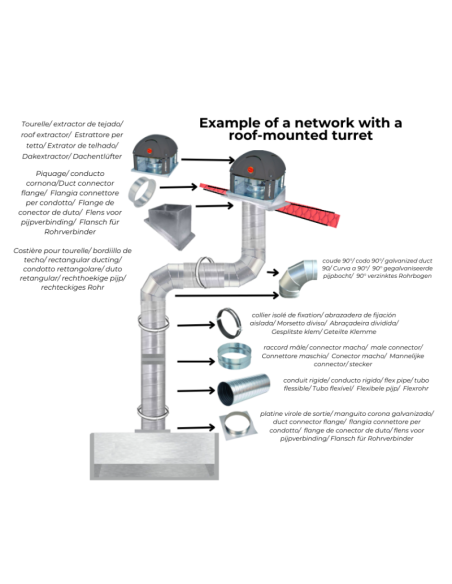

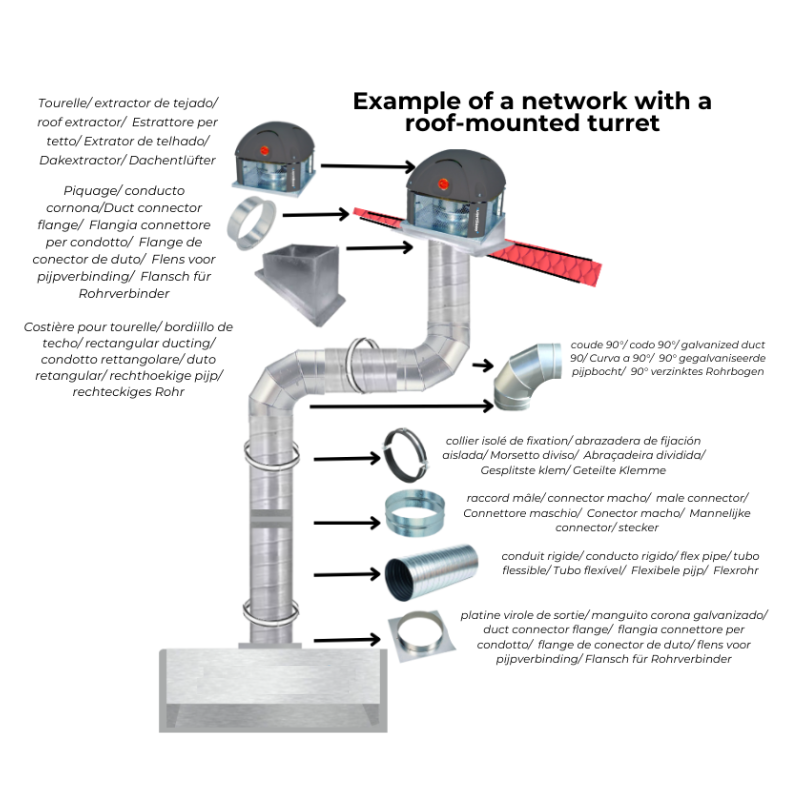

Example of an extraction system setup with a roof-mounted turret
Roof fan T11 exhaust fan - 1,100 m³/h - 220 V
Roof fan Ventilsogood Roof Base for the T11 for a small kitchen
Electrical Wiring Diagram for the T11 West Single-Phase Turret
T11 Turret Assembly Diagram
Example of an extraction system setup with a roof-mounted turret

The Roof fan T11 exhaust fan handles fume and odour extraction for a small kitchen or food truck, with a rated airflow of up to 1,100 m³/h depending on ductwork. Suitable for roof or wall mounting, serving a commercial kitchen hood up to approximately 2 linear metres.

  • Airflow: up to 1,100 m³/h depending on ductwork
  • Power supply: 230 V single phase + earth
  • Power rating: 221 W, 0.94 A
  • Max sound level: 46 dB
  • Protection rating: IP44, built in thermal protection
In stock
Quantity
339.00 379.00 Tax excluded
406,8 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The Roof fan T11 exhaust fan is a single phase roof mounted extract fan designed for small professional ventilation ductwork, food trucks and small kitchens, with a rated airflow of up to 1,100 m³/h depending on the ductwork configuration.

Technical specifications of the T11 roof fan

Specification Value
Reference tks500
Brand Ouestventil
Airflow up to 1,100 m³/h depending on ductwork
Power supply 230 V single phase + earth, integrated cable gland
Power rating 221 W, 0.94 A
Sound level 46 dB
Protection rating IP44, integrated motor thermal protection
Dimensions L 405 x D 405 x H 255 mm
Material and finish Base and cover in galvanised steel sheet, epoxy coating RAL 9005
Technology Direct drive fan unit, reaction type fan
Package weight 8 kg
Compliance Ventilation unit compliant with the ErP directive

Use and suitability of the T11 roof extract fan

This roof fan is suitable for extracting fumes and odours from stainless steel commercial extraction hoods up to approximately 2 linear metres, or for ventilation ductwork serving commercial or technical premises. It is installed in a horizontal position, mounted on the roof or on a wall. It remains suited to food trucks, catering vans and small professional kitchens with limited ductwork. It is not listed among the products tested for F400/120 smoke extraction compliance: for a regulatory smoke extraction requirement, check for a model explicitly rated F400/120 within the range.

Installation and connection

The T11 roof fan connects to a 230 V single phase supply, with an integrated cable gland for wiring. It is mounted horizontally, on the roof or on a wall. Electrical installation and connection to the ductwork must be carried out by a qualified professional, although the unit itself is straightforward to fit.

Points to check before ordering

  • Length of the hood or number of stainless steel filters to be served: this roof fan is intended for a hood up to approximately 2 m, or 2 filters of 500x400 (figure to be adjusted according to the system's pressure losses).
  • Duct length, number of elbows and presence of an activated carbon filter: these increase pressure losses and reduce actual airflow compared with the rated airflow.
  • Presence of adequate air inlet in the room, otherwise actual airflow may drop and generate noise or negative pressure.
  • Whether F400/120 smoke extraction compliance is required: if so, this T11 reference is not presented as certified, so you should look at a dedicated model within the range.
  • Available roof space (L 405 x D 405 x H 255 mm) and compatibility with the intended roof upstand.

Recommended with

To complete your installation: ultra compact stainless steel commercial hood 1,000 to 2,500 m³/h, flexible connection sleeve for ductwork connection, and 1.5 A fan speed controller for mechanical ventilation systems, T11 roof fan or small motors to adjust the speed according to the ductwork. For a higher airflow, see the T40 roof fan 230 V 4,200 m³/h.

Product Details

Ouestventil
tks500
Package weight
8 kg
Engine
Roof fan roof
Food
230V Mono
Engine power
0 to 2,000 m³/h
0657968919273

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What airflow should I choose for a food truck or small kitchen?

The required airflow depends on the length of the hood, the type of cooking and the ductwork (duct length, elbows, filters). The T11 roof fan is often chosen by our customers to equip a food truck, to ventilate technical premises or for extraction on a domestic hood. Beyond that, you should look at a higher airflow roof fan such as the T25 or T32.

Is the T11 roof fan certified for F400/120 smoke extraction?

No, no product data mentions F400/120 or C4 compliance for this T11 reference. For a regulatory smoke extraction requirement, you need to choose a model explicitly rated F400/120 within the roof fan range.

Up to how many metres of hood can the T11 roof fan cover?

As a guideline, this roof fan is sized for a stainless steel commercial hood of up to 2 linear metres, or a ducted ventilation system in 200 or 2,500 diameter. This figure should be adjusted according to the actual pressure losses of the ductwork (duct length, elbows, filtration).

What power supply does the T11 roof fan need?

The T11 roof fan runs on 230 V single phase with earth, with a power rating of 221 W and a current of 0.94 A. It is fitted with an integrated cable gland to make wiring easier during installation by a qualified professional.

Is the T11 roof fan noisy?

The stated sound level is 46 dB at maximum airflow and 44 dB at medium airflow. This is a genuinely quiet and discreet model. The motor has built in thermal protection and an IP44 protection rating, suited to outdoor installation on a roof or wall.
