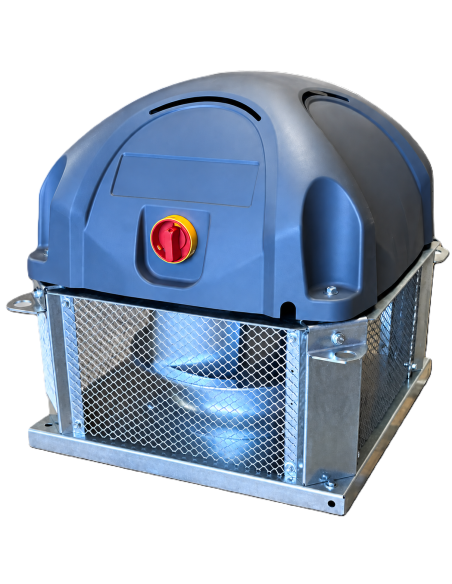

THF 3236 Mono Saftair

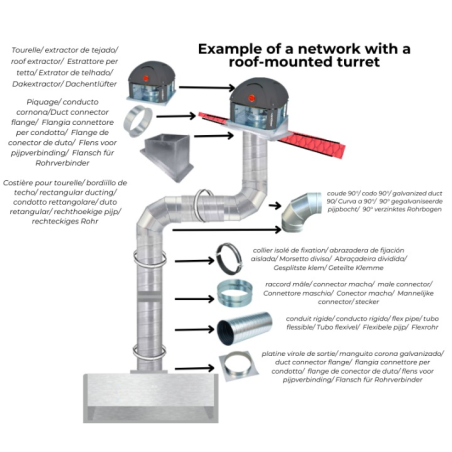

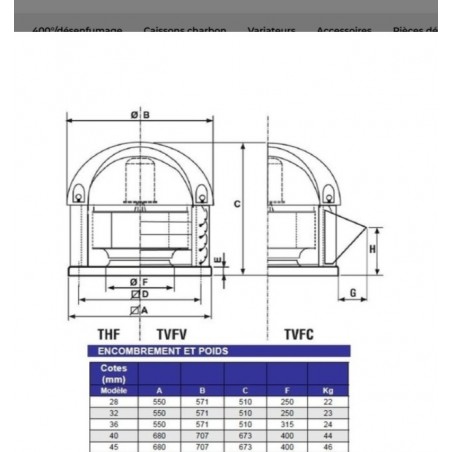

Assembly diagram for the Saftair Franceair Alvene Simoun turret
Saftair Simoun Franceair Turret
Roof fan Exhaust fan T36 - 2,750 m³/h - 230 V - 400°/2h

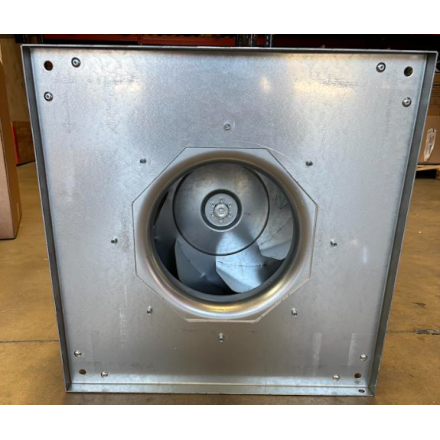

Roof fan T36 exhaust fan—230 V, 2,750 m³/h, smoke exhaust standard

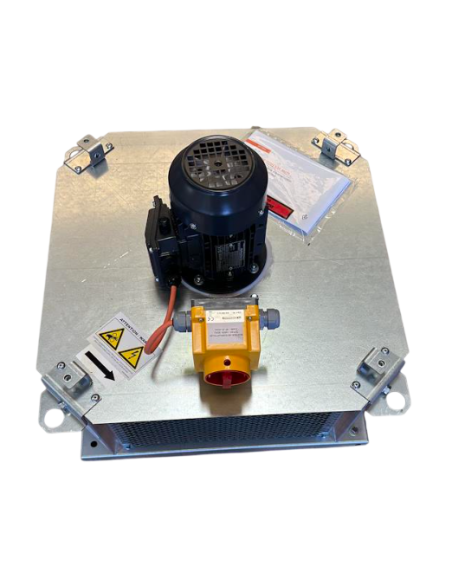

Roof fan T36 exhaust fan—230 V, 2,750 m³/h, smoke exhaust standard

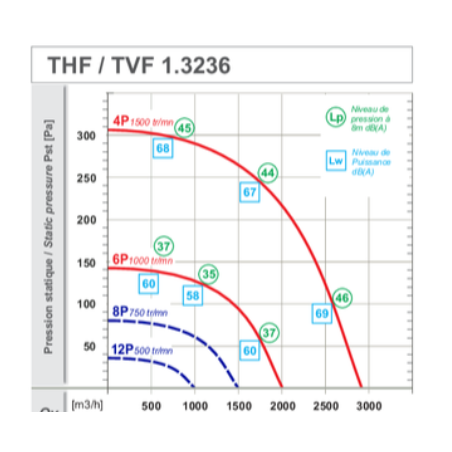

Ventilsogood T36 Roof Turret Motor Performance Curves
Roof fan T36 exhaust fan—230 V, 2,750 m³/h, smoke exhaust standard

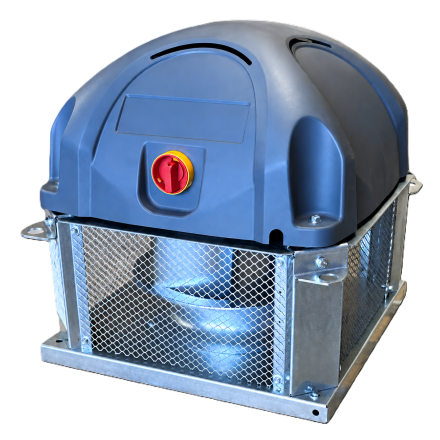

THF 3236 Mono Saftair

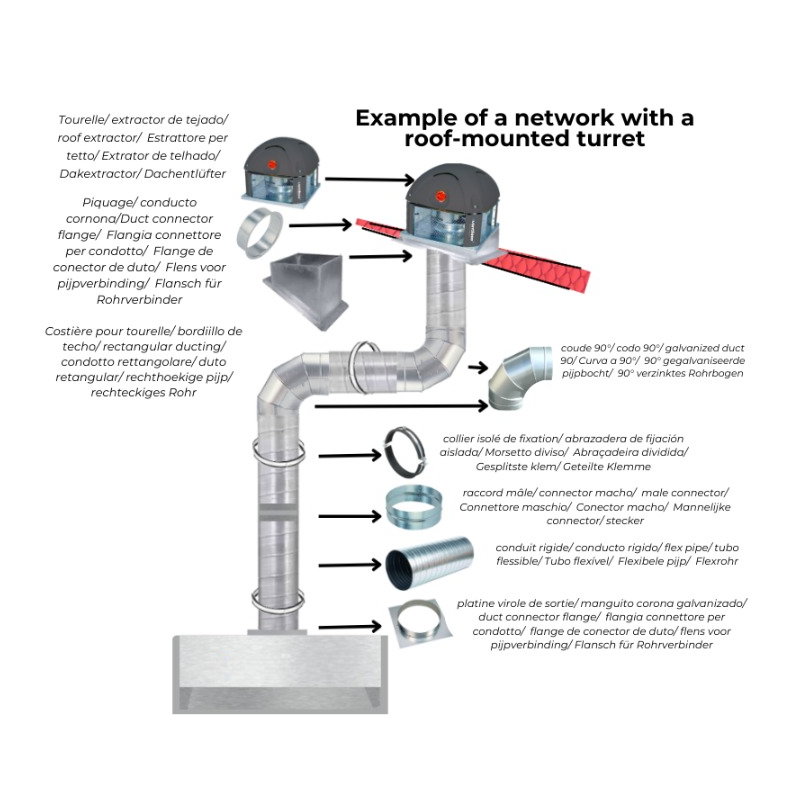

Assembly diagram for the Saftair Franceair Alvene Simoun turret
Saftair Simoun Franceair Turret
Roof fan Exhaust fan T36 - 2,750 m³/h - 230 V - 400°/2h

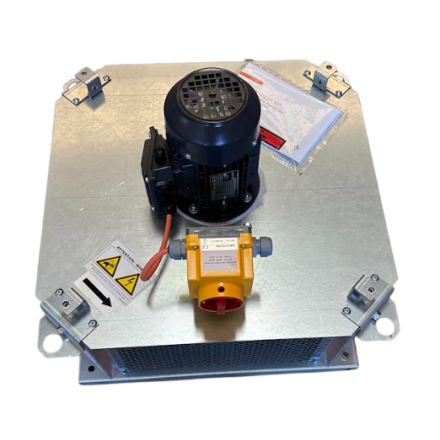

Roof fan T36 exhaust fan—230 V, 2,750 m³/h, smoke exhaust standard
Roof fan T36 exhaust fan—230 V, 2,750 m³/h, smoke exhaust standard

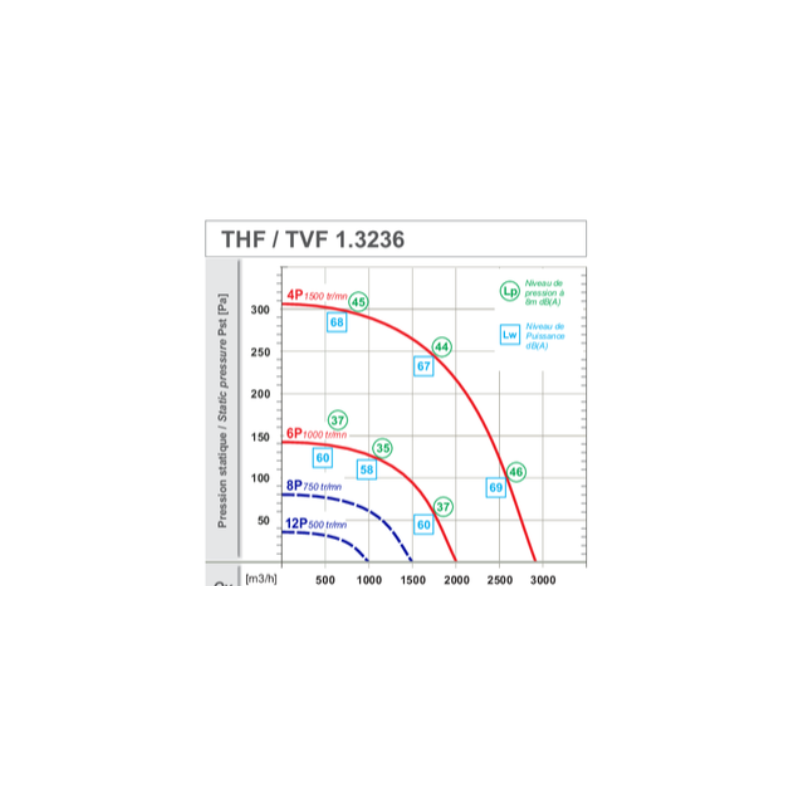

Ventilsogood T36 Roof Turret Motor Performance Curves
Roof fan T36 exhaust fan—230 V, 2,750 m³/h, smoke exhaust standard

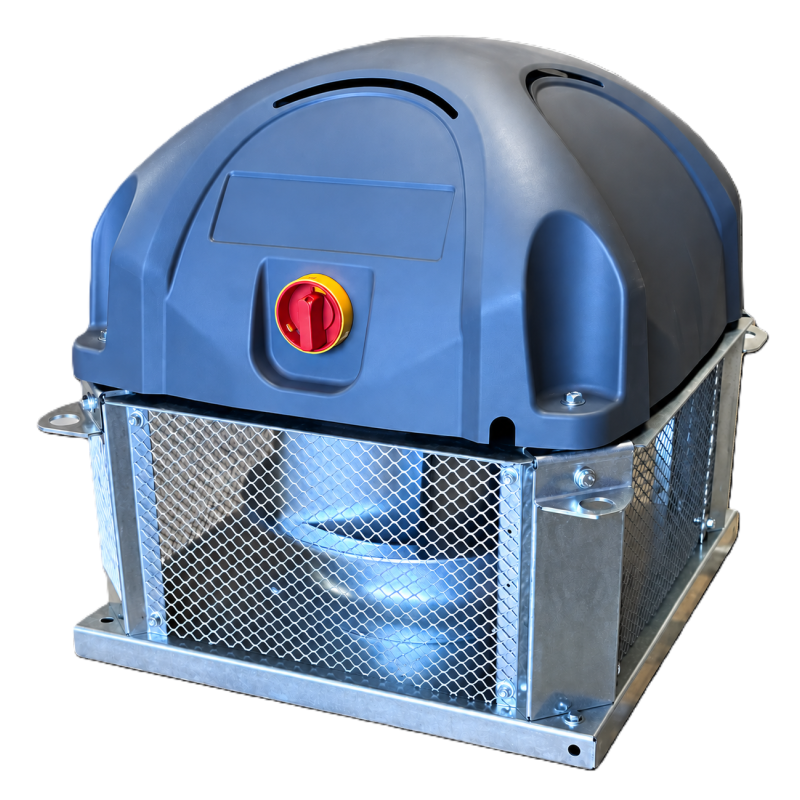

Roof fan Horizontal exhaust system Saftair, max. 2,700 m³/h – 400°/2H, smoke extraction standard


For professional range hoods from 2 to 3 m (2 to 4 filters), ducting in 315 or 355.

- Capacity: 2,750 m³/h - 250 W - 2 A
- Power supply: Single-phase 220/230 V

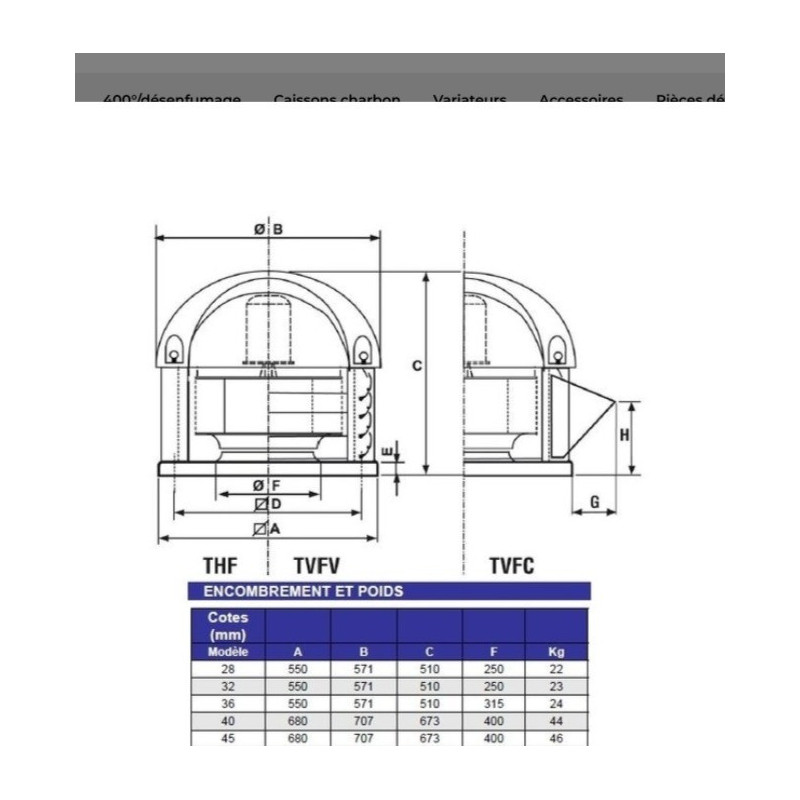

- Frame dimensions: 550 × 550, height 566
- Protective and bird-proof mesh
- Hardwired proximity switch
- F400/120 smoke extraction certified (open kitchen with power rating over 20 kW)
- Made in France
- It is mandatory to install thermal protection suitable for the equipment
- Compatible with a single-phase voltage regulator rated at a minimum of 7 A (see bottom of page)
- Equivalents: Alvène EMMOS, Saftair TH, France air SIMOUN, Vim TE or TC, ...
- Weight: 32 kg.

1-year warranty, provided the unit is installed by a professional and a dedicated circuit with proper thermal protection is set up.

In stock
Quantity
743.00 Tax excluded
891,6 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


Roof fan T36 Professional Exhaust Fan Ventilsogood 2,750 m³/h Single-Phase - Roof Exhaust Fan with Horizontal Discharge

Discoverthe high-performancesingle-phase roof exhaust fan for optimal removal of smoke and odors in commercial kitchens. This single-phase ventilation tower combines energy efficiency, reliability, and quiet operation for your restaurant.

Key benefits of the single-phase T Ventilsogood T36 exhaust hood:

  • Proper sizing: extraction tower ideally calibrated for professional stainless steel range hoods ranging from 2 to 3.5 linear meters
  • Optimal performance: powerful 250-watt motor providing an extraction airflow of 2,750 m³/h
  • French quality: high-quality ventilation unit manufactured in France, guaranteeing durability and sturdiness
  • Built-in protection: roof-mounted exhaust fan equipped with a bird screen
  • Fire safety: F400/120-certified smoke exhaust vent (withstands 400°C for 2 hours) compliant with standards for professional kitchens
  • Flexibility of use: single-phase roof exhaust fan compatible with a single-phase variable-speed drive to adjust the airflow

Installation and Application of the Ventilation Turret

This horizontal-discharge roof vent is the ideal solution for extracting smoke and odors in all types of food service establishments: restaurants, fast-food outlets, kebab shops, snack bars, crêperies, and brasseries. Can be mounted on the roof or facade depending on your facility’s layout.

Roof fan A quiet, reliable, and robust exhaust system, specially designed for continuous operation in demanding commercial environments.

Accessories and Complementary Products

Optimize your commercial ventilation system with our compatible accessories. Find all related products at the bottom of the page for a complete and high-performance installation of your commercial exhaust system.

Product Details

SAFTAIR
T36mono
Manufacturing
Made in France
Warranty
1 year
Package weight
25 kg
Engine
Roof fan roof
Standard
C4 Smoke Exhaust Standard
Food
230V Mono
Engine power
2,000 to 4,000 m³/h
0657968143135
