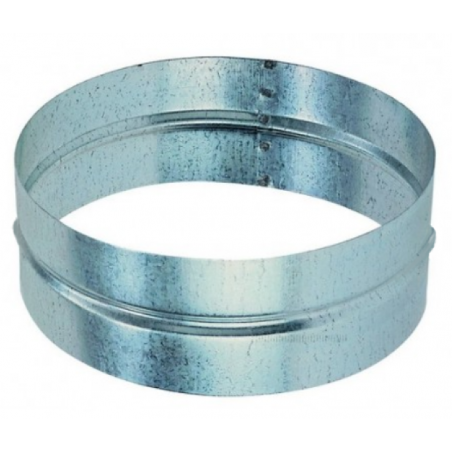

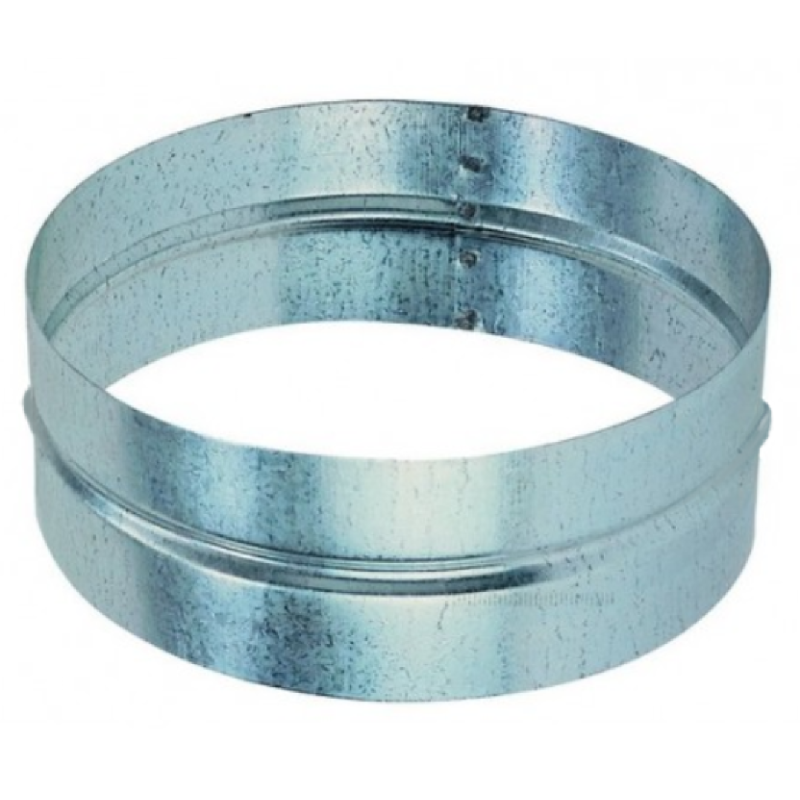

The galvanized male connector joins two ventilation ducts of the same diameter by fitting into their female ends, for a simple and reliable connection on your ductwork.

  • Material: galvanized steel, thickness 0.4 to 1 mm depending on diameter
  • Diameter: choice of 80 mm to 800 mm
  • Height: 70 mm
  • Compliant with EN 1506 and EN 12237 standards
  • Manufactured in: France
Diameter
In stock
Quantity
5.00 Tax excluded
6 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments

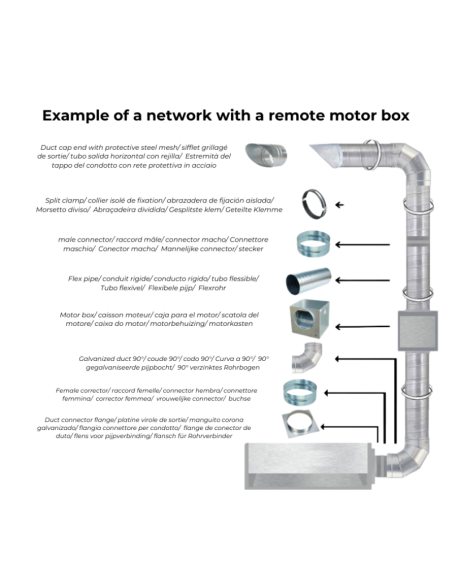

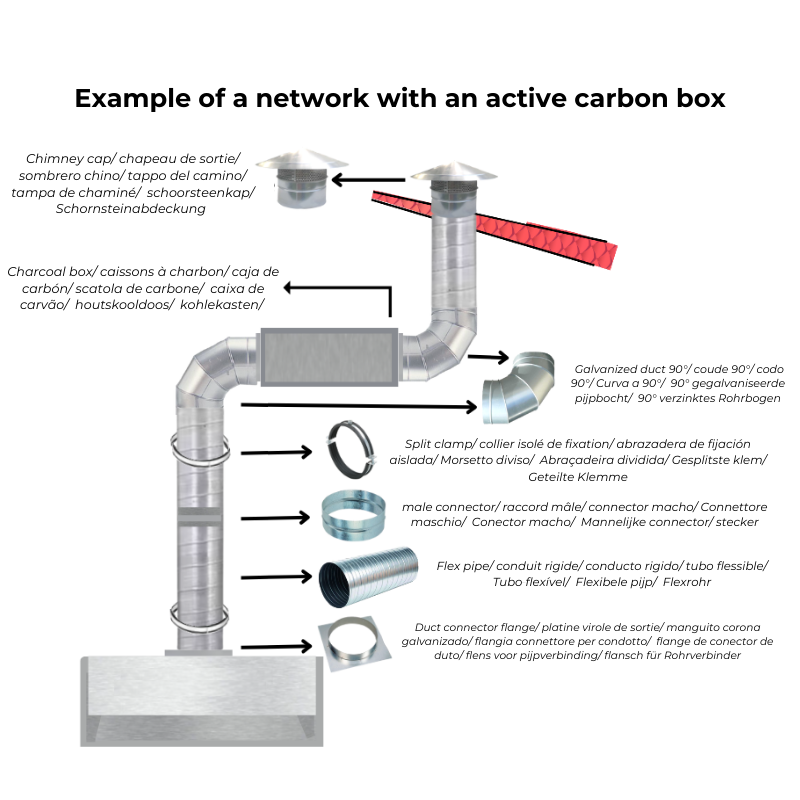

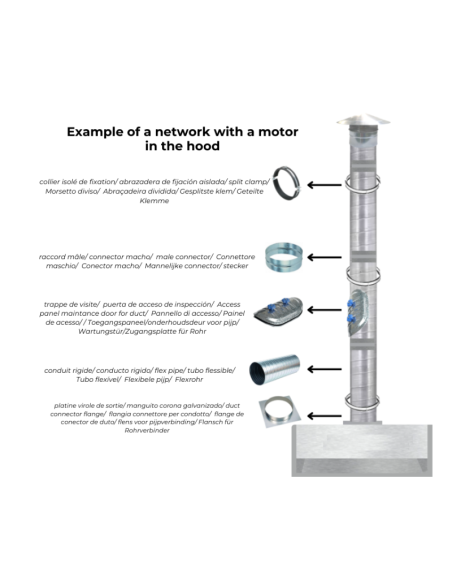

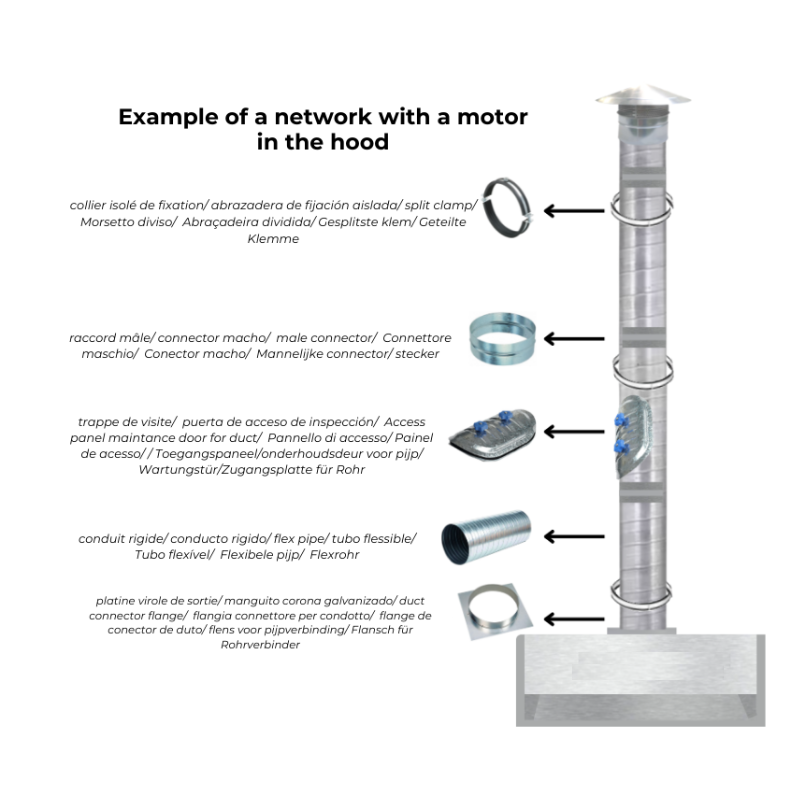

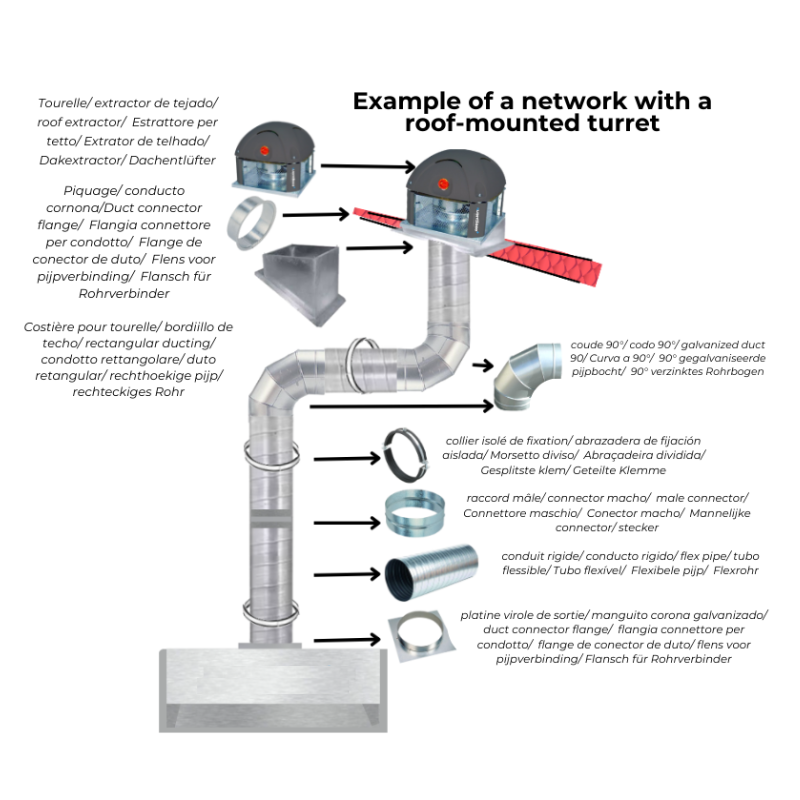

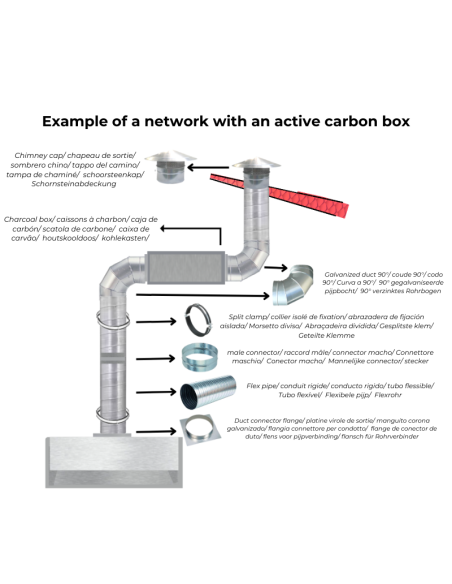

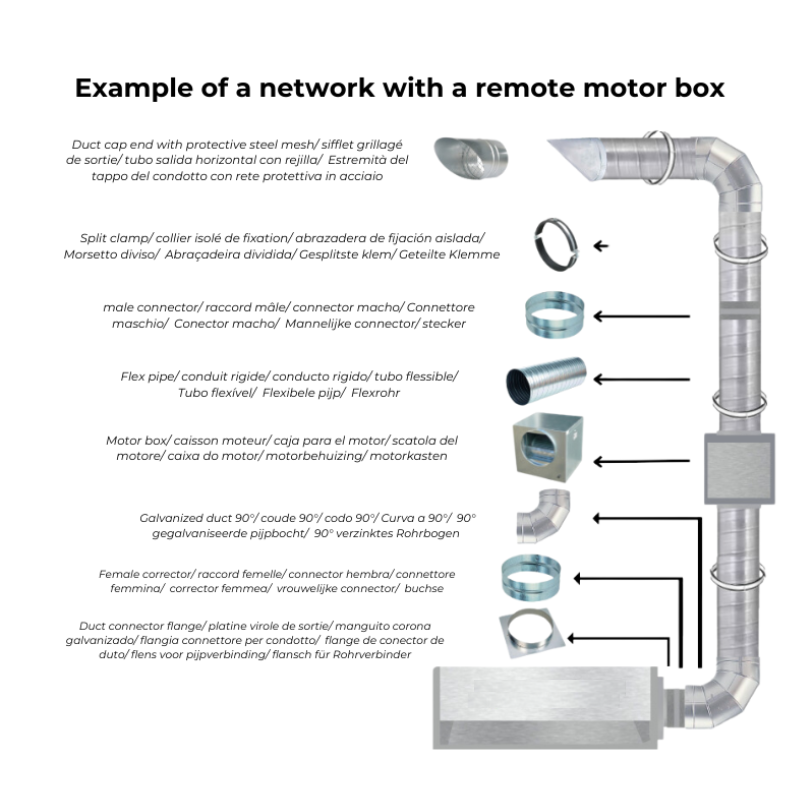

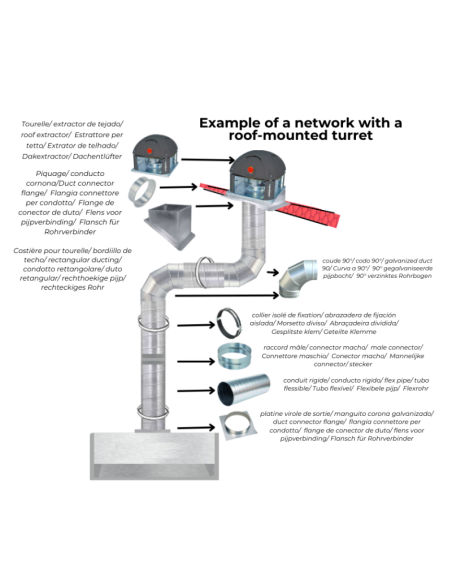

The galvanized male connector is a galvanized steel fitting used to join two ventilation ducts or two female fittings of the same diameter, to extend or repair an extraction system on a commercial kitchen hood or a professional mechanical ventilation system. Available from 80 mm to 800 mm diameter, it fits most rigid galvanized ductwork.

How does a galvanized male connector work?

On a ventilation system, rigid ducts end in a female fitting. The male connector fits into these two female ends to form the joint: this is the standard male/female logic in air handling, so the male connector cannot be fitted onto another male fitting. Once in place, it ensures continuity of the duct without reducing airflow.

Technical specifications

Specification Value
Material Galvanized steel sheet
Thickness 0.4 to 1 mm (depending on diameter)
Connection type Male
Diameter 80 to 800 mm (choice of)
Height 70 mm
Standards EN 1506 (dimensions), EN 12237 (strength and air leakage)
Fire classification A1 as per the French order ("arrêté") of 21 November 2002
Manufactured in France
Weight 0.1 to 1 kg (varies according to diameter chosen)

Application

The galvanized male connector is used for building or repairing ventilation or air conditioning systems made of rigid galvanized ductwork. Its compliance with EN 1506 (dimensions) and EN 12237 (strength and air leakage) makes it suitable for professional systems requiring a reliable joint, including on a commercial kitchen hood or a professional mechanical ventilation system in commercial premises.

Installation and connection

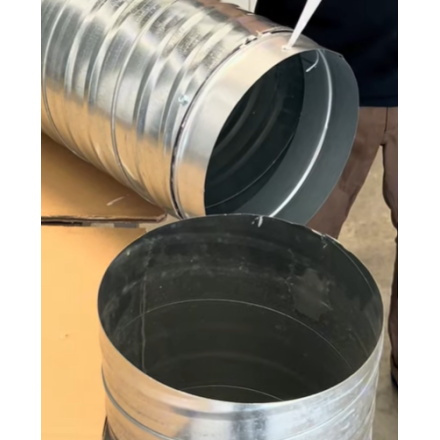

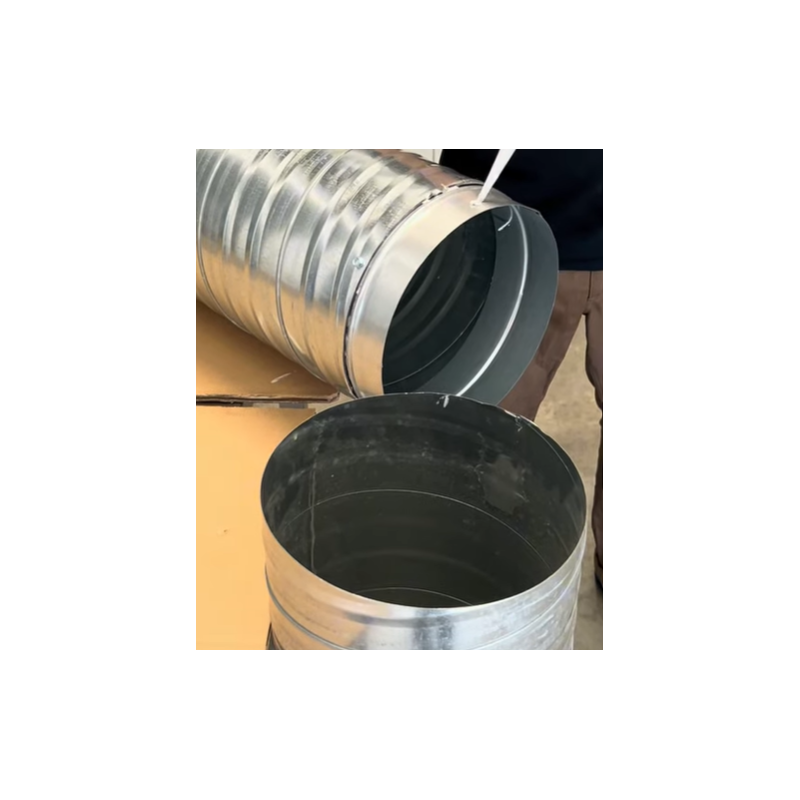

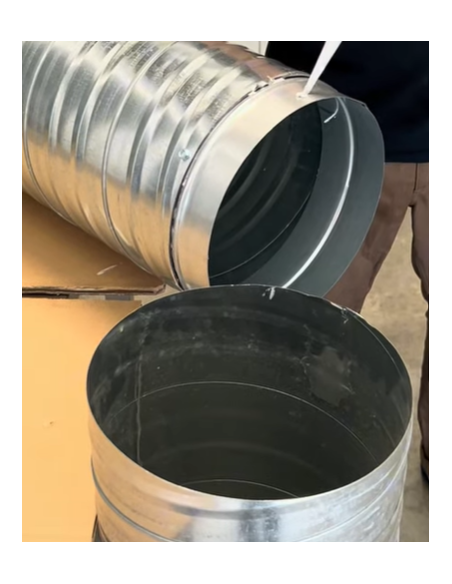

Fitting requires no complex tools: the galvanized male connector is fixed with self-drilling screws, together with a sealing gasket and/or aluminium foil tape to ensure an airtight joint between the two duct sections, in line with the air leakage requirements of EN 12237. This airtightness limits air loss, dust infiltration and whistling at the joint. Make sure to choose the same diameter as your existing ducts, as the connector does not compensate for a difference in cross-section. You'll find our installation video tutorials on our YouTube channel VentilSoGood.

Points to check before ordering

  • The exact diameter of your existing ducts (the connector must match the duct diameter exactly, not just be close to it)
  • That both ends to be joined are female, otherwise a female connector or a reducer will be more suitable
  • The type of duct in place (rigid galvanized, semi-flexible) to check fitting compatibility
  • Whether additional sealing accessories are needed (gasket, aluminium foil tape, fixings) if not included
  • The space available around the connection point, as the fitting adds 70 mm of length to the system

To use with

Product Details

Ventilsogood
A30
Diameter
Products
Connector
Manufacturing
Made in France
Package weight
1 kg
0657968599505

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What is the difference between a male and a female connector in ventilation?

On a ventilation system, ducts usually end in a female fitting. The galvanized male connector fits into these female ends to form the joint between two ducts. A female connector, on the other hand, receives a male end. You should always check the type of end fitting on your ducts before choosing.

What diameter of galvanized male connector should I choose?

The galvanized male connector must match exactly the diameter of your existing ducts, available from 80 mm to 800 mm on this product page. A diameter that is too small or too large will not allow a correct fit or proper airtightness. If in doubt, measure the internal diameter of your ducts before ordering.

How do you ensure the joint between two ducts is airtight?

The galvanized male connector is fixed with self-drilling screws, then completed with a sealing gasket and/or aluminium foil tape to prevent any air leakage at the joint, in line with the air leakage requirements of EN 12237. These accessories are not always included, so make sure to plan for them if needed. See our tutorials on YouTube to help you: https://www.youtube.com/@ventilsogood-cee

Do I need special tools to fit this connector?

No, fitting the galvanized male connector does not require complex tools: a screwdriver for the self-drilling screws and possibly a sealant gun for the gasket are enough. Installation tutorials are available on our YouTube channel. This product is sold without installation, to be fitted yourself or by a professional for the electrical part if your system includes one.

Does this connector meet a specific standard?

Yes, the galvanized male connector complies with EN 1506 for dimensions and EN 12237 for strength and air leakage. It also carries an A1 fire classification as per the French order of 21 November 2002, making it suitable for professional ventilation systems.
