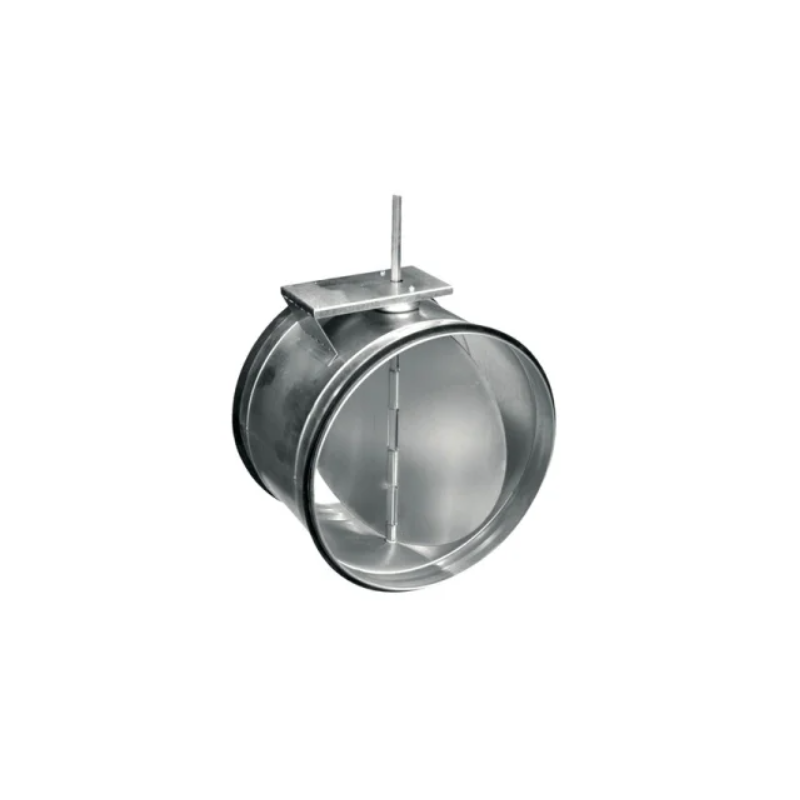

Galvanized Circular Air Control Damper

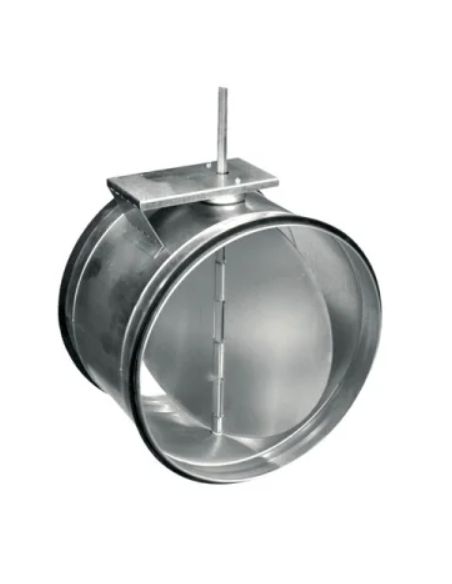

Circular Damper for Airflow Control

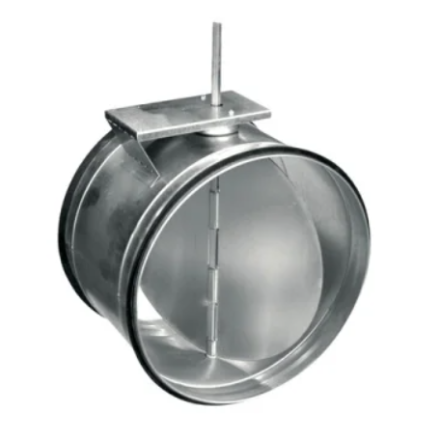

Circular Damper for Airflow Control

The Galvanized Circular Air Control Damper fits between two ducts to manually adjust airflow on supply or extract lines, from 160 to 630 mm diameter. A male fitting in galvanized steel, manufactured in France, it is fixed in place simply with self-tapping screws.

  • Material: galvanized steel
  • Manufactured: France
  • Diameters: 160, 200, 250, 315, 355, 400, 450, 500, 560, 630 mm
  • Fixing: self-tapping screws, 2 gaskets included
  • Weight: 5 kg
Diameter
In stock
Quantity
39.00 Tax excluded
46,8 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The Galvanized Circular Air Control Damper is a manually adjusted damper that fits directly between two ventilation ducts to control airflow, suitable for professional mechanical ventilation systems as well as commercial kitchen hood extraction. Available in ten diameters, from 160 to 630 mm, it is manufactured in France from galvanized steel.

Galvanized circular air control damper: what is this air regulator for?

This circular damper allows precise adjustment of the air volume circulating through a duct, whether on a supply or extract line. In practice, it is fitted when a system has been commissioned with too much or too little airflow: it is used to balance the flow between several grilles or several stations in a commercial kitchen, without touching the fan itself. It is a male fitting that slots into an existing duct, suitable for both a new installation and an existing network that needs rebalancing.

Technical specifications

Specification Value
Product Circular damper / air control damper
Material Galvanized steel
Manufactured France
Fitting type Male, to be inserted between two ducts
Fixing Self-tapping screws, 2 gaskets supplied
Diameters available 160, 200, 250, 315, 355, 400, 450, 500, 560, 630 mm
Weight 5 kg

Installation and connection

The damper is positioned between two sections of circular duct, on either a supply or extract line. It is fixed with self-tapping screws directly into the duct sheet metal, and the two supplied gaskets ensure an airtight seal at each joint. Once in place, the blade is operated manually to set the airflow as required by the system: no electrical supply or control panel is needed for this manual model.

Points to check before ordering

  • Check the exact diameter of your existing duct: the damper must match the duct diameter, without excessive play.
  • Identify whether your system is on supply or extract: the damper works in both directions, but the fitting orientation must follow the intended airflow direction.
  • As a general guideline, avoid positioning the damper too close to an elbow or a tee: a straight section upstream and downstream makes for more stable airflow adjustment.
  • If you are rebalancing several branch connections on the same system, allow for one damper per line to be adjusted.
  • The damper does not manage the airtightness of the duct itself: check the condition of existing gaskets and connections before fitting.

Goes well with

Product Details

Ventilsogood
Registre
Diameter
Products
Valve
Manufacturing
Made in France
Package weight
1 kg
0657968116047

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What is a circular air control damper used for?

The galvanized circular air control damper allows manual adjustment of airflow in a ventilation duct, on supply or extract lines. It fits between two duct sections and is typically used to balance a system with several grilles or several stations, without needing to adjust the fan.

Which damper diameter should I choose for my ventilation or extraction ductwork?

The galvanized circular air control damper must exactly match the diameter of your existing duct. It is available from 160 to 630 mm. Measure the internal diameter of your duct before ordering, as a mismatch will prevent correct fitting and a proper seal.

How is this damper fixed to the system?

The galvanized circular air control damper is fixed with self-tapping screws directly into the duct sheet metal. Two gaskets are supplied to ensure an airtight seal at both joints, upstream and downstream of the fitting.

Does this need to be installed by a professional?

The galvanized circular air control damper is a purely mechanical component, with no electrical connection, and can be fitted by an installer or a professional experienced with ventilation systems. There is no requirement for an electrician to carry out the fitting, as this manual model has no electrical wiring.

Can this damper be fitted right after an elbow or a tee?

This is not recommended as a general guideline: a straight section before and after the damper gives a more stable and more accurate airflow adjustment. Fitting it too close to an elbow or a tee can affect the reading and effectiveness of the adjustment.
