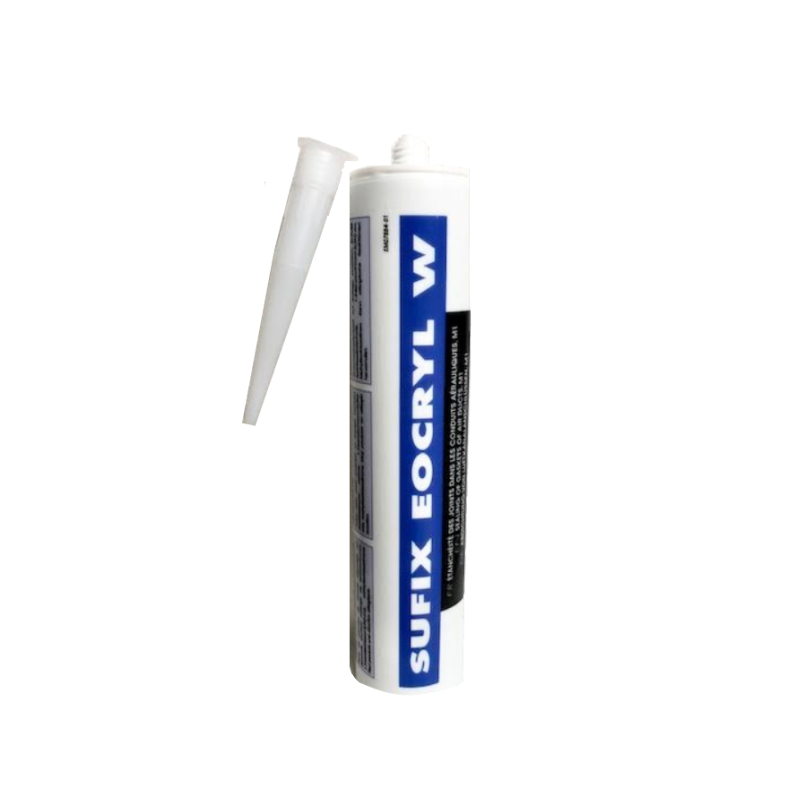

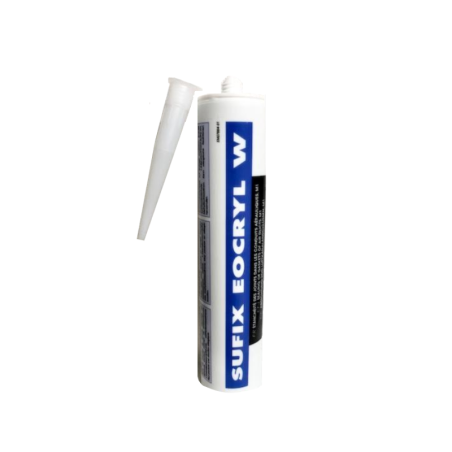

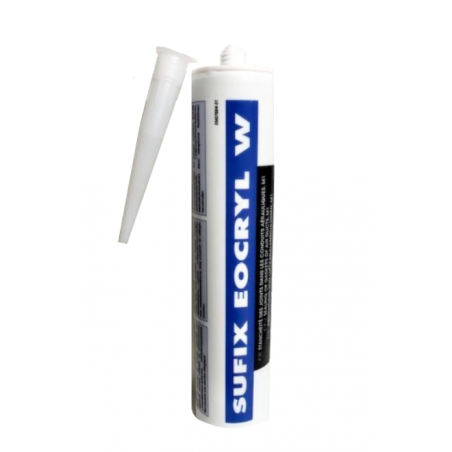

Sealing Cartridge for Air Ducts
The Sealing Cartridge for Air Ducts seals joints in your ductwork system airtight and stops air, oil or condensation leaks on ducts, elbows and spigots. 1 year warranty.
- Packaging: 280 ml cartridge, sold individually
- Fire rating: M1
- Operating temperature: -20°C to +80°C
- Use: ventilation, air conditioning, heating systems, commercial kitchen hoods
Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments
The Sealing Cartridge for Air Ducts is used to seal joints in your ventilation system airtight: ducts, elbows, spigots. It limits air leaks and helps keep work clean, whether in the workshop or on site.
Why seal a ductwork system
A poorly sealed professional ventilation system loses performance: air escapes at the connections, the actual airflow drops below the design airflow, and the system ends up working harder for no benefit. The sealing cartridge fills these weak points at duct joints, elbows and spigots, helping maintain a steady airflow through the duct. It also helps limit moisture ingress at connections, a key concern on ductwork exposed to temperature changes.
Technical specifications
| Specification | Value |
|---|---|
| Manufacturing | Made in France |
| Composition | Water based acrylic polymer, solvent free |
| Colour once cured | Light grey |
| Density | approx. 1.7 g/cm³ |
| Elongation at break | 75% |
| Tensile strength (ISO 7389) | below 40% |
| Skin formation time | approx. 15 minutes (+23°C) |
| Full curing time | minimum 24 hours at +23°C (skin over 1 mm) |
| Sag resistance (ISO 7390) | 3 mm at +23°C and at +50°C |
| Fire rating | M1 |
| Application temperature | +5°C to +40°C |
| Operating temperature | -20°C to +80°C |
| Packaging | 280 ml cartridge, sold individually |
| Warranty | 1 year |
| Weight | 1 kg |
Use and compatibility
This cartridge is suitable for sealing ventilation, air conditioning and heating systems, on most ductwork assemblies: straight joints, elbows, circular spigots. Watertight and airtight once cured, the sealant bonds to concrete, aluminium, galvanised sheet metal and wood. It should be used alongside mechanical fixing of the ductwork (screws, rivets), as the sealant is not designed to provide the structural strength of the assembly on its own.
Do not apply to water sensitive substrates, glass, PE or PP: check adhesion compatibility and staining risk before applying to any unfamiliar substrate. Surfaces to be treated must be sound, dry, uniform, and free from grease and loose material.
Application and storage
Apply the sealant using a cartridge gun, with a dry brush or a spatula, between +5°C and +40°C, on clean and dry surfaces. To avoid air bubbles, press the sealant into the joint until it overflows slightly, then smooth it with water without additives before skin formation begins, i.e. around 15 minutes at +23°C. Curing takes place by evaporation of water: protect the joint from frost, rain and unfavourable conditions until fully cured, which takes a minimum of 24 hours at +23°C for a skin over 1 mm thick. Clean residue and tools with water before curing: once cured, the sealant can only be removed mechanically.
The sealant can be overpainted once fully cured, preferably with a dispersion paint (acrylic or vinyl): carry out a test on a small area beforehand. Store unused cartridges in a dry, ventilated area, between +5°C and +25°C. Before use, refer to the safety data sheet for EOCRYL M1 sealant, available at www.ouestventil.fr.
Points to check before ordering
- Check that the M1 fire rating matches the requirement for your project (public-access premises, commercial kitchen, commercial building) before placing your order.
- Count the number of joints to be treated on your ductwork to estimate the number of cartridges required: the more elbows and spigots a system has, the more sealing points there are to cover.
- You will need a cartridge gun suited to the 280 ml format, as well as a dry brush or spatula for application.
- Check the substrate: the sealant bonds to concrete, aluminium, galvanised sheet metal and wood, but is not suitable for water sensitive substrates, glass, PE or PP.

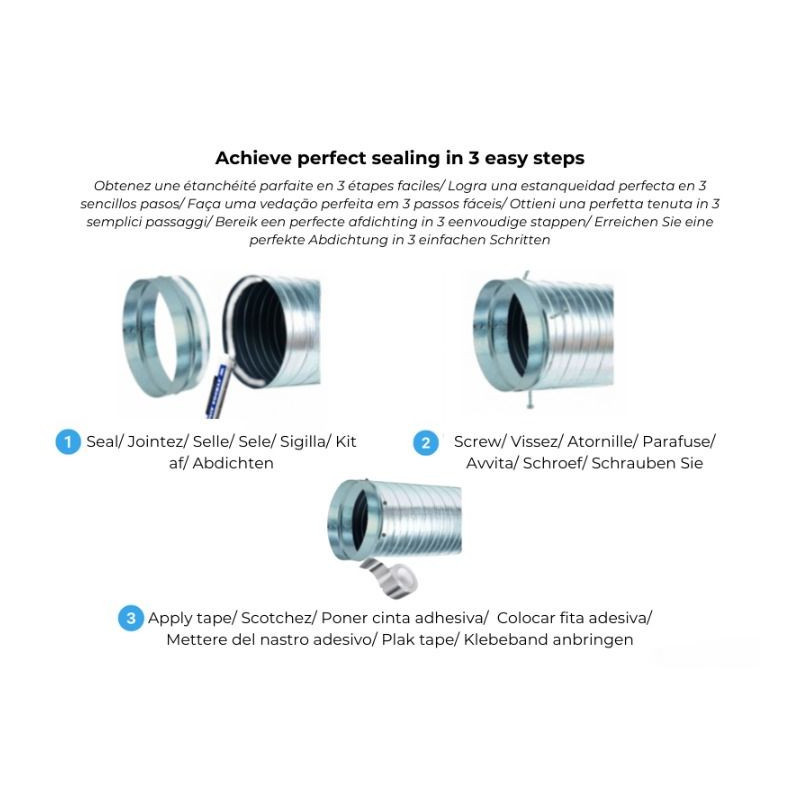

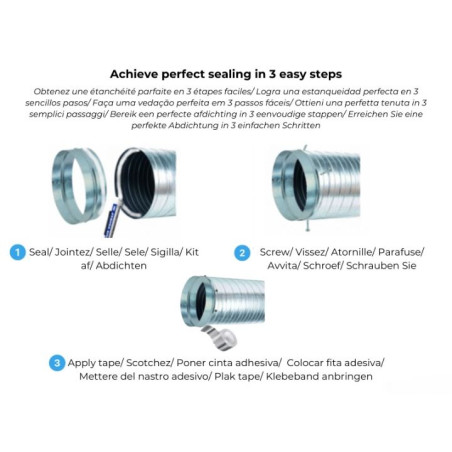

- Combine this cartridge with mechanical fixing of the duct (screws or rivets): the sealant provides airtightness, not the structural support of the assembly.
- For visible joints or joints subject to high mechanical stress, reinforce with aluminium tape or a flexible connector depending on the connection point.
Frequently bought together
- Aluminium tape to reinforce the seal at duct joints
- Flexible connector for connections requiring flexibility
Product Details
- Products
- Fastening
- Manufacturing
- Made in France
- Warranty
- 1 year
- Package weight
- 1 kg
You might also like
8 other products in the same category:
Customers who bought this product also bought:
Frequently asked questions
What is the Sealing Cartridge for Air Ducts used for?
It seals joints in a ventilation, air conditioning or heating system airtight: ducts, elbows, spigots. It limits air leaks at connections and helps maintain a steady airflow through the system.
Does this cartridge replace the mechanical fixing of ducts?
No. The sealing cartridge provides airtightness at the joints, not the structural support of the system. Ducts must still be fixed mechanically (screws, rivets); the sealant complements this fixing.
Is the M1 fire rating suitable for all projects?
M1 is the fire rating of this cartridge. For a project with a specific regulatory requirement (public-access premises, commercial kitchen), check that this rating matches the specification of your installation before placing your order.
What substrates can this sealant be applied to?
The sealant bonds to concrete, aluminium, galvanised sheet metal and wood, provided the substrate is dry, sound and free from grease. It is not suitable for water sensitive substrates, glass, PE or PP: test compatibility before applying to an unfamiliar substrate.
Can the sealant be painted once cured?
Yes, it can be overpainted once fully cured. It is recommended to use a dispersion paint, acrylic or vinyl, and to carry out a test on a small area before general application.
What tool is needed to apply this cartridge?
The 280 ml cartridge is used with a standard cartridge gun. The sealant can then be smoothed with a dry brush, a spatula, or water without additives before skin formation begins, around 15 minutes after application.
