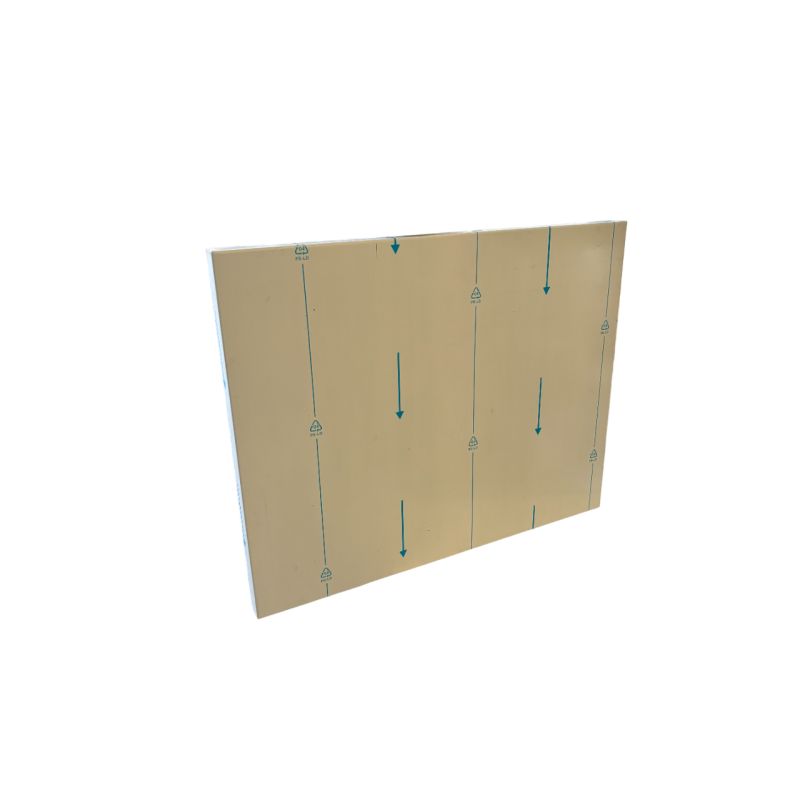

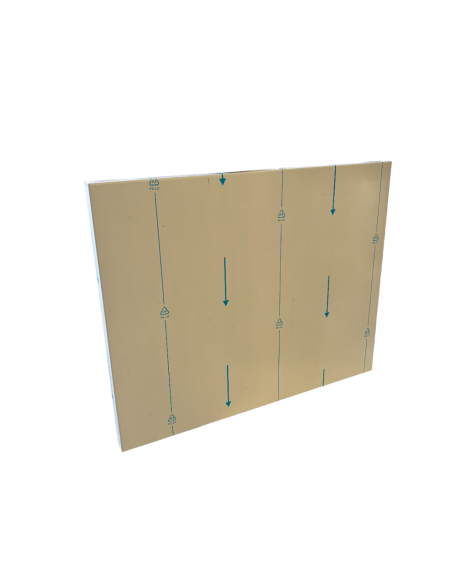

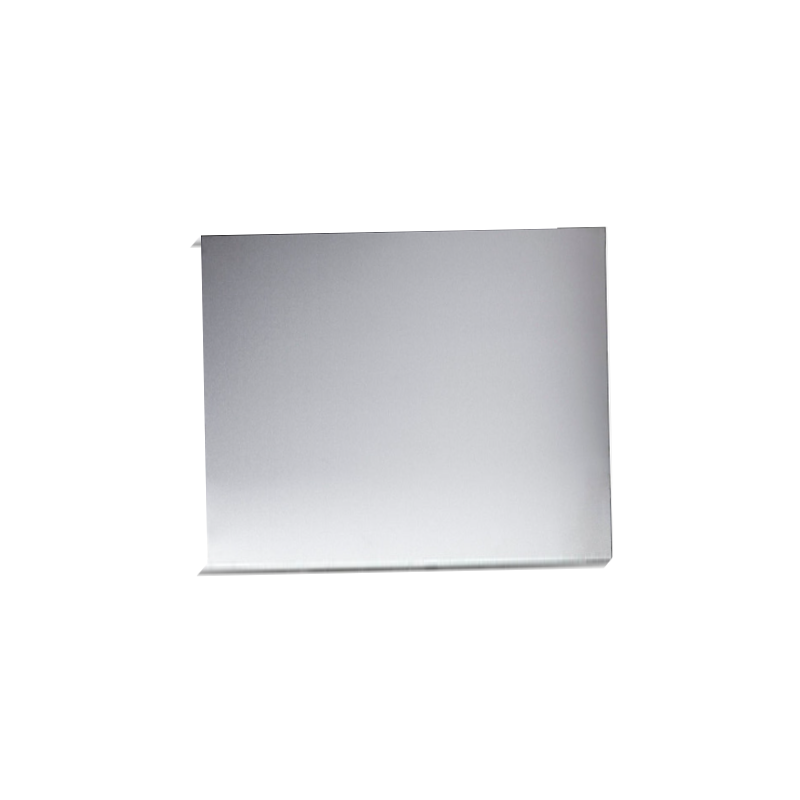

Stainless Steel Cover Plate (L500 x H400 x D25 mm) for Range Hood

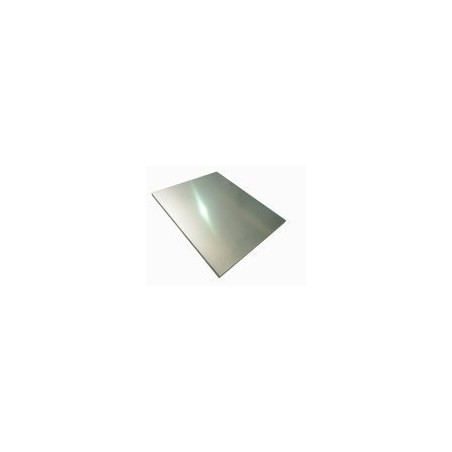

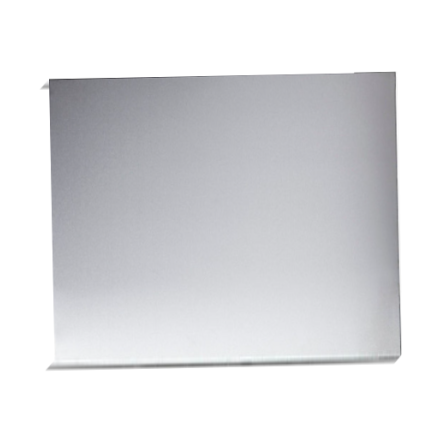

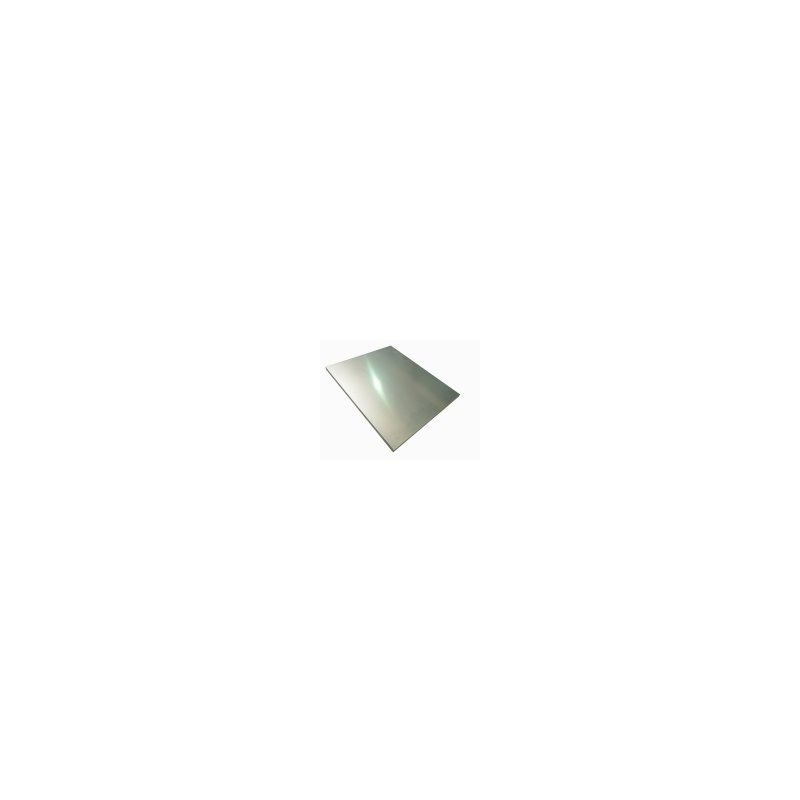

Shutter for a professional stainless steel range hood

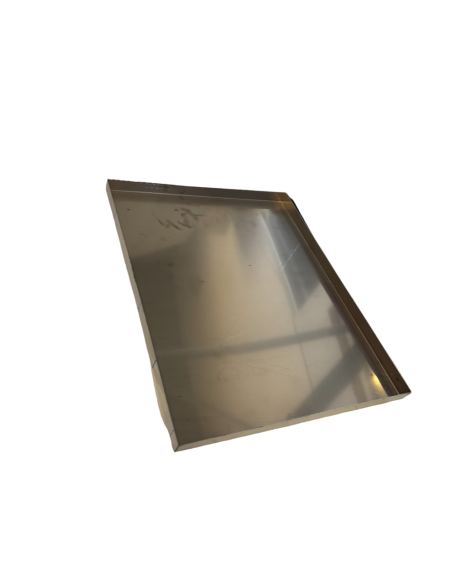

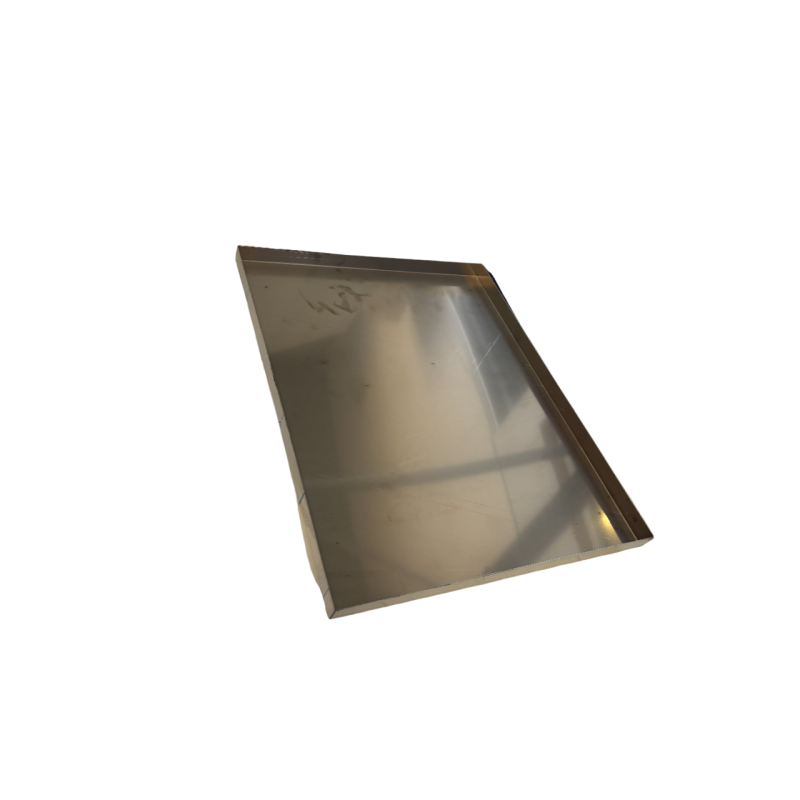

Stainless Steel Cover Plate (L500 x H400 x D25 mm) for Range Hood, vue 2
Stainless Steel Cover Plate (L500 x H400 x D25 mm) for Range Hood, vue 3
Stainless Steel Cover Plate (L500 x H400 x D25 mm) for Range Hood, vue 4

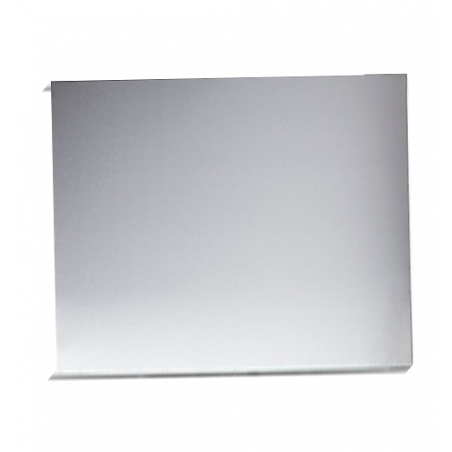

Shutter for a professional stainless steel range hood
Stainless Steel Cover Plate (L500 x H400 x D25 mm) for Range Hood, vue 2
Stainless Steel Cover Plate (L500 x H400 x D25 mm) for Range Hood, vue 3
Stainless Steel Cover Plate (L500 x H400 x D25 mm) for Range Hood, vue 4

The stainless steel cover plate L500 x H400 x D25 mm fills a gap between two filters or replaces a missing filter, to keep a consistent extraction zone and protect the fan from grease and heat.

  • Dimensions: L 500 x H 400 x D 25 mm
  • Material: 18/10 stainless steel
  • Finish: plate with turned edges
  • Made in: France
  • Warranty: 1 year
In stock
Quantity
45.00 Tax excluded
54 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


Flat stainless steel cover plate for commercial kitchen hood, blanking plate for stainless steel restaurant hood

The flat stainless steel cover plate is a solid plate measuring L500 x H400 x D25 mm that fits into the filter housing of a commercial kitchen hood, in place of a missing filter or alongside your existing filters, to properly close off an unused area.

This is not a filter: the plate does not allow air through. Its purpose is precisely to close off a space in order to concentrate extraction where it is needed, above active cooking zones, and to protect the double-inlet centrifugal fan from grease and heat rising through a space left open.

Technical specifications

Specification Value
Dimensions L 500 x H 400 x D 25 mm
Material 18/10 stainless steel
Finish Plate with turned edges
Made in France
Warranty 1 year
Package weight 3 kg

Use and compatibility

This cover plate suits commercial kitchen hoods fitted with filters in the L500 x H400 mm format, in traditional restaurants, fast-food outlets, kebab shops, snack bars, creperies or brasseries. It fits into the same housing as the stainless steel filters, at the point where the extraction zone does not need to be active across the full width of the hood, for example above an area without a cooking appliance or in front of the fan box.

Points to check before ordering

  • Measure the area to be covered precisely: the plate is L 500 x H 400 x D 25 mm, check that your filter housing accepts these exact dimensions.
  • Do not cover too large a surface relative to your cooking zone: as a general guideline, it is best to keep most of the width under active filtration so as not to reduce the useful airflow over the cooking zones, depending on your hood's configuration.
  • Check the type of rail or support in your hood: the plate is designed to be positioned like a standard filter, in the same housing.
  • If your dimensions differ from 500 x 400 mm, contact us before ordering rather than forcing the fit.

Often bought with

Product Details

Ventilsogood
obturateur500x400
Products
Shutter
Manufacturing
Made in France
Warranty
1 year
Package weight
3 kg
0657968511965

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What is the difference between a cover plate and a hood filter?

The filter lets air through while trapping grease, the cover plate closes off a zone completely. The stainless steel cover plate does not filter anything: it fills a gap between two filters or replaces a missing filter to concentrate extraction where it is needed.

When should a cover plate be fitted instead of an additional filter?

When part of the hood sits above an area without active cooking, or when the filter housing has an empty space, the cover plate closes off this area properly instead of adding an unnecessary filter.

How do I measure the space to be covered before ordering?

Measure the width, height and depth of the empty housing precisely, making sure it matches the L 500 x H 400 x D 25 mm dimensions of this cover plate. If your measurements differ, contact us before ordering.

Is the cover plate compatible with a double-inlet centrifugal fan?

Yes, this stainless steel cover plate is designed to protect a double-inlet centrifugal fan located behind the filter housing, shielding it from grease and heat that would otherwise rise through a space left open.

Does the cover plate need to be fixed or screwed in place?

The plate is positioned in the same housing and on the same principle as a standard hood filter, with no particular fixing required beyond the support already present on your hood.
