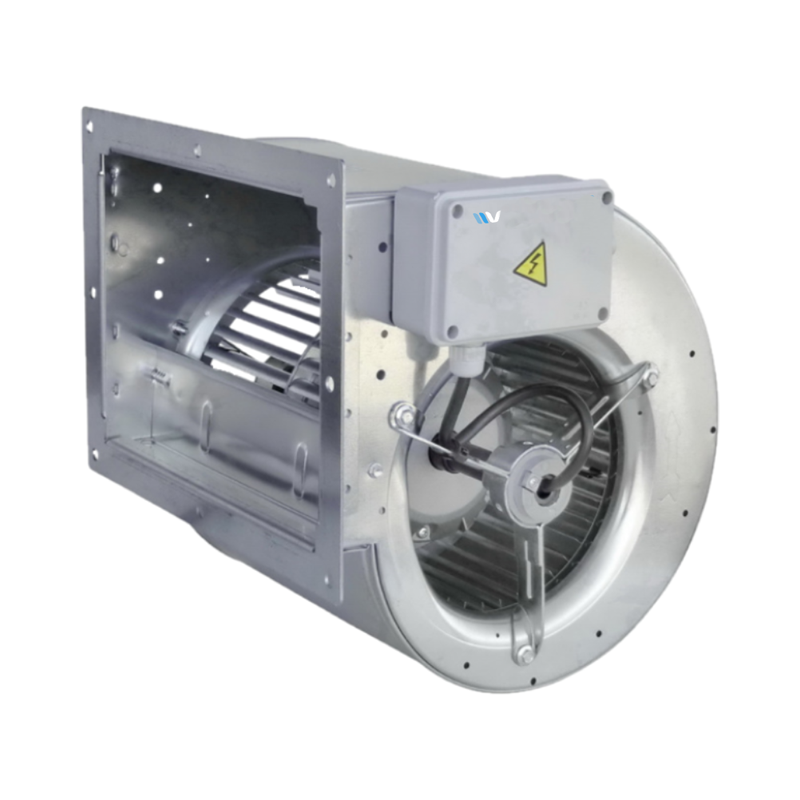

Centrifugal Fan DDM 8/9-9/9R – 3,000 m³/h Nicotra CMC for all commercial range hoods

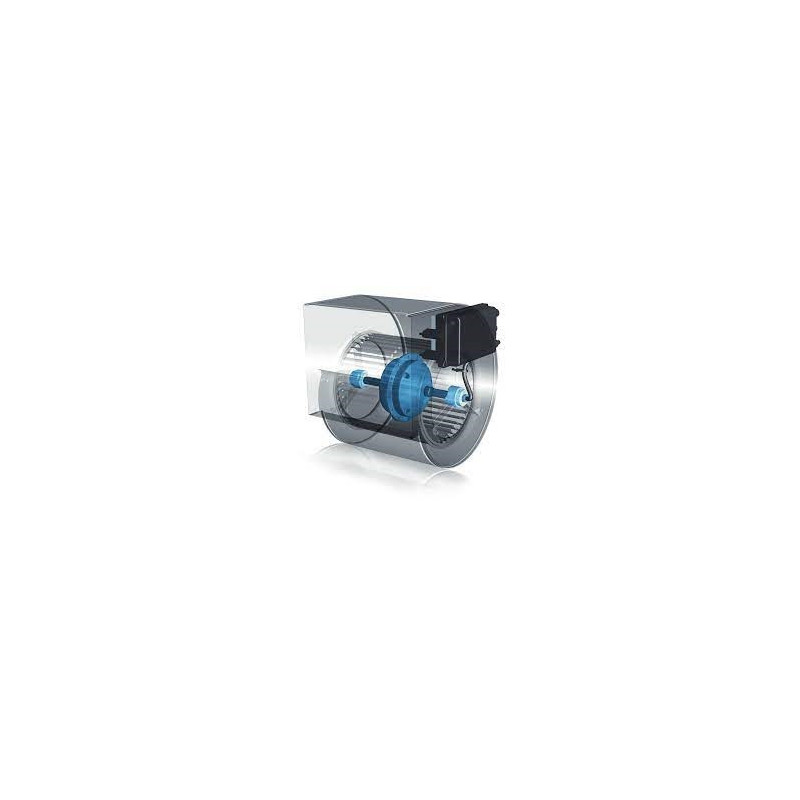

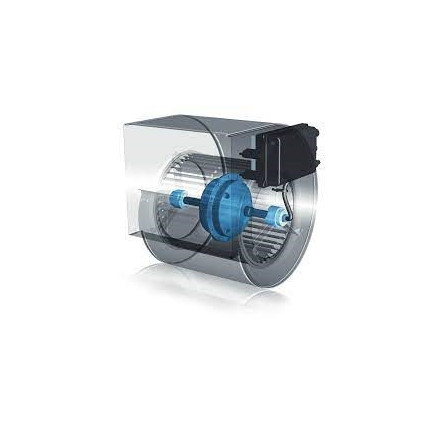

Centrifugal Fan DDM 8/9-9/9R – 3,000 m³/h | Power & Compatibility with Stainless Steel Range Hoods
Technical specifications for the DDM 8/9 or 9/9R "Tight" screw pump, 3,000 m³/h

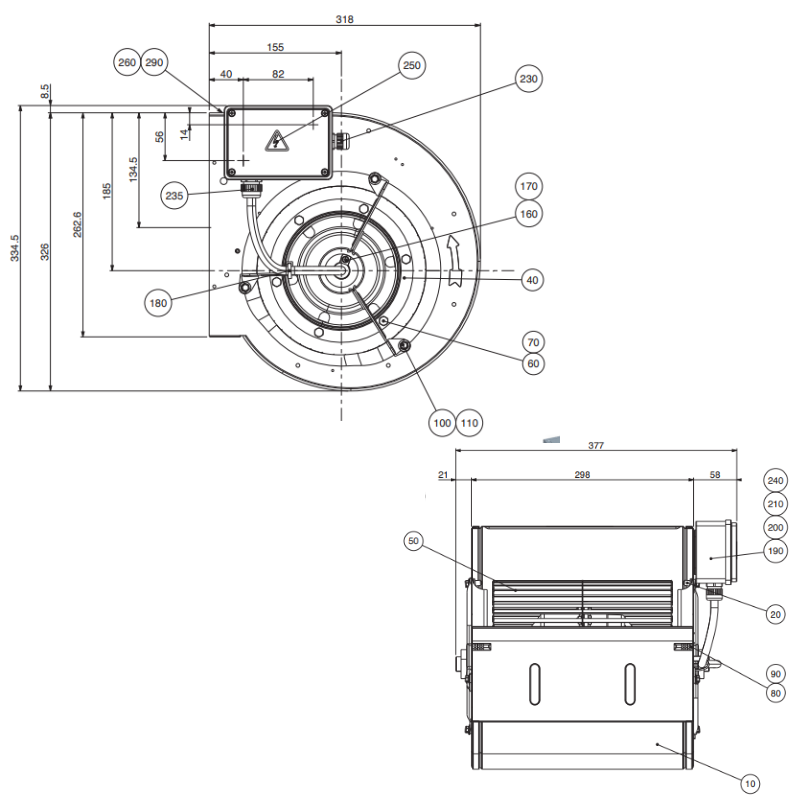

Dimensions of the Nicotra DDM8/9 - 9/9R Tight worm gear motor

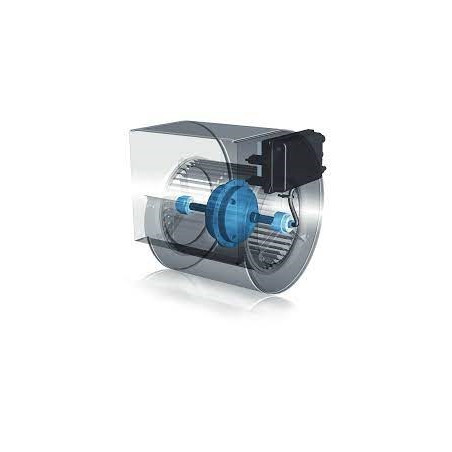

Centrifugal Fan DDM 8/9-9/9R – 3,000 m³/h | Power & Compatibility with Stainless Steel Range Hoods

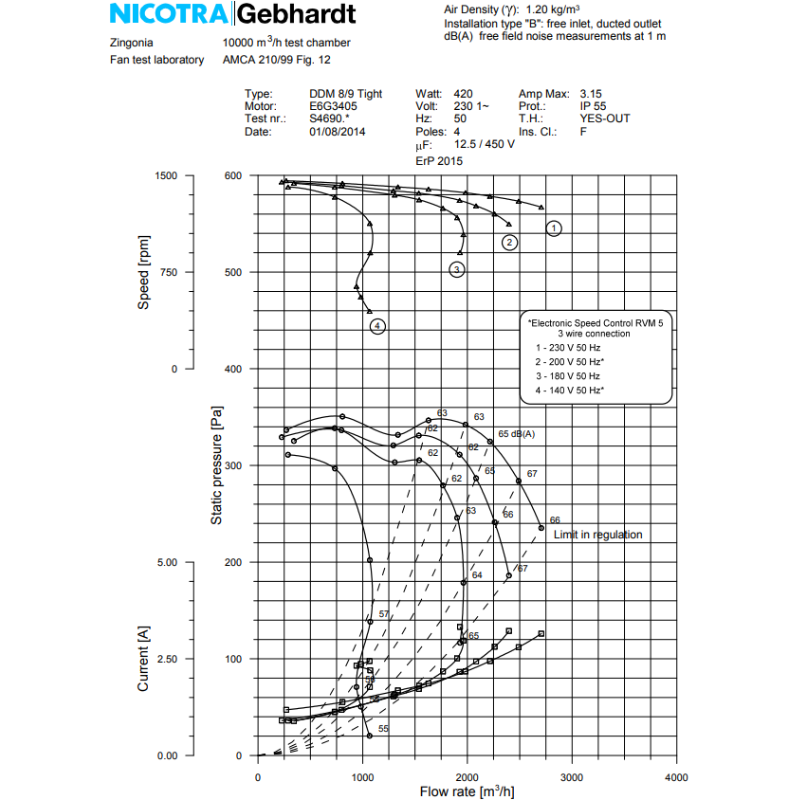

DDM 8/9 or 9/9R Tight Nicotra snail motor performance curve

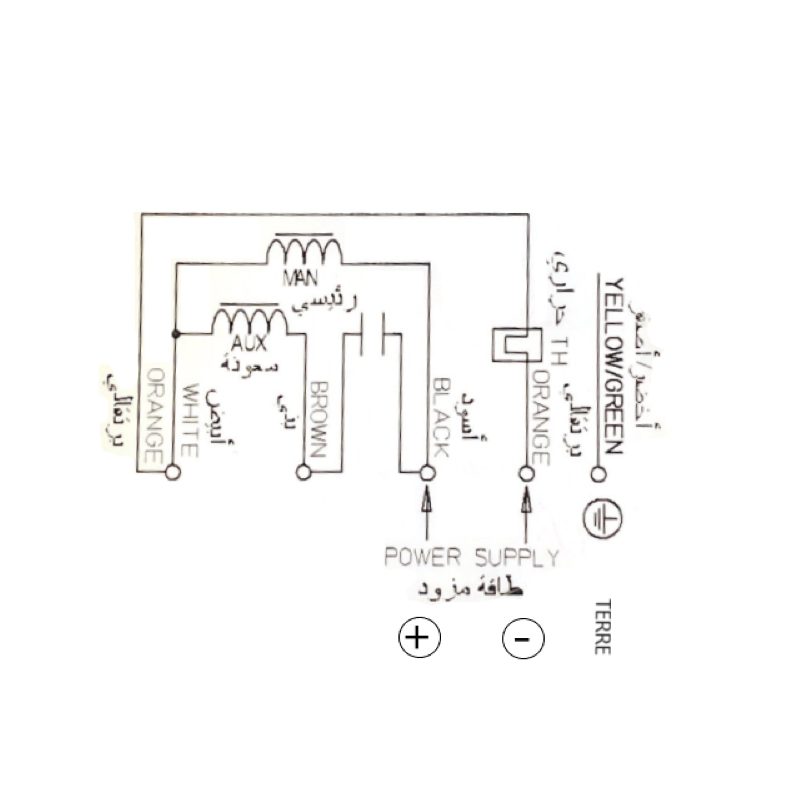

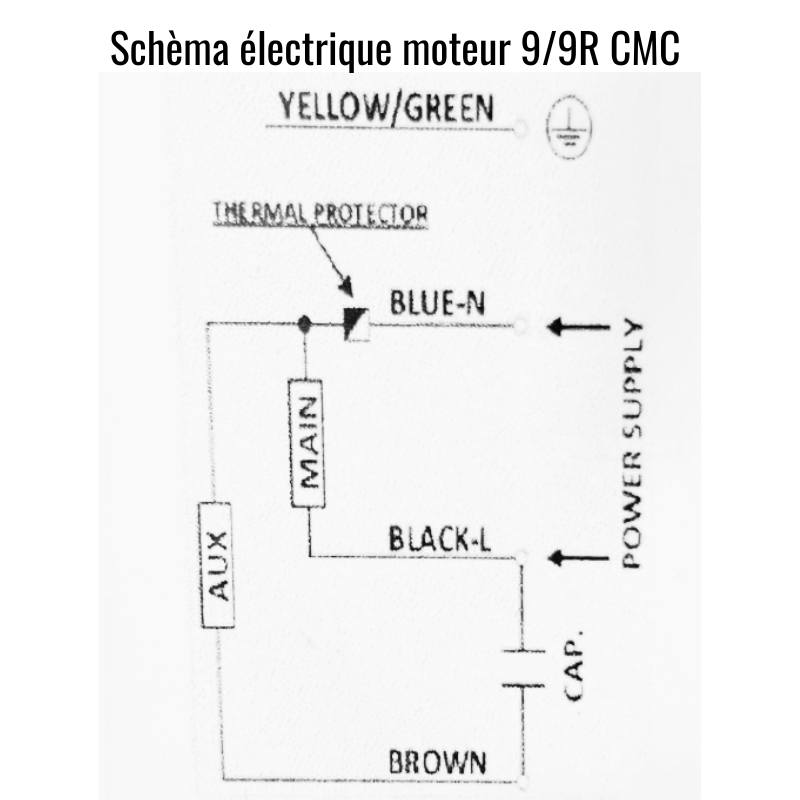

Wiring Diagram and Technical Specifications for the CMC 9/9R Motor

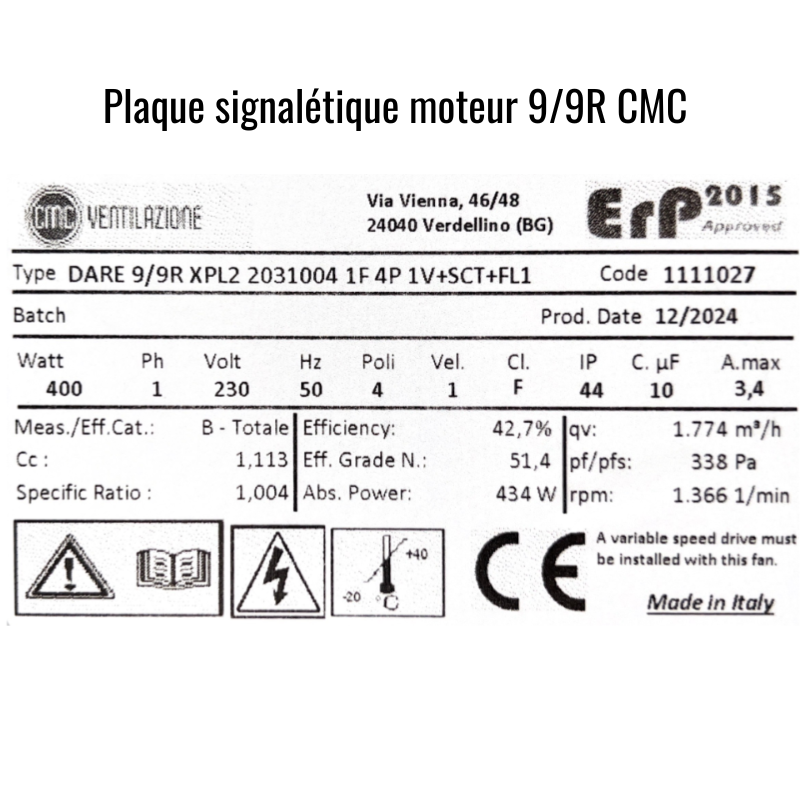

CMC 9/9R Engine Technical Specifications Nameplate
snail pump 8/9 99R 99L 3,000 m³/h
Video
Centrifugal Fan DDM 8/9-9/9R – 3,000 m³/h | Power & Compatibility with Stainless Steel Range Hoods
Technical specifications for the DDM 8/9 or 9/9R "Tight" screw pump, 3,000 m³/h
Dimensions of the Nicotra DDM8/9 - 9/9R Tight worm gear motor
Centrifugal Fan DDM 8/9-9/9R – 3,000 m³/h | Power & Compatibility with Stainless Steel Range Hoods
DDM 8/9 or 9/9R Tight Nicotra snail motor performance curve

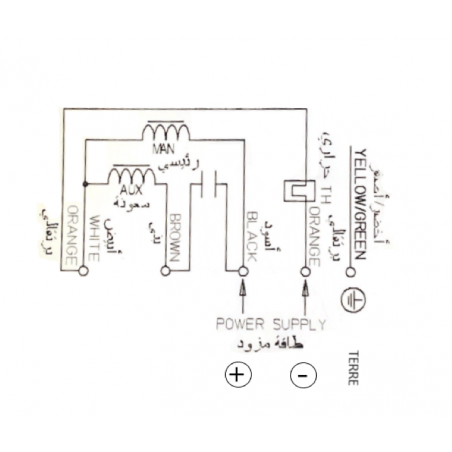

Wiring Diagram and Technical Specifications for the CMC 9/9R Motor
CMC 9/9R Engine Technical Specifications Nameplate
snail pump 8/9 99R 99L 3,000 m³/h

Centrifugal Fan Dual-intake, 3,000 m³/h. Compact, Sturdy, and Powerful—the best motor for your commercial range hood!

- DDM 9/9T motor - DDM 8/9 - DARE 9/9 R depending on brand: 9/9 “CUSTOM SIZE” to fit in hoods that are 450 high or have a steep slope (DIAMETER OF A 7/7).
- Dual vents
- Suction capacity: 3,000 m³/h
- Power supply: 220 V, 4-pole, 400 W, 3.8 A, CE - 220 V
- IP55-rated housing

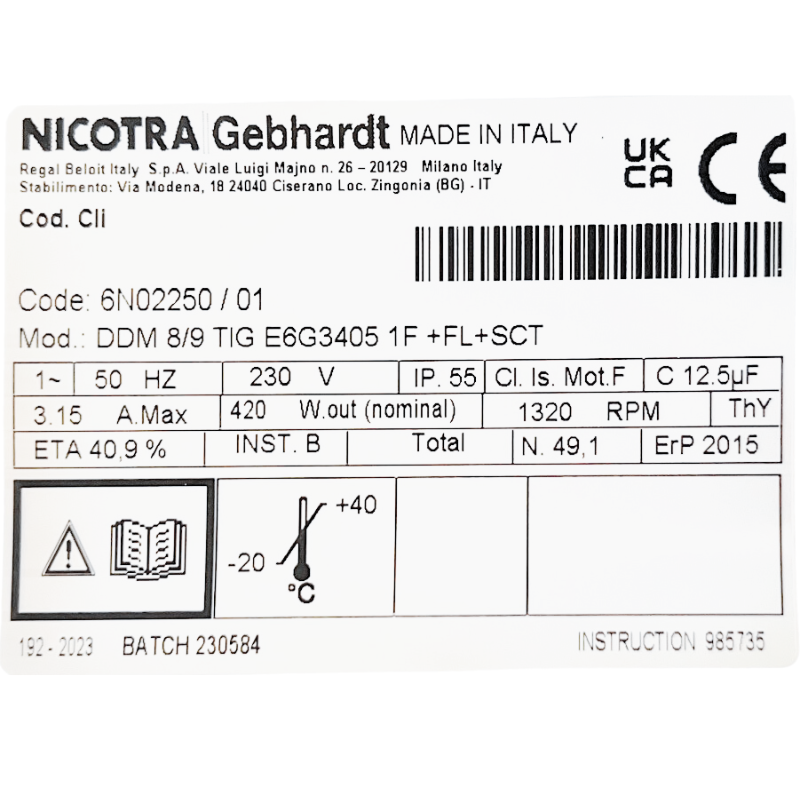

- Part number Nicotra: 6N02250, motor code E6G3405; if discontinued, replace with the higher-end model CMC: DARE 9/9R (quieter at low speeds, more robust)
- Mounting bracket included
- Weight 15 kg
- 1-year warranty, NICOTRA brand /REGAL
- Dimensions: Outlet 30 × 26 cm and reduced diameter ~33 cm (~39 cm for a standard 9/9 model).
- Model compatible with all standard range hoods = minimum height of 450 mm (Ventileco, Saftair, France air, Sodeca, S&P, Alvène, Bertrand, VIM, etc.)
- Equivalents: Nicotra, Regal, Casal, Metro, Vim, Sodeca, S&P, Sisteven, etc.

Looking for a speed controller compatible with this motor? Click here:

In stock
Quantity
345.00 Tax excluded
414 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


Centrifugal Fan DDM 8/9 Dual Centrifugal Intake – 3,000 m³/h for professional stainless steel range hoods

The DDM 8/9 – 3000 m³/h snail fan is the industry standard for ventilation systems in professional kitchens. Compact, powerful, and perfectly balanced, it guarantees efficient, quiet, and long-lasting extraction for all stainless steel restaurant range hoods.

Key Features of the DDM 8/9 Motor

  • Ideal size for professional stainless steel range hoods 2 to 3 meters in length.
  • Universally compatible with all standard hoods 450 mm in height.
  • 400 W power output for an extraction rate of 3,000 m³/h —excellent size-to-power ratio.
  • Dual-outlet centrifugal technology ensures uniform suction on both sides.
  • DDM design with a centered motor for optimal vibration and noise reduction.
  • Precision balancing ensures the motor’s durability and longevity.
  • Mounting frame included for quick installation in a stainless steel range hood or motor housing.
  • IP55 housing with integrated capacitor—maximum protection against moisture and grease.
  • High-qualityItalian manufacturing: performance, reliability, and safety guaranteed.
  • Simple connection and option to add a 220V single-phase variable-speed drive.

Recommended Use

This DDM 8/9 centrifugal motor is ideal for extracting smoke, greasy fumes, and steam in all types of professional kitchens: restaurants, fast-food establishments, kebab shops, snack bars, creperies, brasseries, and institutional kitchens.

Thanks to its excellent efficiency and reinforced design, it combines quiet operation, energy efficiency, and long-term reliability.

Also check out our DDM 7/7 motor, perfect for more compact range hoods.

Find all related products at the bottom of the page.

Product Details

Nicotra - Regal
DM89dare99r
Manufacturing
Made in Italy
Warranty
1 year
Package weight
19 kg
Engine
Centrifugal Fan
Food
230V Mono
Engine power
2,000 to 4,000 m³/h
Engine Type
7/7, 7/9, 8/9
Engine Type
9/7, 9/9
0657968616028
