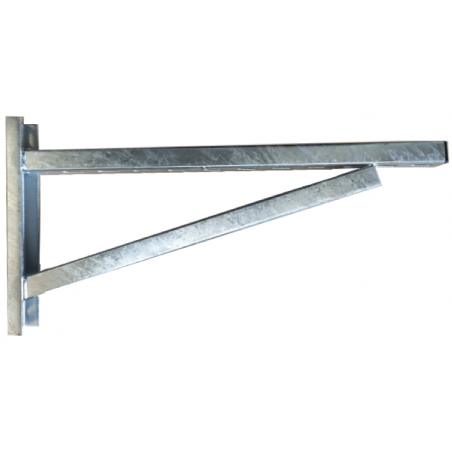

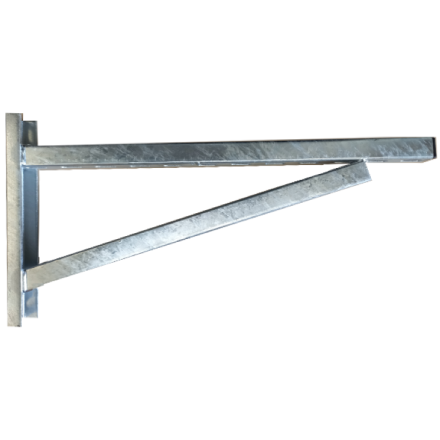

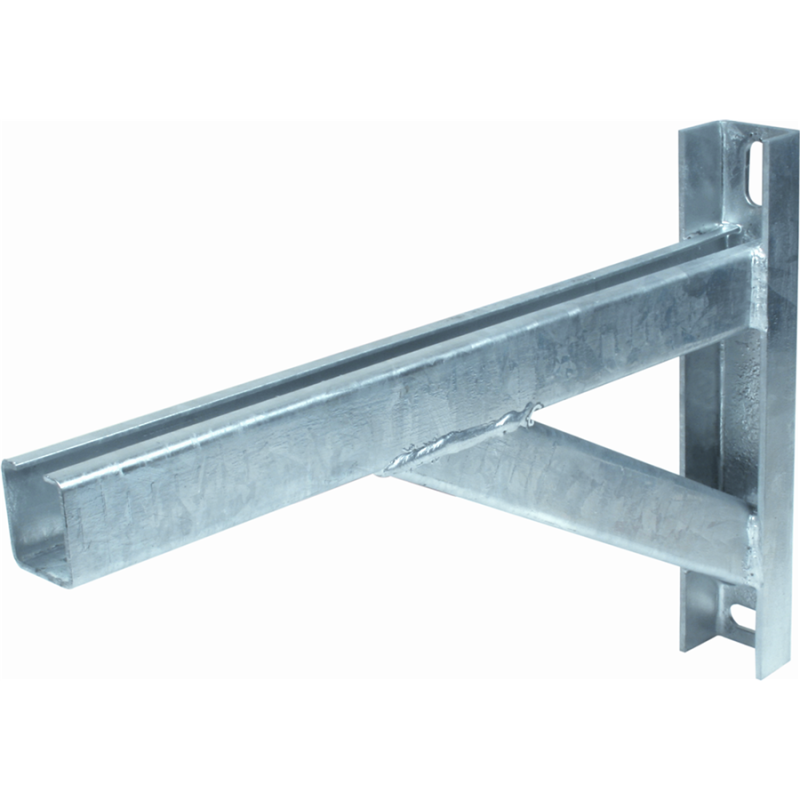

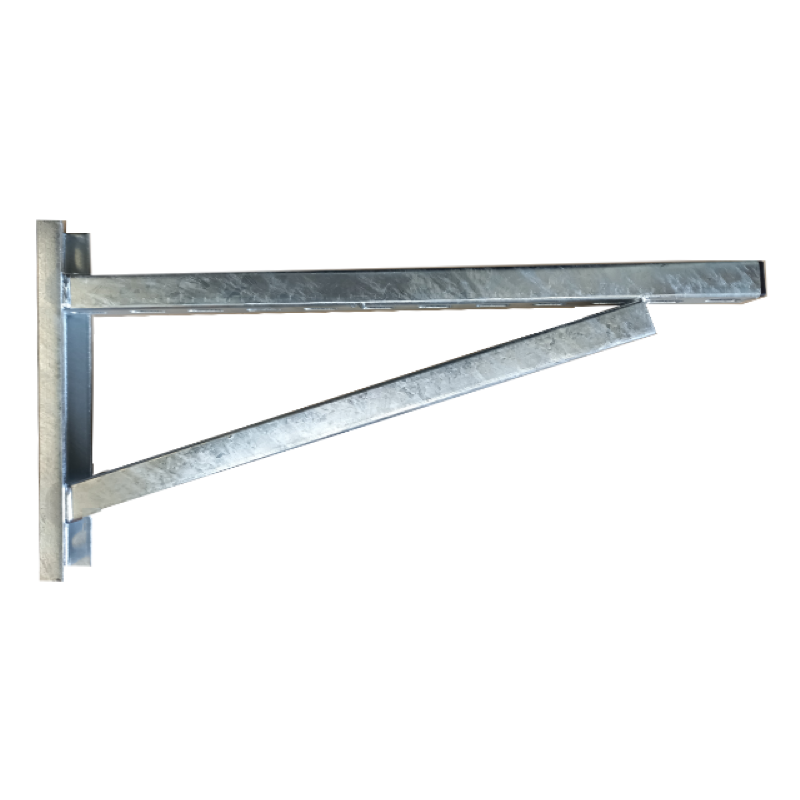

Heavy-duty bracket / console—sold individually

Heavy-Duty L-Bracket
galvanized console bracket
Heavy-Duty L-Bracket
galvanized console bracket

The heavy-duty bracket with galvanised steel reinforcement secures the wall mounting of your extraction fan boxes and roof extract fans, with a load capacity ranging from 200 to over 500 kg depending on the fixing method and weight distribution. Sold individually.

  • Overall length: 607.5 mm
  • Effective support length: 600 mm
  • Profile: 36 x 36 mm, 2.5 mm thickness
  • Material: reinforced galvanised steel, manufactured in Europe
  • Weight: 3.38 kg (sold individually)
In stock
Quantity
35.00 Tax excluded
42 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The heavy-duty bracket / console, sold individually, is a reinforced galvanised steel bracket used to fix extraction fan boxes, roof extract fans or other ventilation equipment to walls and structures. Sold individually, it supports 200 to over 500 kg depending on the fixing method and weight distribution.

Heavy-duty bracket: what is it used for?

This bracket is designed to carry the weight of an extraction fan box or roof extract fan installed at height, on a wall or façade. The galvanised steel reinforcement provides the rigidity needed to keep the equipment stable over time, even outdoors. It is suitable for both indoor installation (plant room, boiler room) and outdoor use, thanks to the corrosion and weather resistance provided by galvanisation. Its load capacity, from 200 to over 500 kg, varies considerably depending on the fixing method and how the equipment's weight is distributed across the support: it is therefore not a fixed figure, but depends on your installation. To fix a fan box or roof extract fan, allow for two brackets: this is the configuration to plan for in order to distribute the load correctly and ensure a stable installation.

Need a longer fixing span? The bracket can be extended using a strut channel, sold on the site, to accommodate wider fan boxes or roof extract fans without multiplying product references.

Technical specifications

Specification Value
Reference console
Length (L) 607.5 mm
Width (B) 46 mm
Height (H) 340 mm
Profile width (BP) 36 mm
Profile height (HP) 36 mm
Profile thickness (tP) 2.5 mm
Effective support length (X) 600 mm
Load capacity 200 to over 500 kg depending on fixing and weight distribution
Recommended number per fan box or roof extract fan 2 brackets
Fixings Not included, not countersunk
Extension possible Yes, via strut channel sold separately
Material Reinforced galvanised steel
Manufacturing Europe
Weight (unit) 4 kg
Parcel weight 5 kg
Packaging Sold individually

Benefits of the galvanised bracket

  • Designed to support heavy loads, it ensures the stability and safety of fan boxes and roof extract fans installed at height.
  • Allows reliable fixing to different types of surfaces, providing a solution adaptable to many installation configurations.
  • Made from galvanised steel resistant to corrosion and weathering, for a long service life of both the support and the equipment installed on it.
  • Simple design that makes installation easier and reduces time spent on site.
  • Elevated installation provides easy access to the equipment for cleaning, inspection and maintenance.
  • Frees up floor or roof space by allowing wall or elevated mounting.
  • Ensures a tidy, professional installation that preserves the appearance of technical installations.

Points to check before ordering

  • Generally allow for two brackets to fix an extraction fan box or roof extract fan: this is the baseline for distributing the weight correctly, even with a stated capacity of 200 to over 500 kg per bracket.
  • Check the type of wall or façade (concrete, brick, cladding) to choose suitable fixings and wall plugs: fixings are not included and are not countersunk.
  • Make sure the effective length of 600 mm (607.5 mm overall) matches the width of the equipment to be supported. If a longer span is needed, the bracket can be extended with a strut channel, sold on the site.
  • Consider the access needed for future maintenance of the unit once installed at height.
  • Installation by a qualified professional is still recommended to ensure fixing and safety over time, particularly for heavy outdoor loads.

Pairs well with

Product Details

Ventilsogood
console
Products
Fastening
Manufacturing
Made in France
Package weight
5 kg
0657968102255

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What load can the bracket support?

This heavy-duty bracket can support from 200 to over 500 kg depending on the fixing method and the weight distribution of the equipment installed. For a fan box or roof extract fan, allow for two brackets positioned according to the weight and width of the equipment, and have the sizing validated by a professional.

Are screws and wall plugs supplied with the bracket?

No, fixings are not supplied and are not countersunk. Make sure to use fixings suited to the type of wall (concrete, brick, cladding) on which the bracket will be fitted.

How many brackets are needed to fix a fan box or roof extract fan?

Generally, two brackets are enough to fix an extraction fan box or roof extract fan, positioned according to the width and weight of the equipment. A professional can confirm the exact configuration for your installation.

Can the bracket be extended if the width of the equipment requires it?

Yes. The bracket can be extended using a strut channel, sold on the site, to accommodate fan boxes or roof extract fans wider than the effective length of 600 mm.

Is this bracket suitable for outdoor installation?

Yes, the bracket is made from galvanised steel, a treatment that resists corrosion and weathering. It is therefore suitable for both indoor and outdoor installation, on a façade or technical wall.
