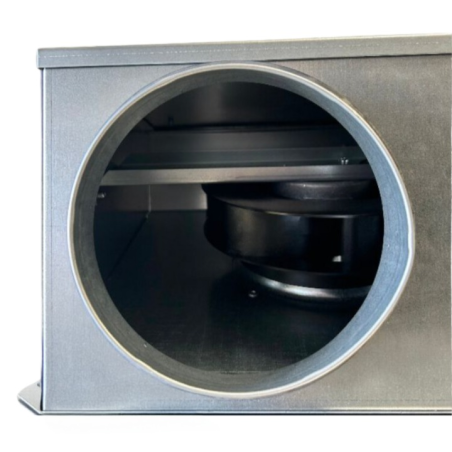

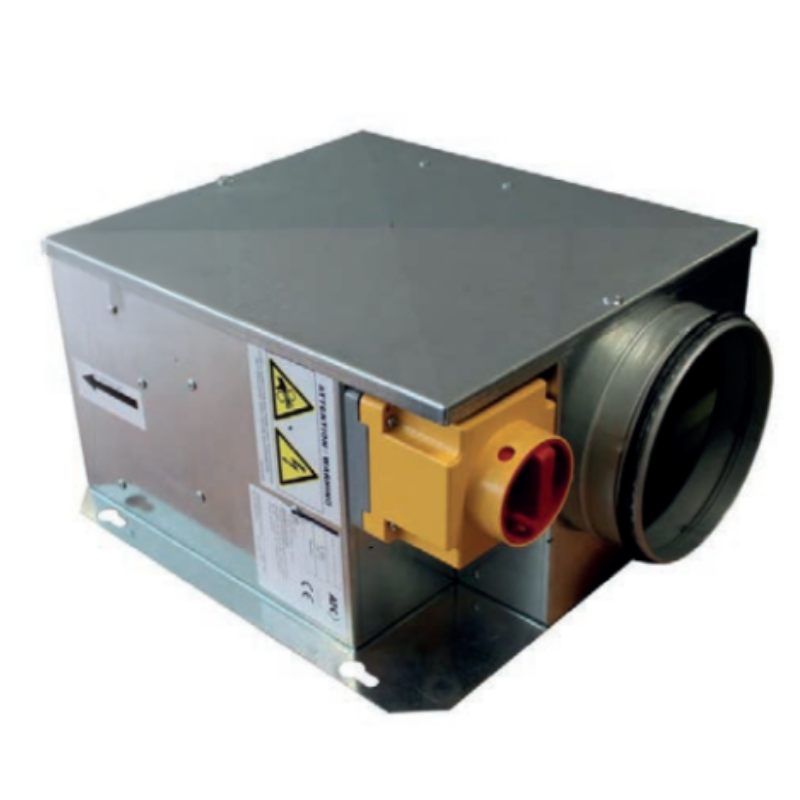

The BFSA extra-flat VMC exhaust unit is a motorised unit with an airflow of 800 m³/h in 250 mm diameter, designed for ventilation systems with limited space. It can be used for extract, supply or transfer ventilation.
A BFSA unit built for suspended ceilings and low lofts

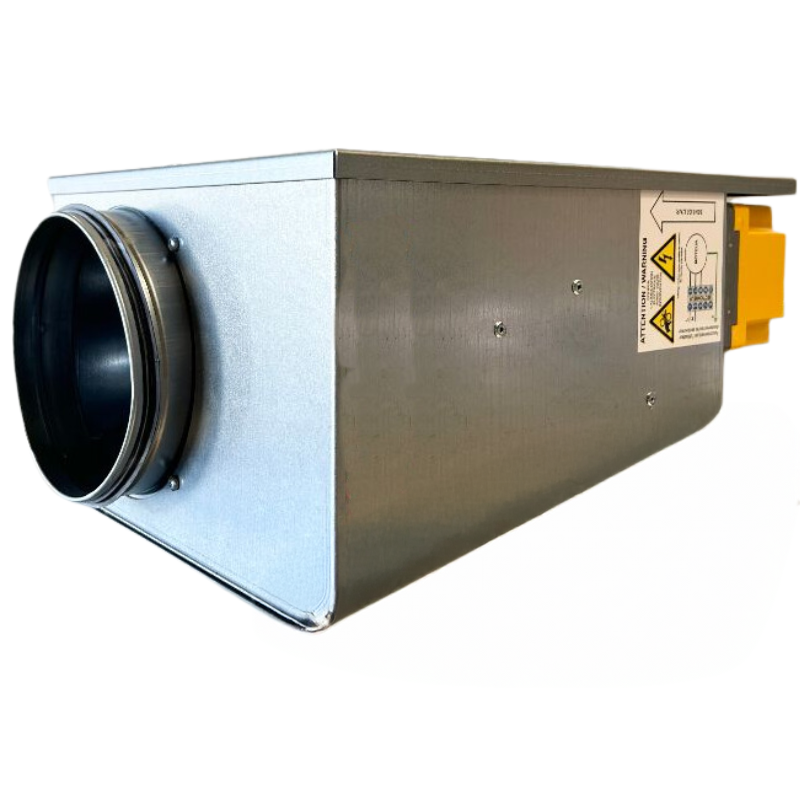

Its extra-flat design (300 mm high) makes it the ideal choice for installations where every centimetre counts: office suspended ceilings, hard-to-reach lofts, cramped plant rooms. No major works are needed to fit it into an existing professional mechanical ventilation system: it's mounted horizontally, indoors or outdoors.

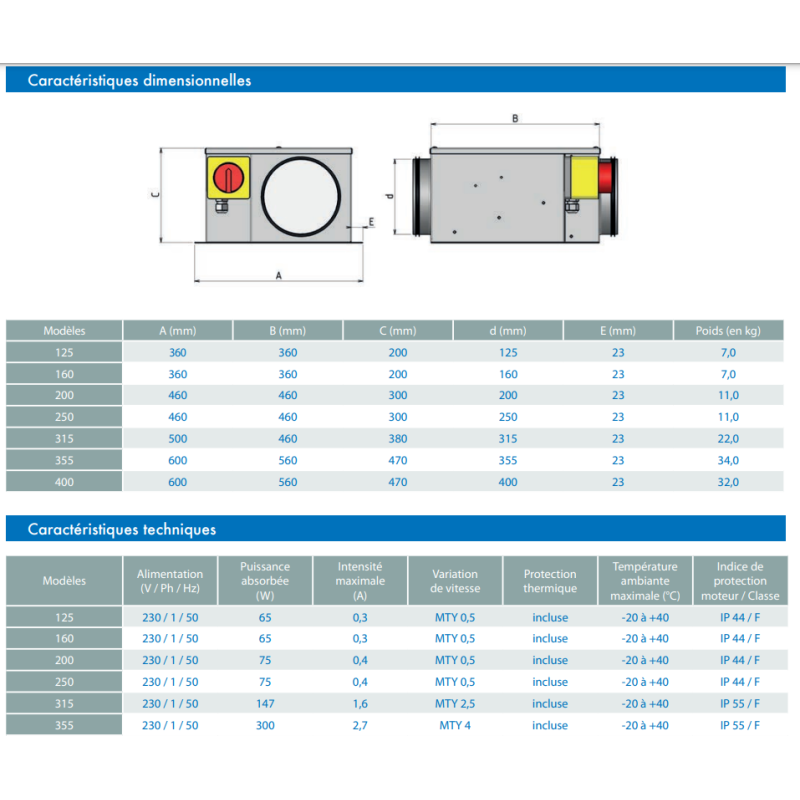

Technical specifications
| Specification |
Value |
| Generic reference |
BFSA |
| Airflow |
approx. 800 m³/h |
| Inlet/outlet diameter |
250 mm |
| Dimensions (L x D x H) |
460 x 460 x 300 mm |
| Power supply |
230 V single-phase + earth, 50 Hz |
| Current |
0.4 A |
| Power |
75 W |
| Weight |
15 kg |
| Made in |
France |
| Warranty |
1 year |
Use and compatibility

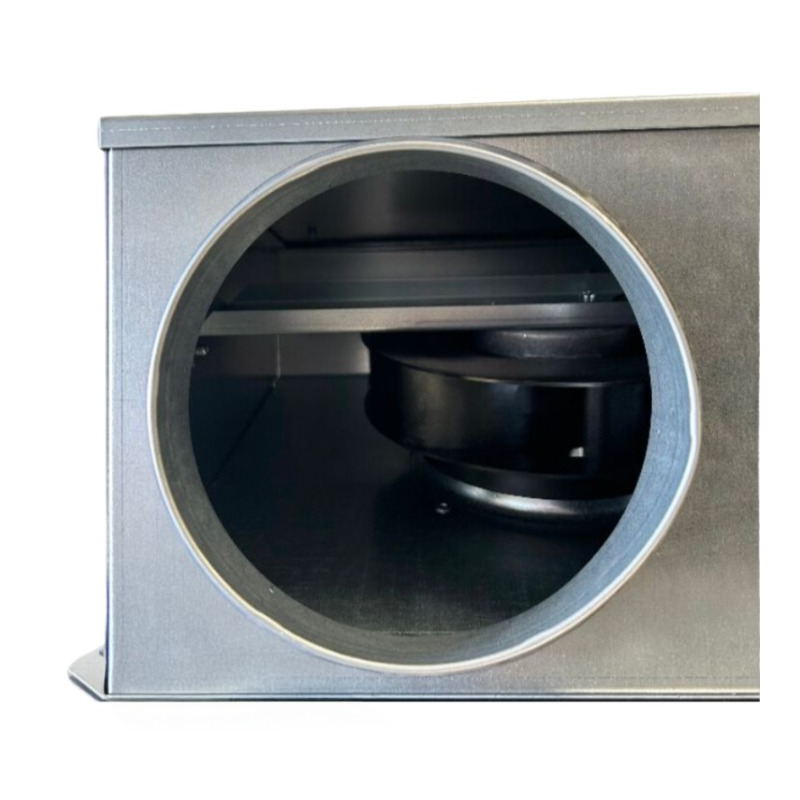

This VMC extraction fan box is versatile: it can be installed for extract (removing stale air), supply (bringing in fresh air) or transfer ventilation between two rooms. The direct-drive fan unit features a reaction-type fan and a motor with built-in thermal protection, for efficient ventilation without excess power consumption. The galvanised steel panels and removable screwed cover make long-term maintenance straightforward. This BFSA unit is generally compatible with existing ductwork systems such as Vim KMDT, Aldes Vec, Atlantic Critair or France Air Sirius, thanks to its circular spigots fitted with lip seals.
Installation and connection

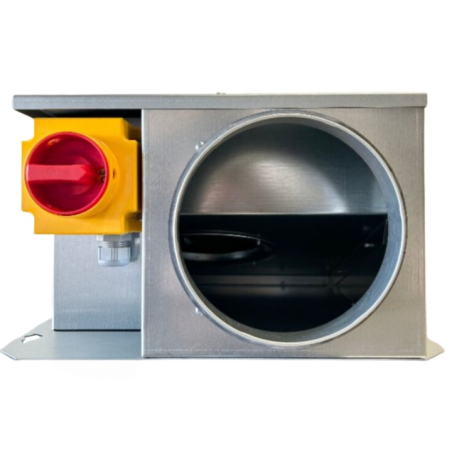

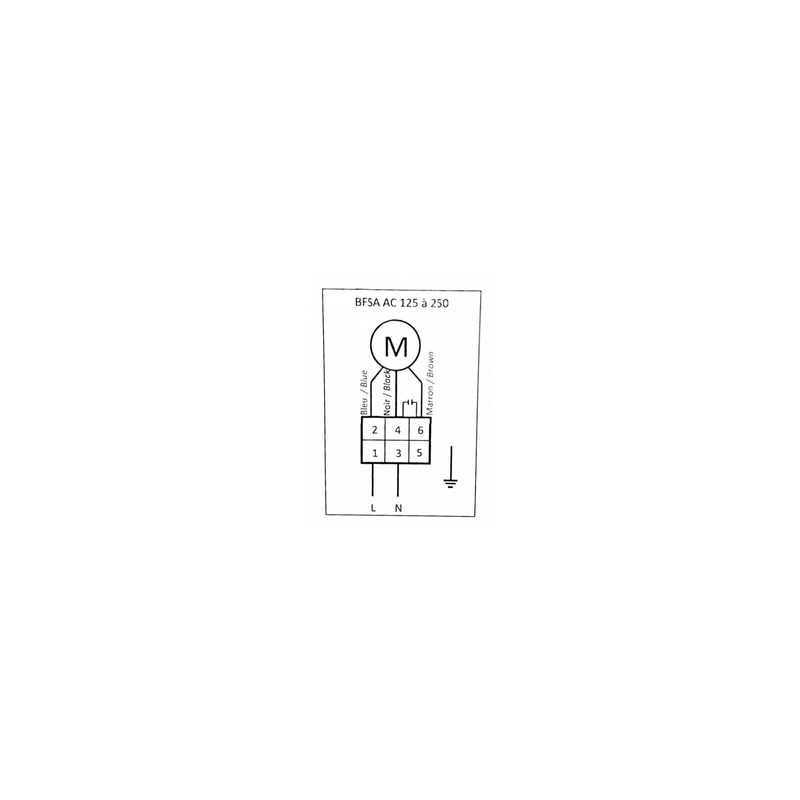

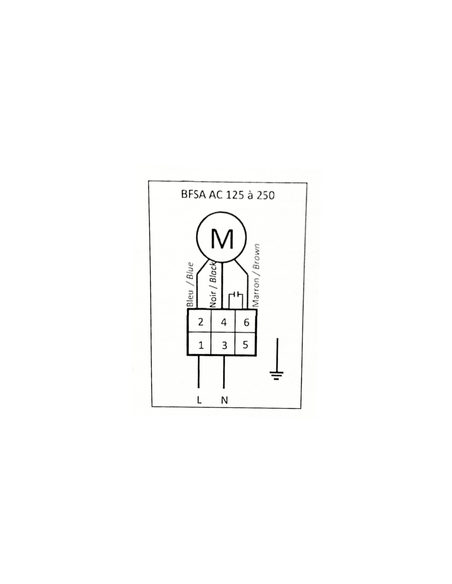

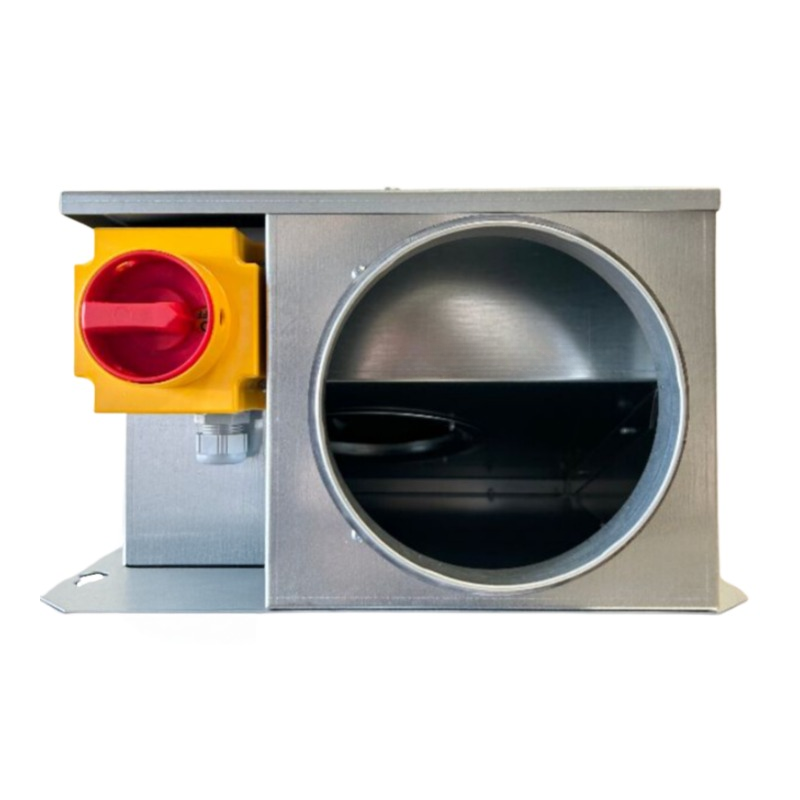

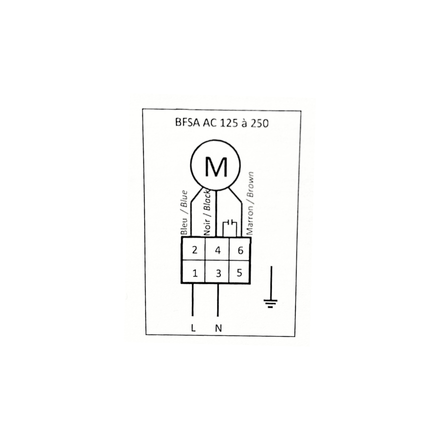

The unit can be fixed to the floor or suspended, using its feet with mounting points. It comes supplied with a local isolator switch pre-fitted and wired, as well as a cable grommet to make the electrical connection easier. The electrical connection must be carried out by a qualified professional: this is a condition of the warranty.
Points to check before ordering
- Check that the D 250 mm diameter matches your existing ductwork or connecting ducts.
- Check the available height in your suspended ceiling or loft: allow extra clearance beyond the unit's 300 mm height for ducting and connections.

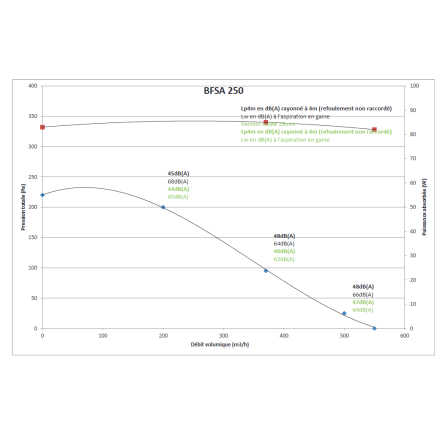

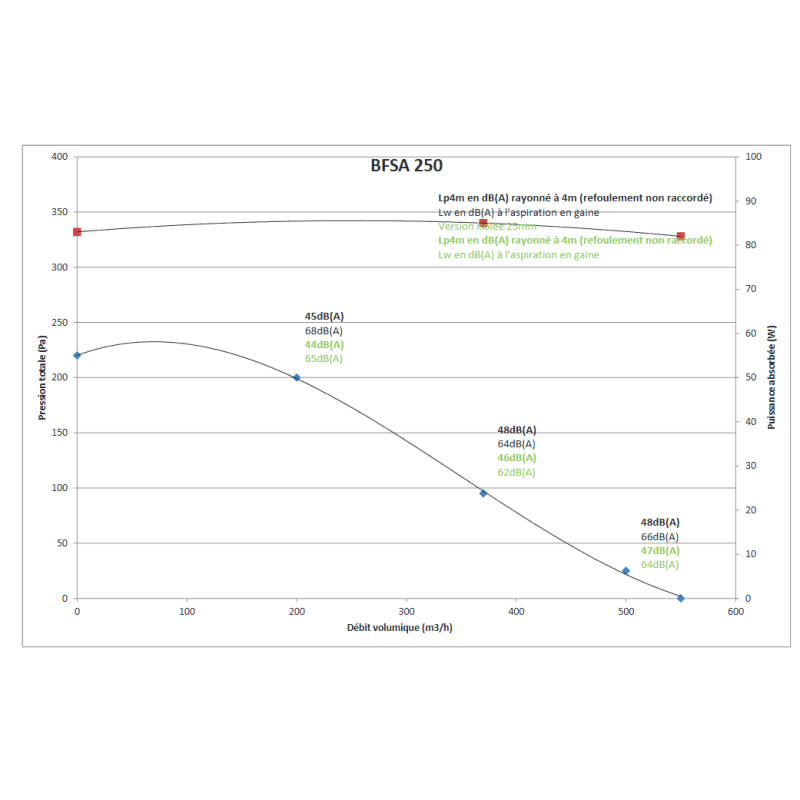

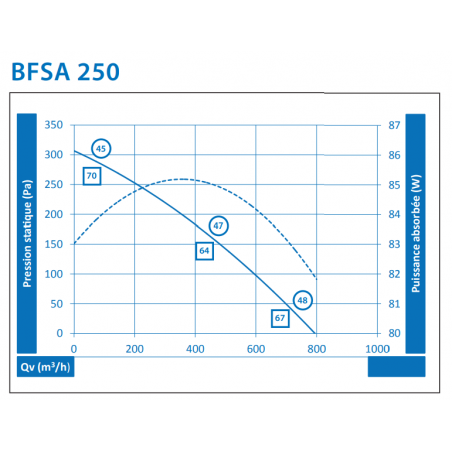

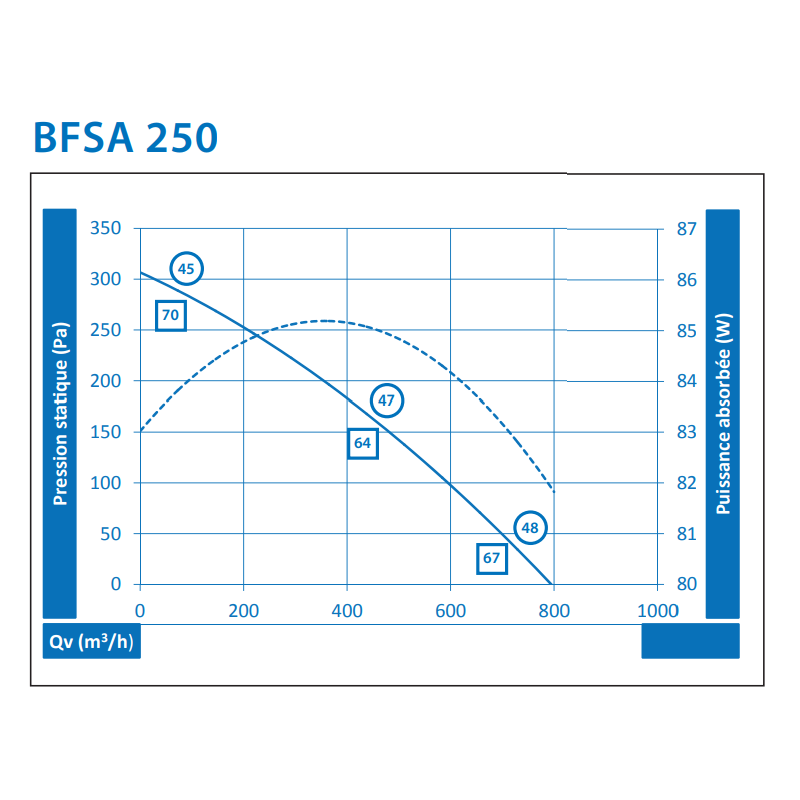

- Estimate the airflow required for your premises and the number of outlets to serve: actual airflow also depends on elbows, duct length and pressure losses, not just the rated airflow.
- If noise level is an important factor for your installation, consider comparing with the sound-attenuated version at the same airflow.
- Make sure the 230 V single-phase power supply matches your electrical installation.
Pairs well with
Need a different airflow for your project? Also available: the 500 m³/h extra-flat VMC unit and the 1500 m³/h exhaust unit, or the sound-attenuated version of the 800 m³/h unit for noise-sensitive installations.
