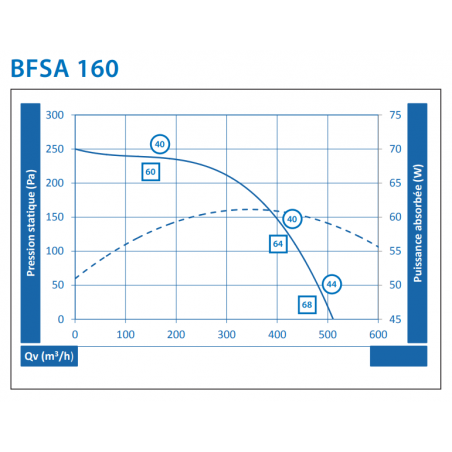

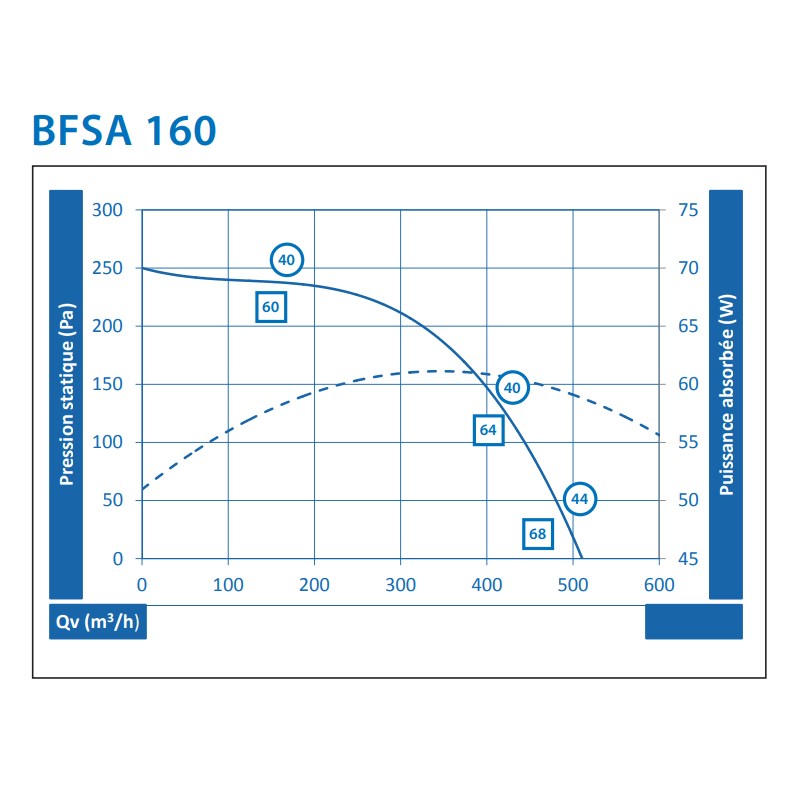

BFSA VMC Box Curve
Extra-flat VMC exhaust unit, 500 m³/h, D160 mm, SOUND-PROOFED, vue 7
Extra-flat VMC exhaust unit, 500 m³/h, D160 mm, SOUND-PROOFED, vue 8
Video
Extra-flat cabinet for air injection, transfer, or extraction. Equivalent to Vim, Ouestisol, Cairox, S&P, France air, and Atlant
Ventilation unit for all rooms, mechanical ventilation system, 500 m³/h
Ventilation unit for all rooms, mechanical ventilation system, 500 m³/h
Extra-flat VMC exhaust unit, 500 m³/h, D160 mm, SOUND-PROOFED, vue 4
Extra-thin cabinet, high performance
BFSA VMC Box Curve
Extra-flat VMC exhaust unit, 500 m³/h, D160 mm, SOUND-PROOFED, vue 7
Extra-flat VMC exhaust unit, 500 m³/h, D160 mm, SOUND-PROOFED, vue 8

The BFSA extra-flat VMC exhaust unit 500 m³/h in D160 mm fits into the tightest suspended ceilings and lofts, and its sound-proofed version makes it a popular choice in both residential and commercial buildings. Made in France.

  • Airflow: approximately 500 m³/h
  • Spigot diameter: 160 mm
  • Power supply: 230 V single-phase + earth
  • Power rating: 65 W (0.3 A)
  • Use: extract, supply or transfer
In stock
Quantity
373.00 Tax excluded
447,6 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The BFSA extra-flat VMC exhaust unit 500 m³/h in D160 mm is a motorised fan box designed for ductwork where available height is limited, in suspended ceilings or low lofts. Sound-proofed, it is suitable for extract, supply or air transfer applications alike.

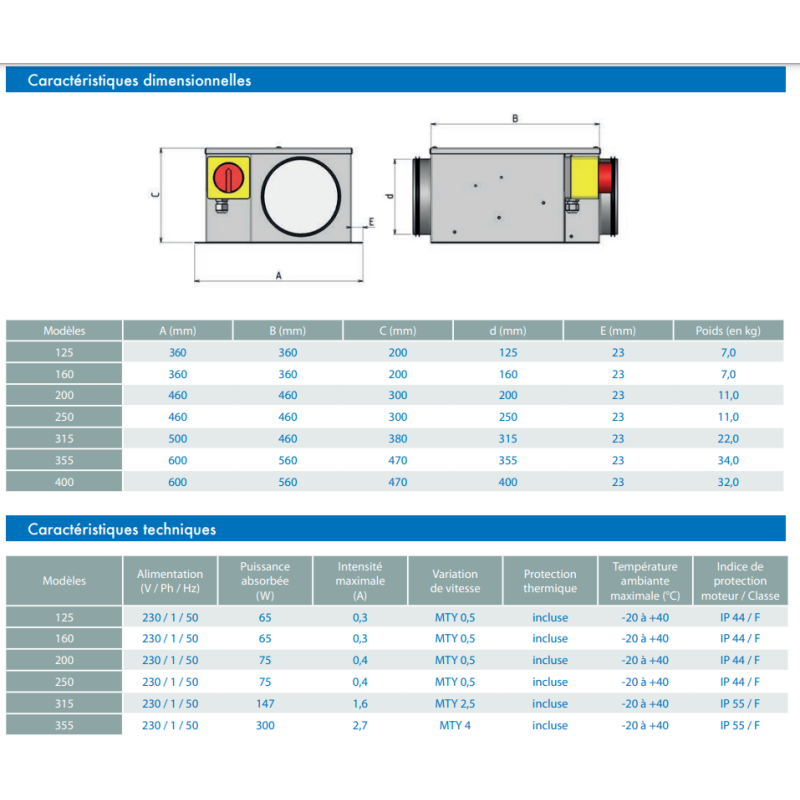

Technical specifications of the extra-flat 500m3/h VMC unit

Specification Value
Airflow approximately 500 m³/h
Inlet/outlet diameter 160 mm
Dimensions L 360 x D 360 x H 200 mm
Power supply 230 V, single-phase + earth, 50 Hz
Power rating 65 W, 0.3 A
Motor Motorised unit, direct-coupled motor-fan assembly
Acoustic insulation Sound-proofed
Manufacture Made in France
Warranty 1 year

A versatile unit for tight ductwork

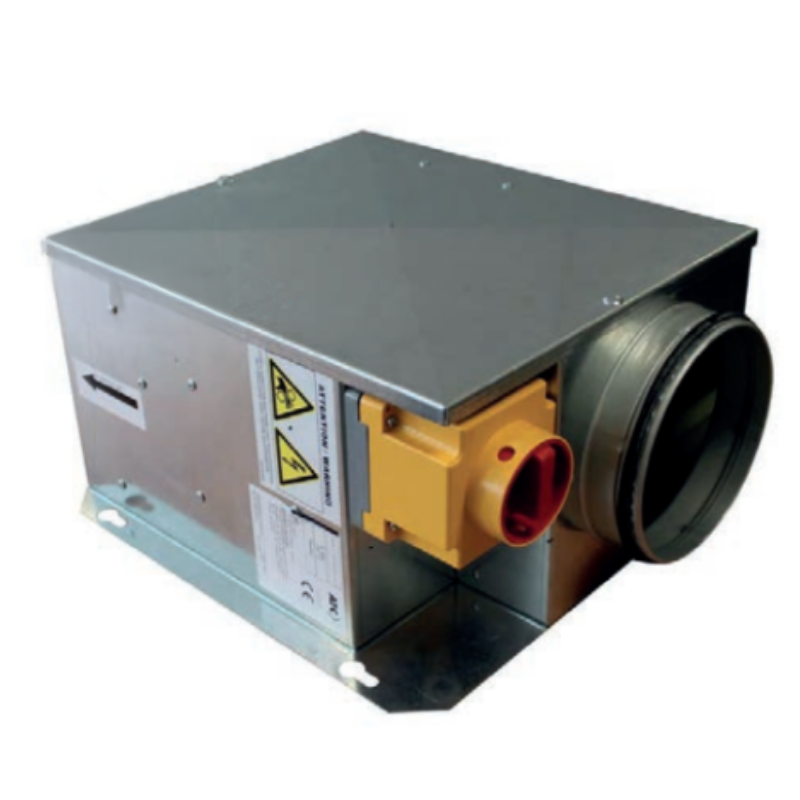

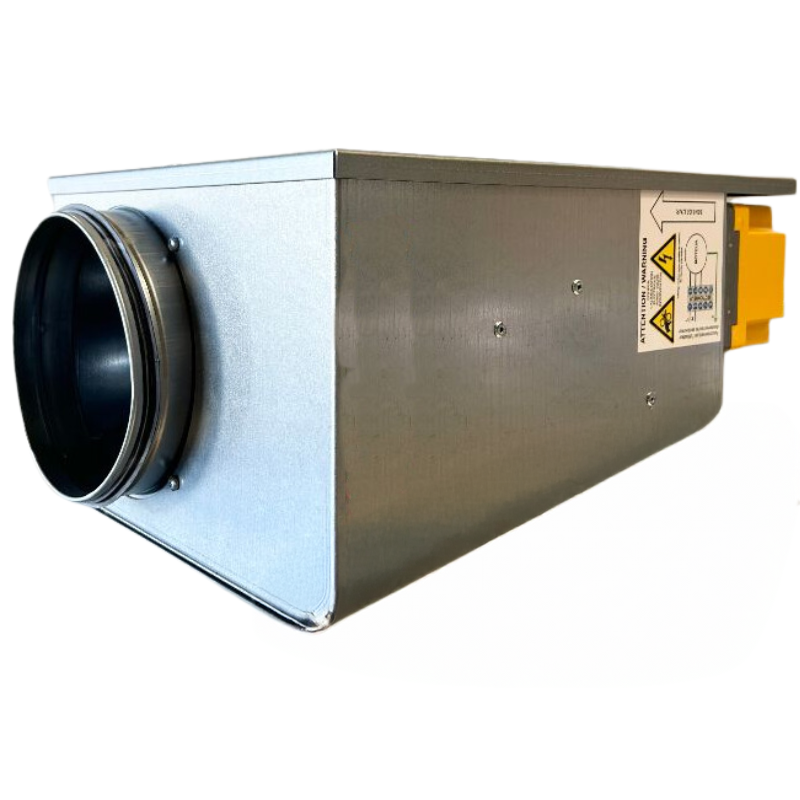

This ventilation fan box from BFSA stands out for its extra-flat design: with just 200 mm in height, it fits easily where a standard fan box simply wouldn't. It is installed horizontally, indoors or outdoors, and works equally well for extract (exhaust), supply (blowing) or air transfer between two rooms. A real all-rounder for low lofts and tight suspended ceilings.

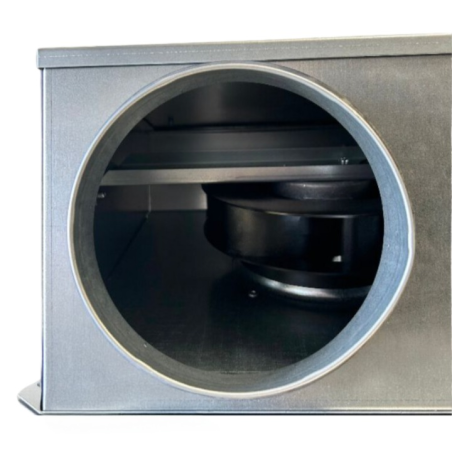

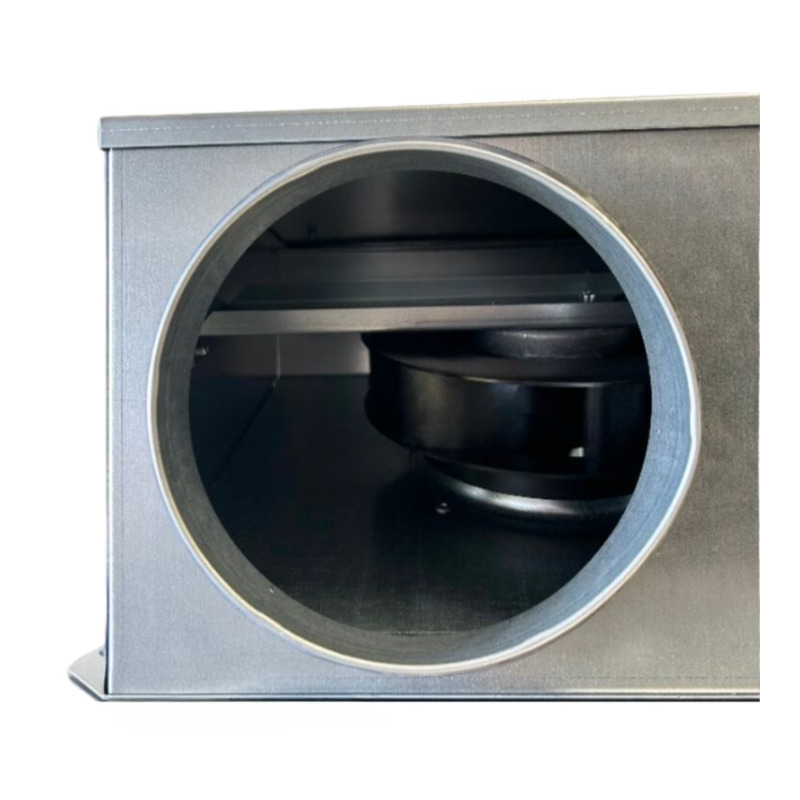

The galvanised steel panels and removable screw-fixed cover make maintenance easier, while the circular spigots fitted with lip seals ensure good airtightness at the connection. The motor, with built-in thermal protection, drives a reaction-type fan, which is consistent with small-diameter models such as this D160 version.

Installation and connection

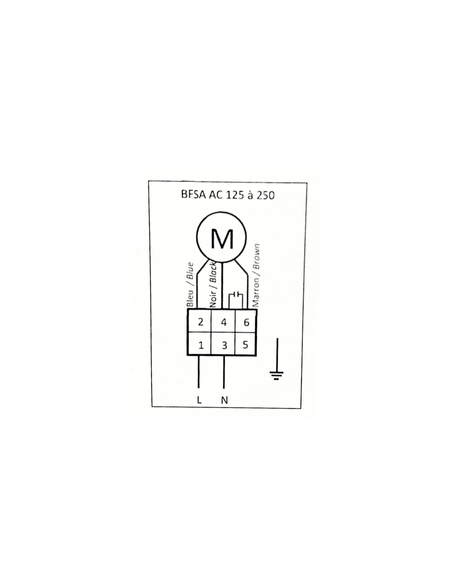

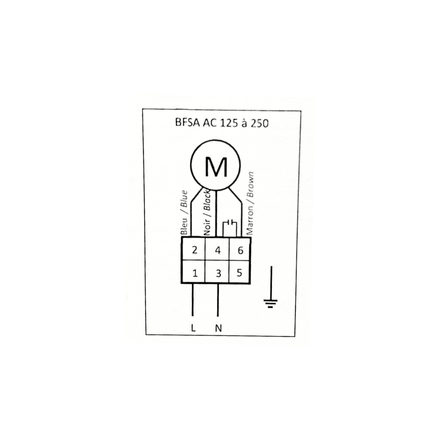

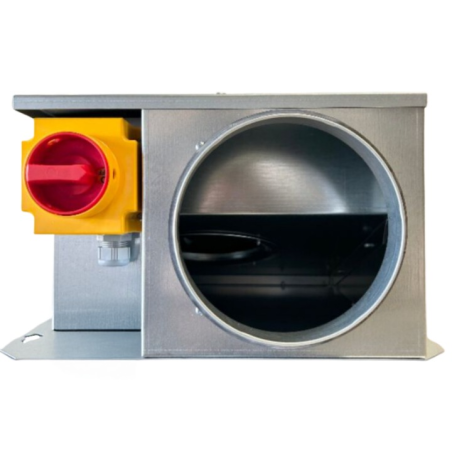

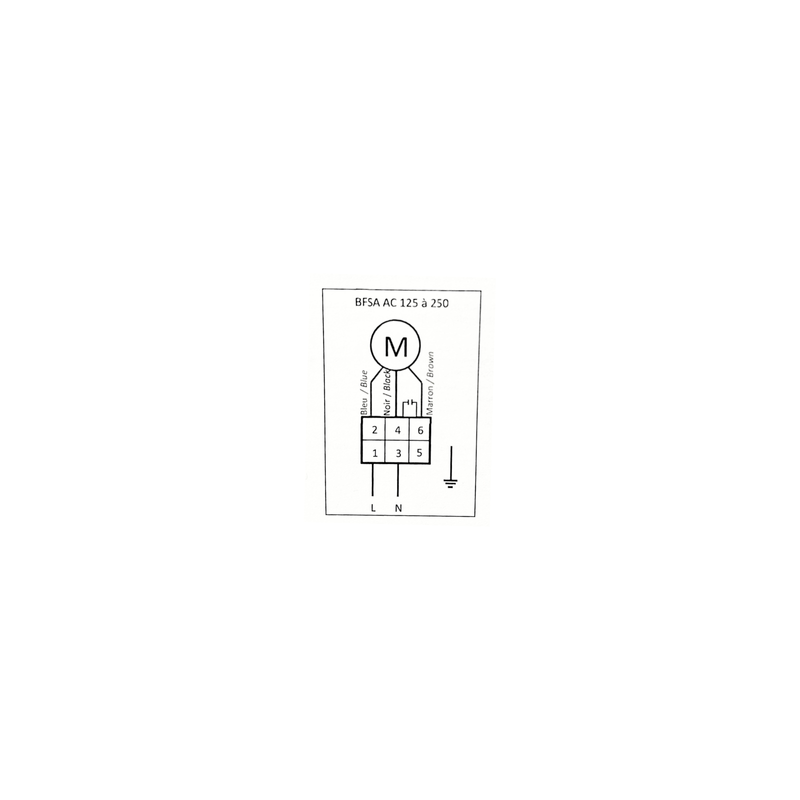

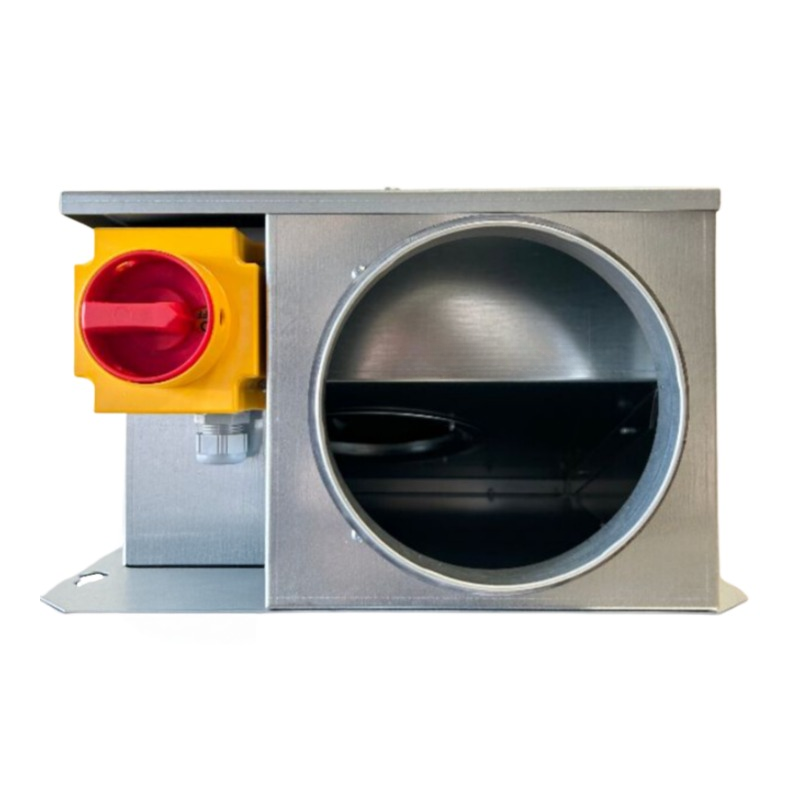

The unit is supplied with a pre-wired local isolator and a cable gland to make the 230 V single-phase + earth connection easier. The feet with locating marks allow for simple fixing to a support. Electrical connection must be carried out by a qualified electrician for the warranty to apply.

Compatibility

This BFSA D160 unit is compatible with most existing ductwork fitted with grilles or ducts of the same diameter, including Vim kmdt, Aldes vec, Atlantic critair or Franceair sirius type installations. However, please check the exact diameter of your ductwork before ordering.

Points to check before ordering

  • Diameter of existing ductwork: this model is designed for a 160 mm spigot, to be checked against the grilles and ducts already in place.
  • Available height in the suspended ceiling or loft: the unit is 200 mm high, so allow for a sufficient plenum space depending on your configuration.
  • Required airflow for the room: this unit is rated at approximately 500 m³/h, to be compared with the regulatory airflow required for your room or ductwork before confirming your choice.
  • Intended use: extract, supply or transfer, the unit works in all three configurations, but the mounting orientation must match your requirement.
  • Power supply available: make sure a 230 V single-phase + earth supply is nearby.

To go with it

Product Details

Ventilsogood
caissonextraplat160ISO
Manufacturing
Made in France
Warranty
1 year
Engine
Motorized cabinet
Food
230V Mono
Engine power
0 to 2,000 m³/h
0657968828575

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

Can this extra-flat 500 m³/h unit be used for supply and transfer, or only for extract?

Yes, this extra-flat VMC exhaust unit is versatile: it works for extract, supply (blowing) or air transfer between two rooms. The installation stays the same; it's the direction of connection to the ductwork that determines its use.

How much height should I allow to install this unit in a suspended ceiling or loft?

The unit is 200 mm high (L 360 x D 360 x H 200 mm), making it an extra-flat model suited to tight spaces. Allow enough plenum space to fit the unit and make connecting the D160 mm ducts easier.

Is this D160 500 m³/h unit compatible with my existing Vim, Aldes, Atlantic or France Air ductwork?

This D160 mm unit is compatible with ductwork fitted with the same diameter, including Vim kmdt, Aldes vec, Atlantic critair or Franceair sirius type installations. However, check the exact diameter of your ducts and grilles before ordering.

Is the sound-proofed version really quieter than a standard model?

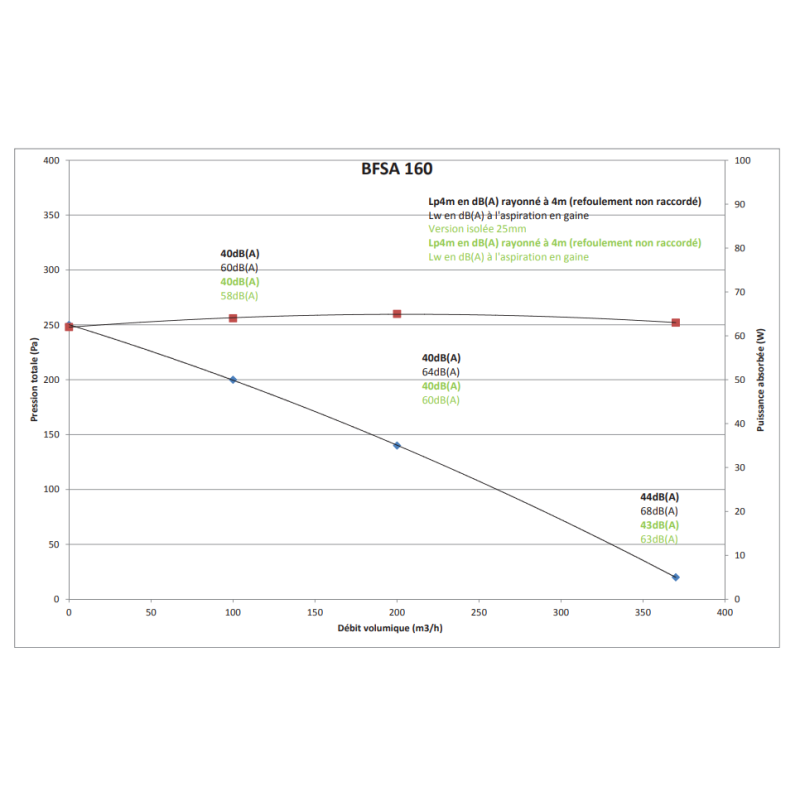

This unit is fitted with sound insulation and a motor with built-in thermal protection, designed to reduce noise in the ductwork. Product data indicates a 3 to 5 dB reduction; please seek advice before ordering.

Do I need a professional to install this VMC unit?

The unit can be fitted by yourself, but the electrical connection must be carried out by a qualified electrician for the 1-year warranty to apply. It comes with a pre-wired local isolator and a cable gland to make this connection easier.
