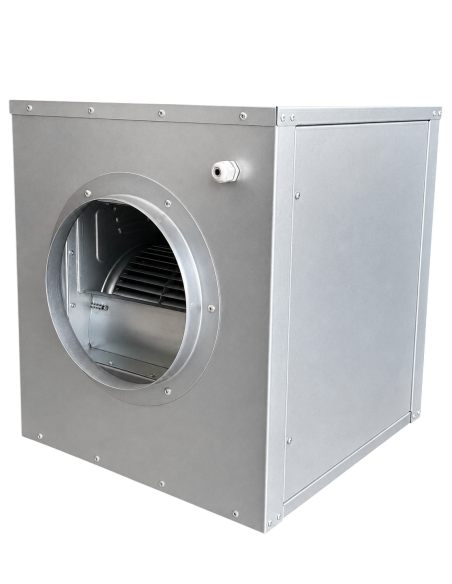

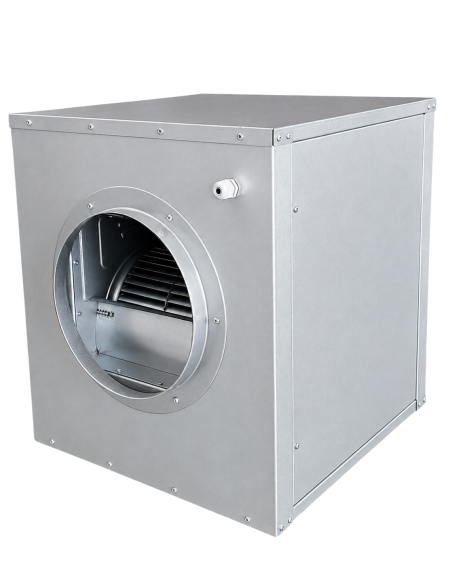

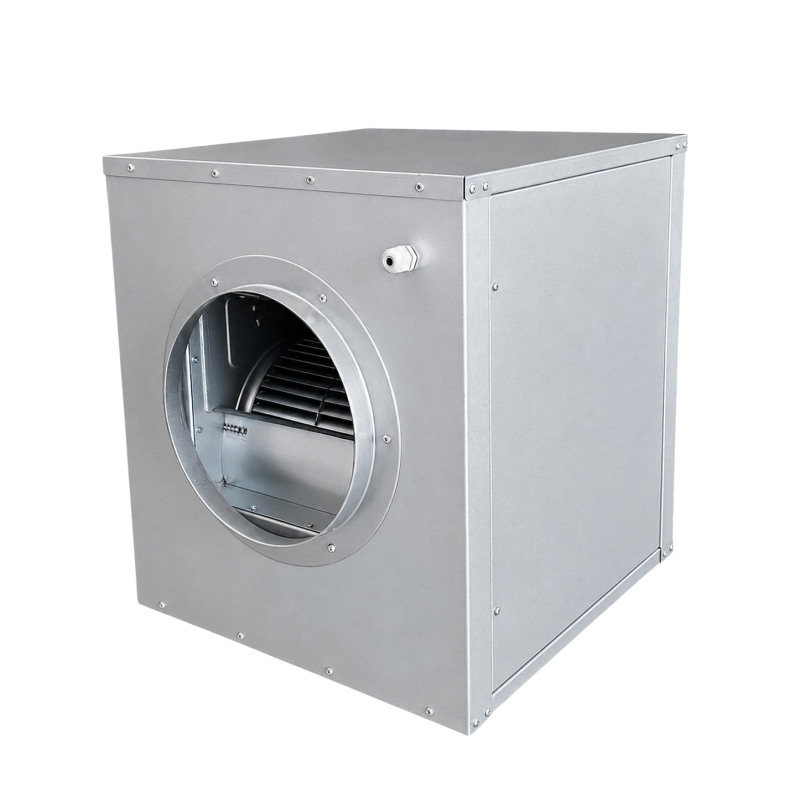

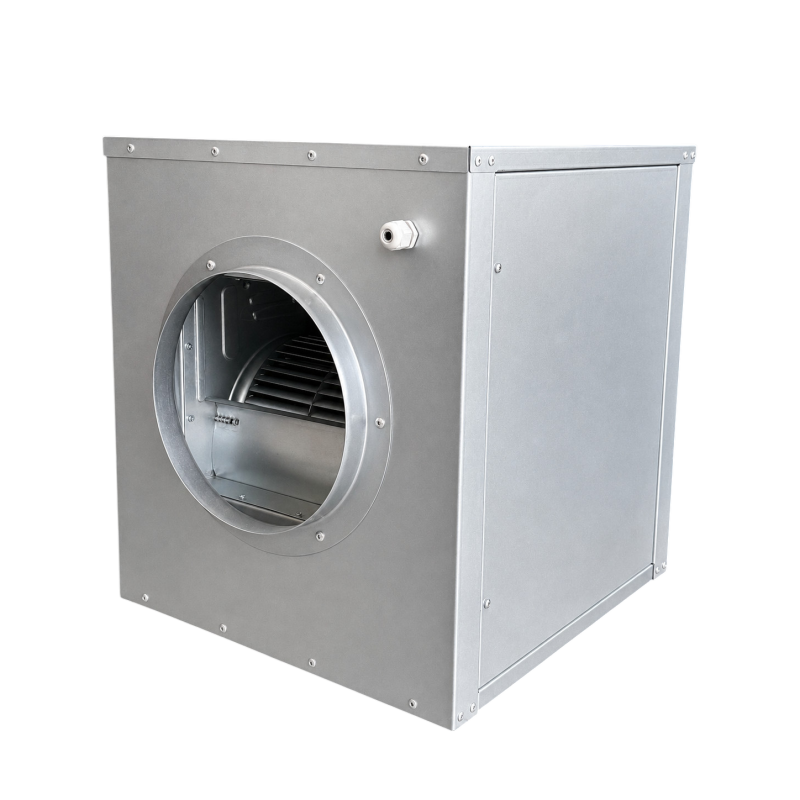

The Motor Enclosure REFERENCE: 3,500 m³/h, soundproofed, 230 V fits your restaurant kitchen hood or your commercial premises ventilation system with a built-in 9/9 double-inlet centrifugal fan, soundproofed for a quieter working environment.

  • Airflow: up to 3,500 m³/h
  • Power: 550 W, 4.5 A
  • Supply: 230 V single phase
  • Outlet spigot: D355 already fitted
  • Protection rating: IP54
In stock
Quantity
404.00 Tax excluded
484,8 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The Motor Enclosure REFERENCE: 3,500 m³/h, soundproofed, 230 V is a motorised extraction fan box in galvanised steel, fitted with a built-in 9/9 double-inlet centrifugal fan, designed for air extraction from a restaurant kitchen hood or a commercial premises ventilation system, with an airflow of up to 3,500 m³/h.

Motorised extraction fan box for stainless steel restaurant hoods or commercial ventilation

This extraction fan box runs through every service without losing performance, in kitchens that demand high airflow: greasy fumes, cooking smoke and odours are extracted efficiently, whether you're fitting out a restaurant, a fast-food outlet, a snack bar, a food truck or a brasserie. It's also suitable for a commercial mechanical ventilation installation, bars or shisha bars. The double-inlet centrifugal fan works on the principle of centrifugal force: an impeller wheel drives the air towards the outlet spigot, already fitted in a 355 mm diameter on this model.

Technical specifications

Specification Value
Airflow up to 3,500 m³/h
Motor 9/9 double-inlet centrifugal fan
Power 550 W, 4.5 A
Supply 230 V single phase
Protection rating IP54
Enclosure dimensions L 500 x D 550 x H 530 mm
Outlet spigot diameter D355 (already fitted)
Weight 18 kg
Manufacture Europe
Warranty 1 year

Use and compatibility

This extraction fan box is suitable for stainless steel commercial kitchen hoods of 2 to 3 metres, as a general guide depending on your ductwork configuration, and for commercial premises ventilation installations. The acoustic insulation built into the galvanised steel enclosure limits the transmission of motor noise, a real benefit when the unit is located close to the dining area. It can operate in either extract or supply air mode. It is not compatible with F400/120 smoke extraction requirements: for regulatory smoke extraction, please refer to a dedicated range.

Installation and connection

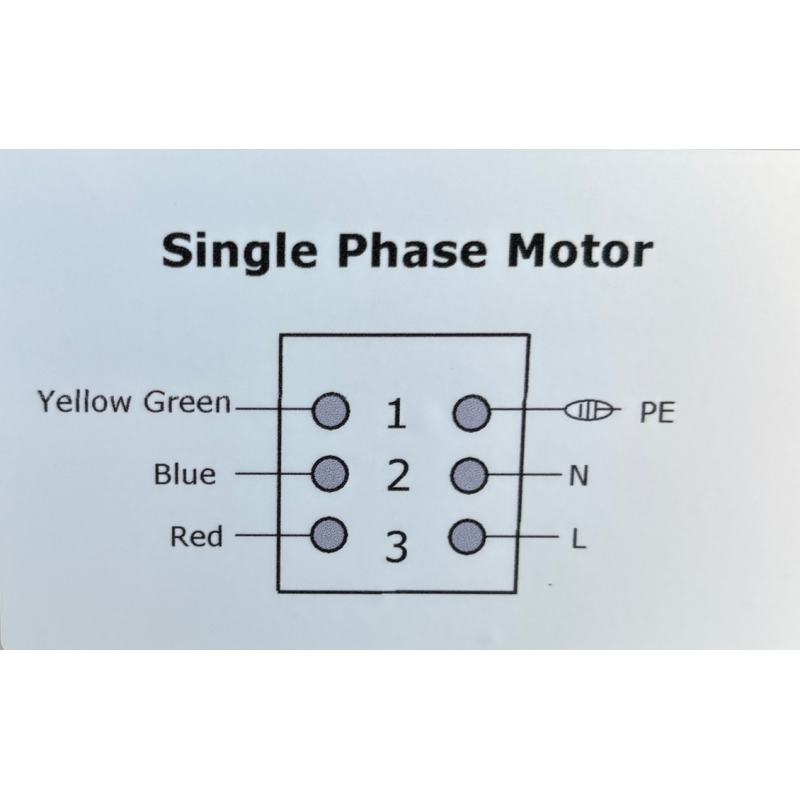

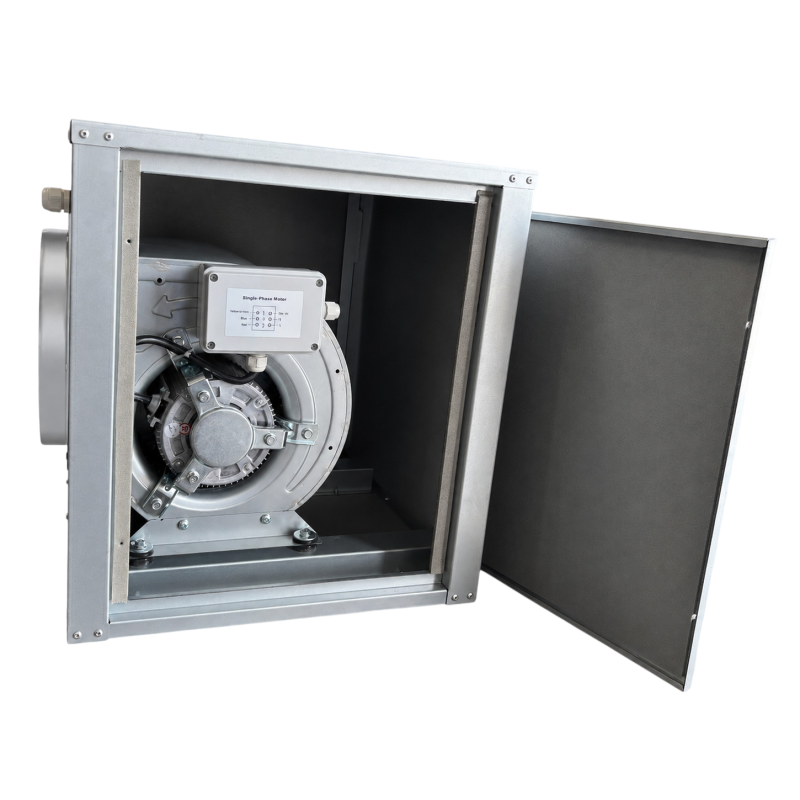

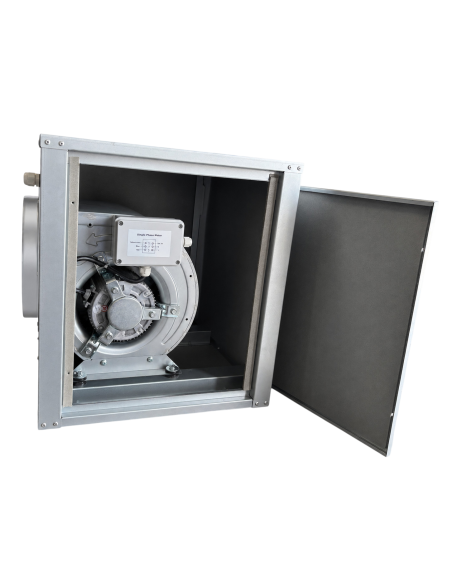

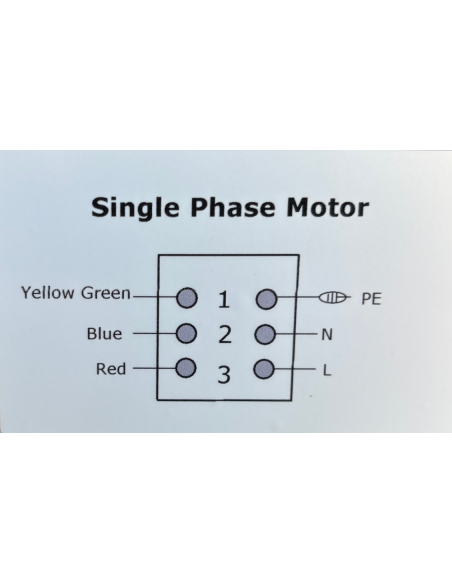

The internal electrical enclosure (junction box) makes it easy to connect the unit to the electrical network. The air inlet is to be made on one of the sides of the enclosure, in line or at 90°, depending on your installation configuration. The D355 outlet spigot is already fitted at the outlet of the enclosure. Electrical connections must be carried out by a qualified professional: this is a condition for the 1 year warranty to apply.

Points to check before ordering

  • Actual airflow required for your hood or ventilation system: this depends on the length of the ductwork, the number of elbows and the pressure losses, not just the maximum airflow stated.
  • Duct diameter compatible with the D355 spigot already fitted on this unit.
  • Sufficient air inlet in the premises: without adequate make-up air, the actual airflow may drop and negative pressure may increase.
  • Dimensions of the unit (L 500 x D 550 x H 530 mm) relative to the available space, whether installed in a loft space, false ceiling or plant room.
  • Whether a speed controller is needed: as this unit runs on 230 V single phase, a controller sized to the motor's current rating can be fitted alongside it.
