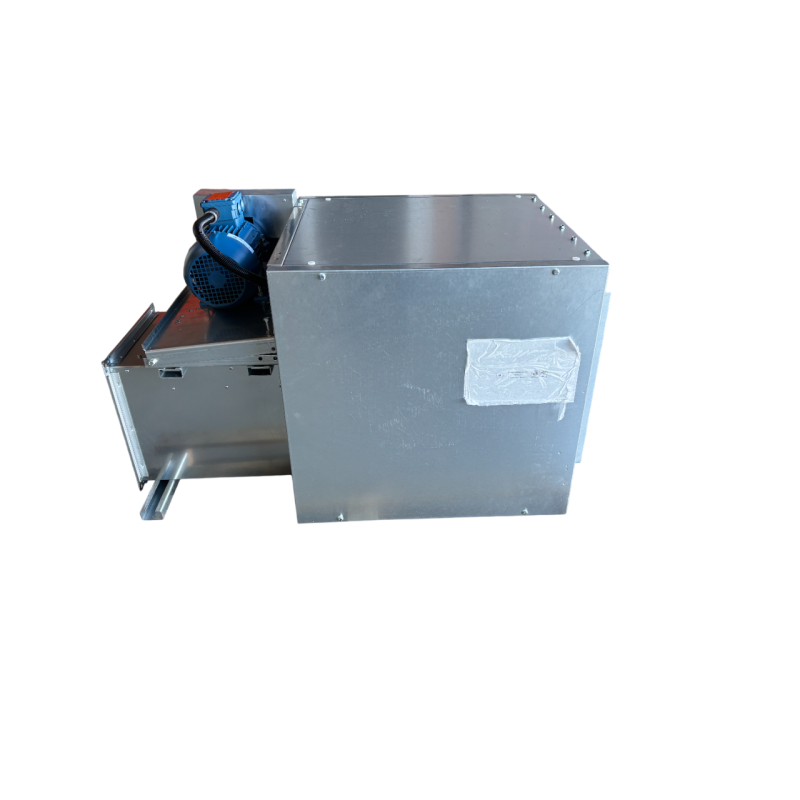

SAFTAIR Motor Housing SAFTAIR 2,500/4,500 m³/h 400° TRI

dof 250 saftair

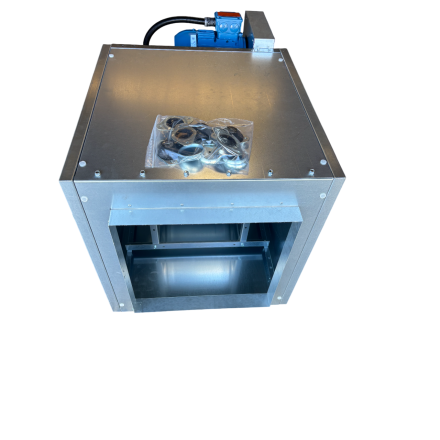

SAFTAIR Motor Housing SAFTAIR 2,500/4,500 m³/h 400° TRI, vue 2

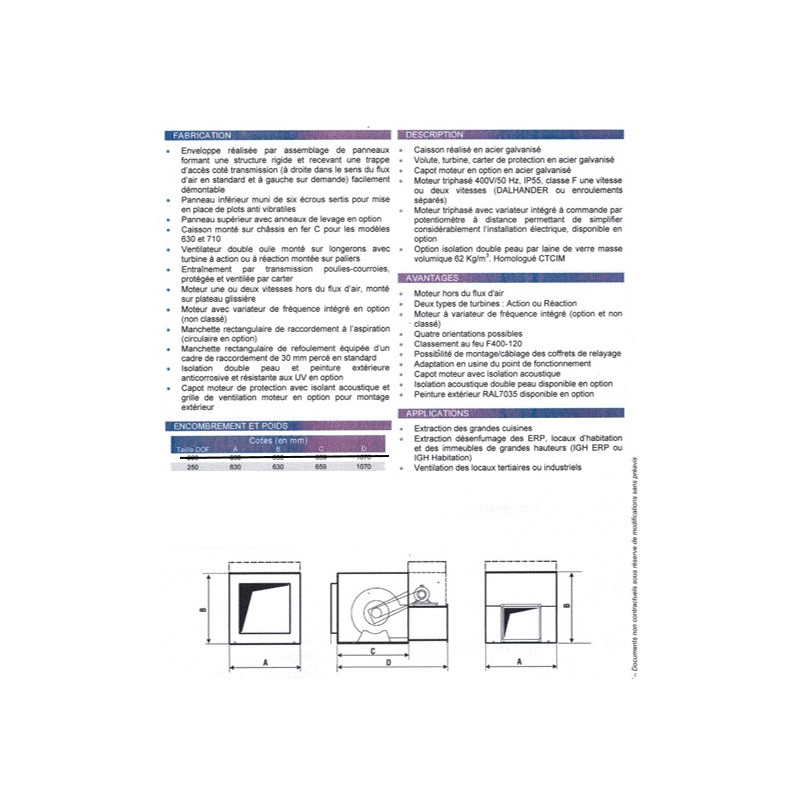

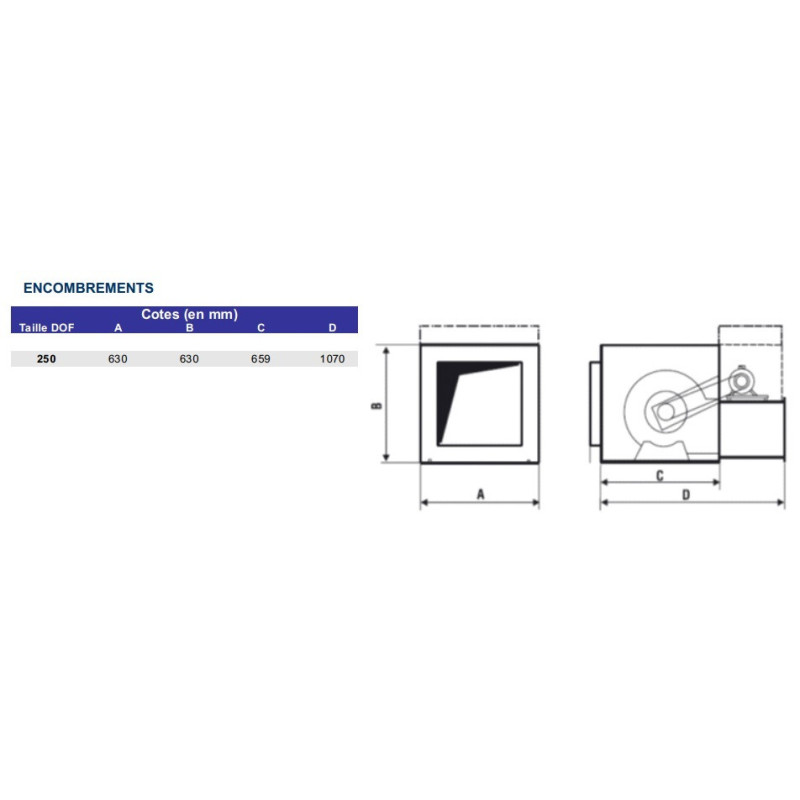

Dof250 Dor250 Saftair Enclosure

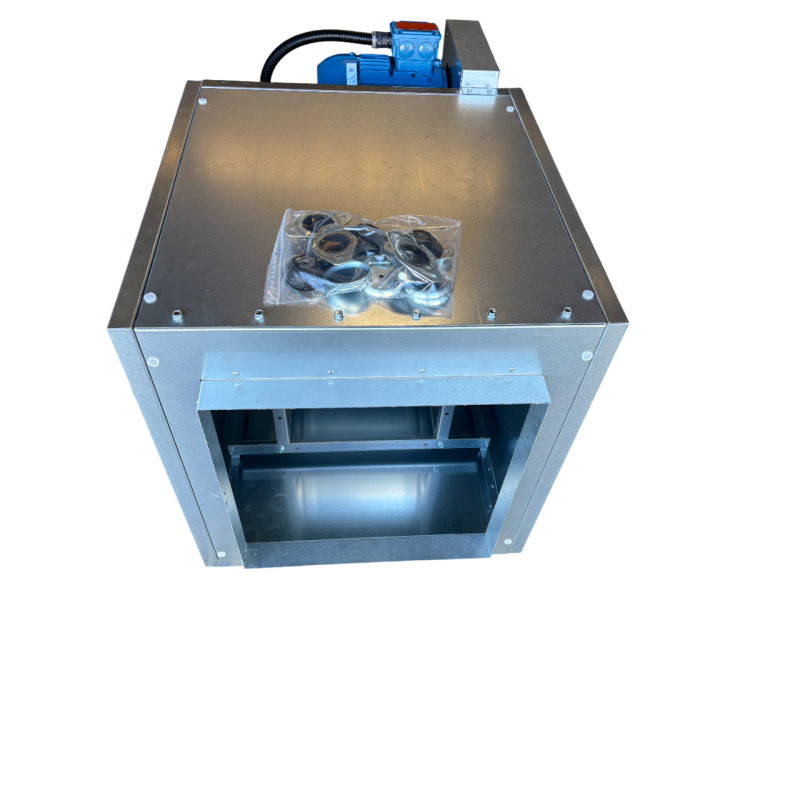

SAFTAIR Motor Housing SAFTAIR 2,500/4,500 m³/h 400° TRI, vue 4

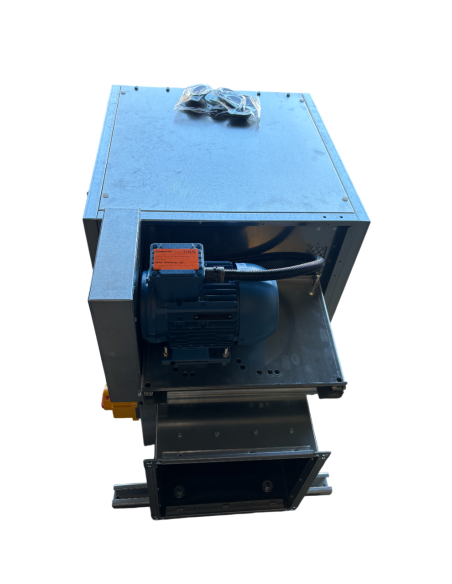

SAFTAIR Motor Housing SAFTAIR 2,500/4,500 m³/h 400° TRI, vue 5

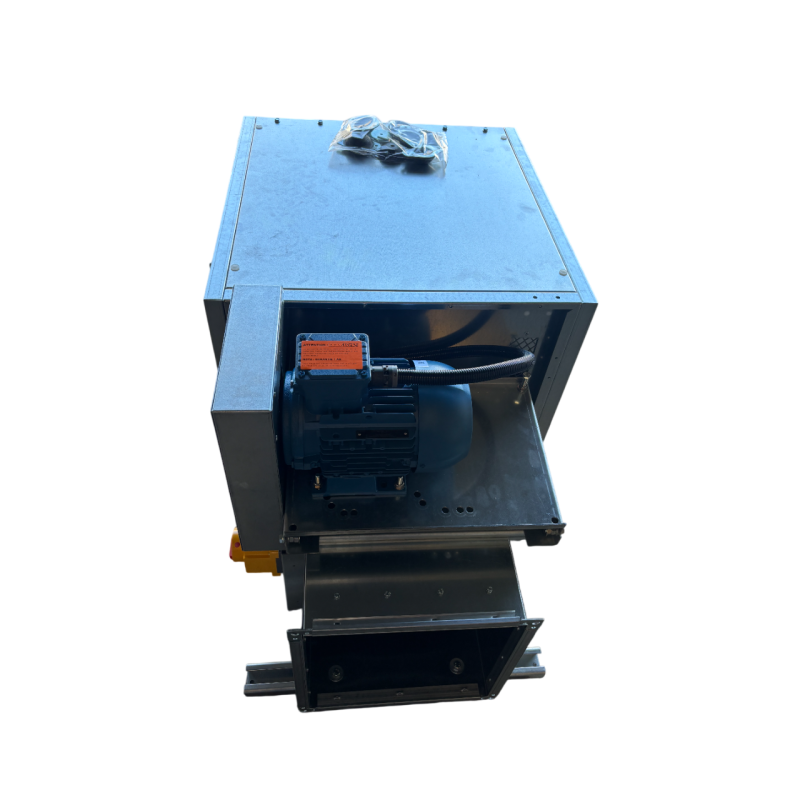

SAFTAIR Motor Housing SAFTAIR 2,500/4,500 m³/h 400° TRI, vue 6
SAFTAIR Motor Housing SAFTAIR 2,500/4,500 m³/h 400° TRI, vue 7
Saftair Instructions
SAFTAIR Motor Housing SAFTAIR 2,500/4,500 m³/h 400° TRI, vue 9

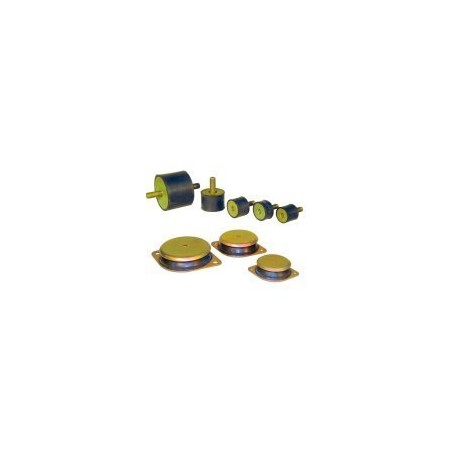

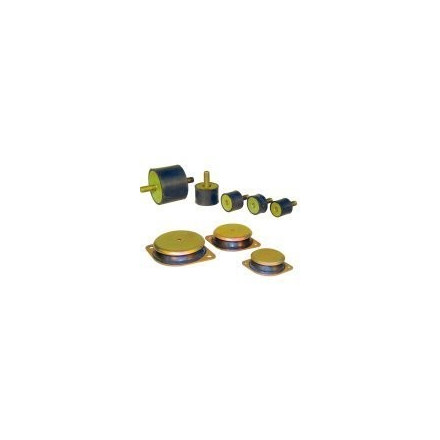

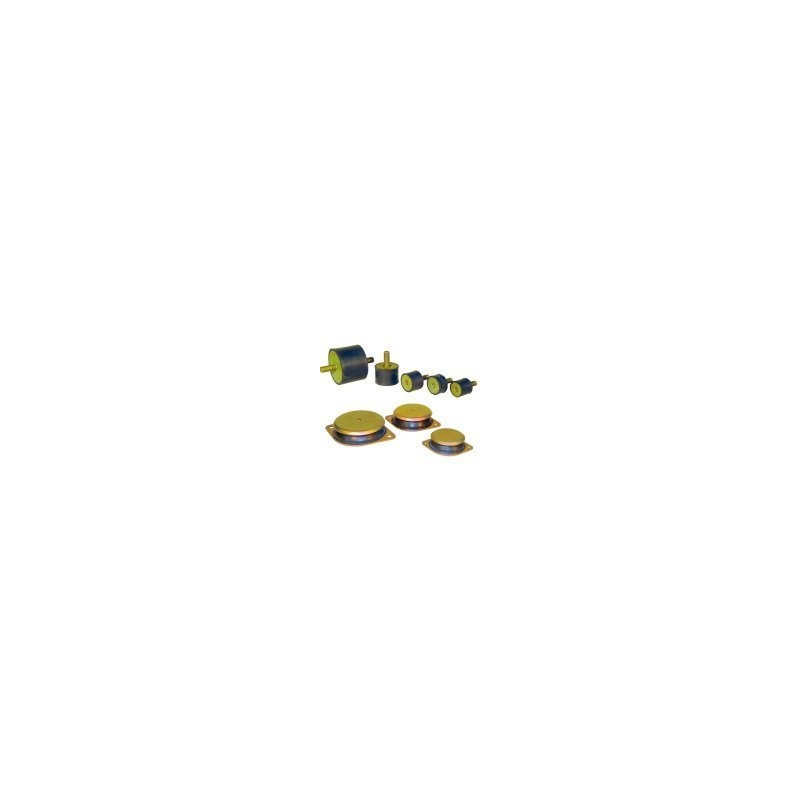

Saftair Anti-Vibration

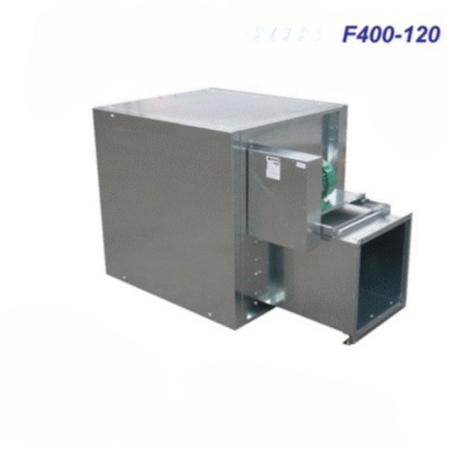

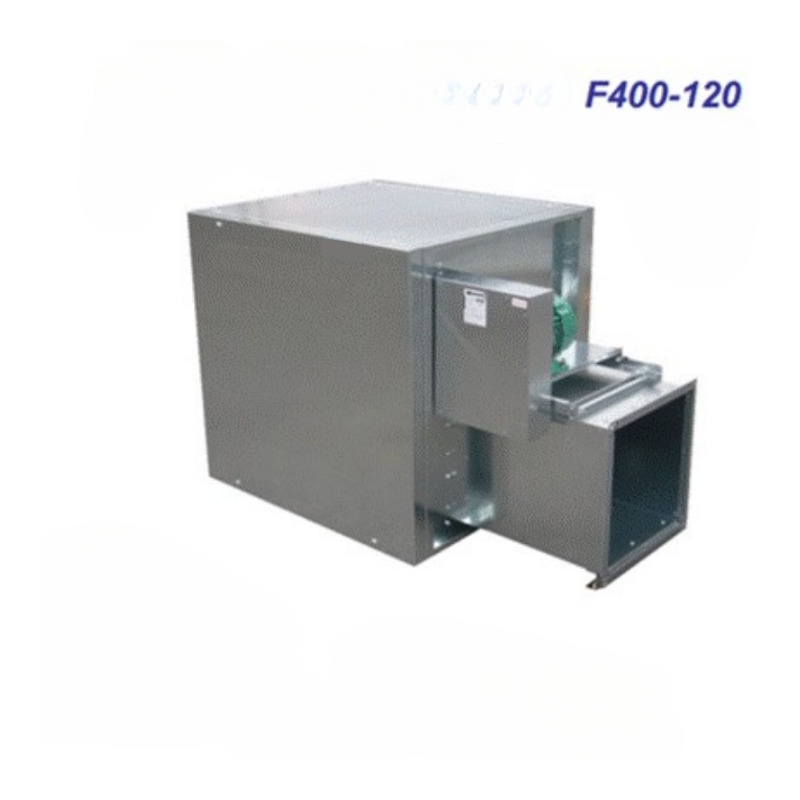

F400/120 Saftair France Air 5,000–8,000 m³/h Exhaust Unit
dof 250 saftair
SAFTAIR Motor Housing SAFTAIR 2,500/4,500 m³/h 400° TRI, vue 2
Dof250 Dor250 Saftair Enclosure
SAFTAIR Motor Housing SAFTAIR 2,500/4,500 m³/h 400° TRI, vue 4
SAFTAIR Motor Housing SAFTAIR 2,500/4,500 m³/h 400° TRI, vue 5
SAFTAIR Motor Housing SAFTAIR 2,500/4,500 m³/h 400° TRI, vue 6
SAFTAIR Motor Housing SAFTAIR 2,500/4,500 m³/h 400° TRI, vue 7
Saftair Instructions
SAFTAIR Motor Housing SAFTAIR 2,500/4,500 m³/h 400° TRI, vue 9
Saftair Anti-Vibration
F400/120 Saftair France Air 5,000–8,000 m³/h Exhaust Unit

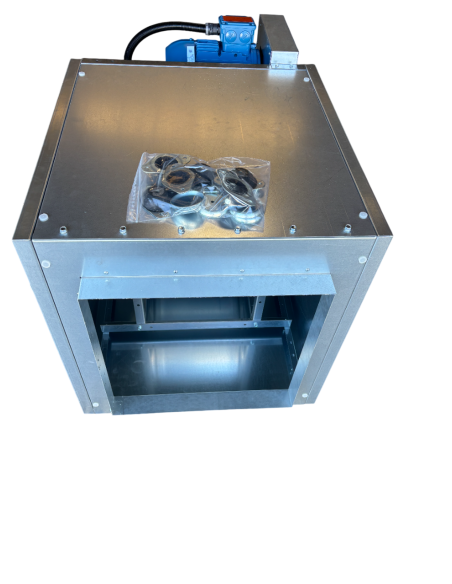

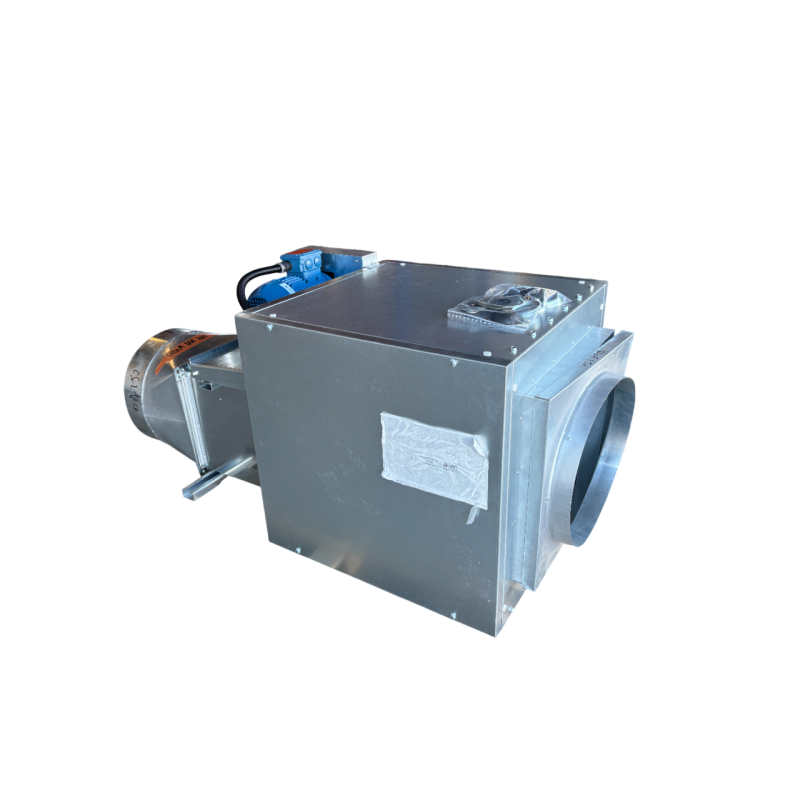

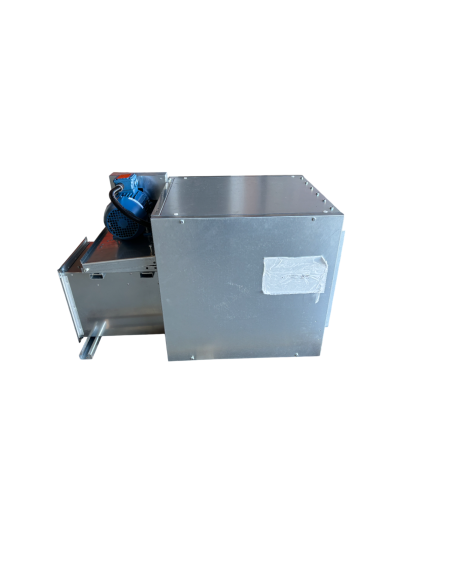

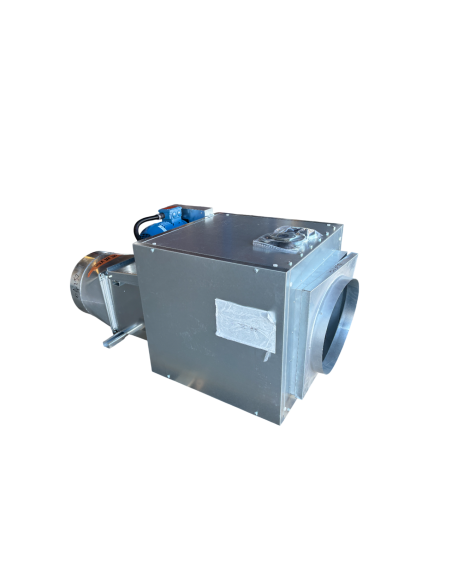

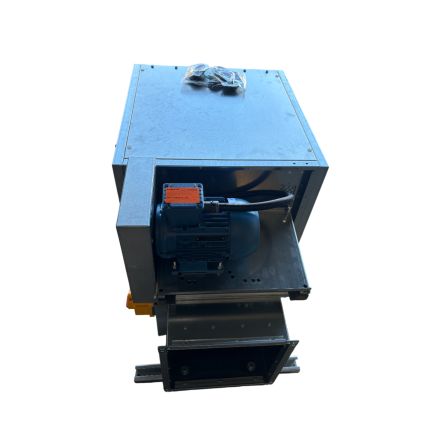

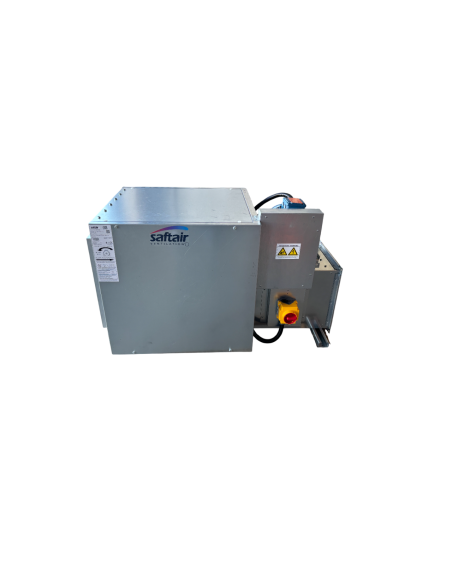

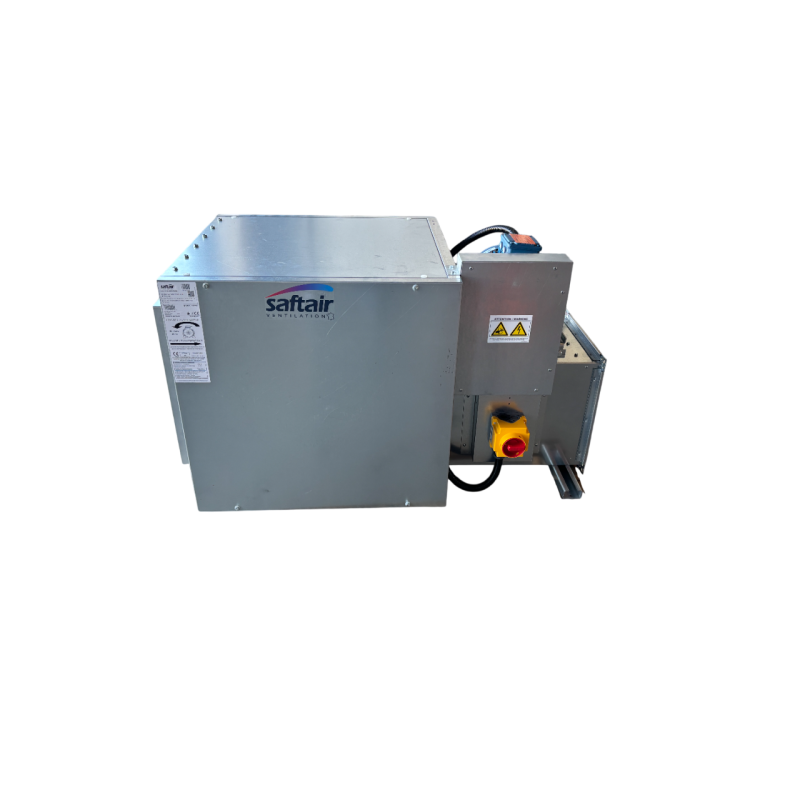

The SAFTAIR 2,500/4,500 m³/h extraction fan box is a three-phase motor housing designed for extraction under a commercial kitchen hood in restaurants, built to order according to your ductwork.

  • Airflow: 2,500 to 4,500 m³/h
  • Power supply: 400 V three phase
  • Motor: motorised unit, made to order after purchase
  • Package weight: 80 kg
  • Manufacturing: France, 1 year warranty
In stock
Quantity
1,699.00 Tax excluded
2038,8 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The SAFTAIR 2,500/4,500 m³/h extraction fan box is a three-phase motor housing designed to extract grease laden fumes and vapours under a commercial kitchen hood, with an airflow of 2,500 to 4,500 m³/h depending on your ductwork.

Technical specifications of the 2,500/4,500 m³/h extraction fan box

Specification Value
Reference CMdof2503000
Brand SAFTAIR
Motor Motorised fan box
Power supply 400 V three phase
Airflow 2,500 to 4,500 m³/h
Standard Smoke extraction C4
Package weight 80 kg
Manufacturing France
Warranty 1 year

Use and compatibility

This motor housing is installed for extraction under a commercial kitchen hood in restaurants, fast-food outlets, snack bars, food trucks, creperies or pubs. It efficiently removes grease laden vapours, fumes and cooking odours to the outside. Each fan box is built to order according to your existing ductwork: a technician contacts you after your order to configure the unit to suit your installation.

Installation and connection

The fan box is supplied without accessories and without the transformation pieces for the inlet and outlet: these must be sourced separately according to your ductwork. The 400 V three-phase supply requires electrical connection by a qualified professional, which is essential to maintain the manufacturer's warranty. Installation of the unit itself remains the responsibility of your installer or technical team.

Points to check before ordering

  • Length and diameter of your existing ductwork: pressure losses (elbows, length, filters) reduce the actual airflow compared with the stated airflow.
  • Cooking power installed under the hood: beyond a certain regulatory threshold, a stricter fire safety standard may be required for public-access premises, to be confirmed with your building control body.
  • Presence of adequate fresh air supply: without it, actual airflow drops and noise increases.
  • Compatibility with your existing hood, particularly if it is from another manufacturer: check the connection diameter before ordering.
  • Whether a speed controller is needed to control the three-phase motor according to your ductwork.

To use with

Product Details

SAFTAIR
CMdof2503000
Manufacturing
Made in France
Warranty
1 year
Package weight
80 kg
Engine
Motorized cabinet
Standard
F400/120
Food
380V Three-Phase
Engine power
2,000 to 4,000 m³/h
Engine power
4,000 to 6,000 m³/h
Cabinet Type
Enclosure with motor
0657968543300

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What is the difference between this extraction fan box and a roof fan?

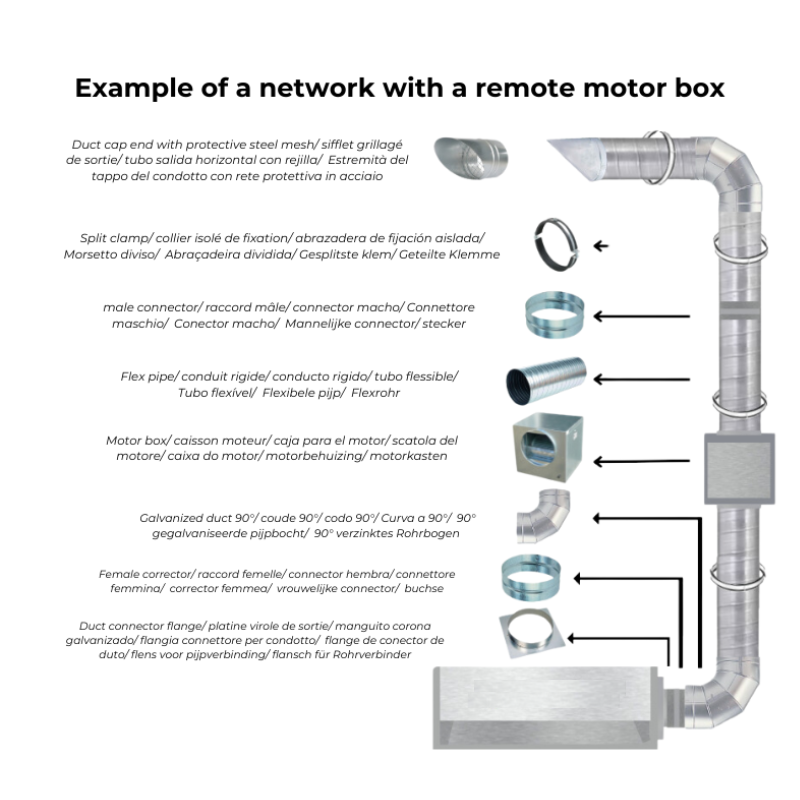

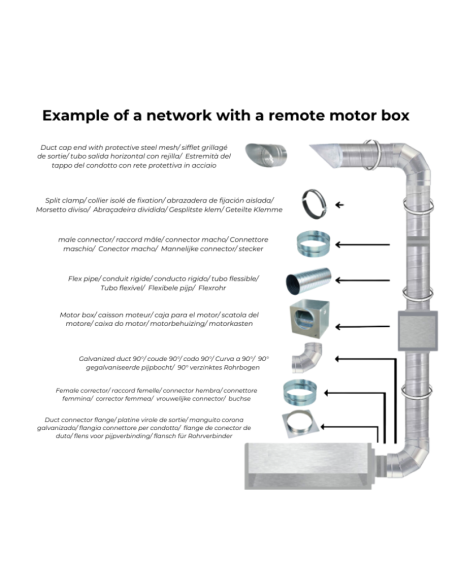

The extraction fan box connects to your ductwork and can be installed horizontally or vertically, indoors or outdoors, often on a roof or in a plant room. A roof fan is installed directly on the roof, with no ductwork between it and the outlet. The choice depends on your building layout and the space available.

Is the SAFTAIR 2,500/4,500 m³/h fan box supplied assembled or configured after ordering?

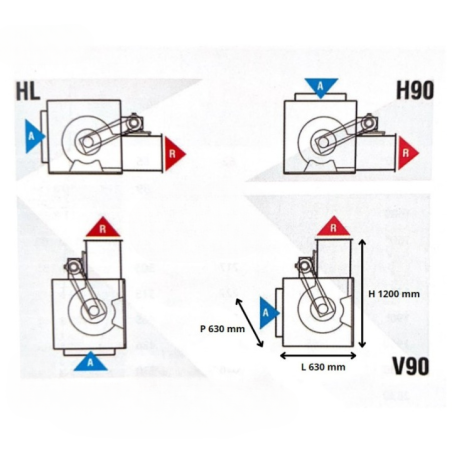

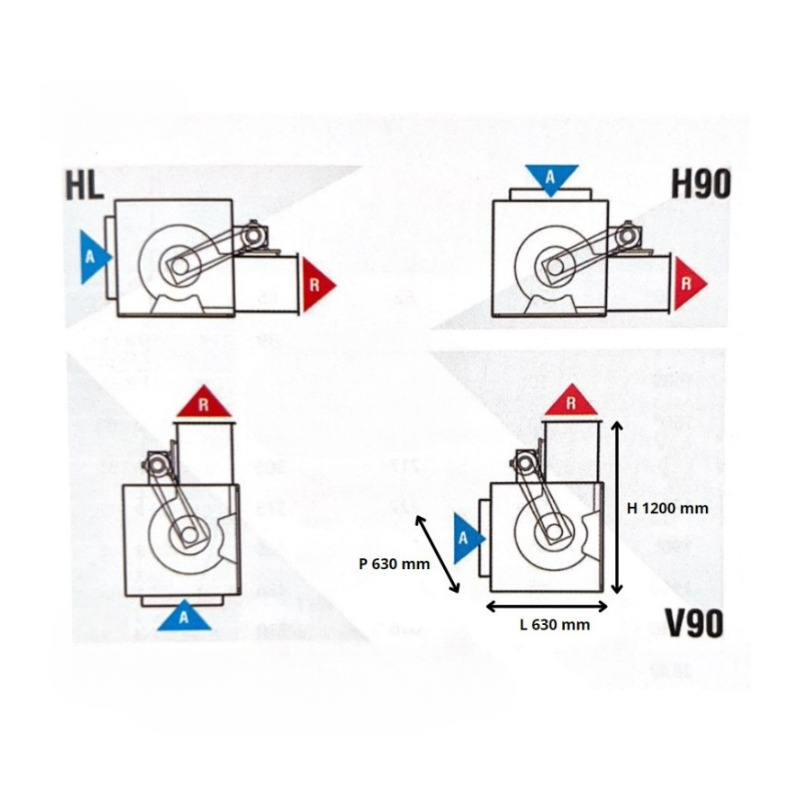

Each SAFTAIR motor housing is built to order according to your existing ductwork. A technician contacts you after your order to configure the unit for your installation: diameter, orientation and connection.

Do I need a speed controller with this three-phase fan box?

The 400 V three-phase motor can be controlled with a variable frequency drive to adjust airflow according to your ductwork and ventilation needs. This is not supplied with the fan box as standard: check your control requirements before ordering a suitable speed controller.

Is this fan box compatible with my hood from another manufacturer?

The SAFTAIR extraction fan box connects to a standard ductwork system and can be adapted to most commercial kitchen hoods, subject to diameter compatibility. Check the connection diameter of your existing hood before ordering, and arrange the necessary transformation pieces.

Which airflow should I choose between this 2,500/4,500 m³/h model and a more powerful one?

The airflow required depends on the length of your hood, the cooking power installed beneath it and the constraints of your ductwork (length, elbows, filters). This model covers a range of 2,500 to 4,500 m³/h: for higher requirements, ask about the higher-capacity fan boxes in our range.
