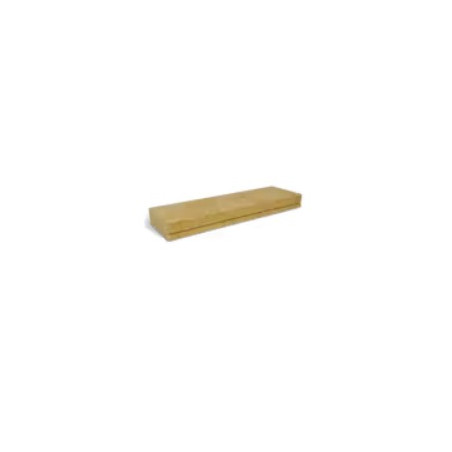

double-skin insulation

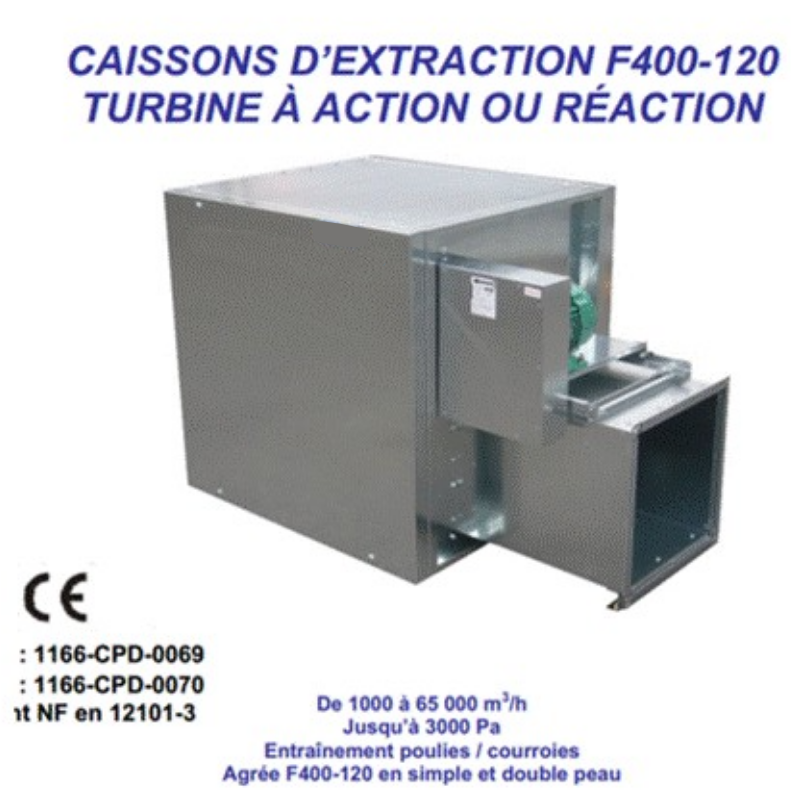

F400/120 Saftair France Air 5,000–8,000 m³/h Exhaust Unit

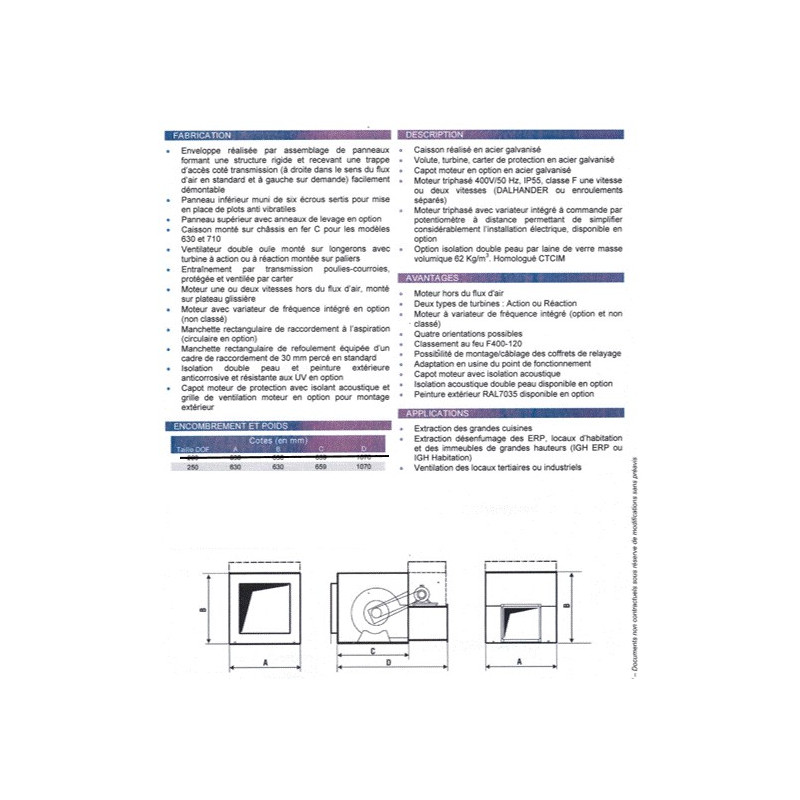

Saftair Instructions

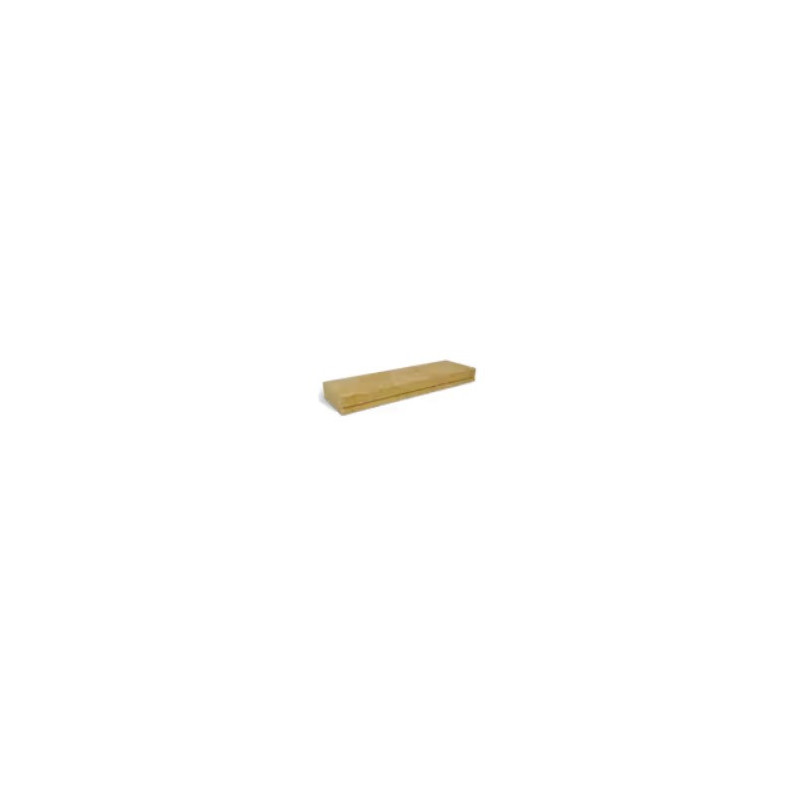

double-skin insulation
F400/120 Saftair France Air 5,000–8,000 m³/h Exhaust Unit

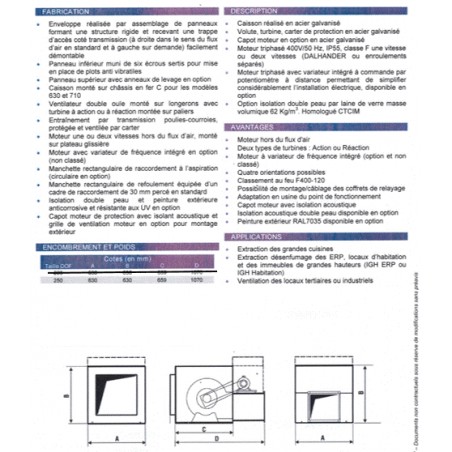

Saftair Instructions

Option: double-skin external insulation for DOF-type extraction fan box

Made-to-order product. Protect your extraction fan box from noise nuisance and from the demands of outdoor installation with this insulating double skin, fitted at the factory on a fan box rated 2500 to 18,000 m³/h.

  • Insulation: double skin covering the entire fan box
  • Fitting: carried out at the factory, before delivery
  • Effect: significantly reduces motor noise
  • Compatibility: DOF-type motorised fan box, 2500 to 18,000 m³/h
  • Manufactured: France
In stock
Quantity
668.00 Tax excluded
801,6 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The external insulation option is a double skin fitted at the factory on a motorised extraction fan box of DOF type, for installations from 2500 to 18,000 m³/h. This made-to-order product significantly reduces motor noise, a real benefit when the fan box runs right above a terrace or close to neighbouring properties.

Why insulate a fan box installed outdoors

An extraction fan box mounted on a roof or outdoors often runs for several hours at a stretch during service. Without insulation, motor and airflow noise travels more easily, which can be an issue in shared buildings or town centres. This double-skin option wraps around the entire fan box to reduce this noise, applied directly at the factory, with no adjustment or extra work required from you on delivery. As the fan box is built to order according to your ductwork, no standard dimensions are fixed in advance: each configuration is designed around your installation.

Technical specifications

Specification Value
Insulation type Double skin covering the entire fan box
Fitting At the factory, before dispatch
Main effect Significant noise reduction
Fan box compatibility DOF type, 2500 to 18,000 m³/h
Manufactured France
Warranty 1 year
Package weight 25 kg

Compatibility with your fan box

This option applies to DOF-type motorised extraction fan boxes, from 2500 to 18,000 m³/h, whether installed on a roof, a plant terrace or any outdoor location on your premises. Each fan box is built to order according to your ductwork: the insulation is added to this configuration and does not change the made-to-order fitting principle. As the product is built to order, final dimensions vary according to your configuration and are not fixed on this product page.

Points to check before ordering

  • Check that your extraction fan box is indeed DOF type and that its airflow rate falls within the 2500 to 18,000 m³/h range covered by this option.
  • This option is configured together with your fan box at the time of ordering: it is not an accessory to be fitted by yourself afterwards.
  • Manufacturing and delivery lead time, on average 10 to 15 days, reflects an assembly configured according to your ductwork and the equipment installed under your hood.
  • Please provide details of your ductwork (duct diameter and length, elbows, hood, cooking appliances) so the fan box can be correctly sized before assembly in our workshop.
  • If your project requires an F400/120 smoke extraction version, please check this directly with our technical team before confirming your order.

Goes well with

Product Details

CMdofisolext
Manufacturing
Made in France
Warranty
1 year
Package weight
25 kg
Engine
Motorized cabinet
Cabinet Type
Enclosure with motor
0657968481695

You might also like

8 other products in the same category:

Frequently asked questions

Does this external insulation option also protect against rain and UV?

The product data indicates that this double skin significantly reduces fan box noise. We have no precise information on specific protection against rain, frost or UV: if your installation is very exposed, please check this point with our team before ordering.

Can this insulation be fitted by ourselves on a fan box already installed?

No. This option is fitted at the factory on the motorised fan box, at the time of its made-to-order manufacture according to your ductwork. It is not designed as an accessory to be added afterwards to a fan box already in place.

Does this insulation reduce the fan box airflow rate?

The product data does not mention any impact on airflow: the insulation concerns the fan box casing, not the air circuit. The fan box sizing remains determined by your ductwork, elbows and hood, independently of this option.

Is this option available with the F400/120 smoke extraction version?

This point is not specified in the product data we have. If your project requires F400/120 compliance, please contact our technical team before confirming your order to check compatibility.

What lead time should we expect to receive a fan box with this insulation option?

Allow 10 to 15 days on average for manufacturing and delivery, as this fan box with external insulation is built to order according to your ductwork and the equipment installed under your hood.
