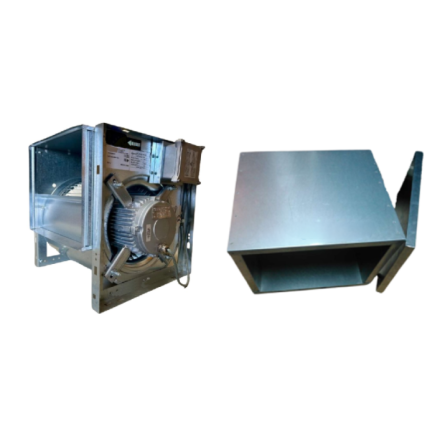

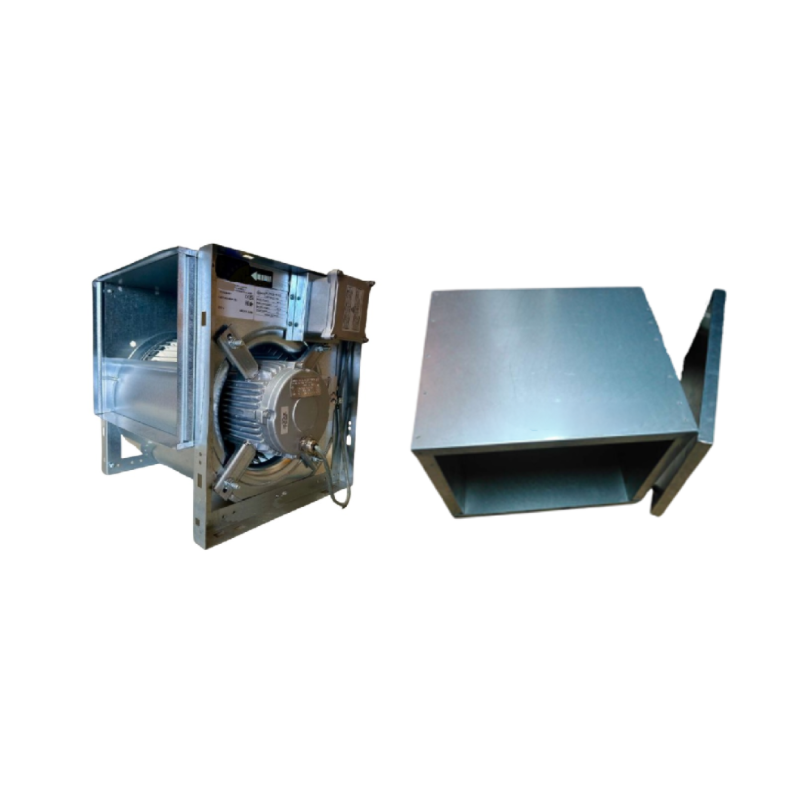

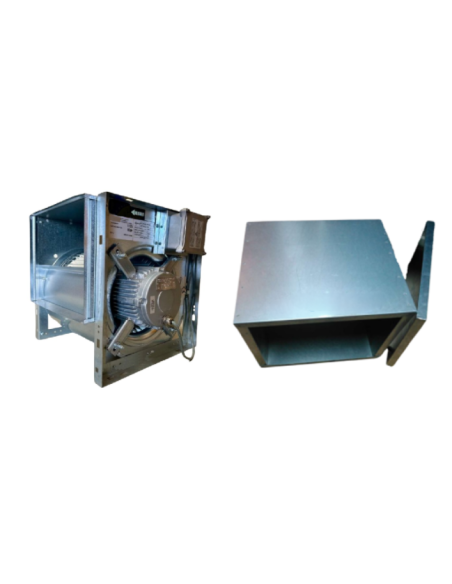

The Compact Enclosure, 3,600 m³/h, 220 V, 400° Standard/2h is a motorised extraction fan box kit, fitted with a Sodeca 9/9 double-inlet centrifugal fan in single-phase 230 V, designed for extracting air from a commercial kitchen hood in food service.
Technical specifications of the compact enclosure, 3,600 m³/h
| Specification |
Value |
| Maximum airflow |
3,600 m³/h |
| Power supply |
230 V single-phase |
| Power rating |
550 W |
| Current |
4.1 A |
| Rotation speed |
1420 rpm |
| Noise level |
64 dB |
| Protection rating |
IP55 |
| Smoke extraction standard |
F400°/2H |
| Bare enclosure dimensions |
600 x 600 x 600 mm |
| Motor outlet frame dimension |
300 x 260 mm |
| Inlet/outlet diameter to be created |
355 mm |
| Weight of bare enclosure |
7 kg |
| Weight of motor |
17 kg |
| Enclosure manufacture |
Made in Bayonne, France |
| Warranty |
1 year |
An enclosure designed for open kitchens and high-powered cooking lines
This extraction fan box is recommended for a hood of 2 to 4 metres depending on your kitchen layout. The fan is rated to the F400°/2H smoke extraction standard, a reference point for cooking lines above 20 kW (gas or electric) in open kitchens: check the exact regulations applicable to your premises before making a final decision, as requirements vary according to the project and local inspections.

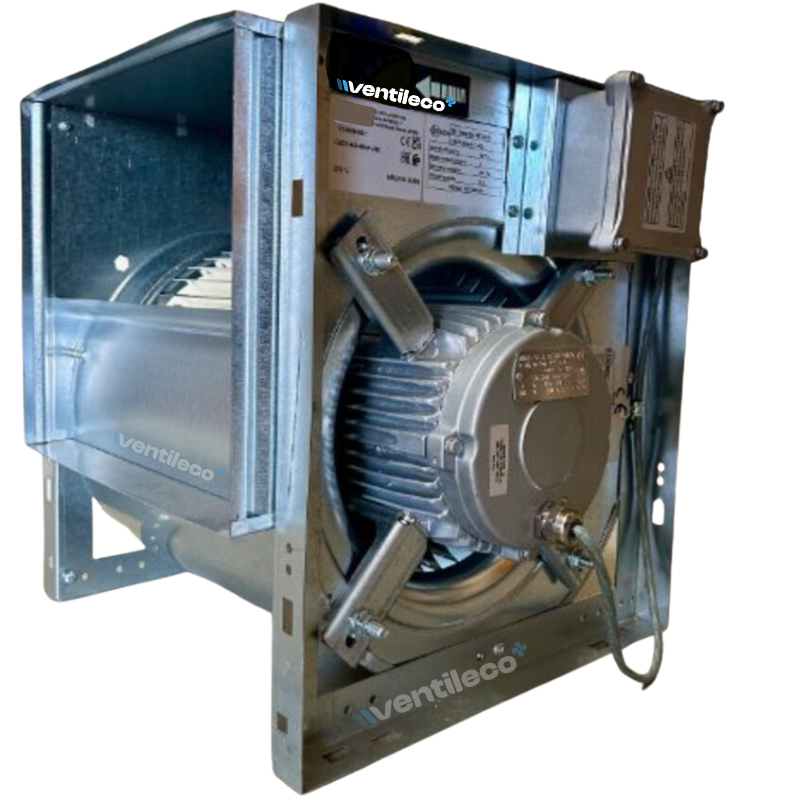

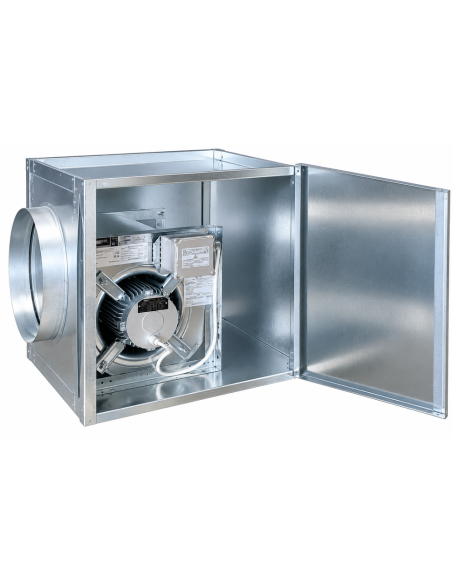

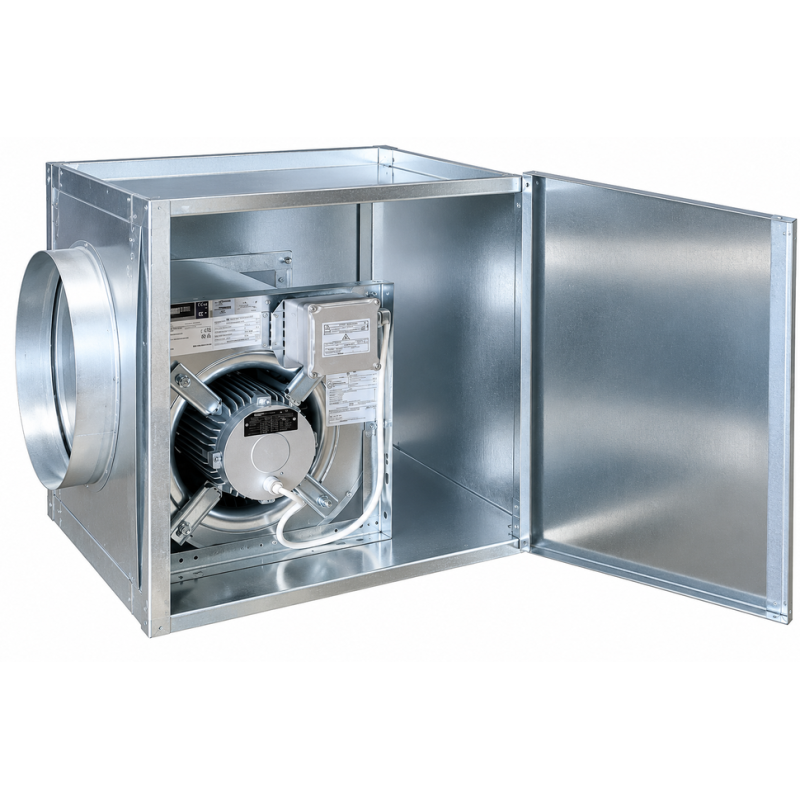

The double-inlet centrifugal fan runs with double inlet for a more consistent airflow. Housed in a remote enclosure, it is installed outside the hood: less noise in the kitchen, and the motor is kept away from heat and cooking grease. The IP55 enclosure and capacitor are also fitted outside the hood, to be positioned according to your installation.
Installation and connection

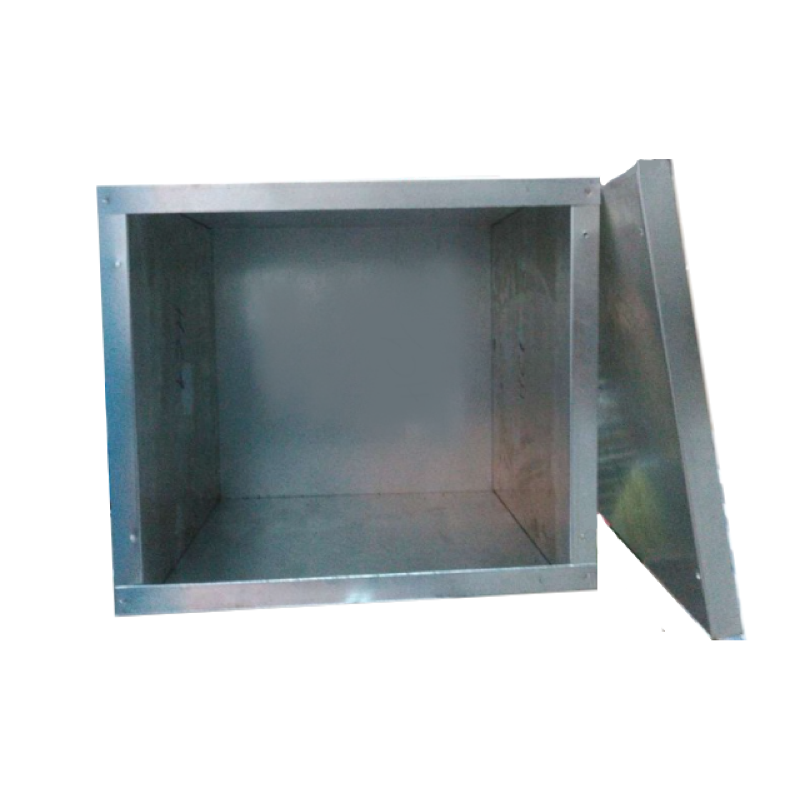

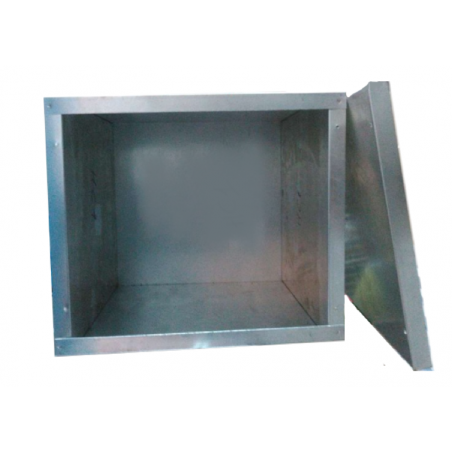

This compact enclosure is supplied as a kit for assembly: the bare galvanised Ouestisol enclosure has two removable panels, and the inlet/outlet in 355 mm diameter still needs to be created using the two flat spigots supplied as accessories. The included accessories make assembly easier: anti-vibration foam strip to fit under the motor frame, self-adhesive outlet gasket, a Ø355 outlet collar, a Ø355 flat inlet spigot and the necessary fixings. Electrical connection must be carried out by a qualified electrician, a requirement for the warranty to remain valid.
Points to check before ordering
- The 3,600 m³/h figure is the maximum fan airflow: the actual airflow achieved depends on the ductwork (duct length, elbows, filters, fresh air inlet). A long run of ductwork or several elbows increases pressure losses.
- Check that the Ø355 mm diameter matches your existing ductwork or that you can create the necessary spigots.
- Confirm that the F400°/2H standard meets the regulatory requirements for your open kitchen before placing a final order.
- Allow for the space needed to locate the enclosure (600 x 600 x 600 mm) away from the hood, either outside or in a plant room.
- Check that your fresh air inlet is sufficient: without this, actual airflow may be reduced and negative pressure or noise may occur.
