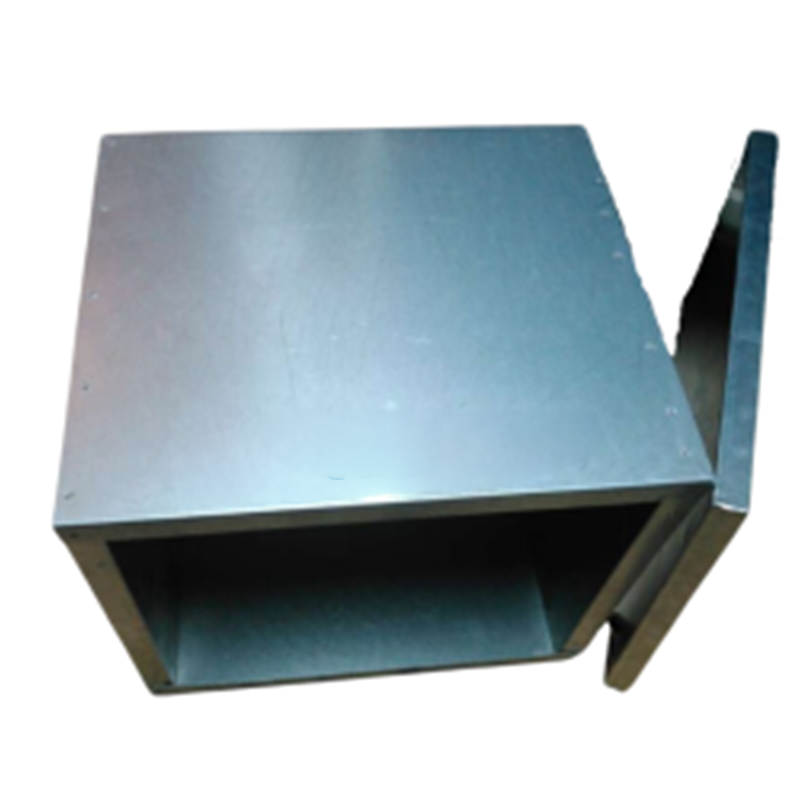

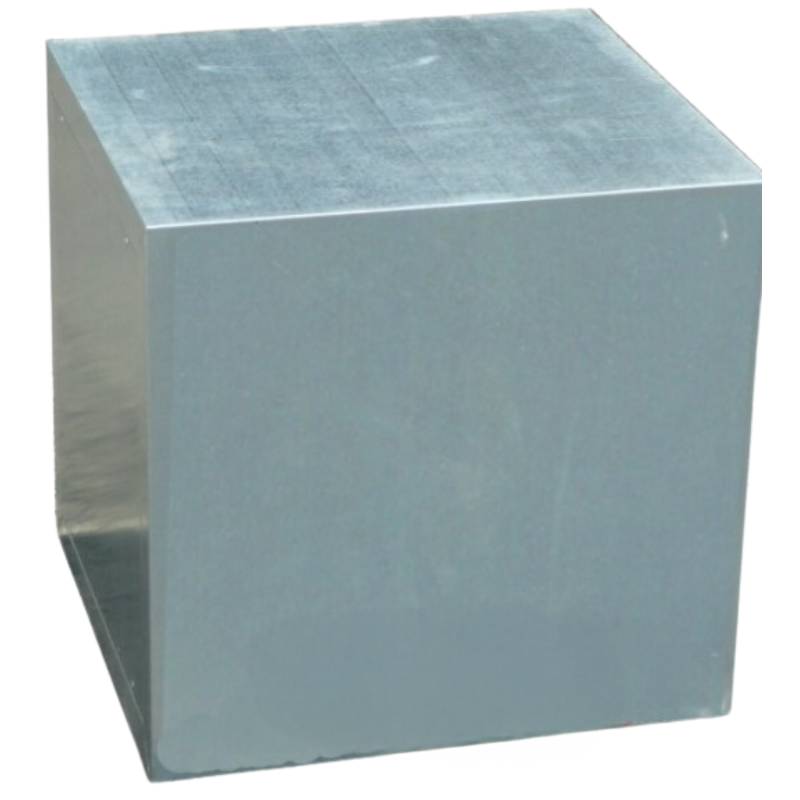

Small Unfinished Box / Plenum 350*350*380

Galvanized bare enclosure for a motor or plenum for a commercial ventilation system
Galvanized bare enclosure for a motor or plenum for a commercial ventilation system
Galvanized bare enclosure for a motor or plenum for a commercial ventilation system
Galvanized bare enclosure for a motor or plenum for a commercial ventilation system

The Small Unfinished Box / Plenum 350*350*380 (CM133) in galvanised steel lets you fit the fan motor of your choice, in whichever orientation suits you best: a real multi-purpose tool for your ductwork.

  • Dimensions excluding access door: 350 x 350 x 350 mm
  • Dimensions including access door: 375 x 350 x 350 mm
  • Material: rigid galvanised steel
  • Use: bespoke fan motor housing, connection box or junction piece
  • Product weight: 5 kg
In stock
Quantity
95.00 Tax excluded
114 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


Unfinished galvanised box 350x350: an empty enclosure to house your fan motor

The Small Unfinished Box / Plenum 350*350*380 (CM133) is a rigid galvanised steel box, supplied empty and unpunched. It's a real all-rounder for your ventilation system: it can house a motor, act as a connection box between several ducts, or serve as a junction piece when there isn't enough height above a kitchen hood. Its dimensions are 350 x 350 x 350 mm excluding the access door, and 375 x 350 x 350 mm with the door, for a package weight of 5 kg.

Unlike a ready-motorised extraction fan box, this one starts from a blank slate: you choose the motor, the orientation of the inlets and outlets, and you build your ductwork network exactly as it suits you. It's the sort of accessory that proves handy on a tricky installation, when standard boxes just don't fit the layout of the plant room.

Technical specifications

Specification Value
Reference CM133
Dimensions excluding access door 350 x 350 x 350 mm
Dimensions including access door 375 x 350 x 350 mm
Material Rigid galvanised steel
Box type Box only (unfinished, not motorised)
Access panel 1 removable access door
Package weight 5 kg
Warranty 1 year

Use and compatibility

This galvanised box is used by our installers for several quite distinct purposes. The first: housing a fan motor for a bespoke installation, creating one or more air inlets as needed, with several motors able to fit inside. The second: acting as a connection box on a system, allowing several inlet or outlet ducts to be connected into an air circuit. The third, very common on site: serving as a junction piece between the hood and the duct when the ceiling is too low to accommodate an outlet elbow above the hood. Once motorised, it works equally well for extraction or supply air, and is found in commercial kitchens as much as in general building ventilation.

The box is supplied unfinished, with no inlet or outlet created: it's up to you to fit the flat spigot(s) needed to connect your ducting, available separately in our accessories range.

Installation and connection

The removable access door allows the motor to be fitted and positioned in whichever orientation makes it easiest to route your ductwork. The air inlets and outlets are not pre-punched: they are created using a flat spigot, chosen according to the diameter of your ductwork and the number of inlets or outlets required. As with any ventilation equipment, the motor's electrical connection must be carried out by a qualified professional, which is a condition of the warranty.

Points to check before ordering

  • Check that the box dimensions (350 x 350 x 350 mm excluding door, 375 x 350 x 350 mm including door) leave enough room for the intended motor, once the anti-vibration mount and fixings are in place.
  • Plan for the flat spigot(s) suited to your duct diameter and the number of inlets/outlets required; these are not supplied with the unfinished box.
  • Check that the chosen motor is compatible with the box's internal dimensions; several motor references may fit depending on your system.
  • Check there is enough clearance to open the access door for maintenance.
  • Make sure the electrical connection is carried out by a qualified professional, as required for the warranty to apply.

Goes well with

Find all related products at the bottom of the page!

Product Details

Ventilsogood
CM133
Warranty
1 year
Package weight
5 kg
Cabinet Type
Cabinet only
0657968204737

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

Is the CM133 unfinished box supplied pre-punched for ducting?

No, the CM133 unfinished box is supplied with no air inlet or outlet created. You will need to fit one or more flat spigots, available separately in our accessories range, to connect your ductwork according to the orientation and number of inlets required.

Which fan motor can be fitted inside this box?

Several motors are compatible with the CM133 box depending on your bespoke installation. Check the exact dimensions of the motor you have in mind against the box's internal space (350 x 350 x 350 mm excluding door, 375 x 350 x 350 mm including the access door) before fitting it.

Can this box be used for both supply and extraction?

Yes, once motorised, the CM133 box works equally well for extraction or supply air. It can also be used as a connection box between several ducts, without a motor, on an air distribution system.

What is this box used for when there isn't enough height above a kitchen hood?

This is a very common use among our installers: when the ceiling is too low to fit an outlet elbow above the hood, the CM133 box acts as a junction piece between the hood and the duct, without requiring that extra height.

Is this box suitable for domestic mechanical ventilation or only for commercial kitchens?

The CM133 box can be used in both cases: for general building mechanical ventilation in a domestic setting or in a commercial kitchen, depending on the motor fitted and the ductwork connected.
