Galvanized flat connector (hood-to-duct connection)
Galvanized female fitting

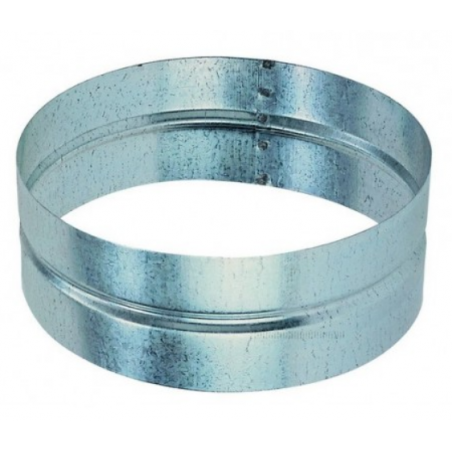

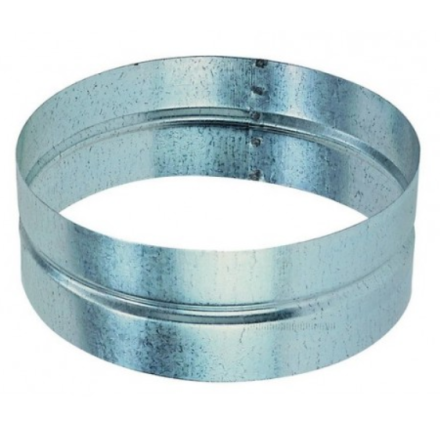

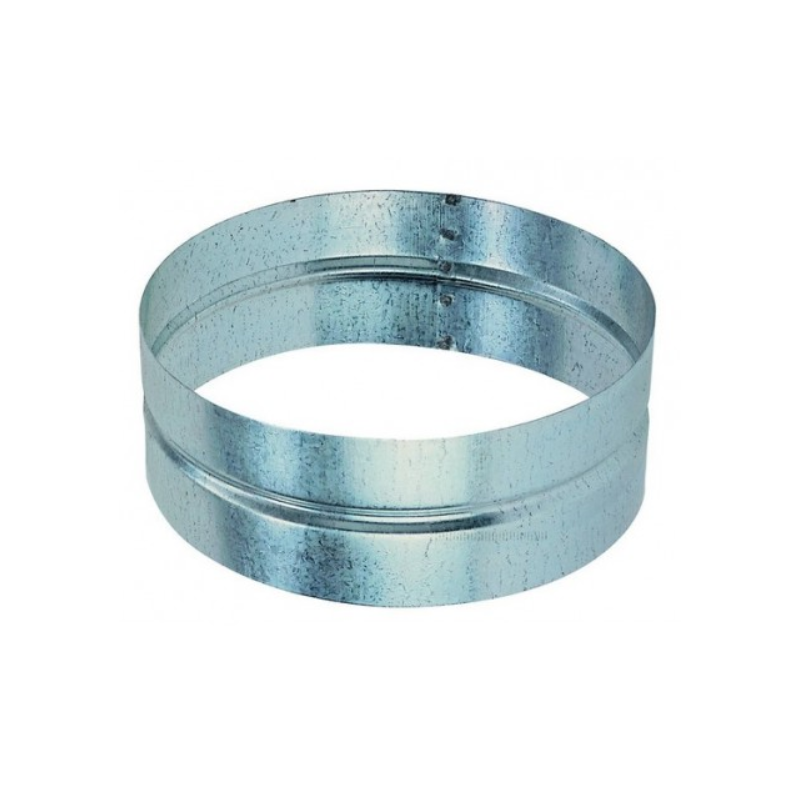

The galvanized female fitting connects two male fittings (branch spigot, elbow or reducer) in your ventilation ductwork, from 80 mm to 800 mm in diameter, for an airtight and durable joint.
- Material: galvanized steel
- Manufactured: Europe
- Height: 70 mm
- Available diameters: 80 to 800 mm
- Fixing: self-tapping screws, gasket and/or aluminium tape
Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments
The galvanized female fitting is a galvanized steel connector that joins two male components of a ventilation duct system (branch spigot, elbow, reducer), available from 80 mm to 800 mm in diameter.
Why a female fitting and not a male fitting?
On a ventilation system, ducts and most accessories (elbows, branch spigots, reducers) are manufactured as male components. To join two male parts together, you need an intermediate female piece: that's the role of the galvanized female fitting. Think of it as a short 70 mm tube that slides over the two male ends and closes the joint. Without it, you can't fit an elbow directly onto a branch spigot or a reducer.
Technical specifications
| Specification | Value |
|---|---|
| Material | Galvanized steel |
| Manufactured | France |
| Height | 70 mm |
| Available diameters | 80, 100, 125, 160, 200, 250, 315, 355, 400, 450, 500, 560, 630, 710, 800 mm |
| Package weight | 1 kg |
| Fixing | Self-tapping screws, sealing gasket and/or aluminium tape |
Use and compatibility

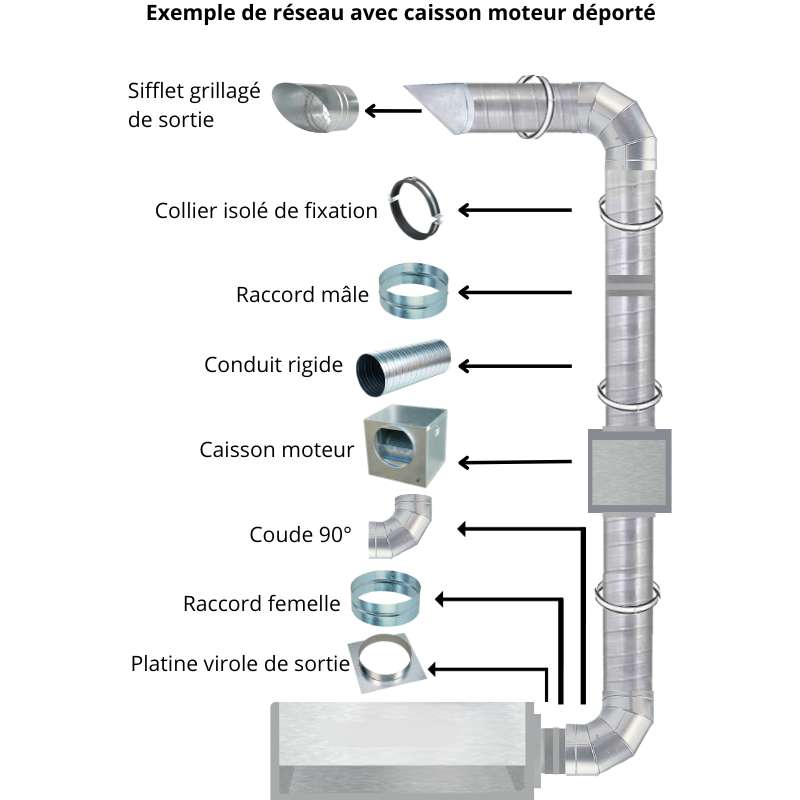

This fitting is used on any professional ventilation ductwork in galvanized duct: commercial kitchen hood, professional mechanical ventilation system, workshop extraction. It fits between two male components, typically a branch spigot and an elbow, or a branch spigot and a reducer. As it works as a simple tubular sleeve, it is compatible with any type of ductwork (galvanized, aluminium, flexible PVC, stainless steel), provided the diameter is identical on both sides. Choose the diameter to match your existing duct: as a guide, small diameters (80 to 100 mm) suit light sanitary extract systems, 125 to 160 mm suit standard kitchen extraction, and larger diameters suit higher airflow systems, depending on how your installation is sized.
Installation and connection
The galvanized female fitting is fixed with self-tapping screws. Use a sealing gasket and/or aluminium tape on the joint to ensure airtightness and limit pressure losses in the ductwork. Installation remains straightforward for a building or ventilation professional, with no complex tools required.
Points to check before ordering
- The exact diameter of your existing ducts and accessories, to choose the right fitting among the 15 sizes available
- That both components to be joined are indeed male: a female fitting is only used to join two male components together
- The material of your ductwork: this fitting works with galvanized steel, aluminium, flexible PVC or stainless steel, as long as the diameter matches
- The available height on your run: this fitting measures 70 mm in length, to factor into your dimensions
- Whether you need a diameter reduction: this fitting joins two components of the same diameter, it does not replace a dedicated conical reducer
- The screws and sealing gasket needed for a clean installation
Frequently bought together
- Flat galvanized branch spigot, for hood to duct connection
- 90° galvanized elbow, to be fitted with this female connector
- 6 to 10 m ductwork screw kit, to complete the fixing
Find our full range of ventilation accessories in our dedicated category.
Product Details
- Diameter
- Products
- Connector
- Manufacturing
- Made in France
- Package weight
- 1 kg
You might also like
8 other products in the same category:
Customers who bought this product also bought:
Frequently asked questions
What is the difference between a male fitting and a female fitting in ventilation?
Ducts and most accessories (elbows, branch spigots, reducers) are manufactured as male components. The galvanized female fitting is the piece that fits over two male ends to join them. Without a female fitting, two male components cannot be connected directly to one another.
How do I know if I need a female fitting for my ductwork?
If you need to join two male components together, such as an elbow and a branch spigot, or a branch spigot and a reducer, a galvanized female fitting is required. Simply check that both ends to be joined are male before ordering.
Which diameter of female fitting should I choose?
The diameter of the galvanized female fitting must match exactly that of your existing duct. It is available from 80 mm to 800 mm. As a guide, small diameters suit light ductwork and larger ones suit higher airflow systems, but always check the exact dimension of your installation.
Is the female fitting compatible with stainless steel, galvanized, flexible PVC or aluminium ducts?
Yes. The galvanized female fitting works as a short tube that fits over two male ends: it is compatible with any type of ductwork, galvanized, aluminium, flexible PVC or stainless steel, provided the diameter is identical on both sides.
How do you fit a galvanized female fitting?
The galvanized female fitting is fixed with self-tapping screws. Add a sealing gasket and/or aluminium tape on the joint to ensure airtightness and avoid pressure losses in the ductwork.
