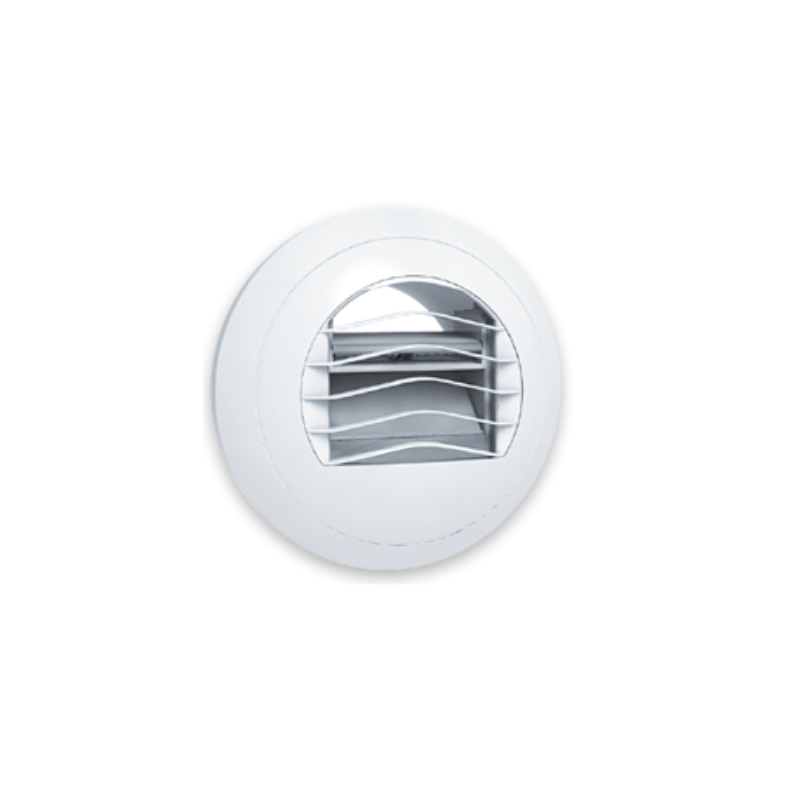

Single-flow VMC air vent

Self-regulating ventilation grille
Self-regulating ventilation grille

The single-flow VMC air vent automatically regulates air extraction from your home or commercial premises, with a fixed airflow rate suited to each room, from 15 to 120 m³/h depending on the model chosen.

  • Airflow rates available: 15, 30, 45, 75, 90 or 120 m³/h
  • Connection diameter: Ø125 mm
  • Material: polystyrene, removable central grille
  • Mounting: wall or ceiling (3-tab sleeve)

- 15 for WCs
- 30 for WCs or bathrooms
- 45 for a bathroom or living room
- 75 for a 1-bed flat kitchen
- 90 for a 2-bed flat kitchen
- 120 for a 3 or 4-bed flat kitchen

Flow rate (m³/h)
In stock
Quantity
8.00 Tax excluded
9,6 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The single-flow VMC air vent is a ventilation accessory that regulates the extracted airflow at a constant rate, regardless of network pressure, for a self-regulating (constant airflow) VMC system in residential or commercial premises. It comes in six fixed airflow rates, from 15 to 120 m³/h, suitable for anything from a WC to the kitchen of a large home.

Technical specifications of the self-regulating VMC air vent

Specification Value
Product type Grille / Air vent / Diffuser
Operation Self-regulating, fixed airflow
Available airflow rates 15, 30, 45, 75, 90, 120 m³/h
Operating pressure range 50 to 160 Pa
Connection diameter Ø125 mm
Material Polystyrene
Grille Central, removable
Weight 0.5 kg
Warranty 1 year

Which airflow rate should you choose for each room?

Each airflow rate in m³/h corresponds, as a guide, to a type of room. This is a sizing reference to be adjusted according to your ductwork, not an absolute rule:

  • 15 m³/h: WC
  • 30 m³/h: WC or bathroom
  • 45 m³/h: bathroom or living room
  • 75 m³/h: 1-bed flat kitchen
  • 90 m³/h: 2-bed flat kitchen
  • 120 m³/h: 3 or 4-bed flat kitchen

This air vent is used together with air inlets, or as a replacement in an existing self-regulating VMC installation.

Installation and connection

The self-regulating VMC air vent can be fitted either on a wall or on a ceiling. Whichever airflow model you choose, the fitting principle stays the same.

For wall mounting, the air vent simply clips onto a Ø125 mm sleeve fitted beforehand on the duct: the lip seal ensures the assembly is airtight.

For ceiling mounting, it can be fitted using a 3-tab plasterboard sleeve or a Ø125 mm or Ø125/80 mm slab-crossing sleeve. To fit the 3-tab plasterboard sleeve, turn anticlockwise, then lock it in place by turning clockwise.

The air vent has 3 fixing tabs: we recommend screwing it to the wall or ceiling using the 3 screws provided, for a secure, long-lasting fit.

Points to check before ordering

  • The diameter of your existing duct: this air vent connects at Ø125 mm, check that your sleeve matches.
  • The airflow rate suited to the room in question: a WC does not have the same requirements as a kitchen, refer to the guide table above.
  • The type of mounting planned: wall (sleeve) or ceiling (3-tab sleeve or slab-crossing sleeve).
  • Compatibility with your existing self-regulating ventilation system, and the presence of associated air inlets.

Goes well with

To complete your installation, also take a look at our wide range of VMC accessories, our galvanised VMC reducer, our semi-rigid VMC duct and our PVC clip-on sleeve for VMC air vent. Looking for an adjustable airflow rate rather than a fixed one? Check out our adjustable VMC air vent with PVC sleeve.

Product Details

Ouestventil
bouche vmc auto sple
Flow rate (m³/h)
Products
Grille / Air Inlet / Diffuser
Warranty
1 year
0657968176508

You might also like

5 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

Which airflow rate should I choose to replace my current VMC air vent?

The airflow rate is chosen according to the room: as a guide, 15 or 30 m³/h for a WC, 30 to 45 m³/h for a bathroom, and 75 to 120 m³/h for a kitchen depending on the size of the property (1 to 4 bedrooms). Also check the airflow rate marked on your old vent if it is still legible.

What duct diameter does this VMC air vent require?

This self-regulating VMC air vent connects to a duct or sleeve of Ø125 mm. Check the diameter of your existing installation before ordering, as an incorrect diameter will prevent it from fitting properly onto the sleeve.

Can it be fitted on a wall or on a ceiling?

Both are possible. For wall mounting, the air vent clips onto a Ø125 mm sleeve fitted on the duct, with a lip seal for airtightness. For ceiling mounting, a 3-tab plasterboard sleeve or a Ø125 mm or Ø125/80 mm slab-crossing sleeve is used.

How do you maintain this VMC air vent?

The self-regulating VMC air vent has a removable central grille, which makes regular dusting easy. Regular cleaning of the grille helps keep a stable airflow in the room it serves.

What type of installation is this air vent used in?

This air vent is used as part of a self-regulating ventilation system, together with air inlets, or as a replacement in an existing self-regulating VMC installation. It maintains a fixed airflow rate across a pressure range of 50 to 160 Pa.
