Extra-flat VMC exhaust box, 500 m³/h, D160 mm

  • On sale!
Extra-flat cabinet for air injection, transfer, or extraction. Equivalent to Vim, Ouestisol, Cairox, S&P, France air, and Atlant

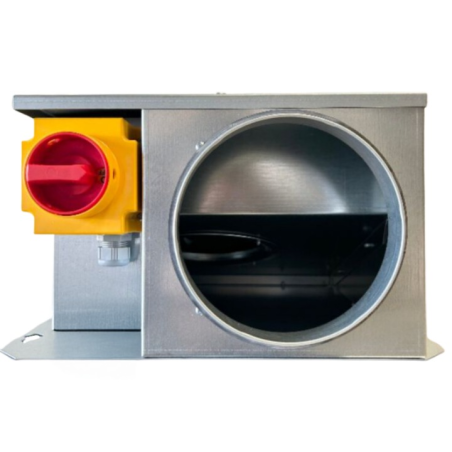

BFSA 160
Extra-thin cabinet, high performance
Extra-flat VMC exhaust box, 500 m³/h, D160 mm, vue 4

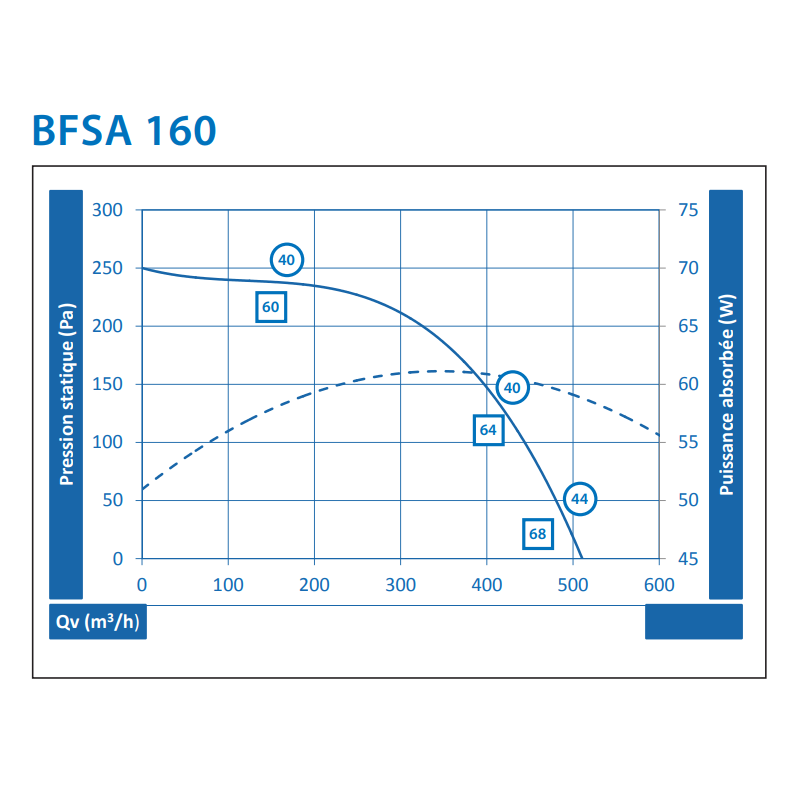

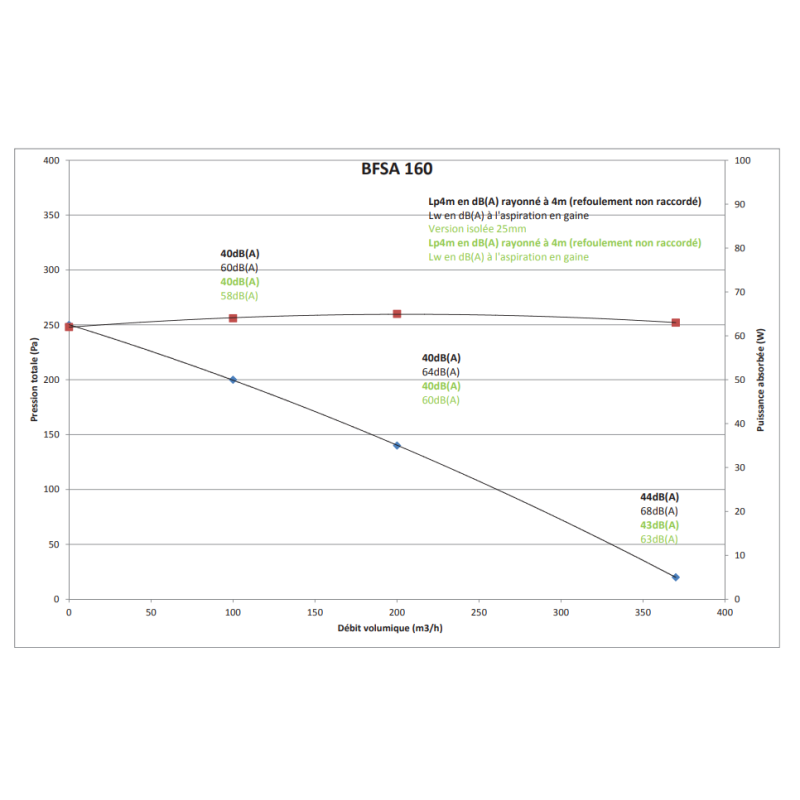

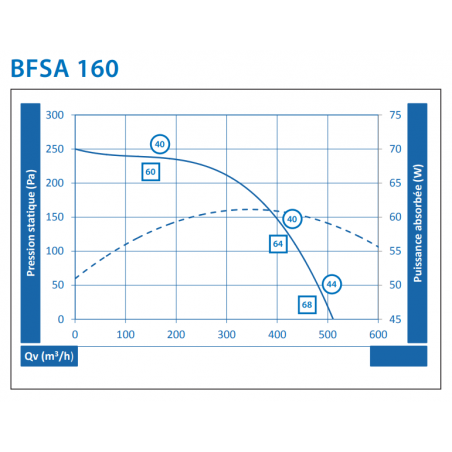

BFSA VMC Box Curve
Extra-flat VMC exhaust box, 500 m³/h, D160 mm, vue 6
Extra-flat VMC exhaust box, 500 m³/h, D160 mm, vue 7
Extra-flat VMC exhaust box, 500 m³/h, D160 mm, vue 8
Extra-flat VMC exhaust box, 500 m³/h, D160 mm, vue 9
Video
Extra-flat cabinet for air injection, transfer, or extraction. Equivalent to Vim, Ouestisol, Cairox, S&P, France air, and Atlant
BFSA 160
Extra-thin cabinet, high performance
Extra-flat VMC exhaust box, 500 m³/h, D160 mm, vue 4
BFSA VMC Box Curve
Extra-flat VMC exhaust box, 500 m³/h, D160 mm, vue 6
Extra-flat VMC exhaust box, 500 m³/h, D160 mm, vue 7
Extra-flat VMC exhaust box, 500 m³/h, D160 mm, vue 8
Extra-flat VMC exhaust box, 500 m³/h, D160 mm, vue 9

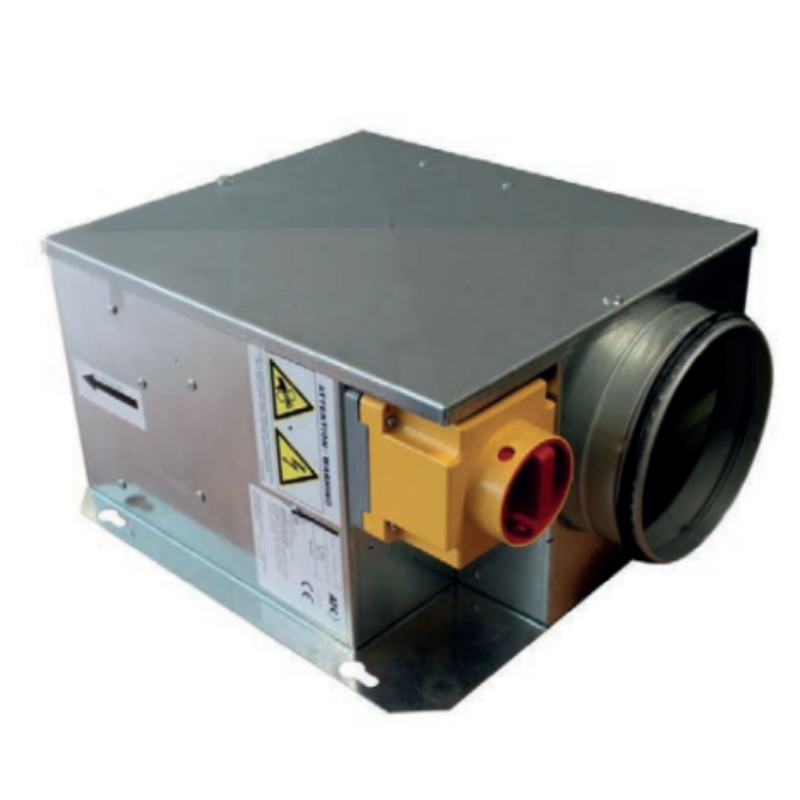

This motorised extra-flat extract fan box delivers an airflow of 500 m³/h in a 160 mm diameter, with quiet operation and low power consumption, designed to fit into a suspended ceiling or low loft space without taking up room.

  • Airflow: 500 m³/h
  • Connection diameter: 160 mm
  • Dimensions: L 360 x D 360 x H 200 mm
  • Power supply: 230 V single phase
  • Made in: France, 1 year warranty
In stock
Quantity
279.10 364.10 Tax excluded
334,92 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The extra-flat extract fan box, 500 m³/h, D160 mm is a motorised extraction unit designed for mechanical ventilation in residential, commercial or professional premises, where the available height is limited. It stands out for its quiet operation and low power consumption.

An extract fan box designed for tight spaces

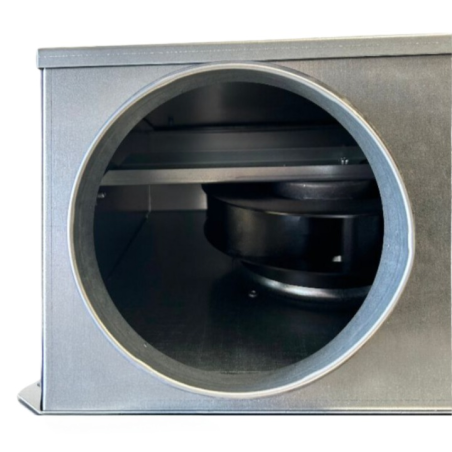

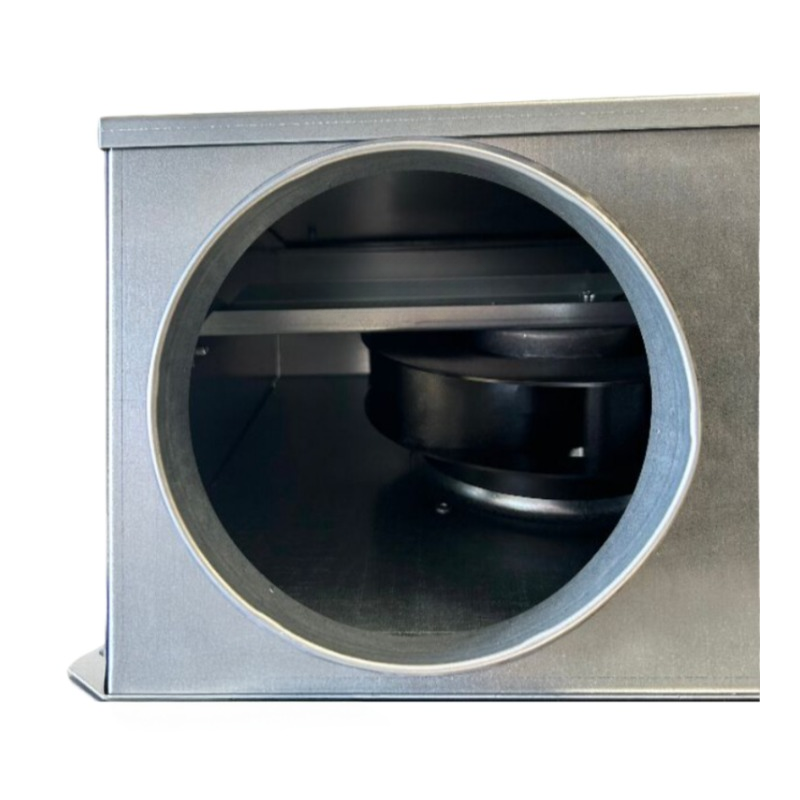

Its extra-flat design, with dimensions of only L 360 x D 360 x H 200 mm, allows it to fit into a suspended ceiling, a low loft space or a plant room with limited headroom, where a standard fan box would not fit. The direct-drive fan motor assembly ensures quiet, stable operation, with a thermally protected motor in case of overheating, while keeping day-to-day power consumption low.

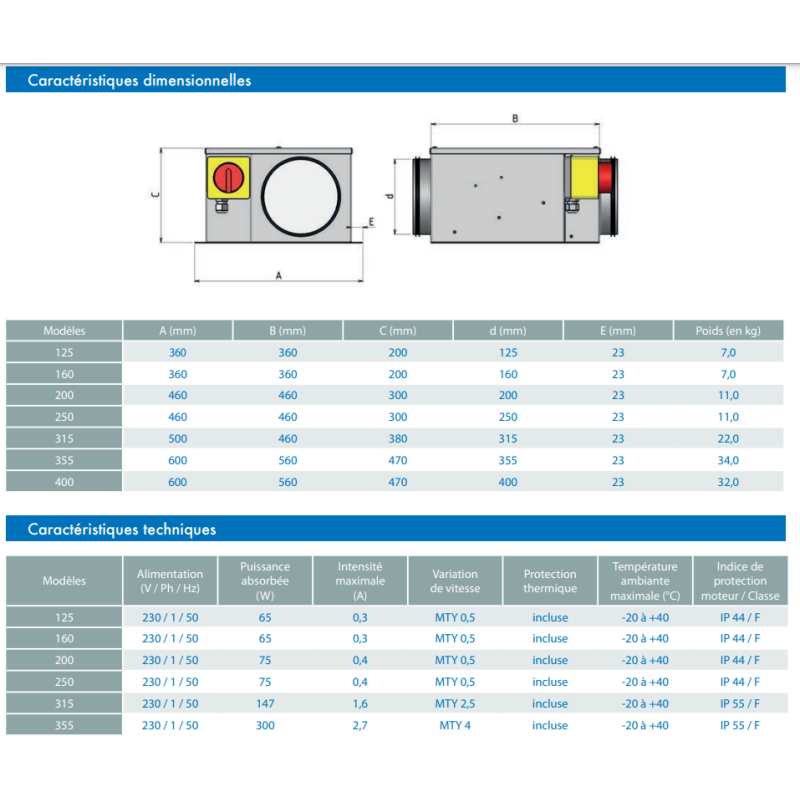

Technical specifications

Specification Value
Airflow 500 m³/h
Connection diameter 160 mm
Dimensions L 360 x D 360 x H 200 mm
Power supply 230 V single phase
Motorisation Motorised fan box
Installation Horizontal, indoor or outdoor
Made in France
Warranty 1 year
Weight 15 kg

Use and system compatibility

This extract fan box suits an existing ventilation system in 160 mm diameter, for extraction or transfer depending on the chosen configuration. As a guide, it can be fitted into a system equipped with fan boxes such as Vim KMDT, Aldes Vec, Atlantic Critair or France Air Sirius: always check the diameter and connection method of your installation before ordering.

Installation and connection

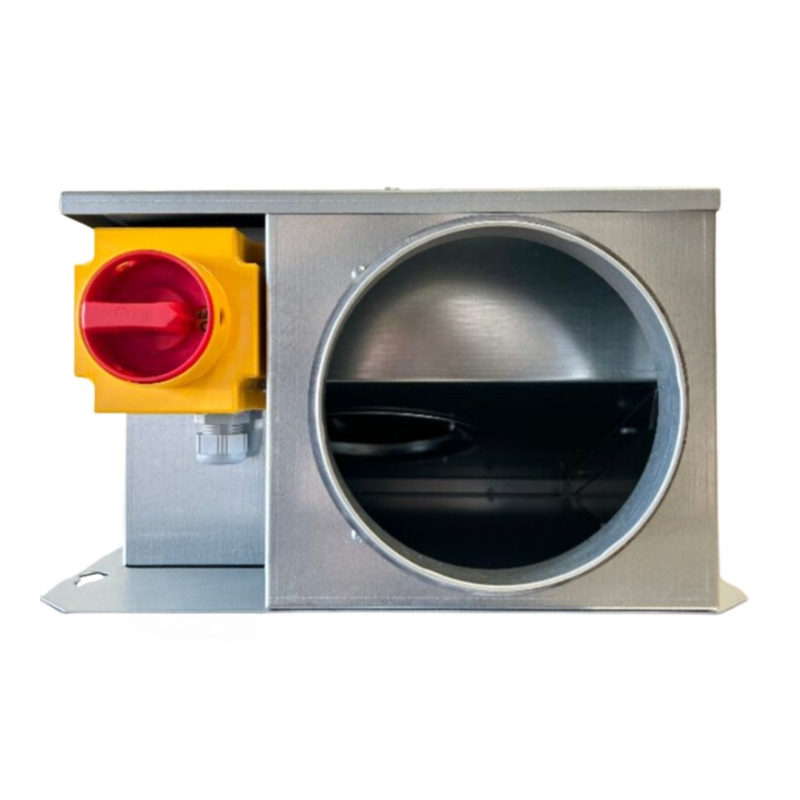

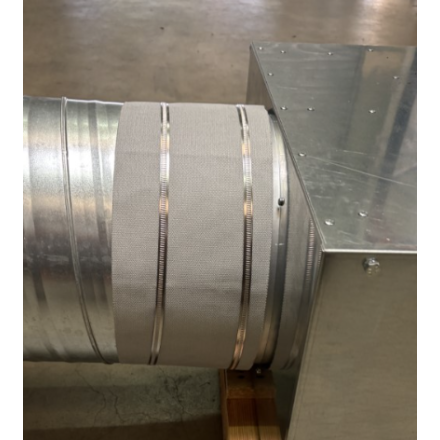

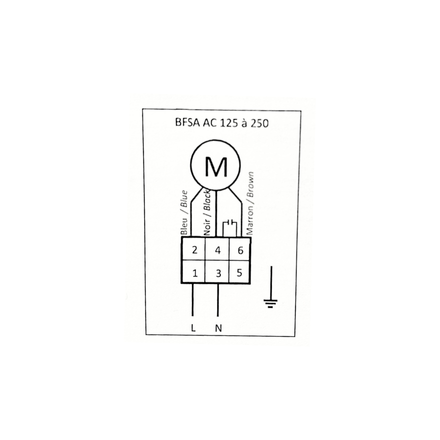

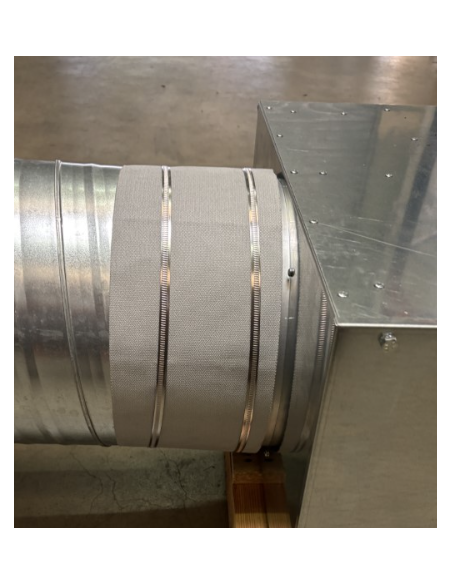

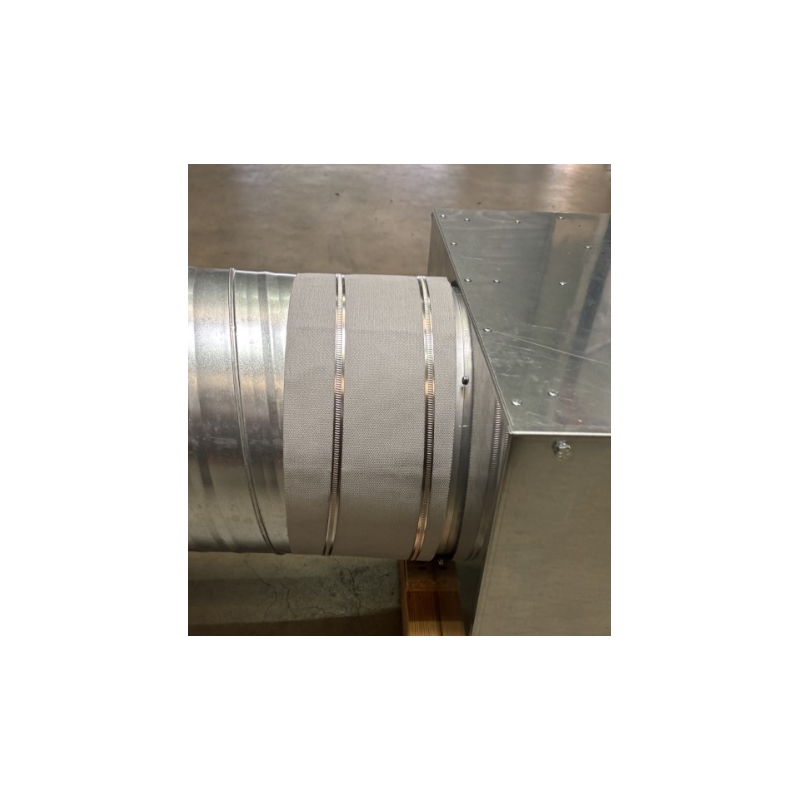

The fan box is installed horizontally, indoors or outdoors. The circular spigots fitted with lip seals ensure an airtight connection to the ductwork, and the removable cover provides easy access for maintenance. This shop sells the equipment only: electrical connection must be carried out by a qualified professional, a condition that must be met for the warranty to apply.

Points to check before ordering

  • The diameter of your existing ductwork: this model is designed for 160 mm, not to be confused with the 125 mm or 200 mm versions in the range.
  • The airflow actually required for your premises: a long duct run or one with several elbows reduces the usable airflow compared to the stated rate.
  • The available height in the suspended ceiling or loft space: with its 200 mm height, this extra-flat fan box fits into tight plenums, but check the clearance needed for the spigots on either side.
  • Whether you need a sound-attenuated version if the premises are particularly sensitive to noise, in which case another reference in the range will be more suitable.
  • The available electrical supply (230 V single phase) and the presence of suitable circuit protection.

To pair with

If you need a higher airflow or a sound-attenuated version, you can find the sound-attenuated version of the same 500 m³/h D160 mm model or the extra-flat fan box 800 m³/h D250 mm in our range.

Product Details

Ventilsogood
caissonextraplat160
Manufacturing
Made in France
Warranty
1 year
Engine
Motorized cabinet
Food
230V Mono
Engine power
0 to 2,000 m³/h
0657968728011

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What suspended ceiling height is needed for this extra-flat extract fan box?

The extra-flat extract fan box, 500 m³/h D160 mm, measures L 360 x D 360 x H 200 mm, making it suitable for low available heights in a suspended ceiling or loft space. Check the free space in your plenum before ordering, allowing for the connection spigots on either side.

Is this fan box compatible with my existing Vim KMDT or Aldes Vec system?

This 160 mm diameter extract fan box can, as a guide, be fitted into a system equipped with fan boxes such as Vim KMDT, Aldes Vec, Atlantic Critair or France Air Sirius. However, always check the exact diameter and fixing method of your installation before placing an order.

Can this fan box be installed outdoors?

Yes, this motorised fan box is designed for horizontal installation, both indoors and outdoors. Electrical connection must be carried out by a qualified professional, a condition required for the warranty to apply.

Do I need a speed controller with this fan box?

The speed controller is not supplied with the fan box. If you want to adjust the airflow according to your needs, a compatible controller such as our 1.5 A model for MVHR systems and small motors can be paired with this 230 V single phase fan box.

Is this fan box really quiet and energy efficient?

Yes, the extra-flat extract fan box, 500 m³/h D160 mm, has been designed for quiet operation and low power consumption, thanks to its direct-drive fan motor assembly and thermally protected motor.
