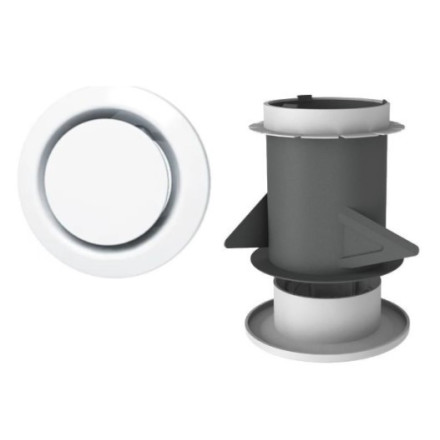

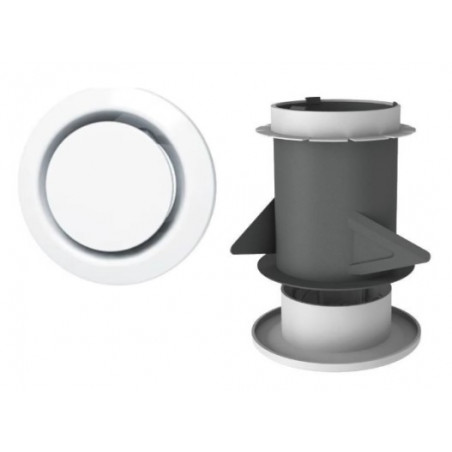

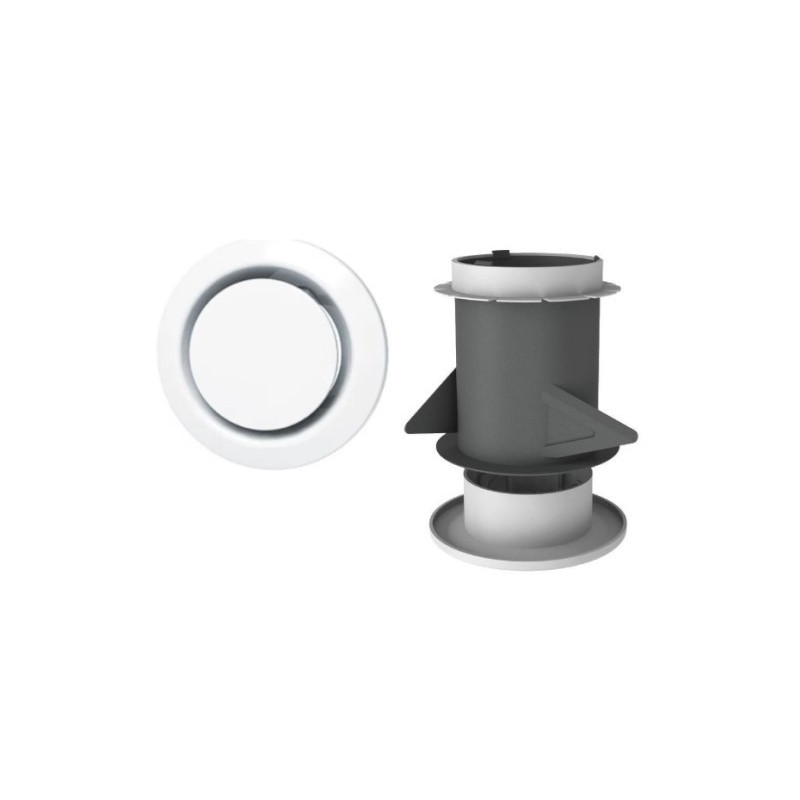

Adjustable Plastic VMC Nozzle + PVC Sleeve
The adjustable plastic VMC nozzle, supplied with its 3-claw PVC sleeve, allows fine adjustment of airflow for both supply and extract, from D80 to D200 mm.
- Diameters available: 80, 100, 125, 160, 200 mm
- Airflow D80 mm: 10 to 100 m³/h
- Airflow D125 mm: 20 to 200 m³/h
- Airflow D200 mm: 50 to 400 m³/h
- Material: PVC, adjustment by locking nut
- Sleeve: 3-claw polystyrene plasterboard sleeve
Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments
The Adjustable Plastic VMC Nozzle + PVC Sleeve is a ventilation nozzle designed for air supply or extract within a mechanical ventilation system, supplied with its PVC sleeve for quick installation in a ceiling or plasterboard partition. It is available in five diameters, from 80 to 200 mm, to cover most professional mechanical ventilation systems or general room ventilation installations.
Technical specifications
| Specification | Value |
|---|---|
| Diameters available | 80, 100, 125, 160, 200 mm |
| Airflow D80 mm | 10 to 100 m³/h |
| Airflow D100 mm | 10 to 160 m³/h |
| Airflow D125 mm | 20 to 200 m³/h |
| Airflow D160 mm | 30 to 300 m³/h |
| Airflow D200 mm | 50 to 400 m³/h |
| Nozzle material | Rigid PVC |
| Adjustment | Locking nut, adjustable airflow |
| Sleeve supplied | 3-claw polystyrene plasterboard sleeve |
| Use | Supply and extract |
| Weight | 1 kg |

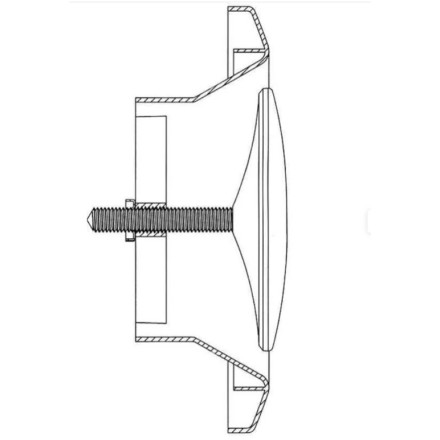

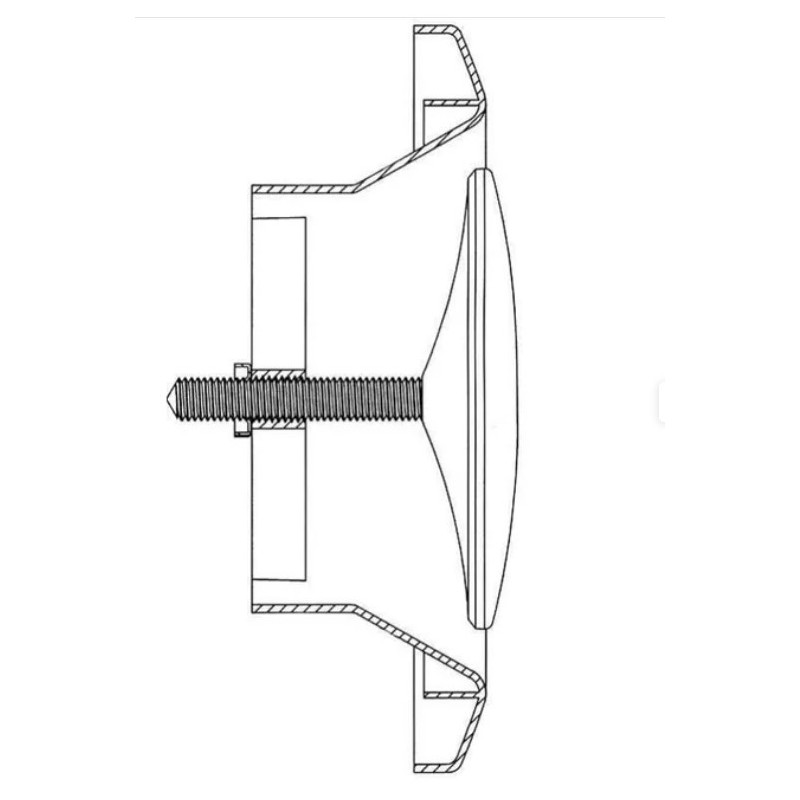

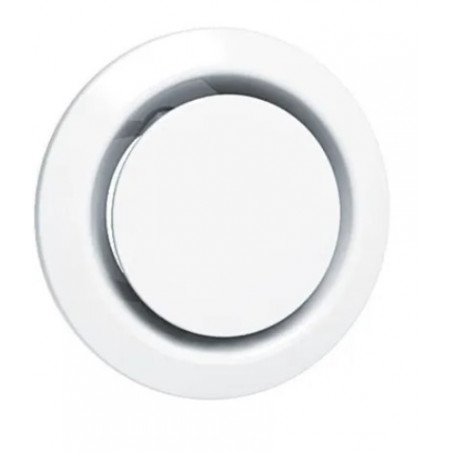

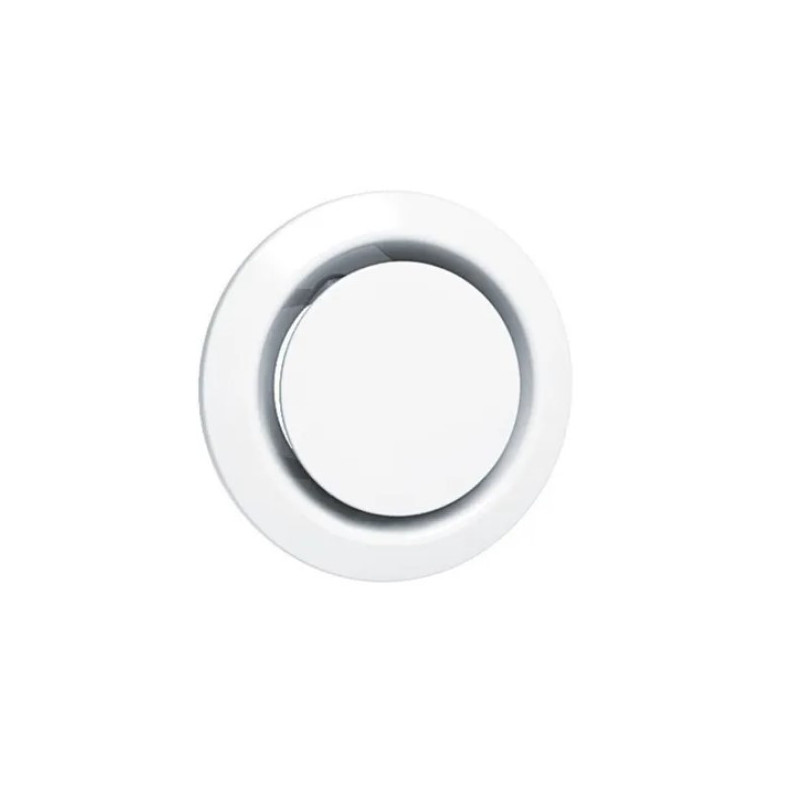

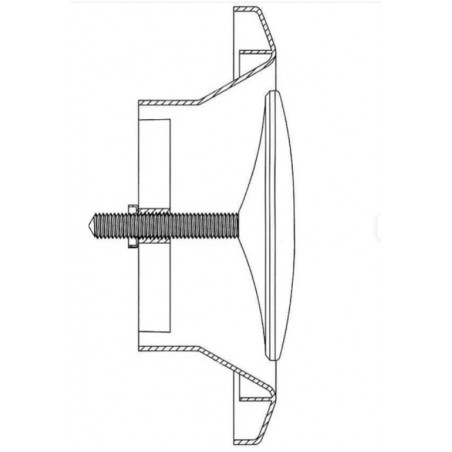

An adjustable nozzle for setting airflow room by room
Unlike a fixed nozzle, this adjustable VMC nozzle is set directly with its locking nut, allowing you to find the right balance between air renewal and the actual needs of the room. It can be used for both supply and extract air, depending on where it is fitted in the network. Its smooth PVC surface copes well with moisture, making it suitable for bathrooms or utility rooms as well as plant rooms.

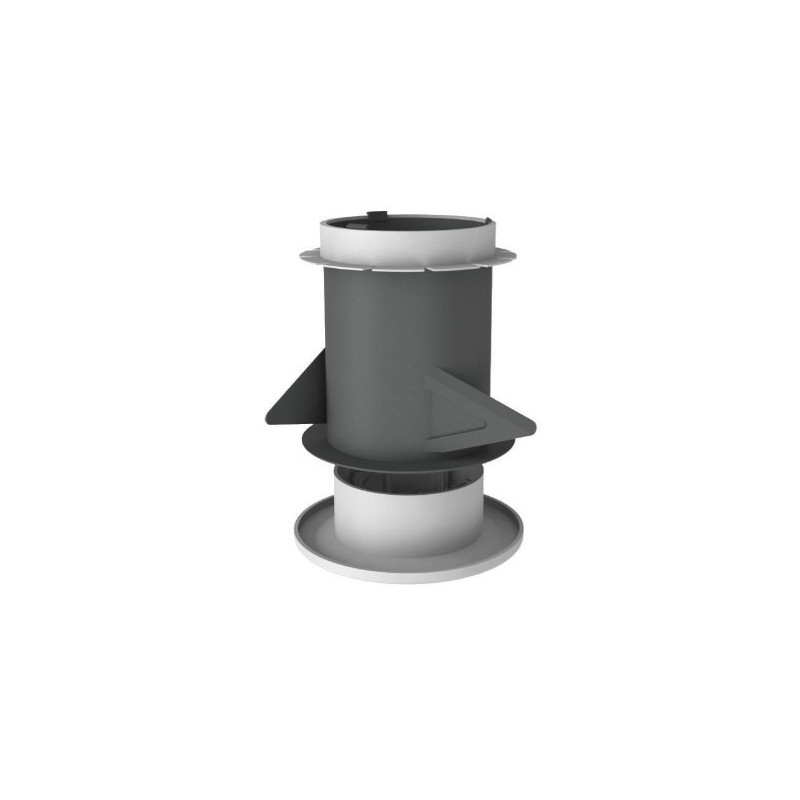

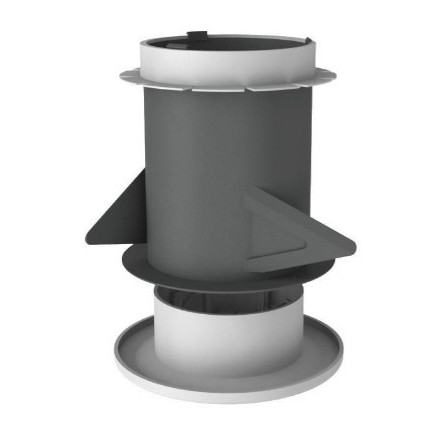

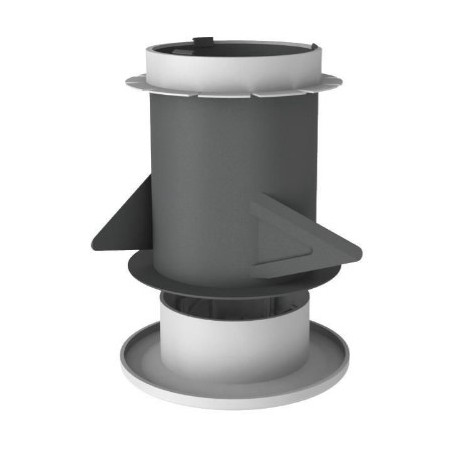

PVC sleeve and fitting into a plasterboard ceiling
The supplied PVC sleeve fixes using 3 polystyrene claws, designed for mounting onto plasterboard without any additional fittings. The nozzle then clips onto it and is adjusted once the connection to the ductwork is complete. No complex tools are needed: a screwdriver is generally enough for fitting and adjustment.
Points to check before ordering
- The diameter of your existing duct, to choose the correct reference among the 5 diameters available (80 to 200 mm)
- The target airflow for the room in question (as a guide, depending on the room's size and use), checking that it falls within the adjustment range of the chosen diameter
- The mounting surface: this 3-claw sleeve is designed for fixing into plasterboard, not for a solid wall or an existing rigid duct without adaptation
- The intended use, supply or extract, as the nozzle works in both directions but the airflow setting will depend on the actual direction of air circulation
To go with it
For fitting onto a different surface or to replace a damaged sleeve, check out our PVC claw sleeve for VMC nozzle sold separately. If you're looking for a solution without manual adjustment, our self-regulating single-flow VMC nozzle may also suit your installation. Browse our full range on the VMC nozzles page.
Product Details
- Diameter
- Products
- Grille / Air Inlet / Diffuser
5 other products in the same category:
Customers who bought this product also bought:
Frequently asked questions
What is the difference between an adjustable nozzle and a self-regulating nozzle?
The adjustable VMC nozzle, like this model, is set manually using a locking nut to fix the desired airflow. A self-regulating nozzle adjusts the airflow itself according to network pressure, without manual intervention. The choice depends on your ventilation system and the level of control you want to keep.
Which nozzle diameter should I choose for my room?
The diameter is chosen first according to that of your existing duct, from 80 to 200 mm on this model. The required airflow then depends on the size and use of the room: this is a guideline to refine according to your network, not a fixed rule.
Can this nozzle be used for both extract and supply air?
Yes, the adjustable plastic VMC nozzle can be used for both supply and extract air within a ventilation installation. The direction of use depends on where it is fitted in the network.
Does the supplied PVC sleeve fit all mounting surfaces?
The supplied sleeve is a 3-claw polystyrene plasterboard sleeve, designed for fixing into plasterboard. For a solid wall or another type of surface, check compatibility before fitting or consider a suitable alternative sleeve.
How do you clean a PVC VMC nozzle?
Its smooth PVC surface is easy to clean with a damp cloth, which limits the build-up of dust and dirt. Regular cleaning helps maintain stable airflow over time.
