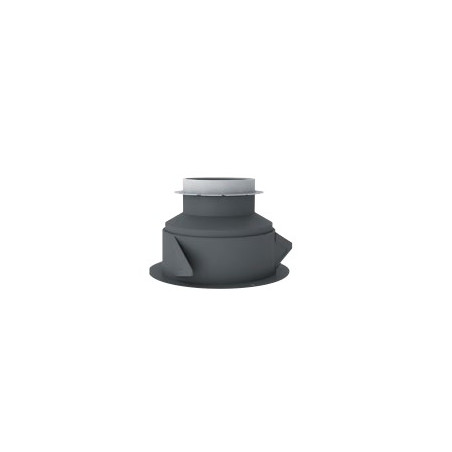

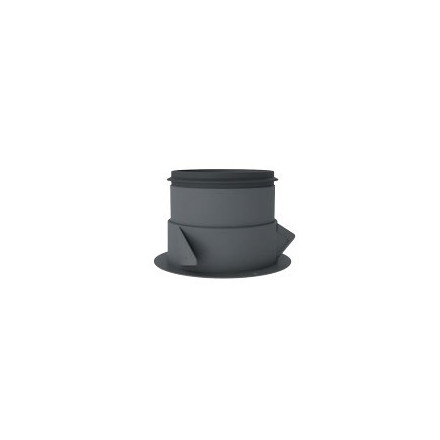

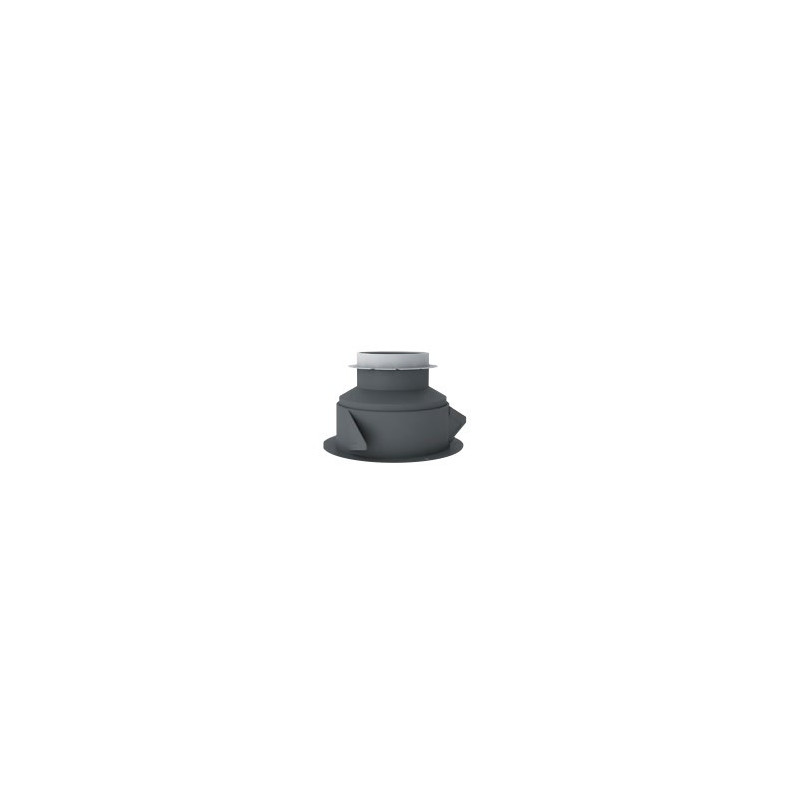

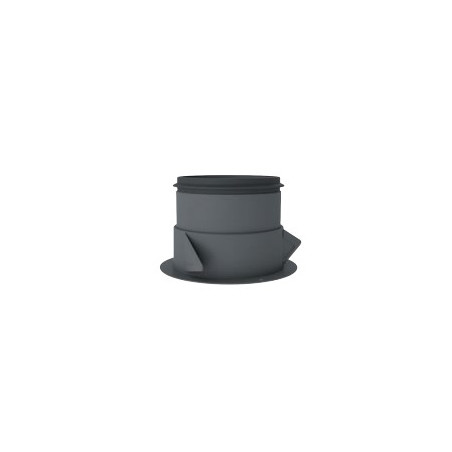

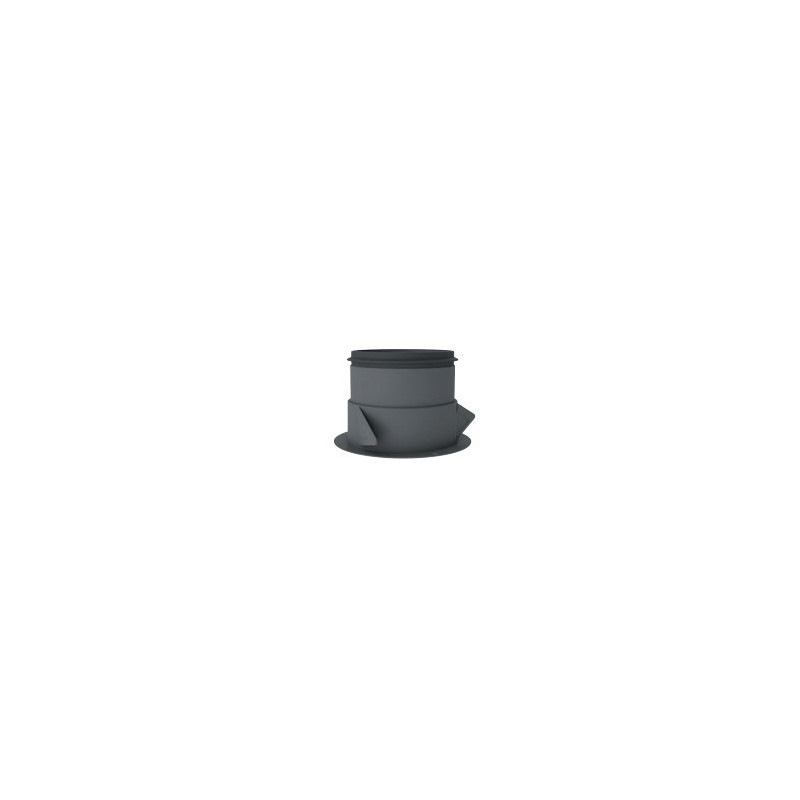

The PVC Sleeve with Clips is the accessory that connects your VMC extract valve to the ventilation duct, through a wall, plasterboard or false ceiling. Available in Ø80 mm and Ø125 mm, it fits in a few minutes thanks to its 3 clips, with no glue or complicated fixings needed.

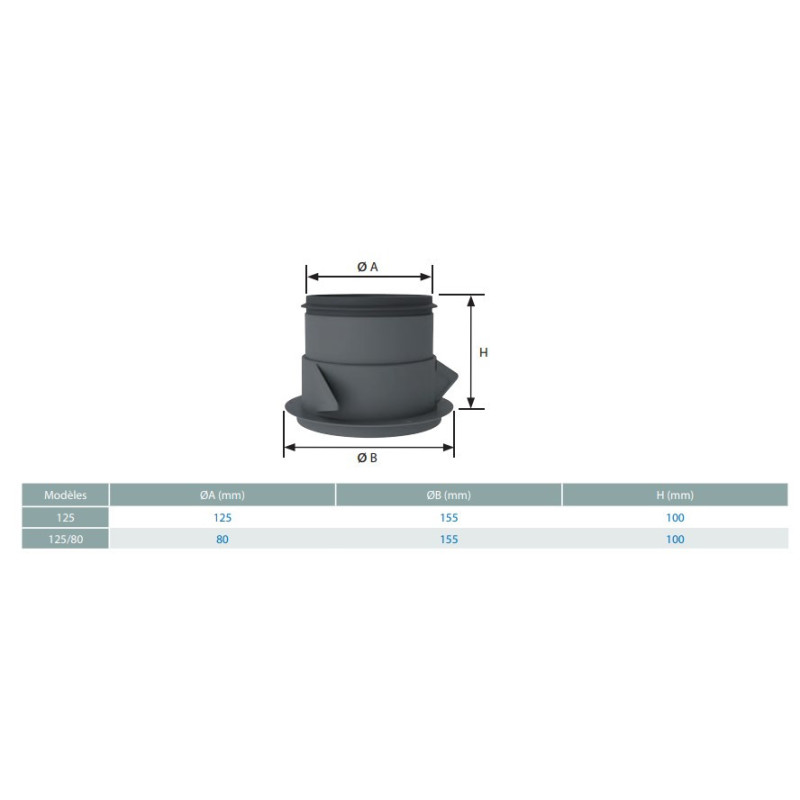

Technical specifications of the sleeve for VMC extract valves
| Specification |
Value |
| Product type |
PVC sleeve with clips for VMC extract valve |
| Diameters available |
80 mm, 125 mm |
| Material |
PVC |
| Fixing |
3 clips |
| Weight |
1 kg |
| Warranty |
1 year |
Use and compatibility

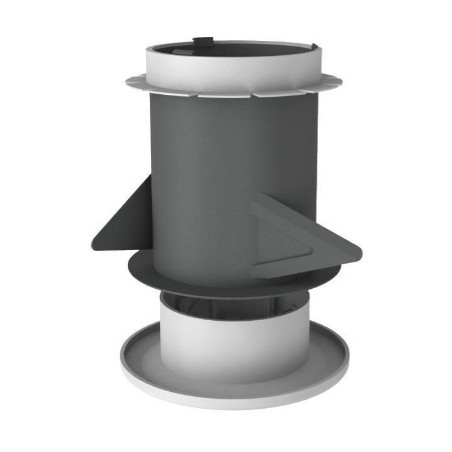

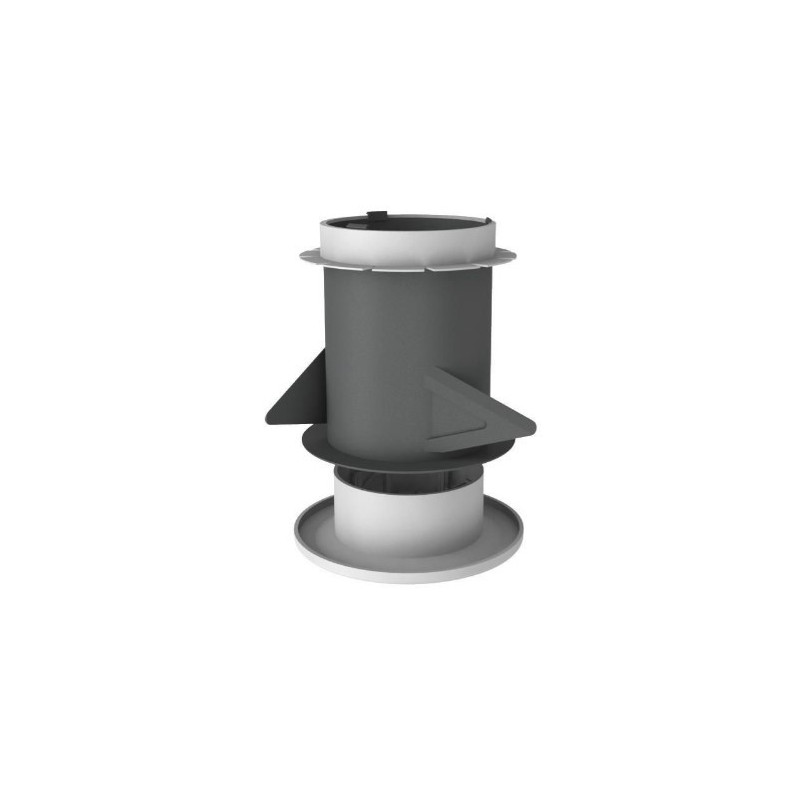

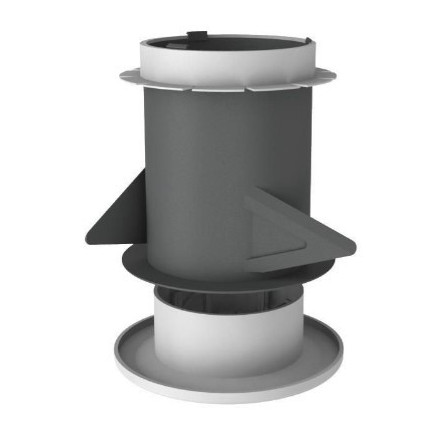

This sleeve slots in behind the extract valve to hold it firmly in the wall or ceiling, whether it's a solid wall, a plasterboard partition or a false ceiling. On the compatible 125 mm diameter valves, this includes the Alizé Hygro Tempo Cuisine, Alizé Tempo WC, Alizé Vision WC, Alizé Hygro SDB with or without WC, Alizé Élec (with and without Tempo), Alizé Hygro Élec (with and without Tempo), Alizé Tempo Vision, Alizé Hygro Tempo Vision, Alizé Hygro (Hôtel) ranges or equivalent. The diameter you need depends on your installation: 80 mm is generally suited to a smaller duct or a reduction up to a larger diameter valve, while 125 mm is for a direct valve/duct connection in 125.
Installation and connection
No complicated tools are needed for fitting: the sleeve is positioned in the opening in the wall or ceiling, the 3 clips hold it in place, and the VMC extract valve then clips directly onto it. Lightweight and easy to handle, it fits quickly into any existing professional mechanical ventilation system.
Points to check before ordering
- The diameter of your current VMC extract valve (80 or 125 mm) before choosing your option
- The diameter of the duct already in place, to avoid a poor connection
- The type of wall or ceiling (plasterboard, solid wall, false ceiling) to confirm that drilling and the clips are suitable
- Compatibility with your valve model, particularly for the Alizé ranges listed above
