The extra-flat VMC exhaust unit, 450 m³/h in D125 mm diameter fits into the tightest suspended ceilings and lofts, for discreet ventilation in extract, supply or transfer mode.

  • Airflow: 450 to 500 m³/h
  • Spigot diameter: D125 mm
  • Power supply: 230 V single-phase, 65 W, 0.3 A
  • Size: L 360 x D 360 x H 200 mm
  • Mounting: horizontal, indoor or outdoor
In stock
Quantity
267.00 324.00 Tax excluded
320,4 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


Extra-flat VMC exhaust unit, 450 m³/h, D125 mm: compact and quiet

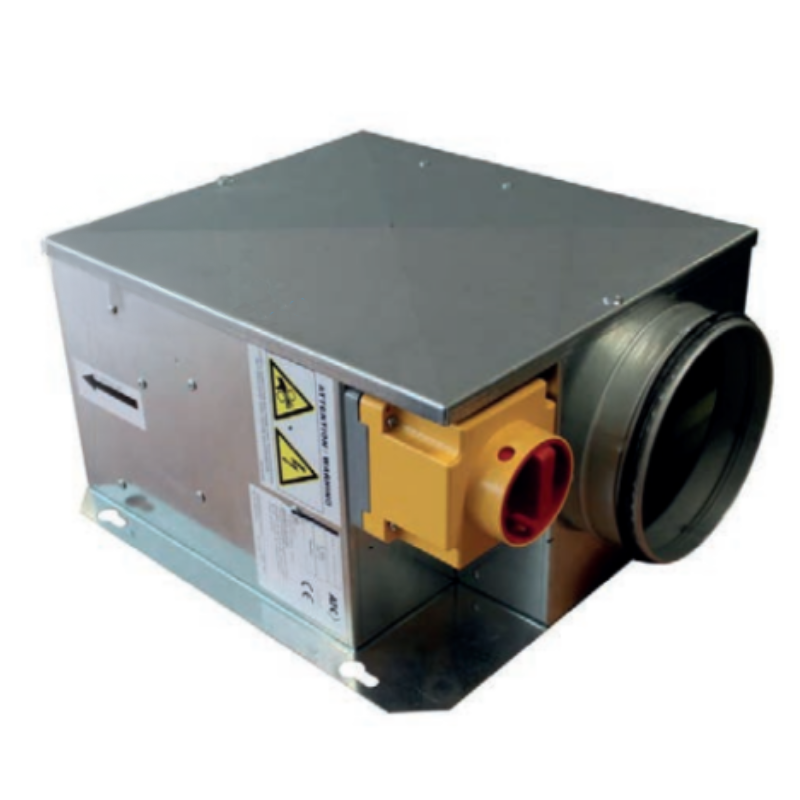

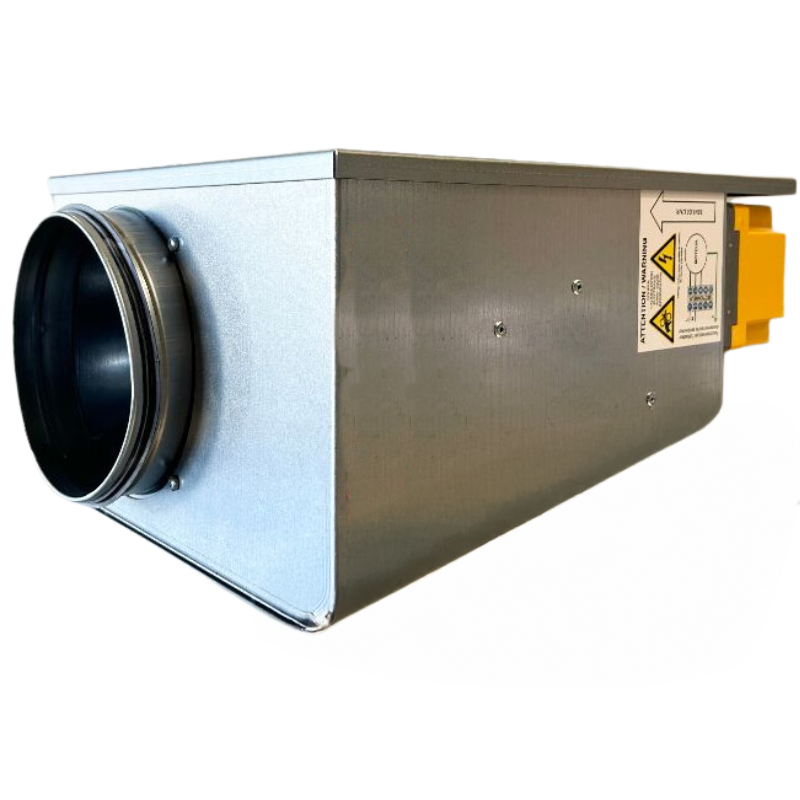

The extra-flat VMC exhaust unit, 450 m³/h is a motorised fan box designed for ventilation systems where available height is limited, suitable for extract, supply or transfer air applications. Its very slim profile, just 200 mm high, makes it the ideal replacement for a bulky old unit housed in a suspended ceiling or a low loft space.

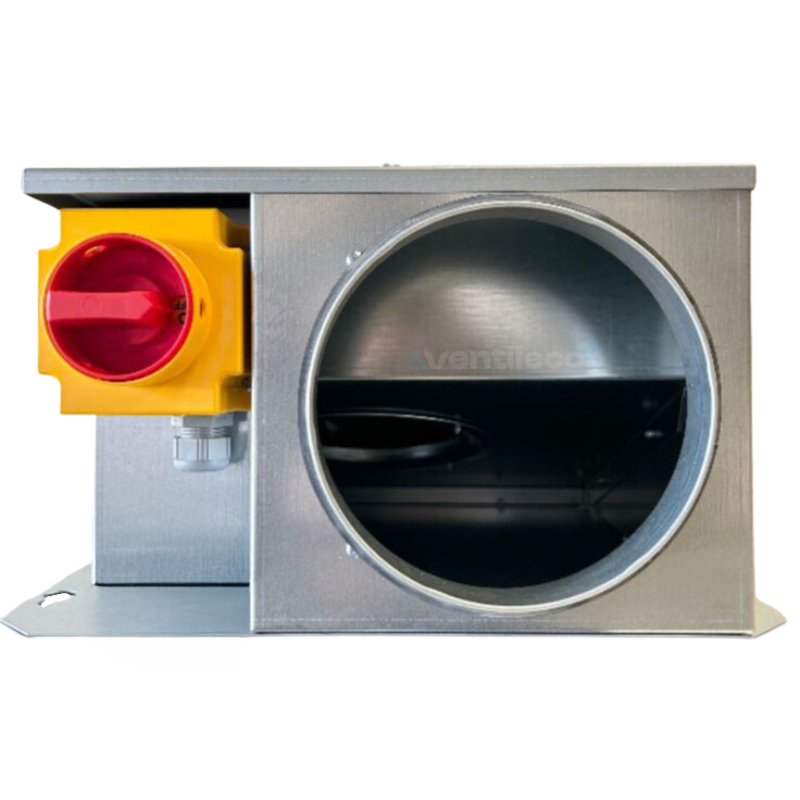

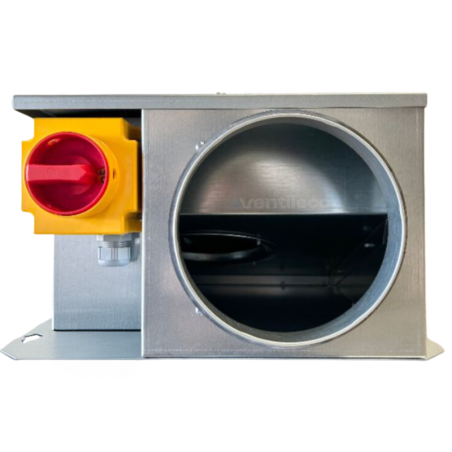

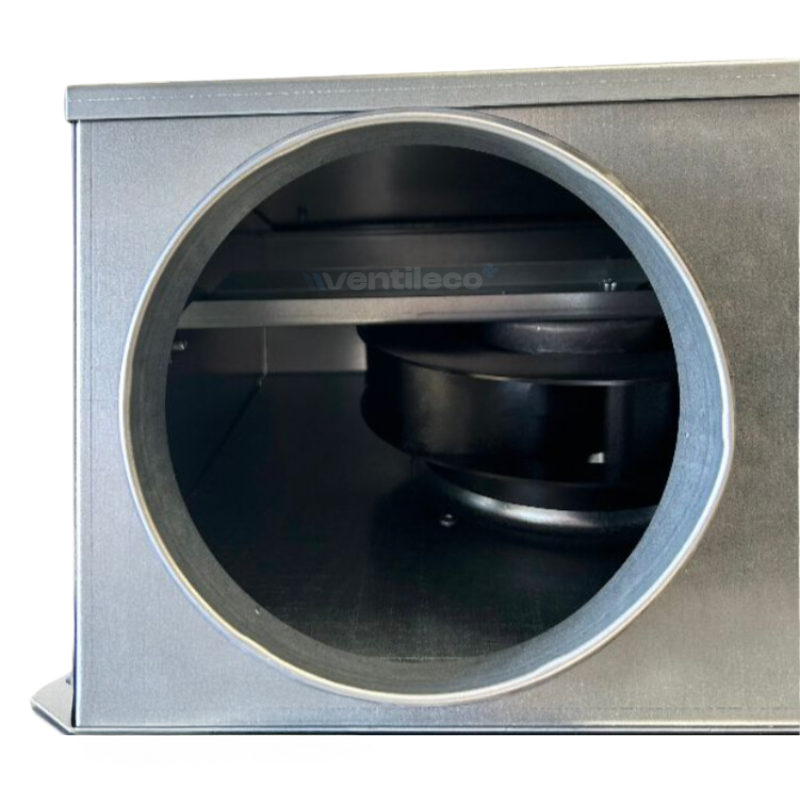

With its galvanised steel panels and removable cover, it stands up to years of use without issue. The direct-drive motor runs continuously without strain, protected by a built-in thermal cut-out that switches off the motor in the event of overheating. Easy to install: the local isolator switch is already fitted and wired, so all that's left is to connect it to the ductwork.

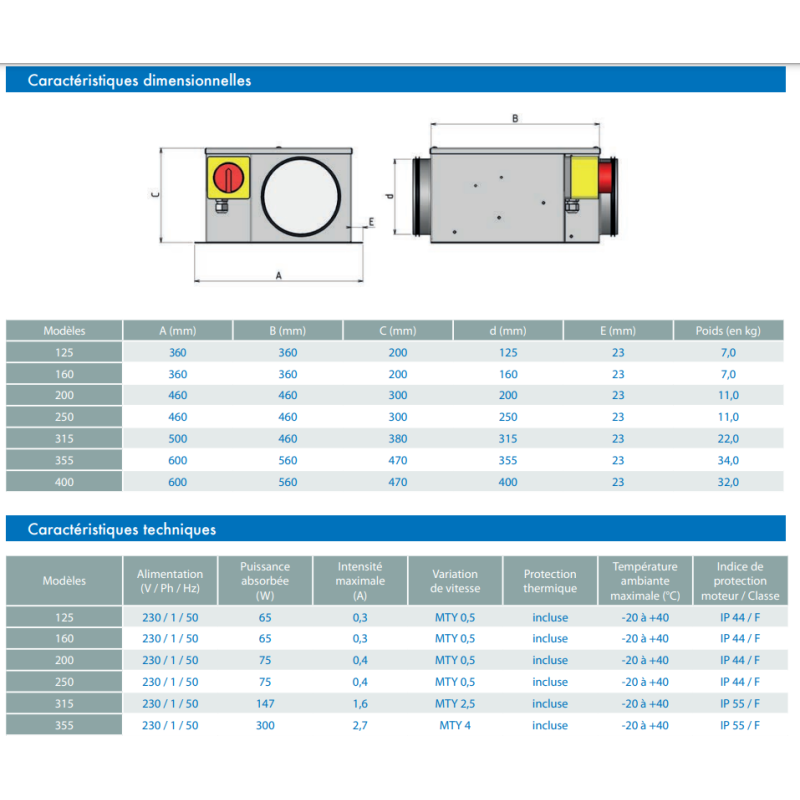

Technical specifications

Specification Value

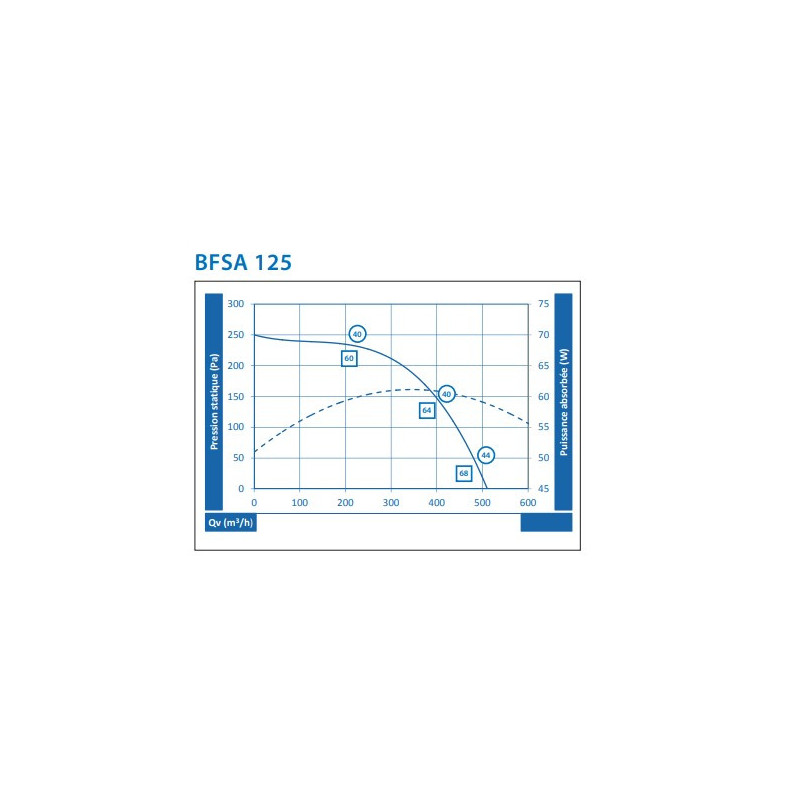

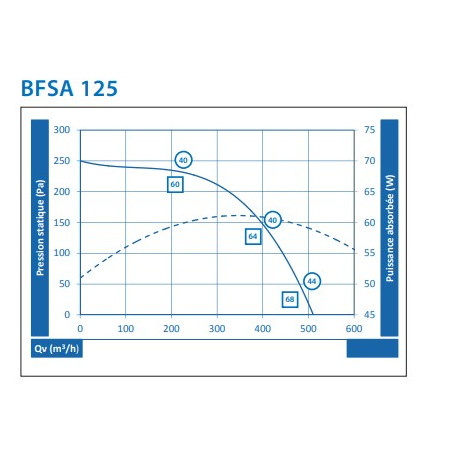

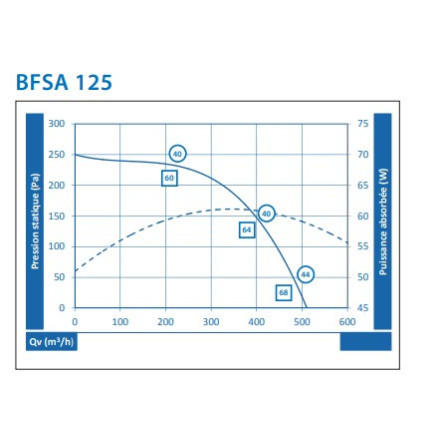

Airflow 450 to 500 m³/h
Spigot diameter D125 mm
Power supply 230 V single-phase, 50 Hz
Power rating 65 W
Current 0.3 A
Dimensions L 360 x D 360 x H 200 mm
Weight 8 kg
Mounting horizontal, indoor or outdoor
Material galvanised steel
Manufactured in France
Warranty 1 year

Use and compatibility

This extra-flat unit suits residential, commercial and light commercial ventilation: toilets, offices, plant rooms, and non-professional kitchens requiring simple air renewal. The lip-seal spigots make it easy to connect to a D125 mm flexible or rigid duct network, as a replacement for a unit from another manufacturer on an existing installation such as Vim KMDT, Aldes VEC, Atlantic Critair or France Air Sirius.

Installation and connection

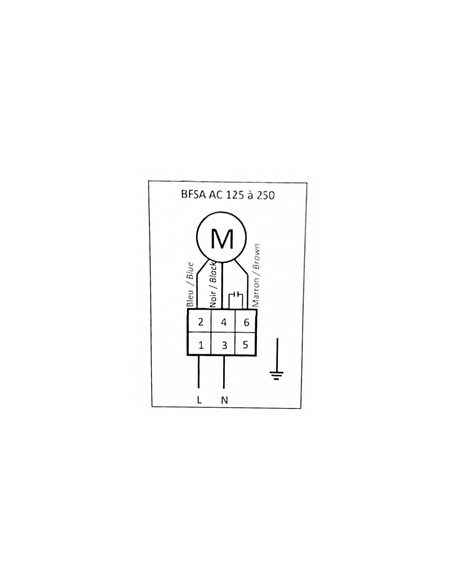

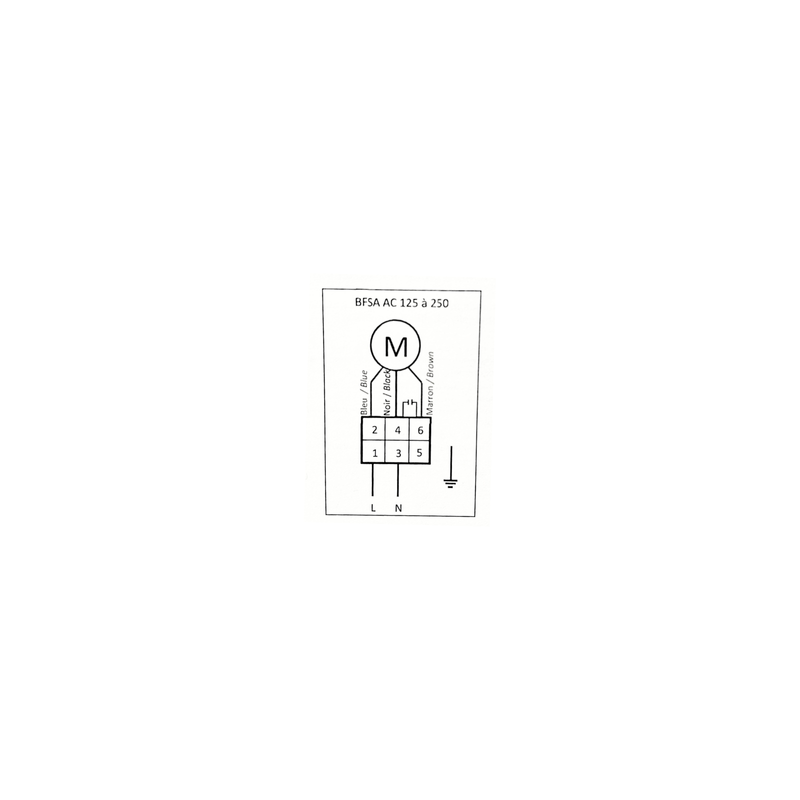

The unit is fitted horizontally, indoors or outdoors, using the integrated mounting feet. The circular lip-seal spigots ensure an airtight connection to the ductwork without any additional fittings. Electrical connection must be carried out by a qualified electrician: this is a condition for keeping the warranty valid.

Points to check before ordering

  • That the diameter of your existing ductwork matches the D125 mm of this unit, otherwise a reducer or duct change will be needed.
  • The target airflow for your space: as a guide, D125 remains suitable up to a few hundred m³/h; a larger diameter such as D160 or D200 becomes more suitable for higher airflows depending on the ductwork.
  • The height available in your suspended ceiling or loft: 200 mm should be enough to fit the unit without difficulty.
  • The available power supply: this model runs on 230 V single-phase, so check your consumer unit accordingly.
  • If you're after quieter operation, the sound-attenuated version with the same airflow is also available in our range.

Goes well with

Product Details

CAIROX
caissonextraplat125
Manufacturing
Made in France
Warranty
1 year
Engine
Motorized cabinet
Food
230V Mono
Engine power
0 to 2,000 m³/h
0657968986206

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What airflow does this extra-flat VMC unit with D125 handle?

This unit delivers an airflow of 450 to 500 m³/h. This is a sizing baseline for a modest-sized space in extract, supply or transfer mode: the actual airflow then depends on duct length, the number of elbows and the available air inlet.

Is D125 mm enough for 450 m3/h or do I need D160?

D125 mm is suitable for this airflow on a short duct run with low pressure losses. If your installation has many elbows or a long duct run, a larger diameter such as D160 reduces back pressure and noise: worth checking against your own system.

Can this unit be installed for both extract and supply air?

Yes, this extra-flat unit is designed to work for extract, supply or transfer air, depending on the mounting direction chosen on your ductwork.

Do I need a qualified electrician for the electrical connection?

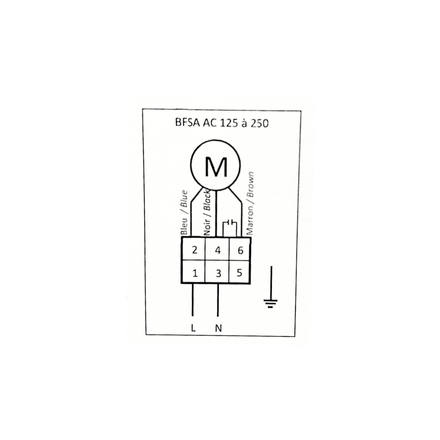

The unit comes with its local isolator switch already fitted and wired, which simplifies the connection. However, the final electrical connection must be carried out by a qualified electrician: this is a condition for the 1-year warranty to apply.

Can this unit be mounted vertically or outdoors?

This unit is designed for horizontal mounting, both indoors and outdoors. The integrated mounting feet make it easy to install in a suspended ceiling, a loft space or a plant room.
