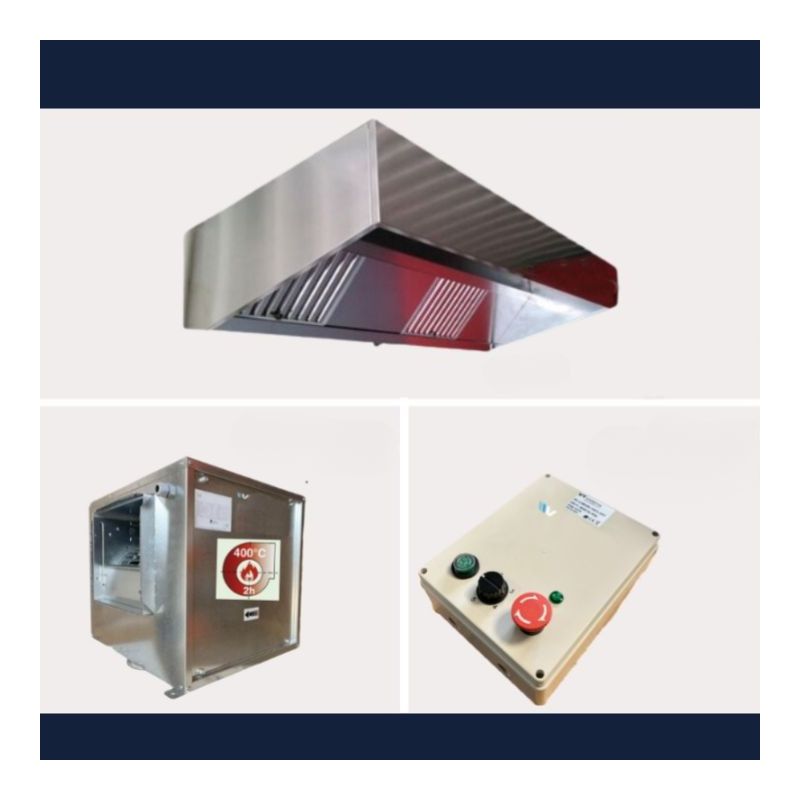

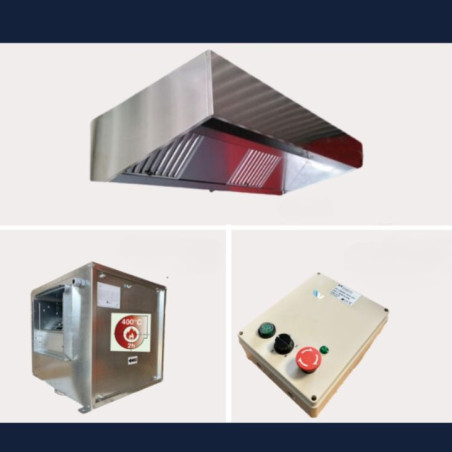

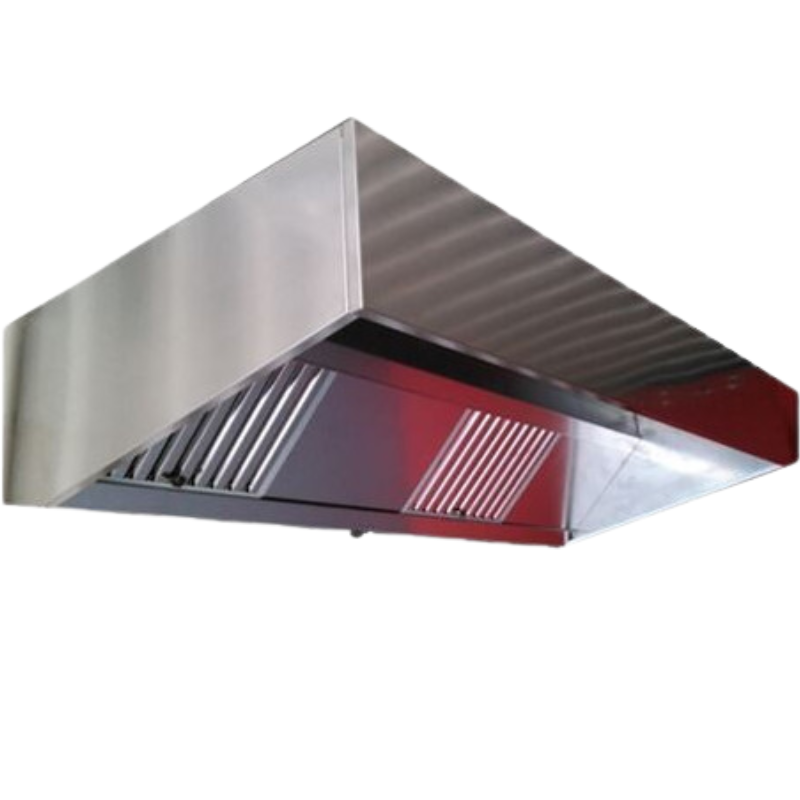

The 1.5 to 4 m hood pack with motorised fan box and 230V speed controller combines a professional stainless steel hood, a remote extraction fan box and its speed controller, designed for restaurant kitchens with more than 20 kW of cooking equipment. The motorised fan box replaces a conventional built-in motor to reduce noise both in the dining area and the kitchen.
Technical specifications
| Specification |
Value |
| Available hood length |
1.5 / 2 / 2.5 / 3 / 3.5 / 4 metres |

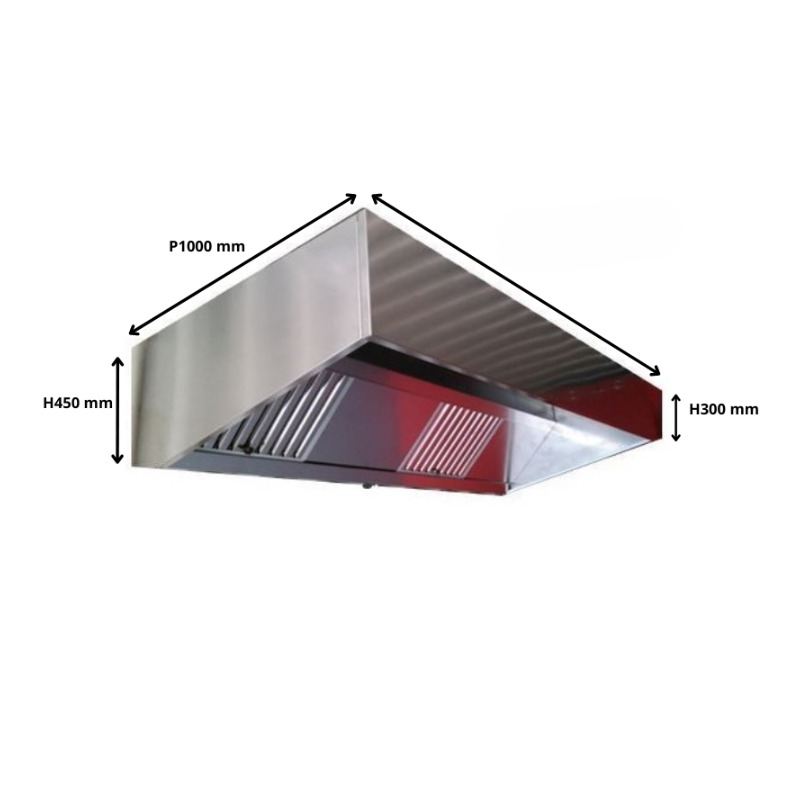

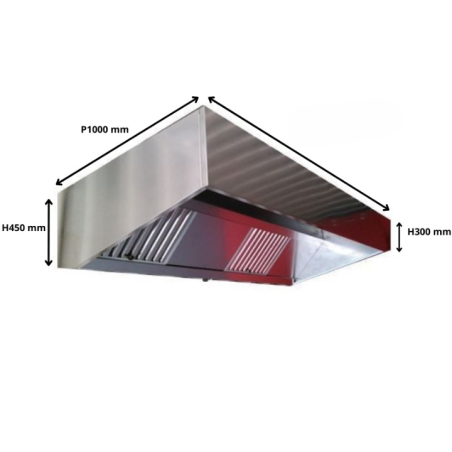

| Hood dimensions |
Width according to chosen length x Depth 1000 mm x Height 450 or 300 mm |
| Filtration |
2 to 4 stainless steel baffle filters depending on length |
| Motorisation |

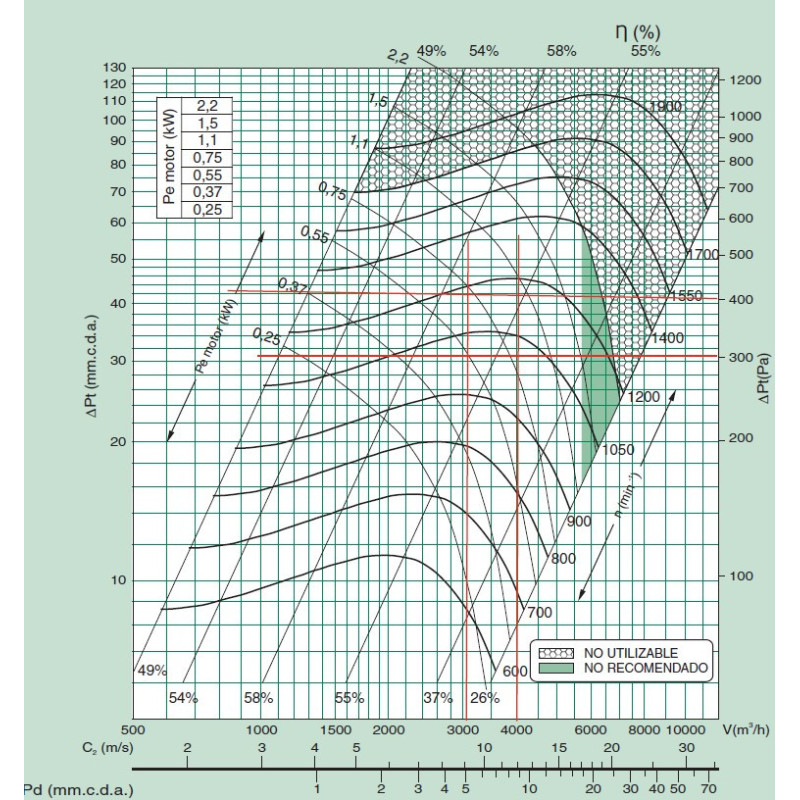

Remote extraction fan box, 9/9 motor (3500 m³/h, 1100 W) for hoods from 1.5 to 2 m, 10/10 motor (4500 m³/h, 1.1 kW) for hoods from 2.5 m |
| Power supply |
230V single phase |

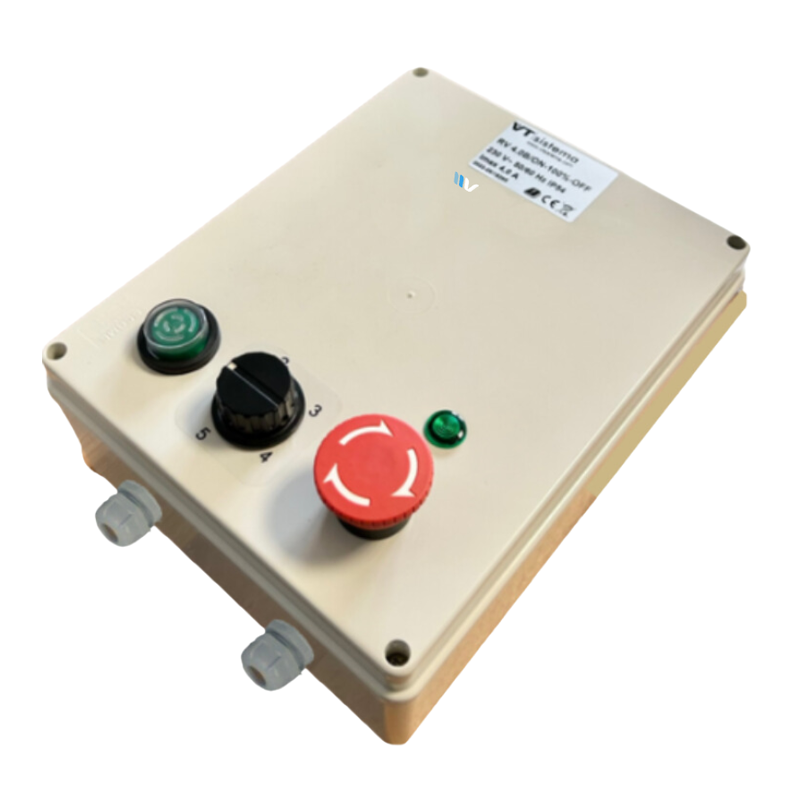

| Speed controller |
4-speed autotransformer with emergency stop button, 7A, 230V |
| Collars included |
2 collars, diameter 355 to 400 mm depending on model, for circular ducting connection |
| Manufacturing |
Hood made in France, motor made in Spain |
| Warranty |
1 year if installed by a professional |
| Package weight |
98 kg |
Remote fan box or built-in motor: what's the difference?

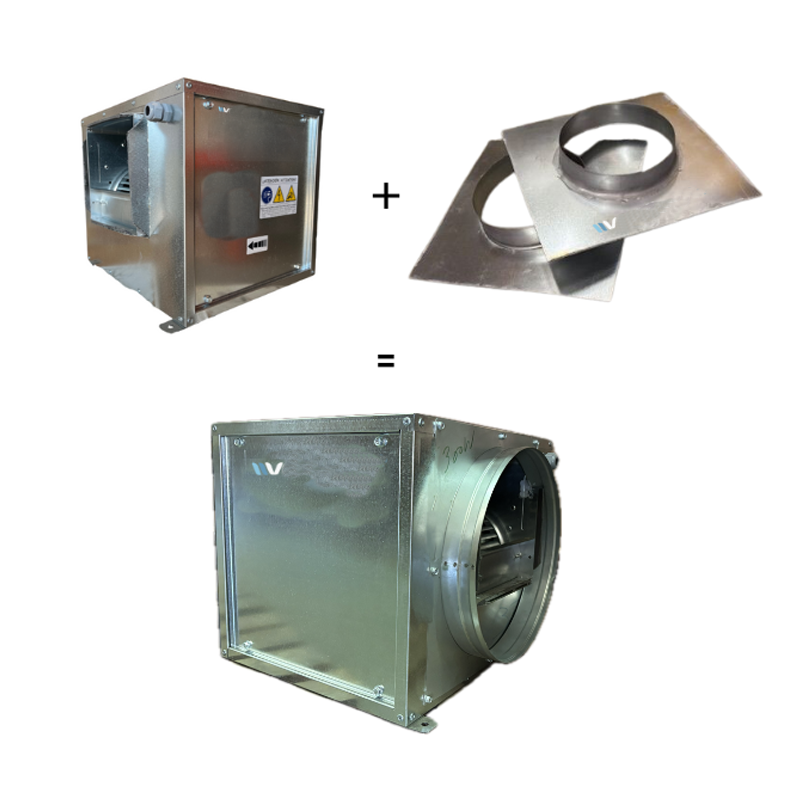

In this pack, the motor is not housed inside the hood but remote mounted in an independent extraction fan box, installed on the roof, in a loft space or in a plant room. The practical result in the kitchen: less noise above the cooking ranges and worktops, and a motor kept away from the heat and grease rising from the fryer or griddle. This is the same principle used in our packs with remote motorised fan box for longer lengths.
Which kitchens is this pack designed for?
This pack is designed for restaurant kitchens exceeding 20 kW of cooking equipment: hobs, fryers, griddles and ovens under continuous service pressure. The hood length is chosen according to your cooking line, from 1.5 m for a compact station up to 4 m for a full battery in an open kitchen. For a lighter-duty premises (snack bar, food truck), take a look at our compact eco pack 1 to 2 m, less powerful but sufficient for moderate use.
Installation and connection
The hood is delivered flat-packed and assembles in around twenty minutes following our installation instructions. Ducting and connection accessories between the hood and the fan box are not supplied with this pack: you'll find them in the "To be combined with" section below. The electrical connection of the motor and speed controller must be carried out by a professional, a condition required for the 1-year warranty to apply.
Points to check before ordering
- Hood length suited to your cooking line (1.5 to 4 m available)
- Power rating of your cooking equipment: this pack is intended for kitchens exceeding 20 kW
- Required connection diameter (355 or 400 mm depending on model) compatible with your existing ductwork
- Planned location for the remote fan box: roof, loft space or accessible plant room
- Availability of a professional for the electrical connection, required for the warranty
To be combined with
Installation instructions to download here.
