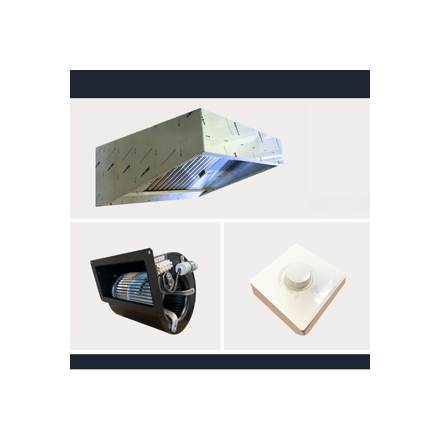

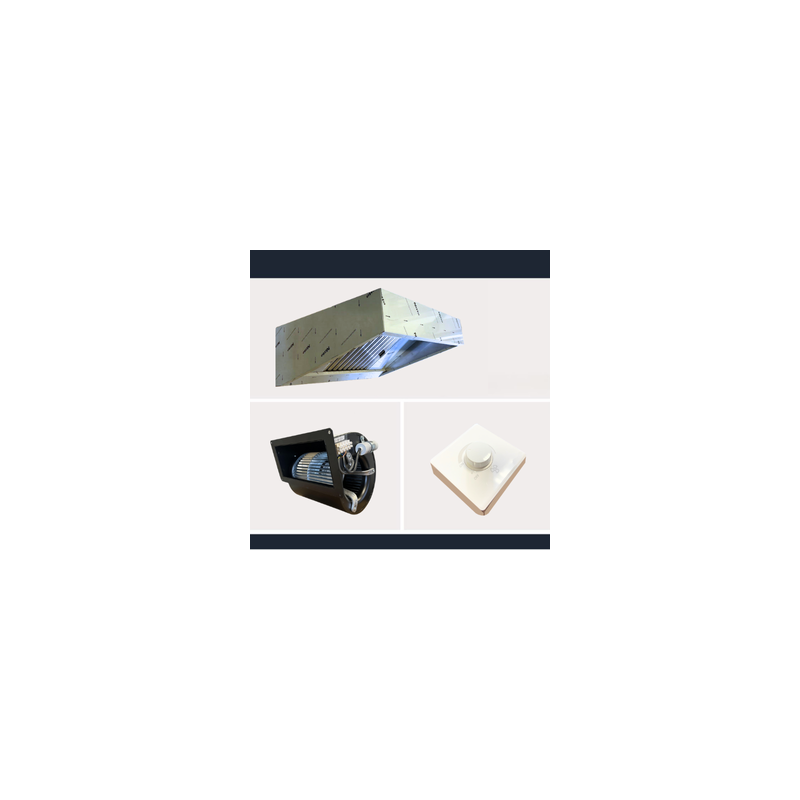

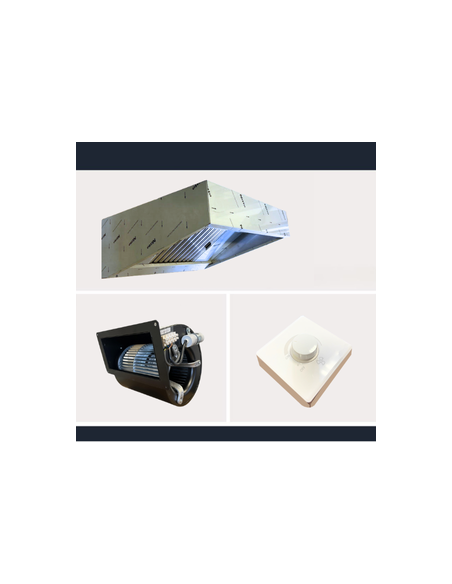

Affordable Range Hood Bundle - Speed Controller/Motor/Range Hood
Commercial Rang Hood Professional-grade stainless steel exhaust fan with motor, speed controller, and light – affordable, vue 2
Commercial Rang Hood Professional-grade stainless steel exhaust fan with motor, speed controller, and light – affordable, vue 3
Commercial Rang Hood Professional-grade stainless steel exhaust fan with motor, speed controller, and light – affordable, vue 4
Commercial Rang Hood Professional-grade stainless steel exhaust fan with motor, speed controller, and light – affordable, vue 5
Commercial Rang Hood Professional-grade stainless steel exhaust fan with motor, speed controller, and light – affordable, vue 6

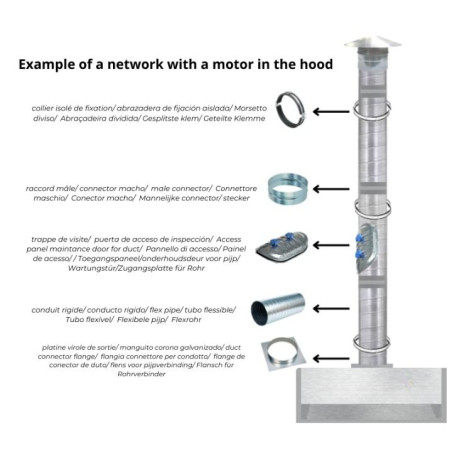

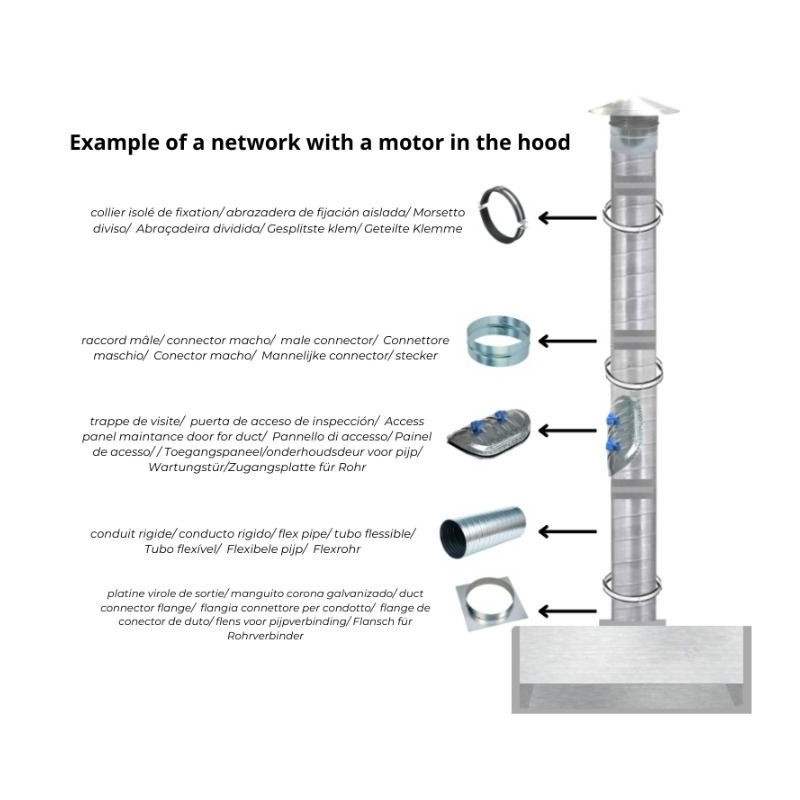

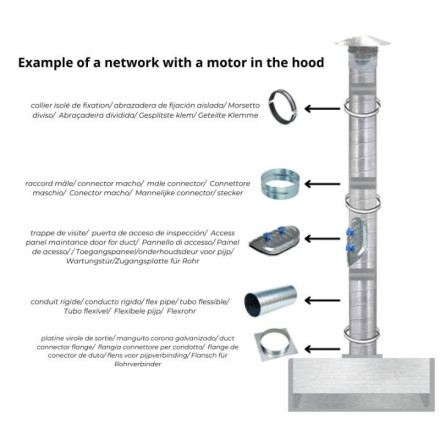

Ventilation System Diagram
Affordable Range Hood Bundle - Speed Controller/Motor/Range Hood
Commercial Rang Hood Professional-grade stainless steel exhaust fan with motor, speed controller, and light – affordable, vue 2
Commercial Rang Hood Professional-grade stainless steel exhaust fan with motor, speed controller, and light – affordable, vue 3
Commercial Rang Hood Professional-grade stainless steel exhaust fan with motor, speed controller, and light – affordable, vue 4
Commercial Rang Hood Professional-grade stainless steel exhaust fan with motor, speed controller, and light – affordable, vue 5
Commercial Rang Hood Professional-grade stainless steel exhaust fan with motor, speed controller, and light – affordable, vue 6
Ventilation System Diagram

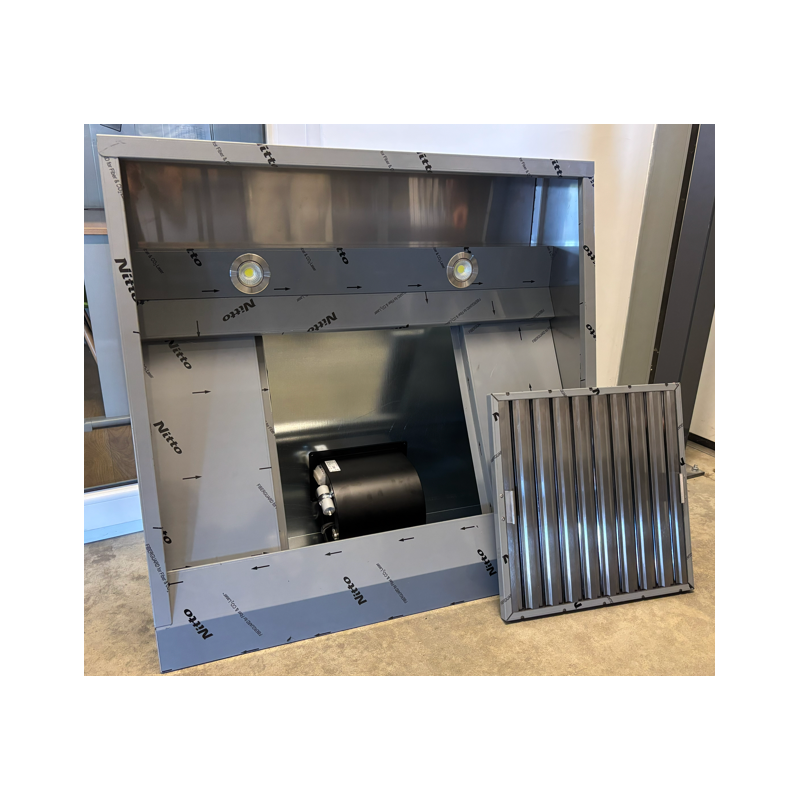

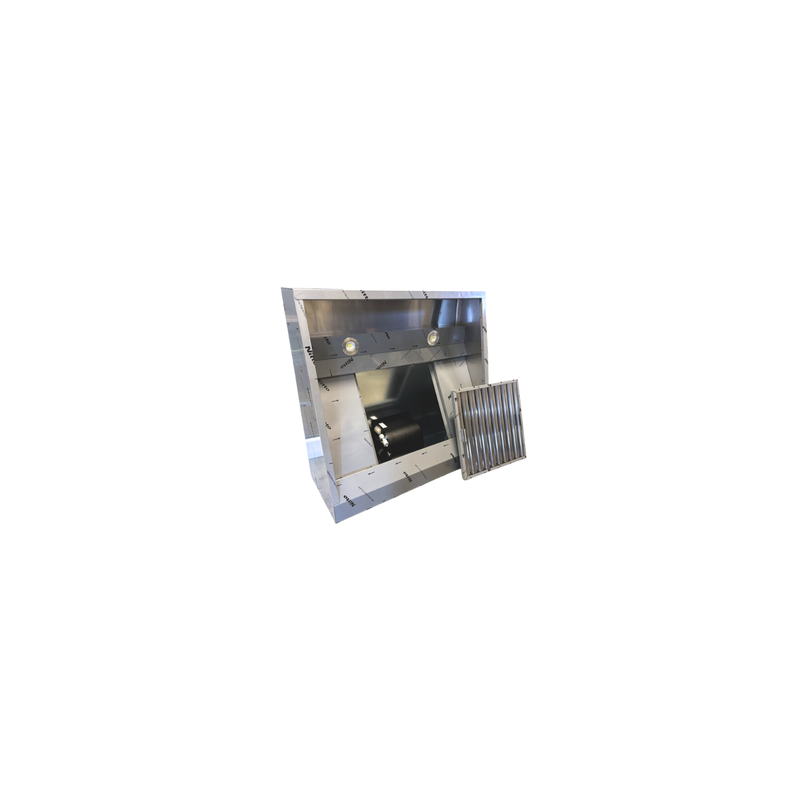

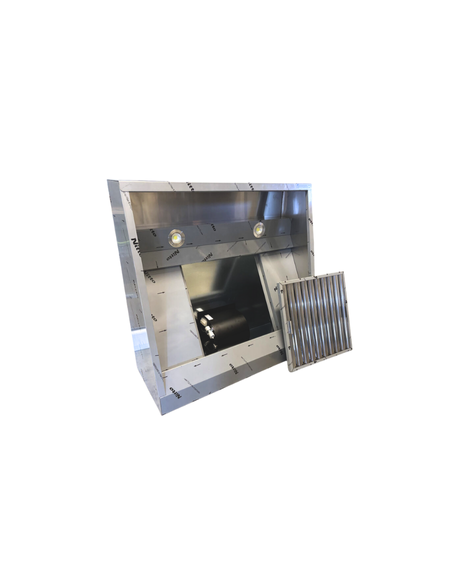

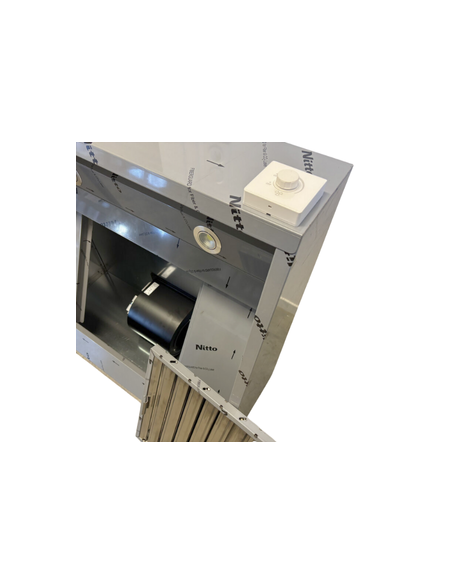

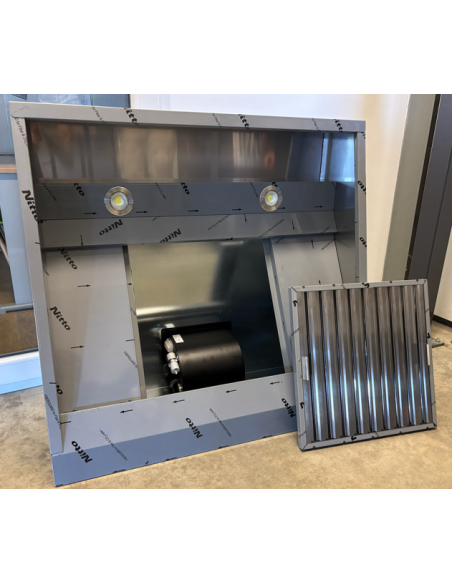

This complete stainless steel 430 commercial kitchen hood, supplied assembled with its integrated light, centrifugal fan unit and fan speed controller for fitting on site, is ideal for a small restaurant kitchen, takeaway, crêperie or food truck, at a very competitive price. The fan delivers 1400 m³/h and adjusts smoothly thanks to the supplied speed controller.

  • Dimensions: L 1000, 1200 or 1600 mm x D 950 mm x H 400 mm
  • Extraction fan: 1400 m³/h, 230 V (to be fitted)
  • Compact speed controller: 1.5 A / 220 V (to be fitted)
  • Recommended duct diameter: 160, 200 or 250 mm
  • Package weight: 40 kg
Selected length
In stock
Quantity
429.00 585.00 Tax excluded
514,8 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments

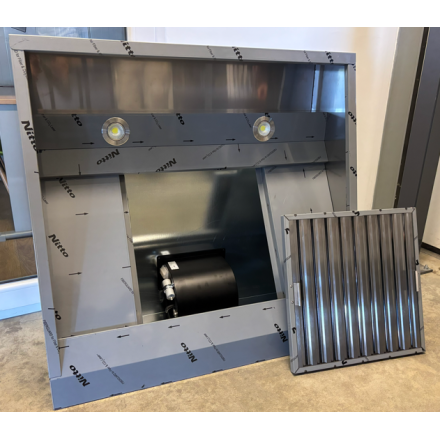

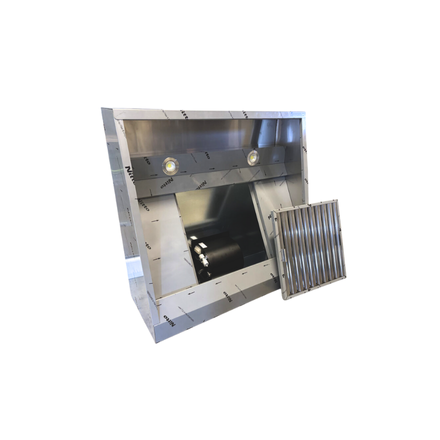

The stainless steel commercial kitchen hood with fan and speed controller is a dynamic extraction hood made of stainless steel 430, supplied assembled with its integrated LED light, centrifugal fan unit and fan speed controller for fitting on site, ideal for a small restaurant kitchen, takeaway, pizzeria or food truck, at a very competitive price. The fan delivers 1400 m³/h, enough to cover everyday cooking use without breaking the budget.

Stainless steel commercial kitchen hood with fan: technical specifications

This commercial hood is built around simple installation and a tight price, without compromising on the features that matter day to day: low height for tight spaces, a deep canopy to capture fumes effectively, reliable extraction and on the fly airflow adjustment.

Specification Value
Material Stainless steel 430
Height 400 mm
Depth (canopy) 950 mm
Length 1 metre, 1.2 metres or 1.6 metres
Fan unit Centrifugal fan unit, 1400 m³/h
Fan power supply 230 V single-phase
Speed controller 1.5 A / 220 V
Recommended duct diameter 160, 200 or 250 mm
Lighting Integrated LED light (switch not supplied)
Filtration 1 large stainless steel filter (2 on the 1.6 m version), 2 stainless steel blanking plates, stainless steel drain screw
Package weight 40 kg
Warranty 1 year

Dynamic or static hood: which one for your commercial kitchen?

A dynamic hood is one where the fan unit is built directly into the canopy, as with this model: there is no separate extraction fan box to fit elsewhere, extraction is ready as soon as the fan and speed controller are installed. A static hood, on the other hand, has no built in fan: its motor is located elsewhere, in another room or outside, connected via a duct network. This dynamic hood suits premises that want a complete, professional set up without a high price tag: takeaways, pizzerias, small restaurant kitchens or food trucks. Its low height of 400 mm makes it practical in a tight space, and its 950 mm deep canopy helps direct fumes efficiently towards the filtration. The integrated centrifugal fan unit at 1400 m³/h covers everyday moderate cooking use. Above 20 kW of cooking power in an open kitchen, regulations may require a 400°C / 2 hour rated smoke extraction system: in its standard configuration, this hood does not meet that requirement and is suited to installations that are not subject to it.

Installation and connection

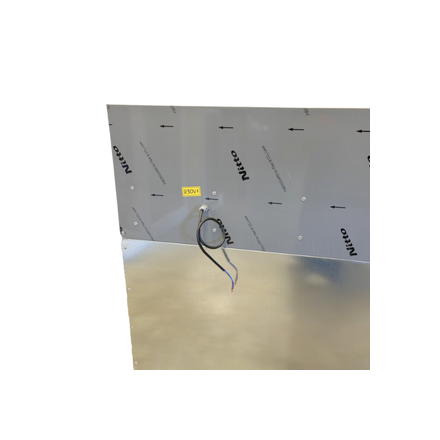

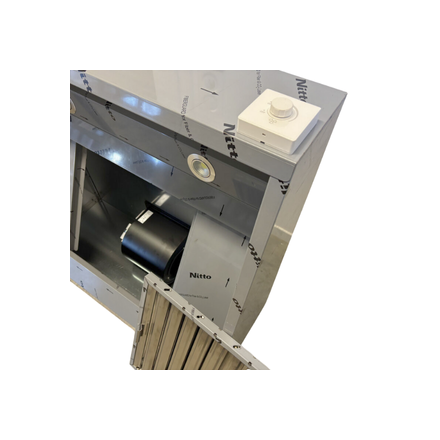

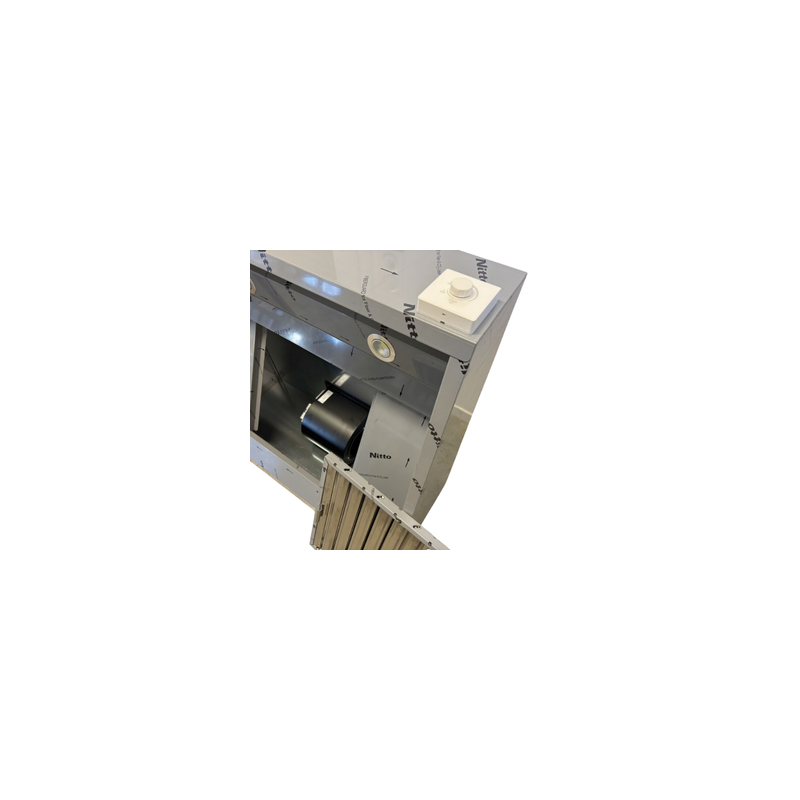

The hood is supplied assembled, light included: only the fan and speed controller remain to be fitted. You can choose top or rear extraction depending on the layout of your premises. The speed controller is fitted separately and lets you adjust airflow to suit busy service or quieter periods. Ducting and connection accessories are not supplied: find all the ventilation accessories for commercial kitchen hoods in the dedicated tab. Electrical connections must be carried out by a qualified professional, a condition required to keep the 1 year warranty valid.

Points to check before ordering

  • Hood length suited to your cooking line: 1 metre, 1.2 metres or 1.6 metres
  • Duct diameter available on your network: 160, 200 or 250 mm; a wider diameter limits pressure losses on a long run or with several elbows
  • Total power of your cooking equipment: above 20 kW in an open kitchen, a 400°C / 2 hour rated system is required, which this hood does not cover as standard
  • Preferred extraction direction (top or rear) to plan the layout
  • Availability of a qualified professional for the electrical connection of the fan and speed controller

Recommended with

A complete, ready to install unit, to get your extraction up and running without delay.

Product Details

Ventilsogood
hotsupeco1
Selected length
Available Length
1 meter
Available Length
1.2 meters
Available Length
1.6 meters
Manufacturing
Made in France
Warranty
1 year
Package weight
40 kg
Engine
Centrifugal Fan
Food
230V Mono
Engine power
0 to 2,000 m³/h
0657968113619

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What is the difference between a static and a dynamic hood like this one?

This hood is dynamic: its fan unit is built directly into the canopy, which simplifies installation but puts the fan noise closer to the kitchen. A static hood has no built in fan: its motor is located elsewhere and connected via ducting. This hood is supplied assembled, light included, with its 1400 m³/h fan to be fitted.

What duct diameter should I choose for this commercial kitchen hood?

The recommended duct diameter for this hood is 160, 200 (recommended) or 250 mm, depending on your extraction network configuration. A wider diameter limits pressure losses on a long run or with several elbows. The exact choice depends on your installation: duct length, number of elbows and discharge point.

Is this hood compatible with a 400°C/2 hour smoke extraction requirement?

No, in its standard configuration this hood is not designed to meet a 400°C / 2 hour rated requirement. This requirement can apply above 20 kW of cooking power in an open kitchen. If your premises exceed this threshold, you will need an extraction system specifically compliant with this regulation.

Is the speed controller supplied with the hood?

Yes, the compact 1.5 A / 220 V speed controller is supplied with this stainless steel commercial kitchen hood. It is fitted separately from the fan and lets you adjust the extraction rate according to cooking intensity, from quiet service to peak times.

Which length should I choose between the 1 metre, 1.2 metre and 1.6 metre versions?

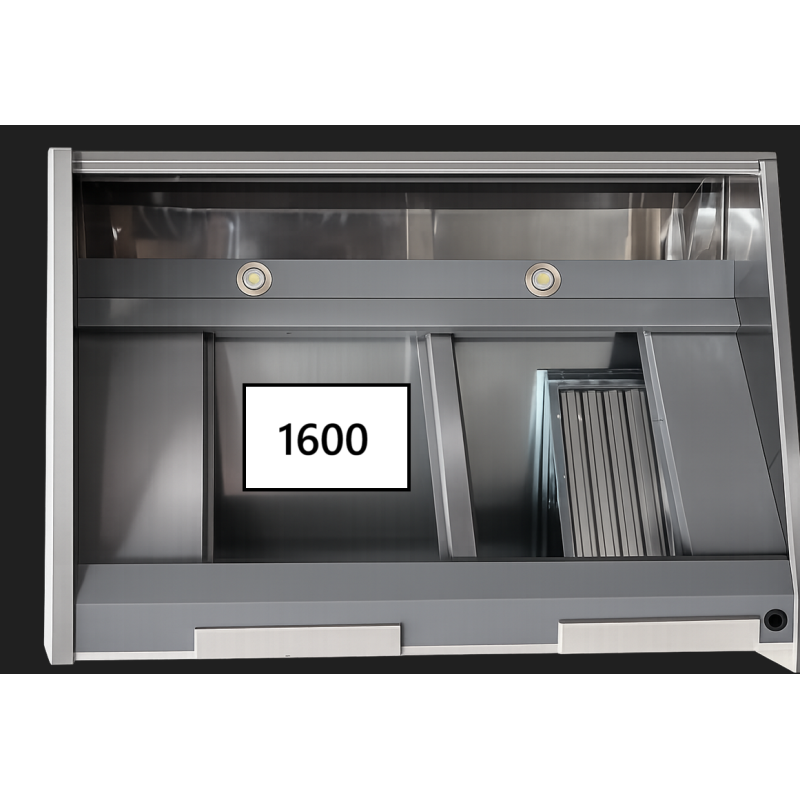

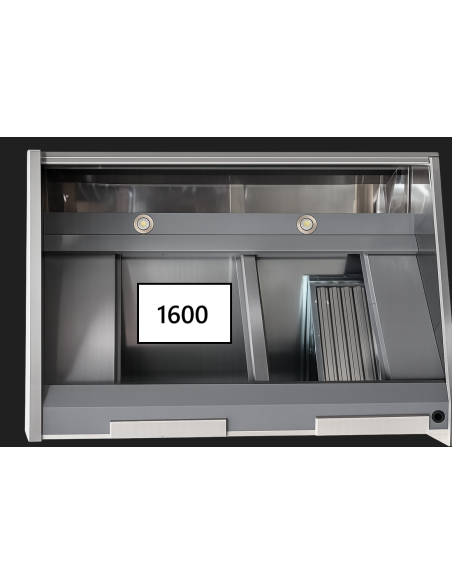

The 1 metre version suits a compact cooking station, typical of a food truck or a takeaway with little equipment. The 1.2 metre version covers a medium sized cooking line. The 1.6 metre version, supplied with 2 stainless steel filters instead of 1, covers a wider cooking line, suited to a crêperie, tapas bar, pinchos bar or a small kitchen.
