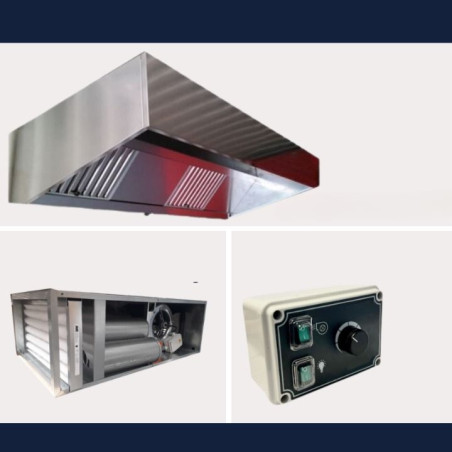

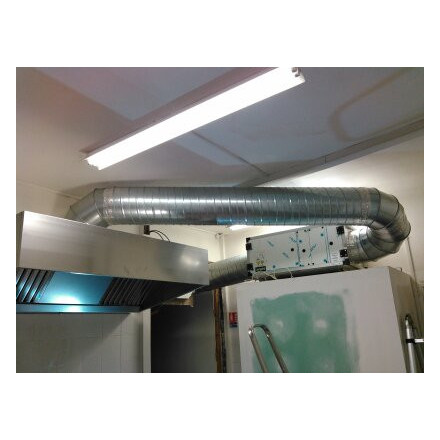

Range hood package with stainless steel range hood and built-in snail-type motor in the odor-proof cabinet; not compatible witho
CLASSIC ANTI-ODOR Range Hood Package: 1–4 m range hood + charcoal filter unit with remote motor + 220V speed controller, vue 2
CLASSIC ANTI-ODOR Range Hood Package: 1–4 m range hood + charcoal filter unit with remote motor + 220V speed controller, vue 3
CLASSIC ANTI-ODOR Range Hood Package: 1–4 m range hood + charcoal filter unit with remote motor + 220V speed controller, vue 4

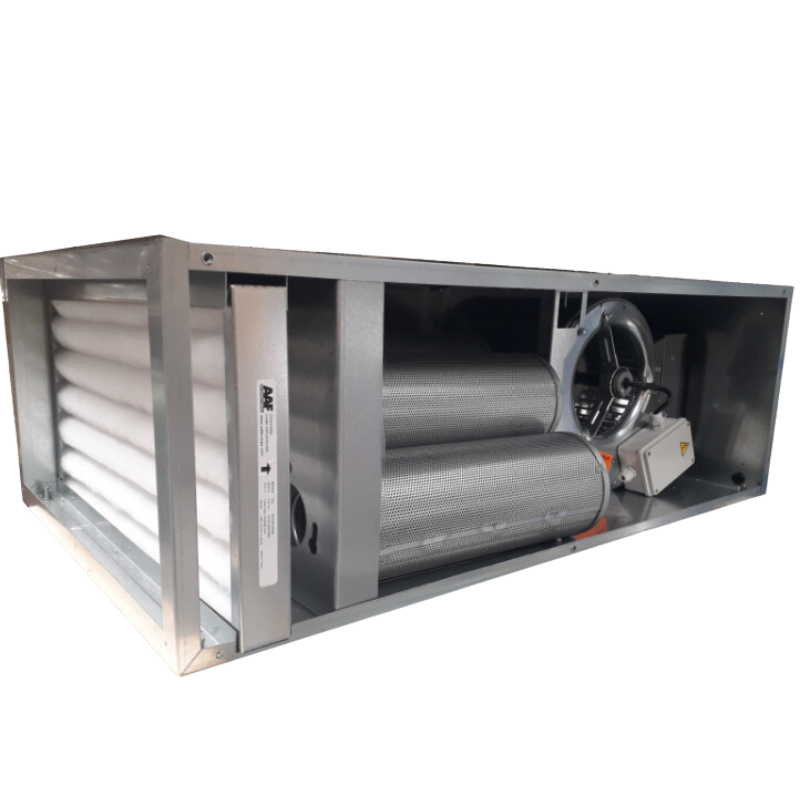

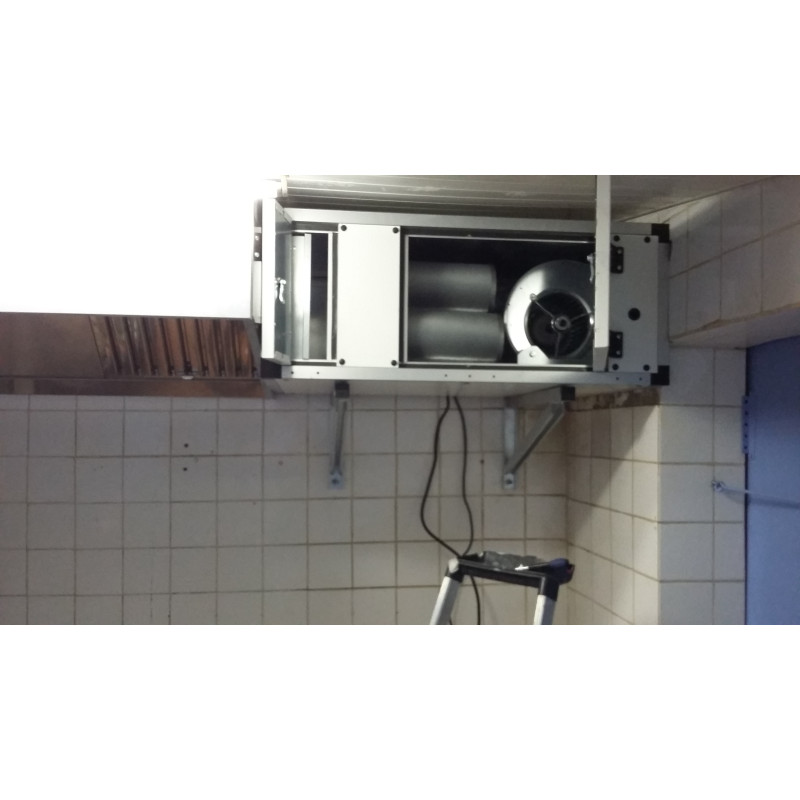

Odor-control charcoal filter with built-in motor

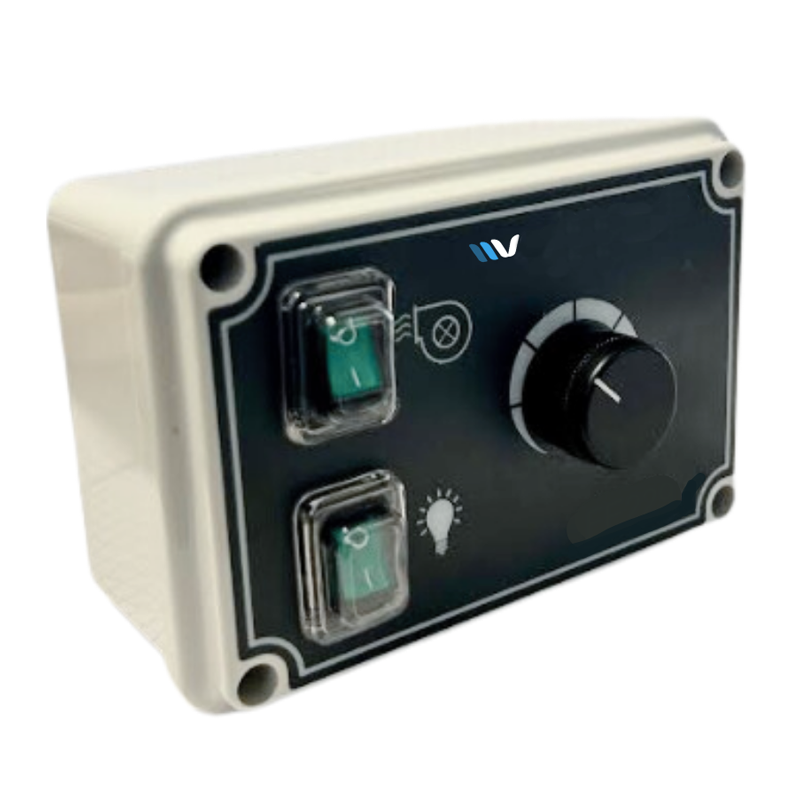

Frequency-conversion speed controller for a professional kitchen range hood motor, 4.5 A, single-phase
CLASSIC ANTI-ODOR Range Hood Package: 1–4 m range hood + charcoal filter unit with remote motor + 220V speed controller, vue 7
CLASSIC ANTI-ODOR Range Hood Package: 1–4 m range hood + charcoal filter unit with remote motor + 220V speed controller, vue 8
CLASSIC ANTI-ODOR Range Hood Package: 1–4 m range hood + charcoal filter unit with remote motor + 220V speed controller, vue 9

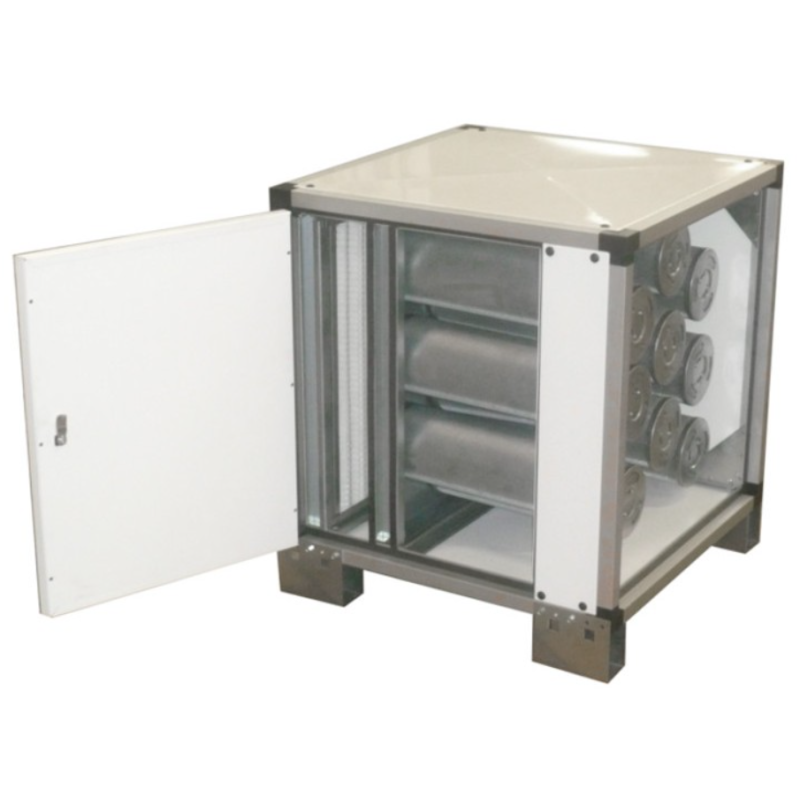

Odor-control activated carbon filter for commercial kitchens

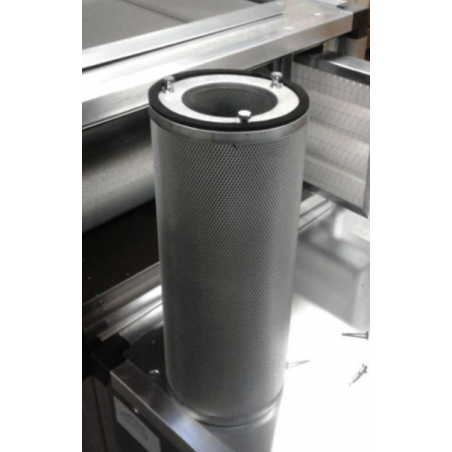

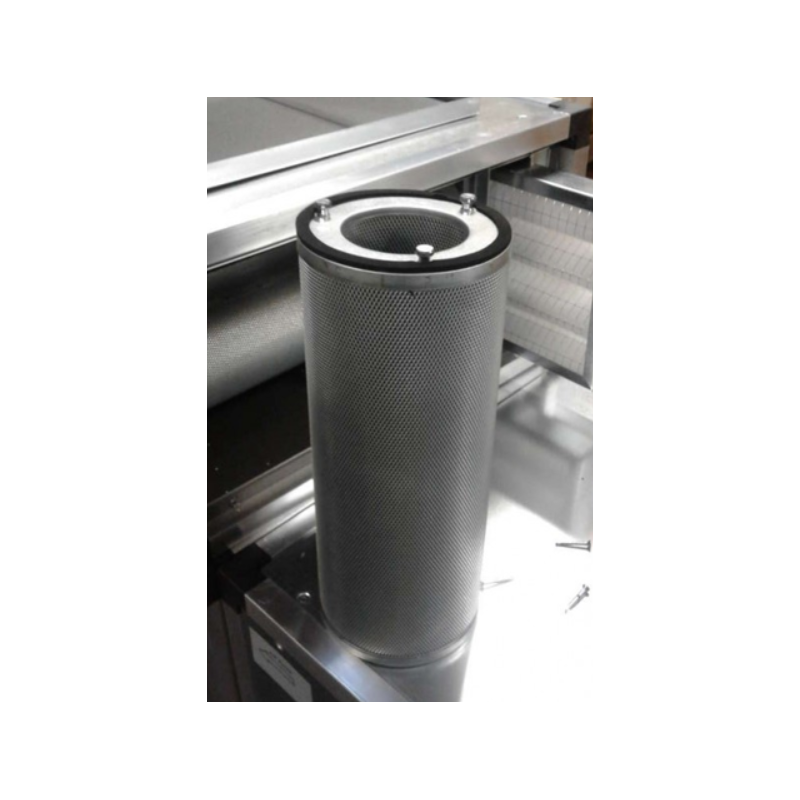

Odor-control charcoal cartridge for the cabinet
range hood package with a stainless steel range hood and a snail-type motor built into the odor-proof cabinet
Video
Range hood package with stainless steel range hood and built-in snail-type motor in the odor-proof cabinet; not compatible witho
CLASSIC ANTI-ODOR Range Hood Package: 1–4 m range hood + charcoal filter unit with remote motor + 220V speed controller, vue 2
CLASSIC ANTI-ODOR Range Hood Package: 1–4 m range hood + charcoal filter unit with remote motor + 220V speed controller, vue 3
CLASSIC ANTI-ODOR Range Hood Package: 1–4 m range hood + charcoal filter unit with remote motor + 220V speed controller, vue 4
Odor-control charcoal filter with built-in motor
Frequency-conversion speed controller for a professional kitchen range hood motor, 4.5 A, single-phase
CLASSIC ANTI-ODOR Range Hood Package: 1–4 m range hood + charcoal filter unit with remote motor + 220V speed controller, vue 7
CLASSIC ANTI-ODOR Range Hood Package: 1–4 m range hood + charcoal filter unit with remote motor + 220V speed controller, vue 8
CLASSIC ANTI-ODOR Range Hood Package: 1–4 m range hood + charcoal filter unit with remote motor + 220V speed controller, vue 9
Odor-control activated carbon filter for commercial kitchens
Odor-control charcoal cartridge for the cabinet
range hood package with a stainless steel range hood and a snail-type motor built into the odor-proof cabinet

Complete stainless steel commercial extraction hood package from 1 to 4 metres with activated carbon filter unit for odour control and 230V speed controller: the solution for extraction without external odours.

  • Lengths available: 1 to 4 metres (7 sizes)
  • Power supply: 230V single-phase
  • Motor: remote motor with the filter unit or in 2 modules depending on length
  • Airflow: from 2600 to 6000 m³/h depending on size chosen
  • Filtration: multi-cartridge activated carbon + G4 pre-filter
Selected length
In stock
Quantity
1,639.00 Tax excluded
1966,8 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments


The CLASSIC ANTI-ODOR Range Hood Package is a complete extraction solution with activated carbon filtration, designed for commercial kitchens where the air outlet is on a front facade or in a densely populated area. It combines a stainless steel range hood, an odour control filter unit and a speed controller, for lengths from 1 to 4 metres (other sizes available on request).

An anti-odour package designed to reduce noise in the kitchen

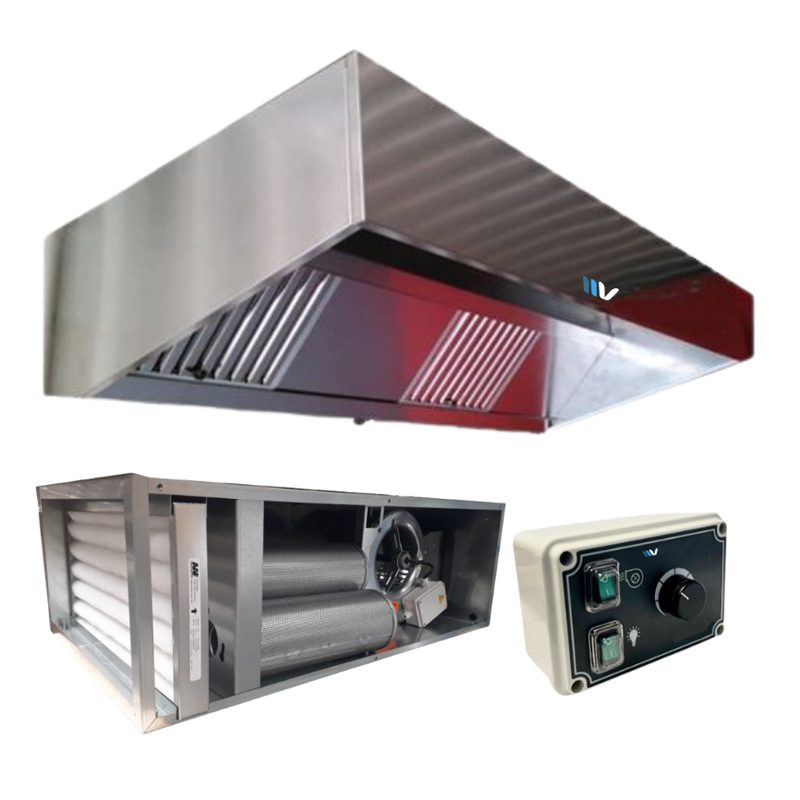

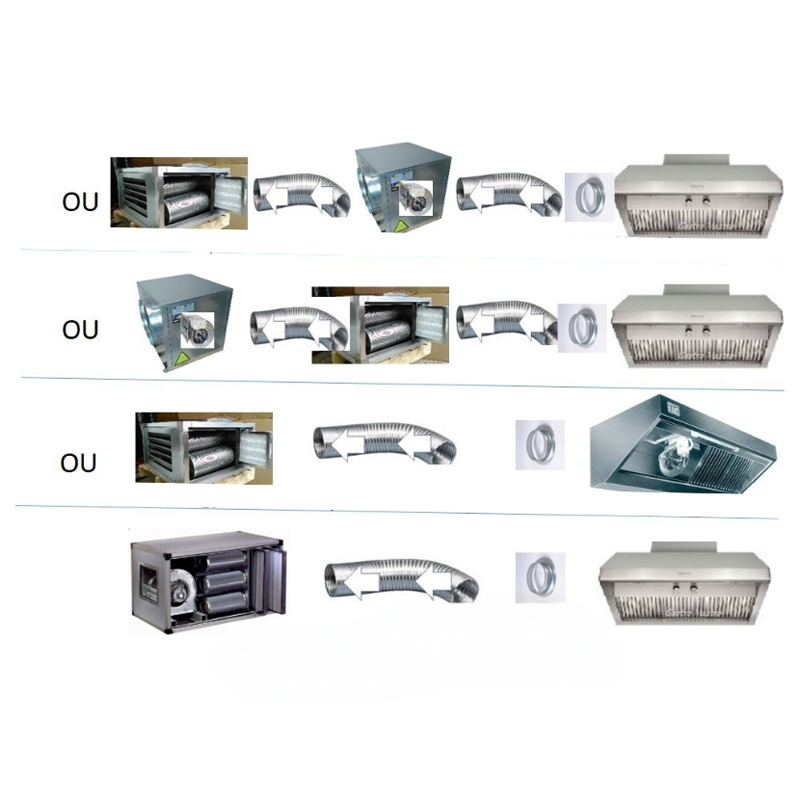

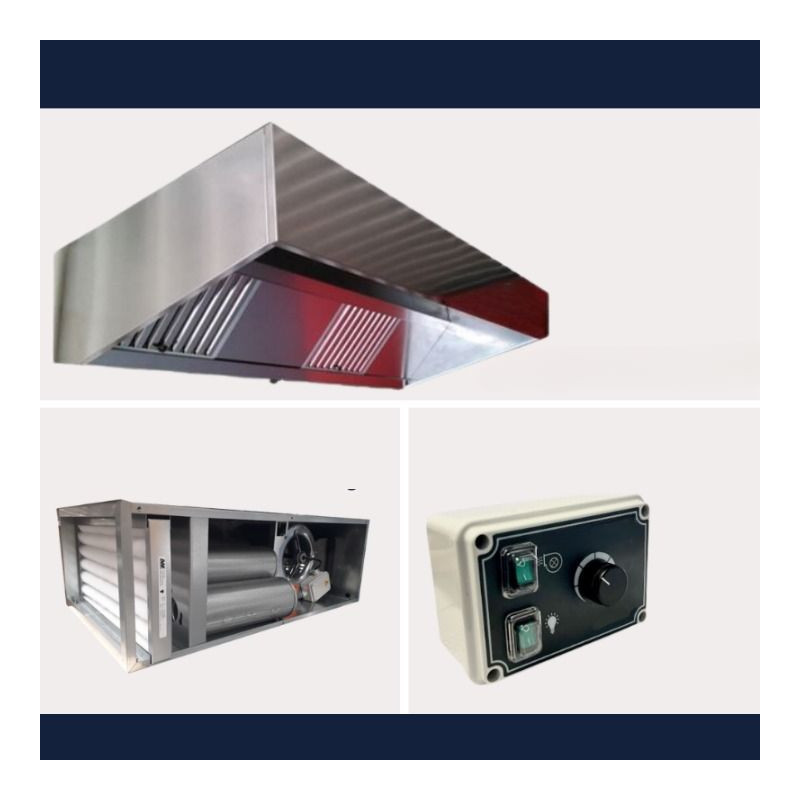

This package combines a commercial kitchen hood in stainless steel, a carbon cartridge filter unit and a single-phase fan speed controller. On the 2.5 m, 3 m, 3.5 m and 4 m lengths, the motor is housed in a separate, remote fan box, away from the carbon filter unit. On the 1 m, 1.5 m and 2 m lengths, the motor is built directly into the carbon filter unit. Moving the motor further from the hood reduces noise levels and wear. The activated carbon traps odour molecules and significantly reduces the smell of cooking fumes released, while a G4 pre-filter protects the cartridges from grease build-up.

Technical specifications

Specification Value
Lengths available 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 3.5 m, 4 m

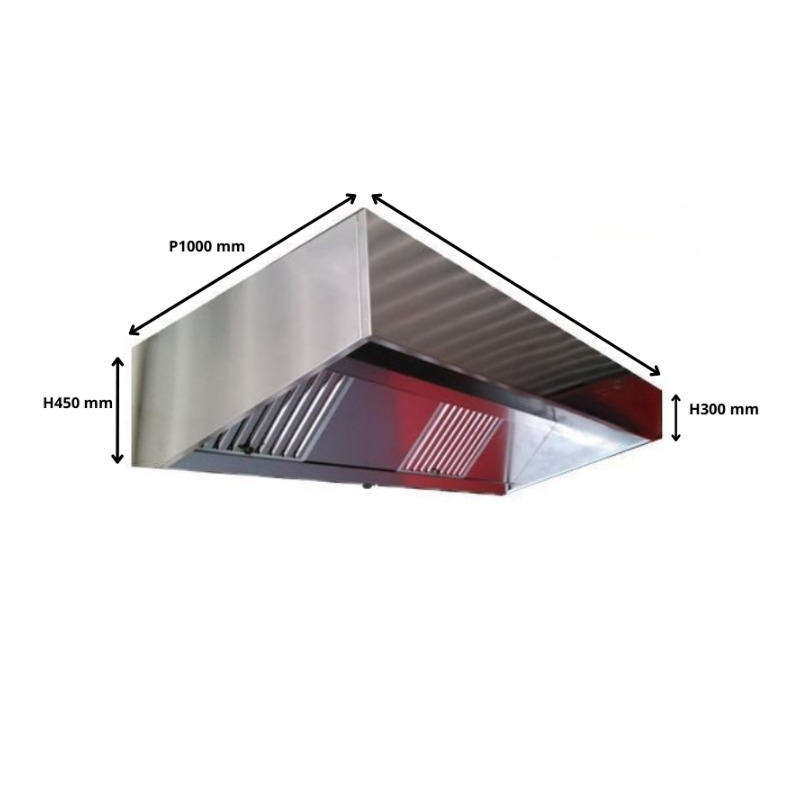

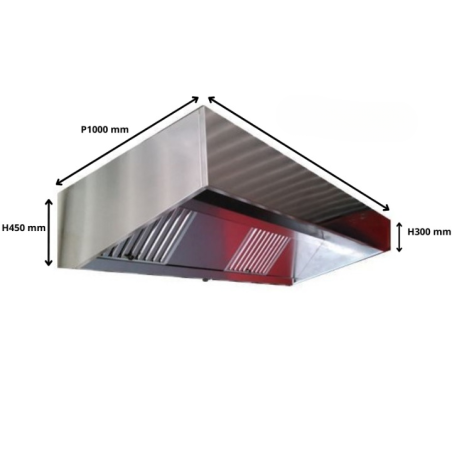

Hood dimensions (1 to 2 m) L 1000/1500/2000 x D 1000 x H 450 mm, front skirt H 300 mm
Hood dimensions (2.5 m) L 2500 x D 1000 x H 450 mm, front skirt H 300 mm
Hood dimensions (3 to 4 m) L 3000/3500/4000 x D 1000 x H 450 mm, front skirt H 300 mm, 1 or 2 modules
Motor (1 to 2 m) Integrated Nicotra motor, 2600 m³/h, 230V, 300W
Motor (2.5 m) Remote fan box 9/9, 3500 m³/h, 230V
Motor (3 to 4 m) Remote fan box 12/12, 6000 m³/h, 230V
Speed controller (1 to 2 m) 230V, 4.5A, light switch
Speed controller (2.5 to 4 m) 230V, 8A, light switch
Carbon filtration 5 to 12 cartridges depending on length, G4 pre-filter
Power supply 230V single-phase
Manufacturing Made in France
Warranty 1 year
Weight 90 kg (parcel 135 kg)

Which kitchens is this anti-odour package suited to?

This package is designed for commercial kitchens that do not have a roof extract outlet, or that want to eliminate the risk of external odours. The activated carbon treats cooking odours rather than discharging them through an external duct. Please note: this package does not meet F400 fire resistance requirements (400°C / 2 hours) and may not suit the specifics of your ductwork. We recommend you contact us before ordering to confirm the configuration suited to your kitchen.

Installation and connection

On the 1 to 2 m packages, the filter unit's inlet and outlet are 315 mm in diameter. On the 2.5 m package, we recommend ductwork of at least D 315, ideally D 355 mm for better performance. On the 3 to 4 m packages, the carbon filter unit's inlet and outlet should be made up in 400 mm diameter, and the remote fan box is supplied with two 400 mm inlet/outlet spigots to fit if required. An installation guide is available to download here. Only the electrical connection must be carried out by a qualified electrician for the warranty to apply.

Points to check before ordering

  • Measure your cooking line and allow for a hood overhang of at least 10 cm on each side.

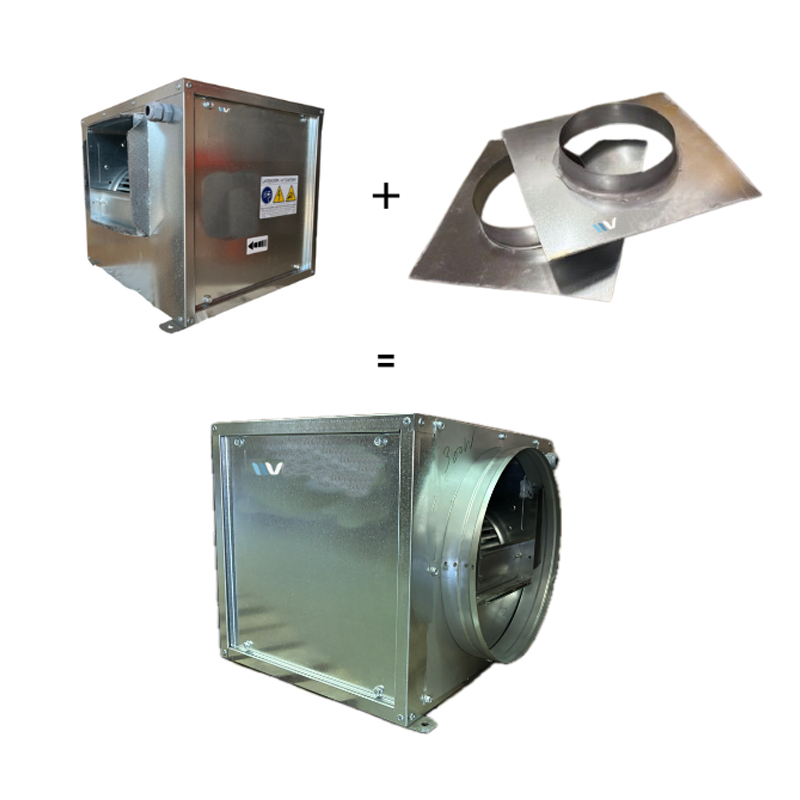

  • Check the space available for the remote fan box (up to 700 x 700 x 700 mm on the 3 to 4 m lengths): it is often installed in a loft space or nearby plant room.
  • Check the ductwork diameter required for your chosen length (315 mm or 400 mm) before ordering your connection accessories.
  • Confirm that your installation does not require smoke extraction or F400 compliance, as this package is not certified for these uses.
  • Keep in mind that actual airflow also depends on duct length, elbows and the make-up air supply in your kitchen.

Goes well with

Need a different configuration? Take a look at our direct-drive range hood package range, our remote motor range hood package without carbon filter, or our compact package for food trucks.

Product Details

Ventilsogood
pckodeurmotdeport
Selected length
Available Length
1 meter
Available Length
1.5 meters
Available Length
2 meters
Available Length
2.5 meters
Available Length
3 meters
Available Length
3.5 meters
Available Length
4 meters
Manufacturing
Made in France
Warranty
1 year
Package weight
135 kg
Engine
Motorized cabinet
Food
230V Mono
Engine power
2,000 to 4,000 m³/h
0657968380196

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

What is the difference between the integrated motor and the remote motor on this package?

On this package, all motors are remote (located outside the hood itself). On the 1 m to 2 m lengths, the 2600 m³/h Nicotra motor is built directly into the carbon filter unit. On the 2.5 m to 4 m lengths, the motor (9/9 or 12/12 depending on size) is housed in a separate fan box. The remote fan box reduces noise and wear caused by proximity to the cooking area.

Does this package meet F400 fire resistance requirements?

No. This package does not meet F400 fire resistance requirements (400°C / 2 hours). It may also not suit the specifics of your existing ductwork. We recommend contacting us before ordering to confirm your configuration.

How many activated carbon cartridges are supplied depending on the length?

The number of cartridges varies with package size: 5 cartridges for the 1 m hood, 6 cartridges for the 1.5 m and 2 m hoods, 6 cartridges also for the 2.5 m hood, and 12 cartridges for the 3 m to 4 m hoods. A G4 pre-filter protects the cartridges from grease build-up.

What ductwork diameter should I plan for connecting this package?

The diameter depends on the length chosen. For the 1 to 2.5 m packages, the inlet and outlet are 315 mm (D 355 mm ductwork is recommended for the 2.5 m package). For the 3 to 4 m packages, the carbon filter unit's inlet and outlet are 400 mm, with spigots supplied for the remote fan box.

Who installs this anti-odour range hood package?

VentilSoGood supplies the equipment but does not carry out installation, which is usually done by our customers with the help of our guides and YouTube tutorials: https://www.youtube.com/@ventilsogood-cee. Only the electrical connection must be carried out by a qualified electrician for the 1-year warranty to apply.
