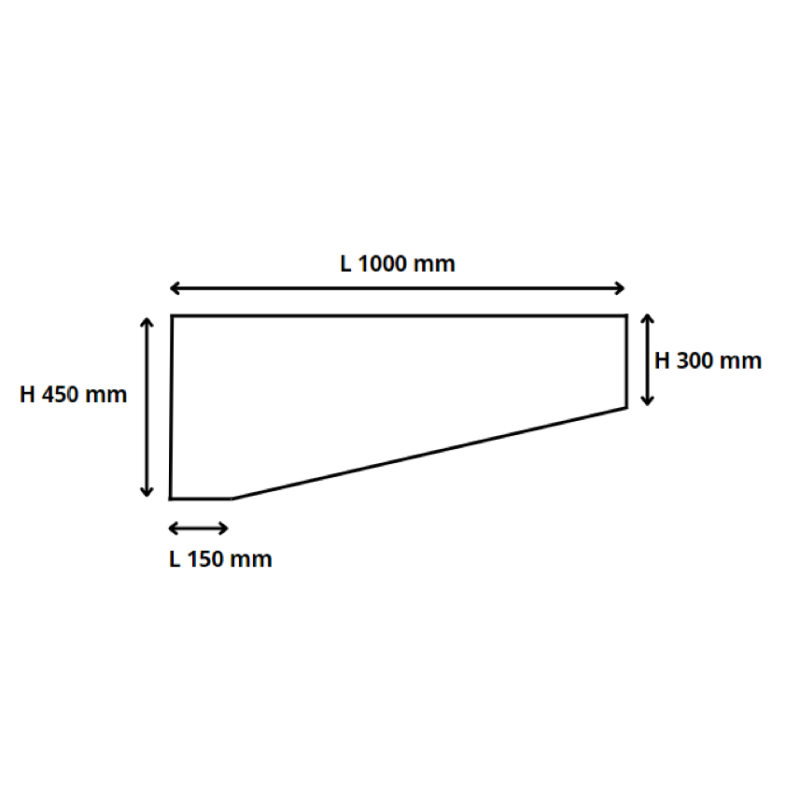

Dimensions of a Professional Stainless Steel Cabinet

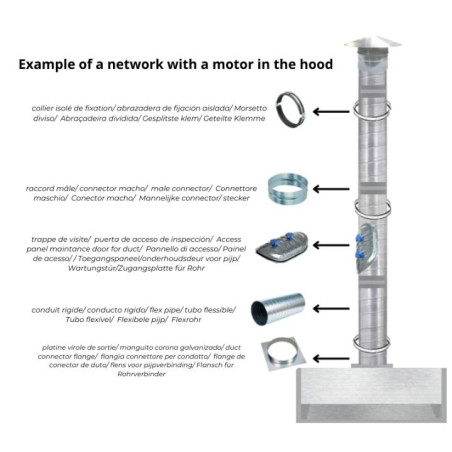

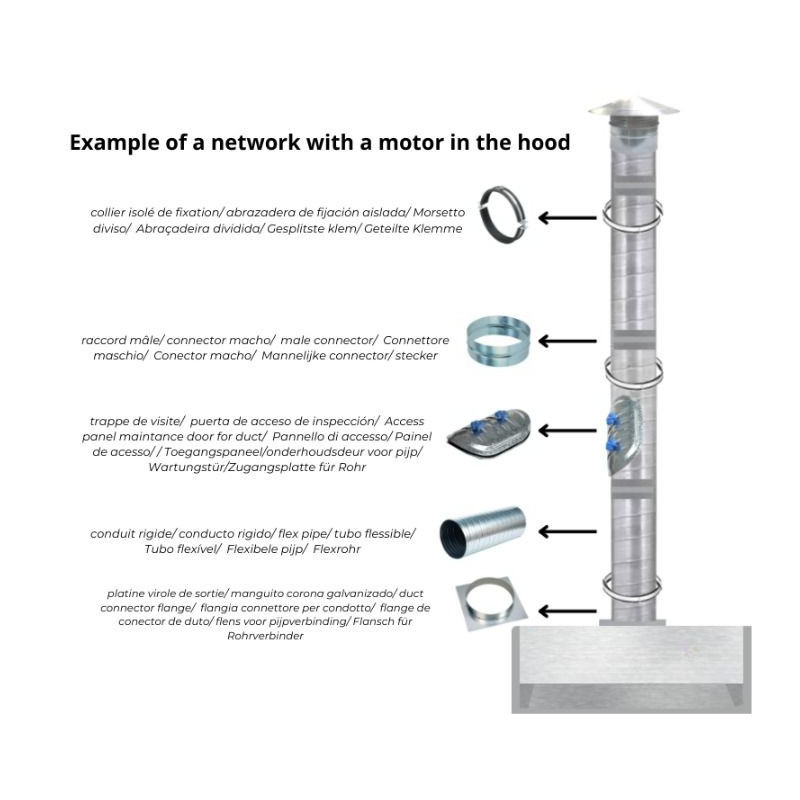

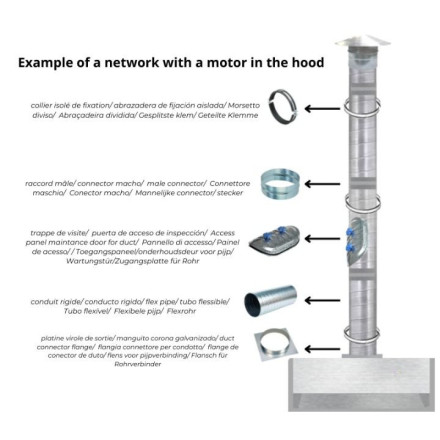

ventilation system diagram

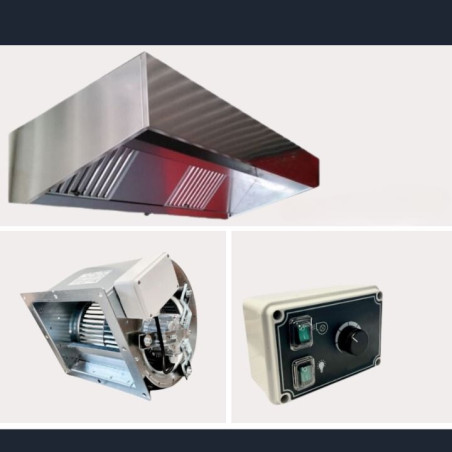

Professional stainless steel kitchen range hood package with motor and speed controller
Classic 1–3-Meter Professional Dynamic Range Hood Package + Motor + 220V Speed Controller, vue 9
Classic 1–3-Meter Professional Dynamic Range Hood Package + Motor + 220V Speed Controller, vue 10

The Classic range commercial kitchen hood fits kitchens from 1 to 3 metres, with double-inlet centrifugal fan and speed controller included, ready to cope with service rush.

  • Lengths available: 1 to 3 metres (other lengths in stock)
  • Motor: double-inlet centrifugal fan 7/7, 7/9 or 8/9
  • Airflow: 1580, 2600 or 3000 m³/h
  • Power supply: 230V / 220V single-phase, 4.5A speed controller
  • Hood height: 450mm (300mm canopy drop)
Selected length
OPTION: More powerful engine
In stock
Quantity
657.00 Tax excluded
788,4 € TTC
In stock

Fast delivery
Advisers 5 days a week
Payment in 3 or 4 instalments

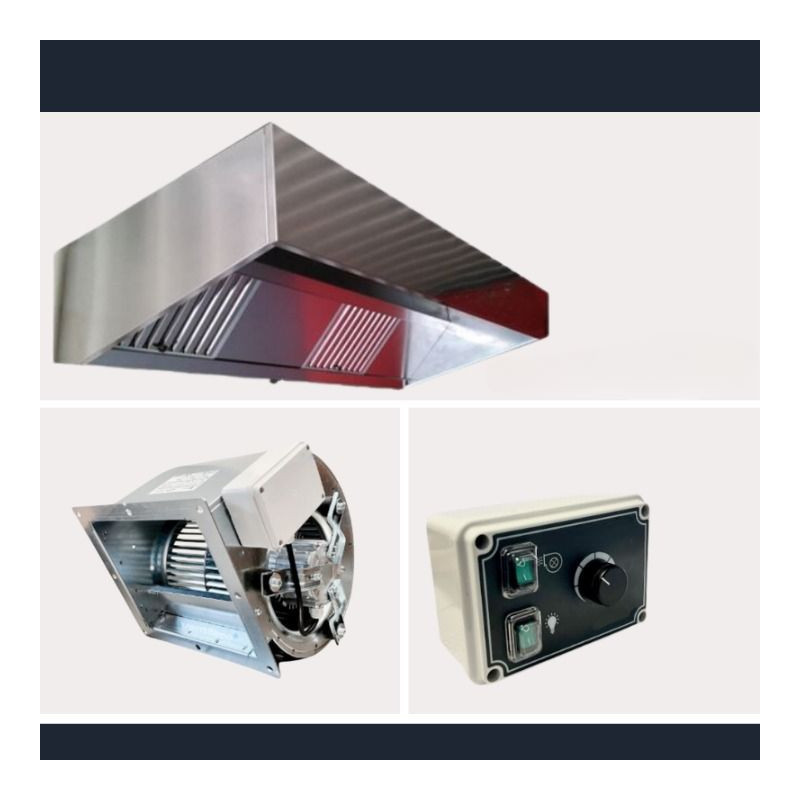

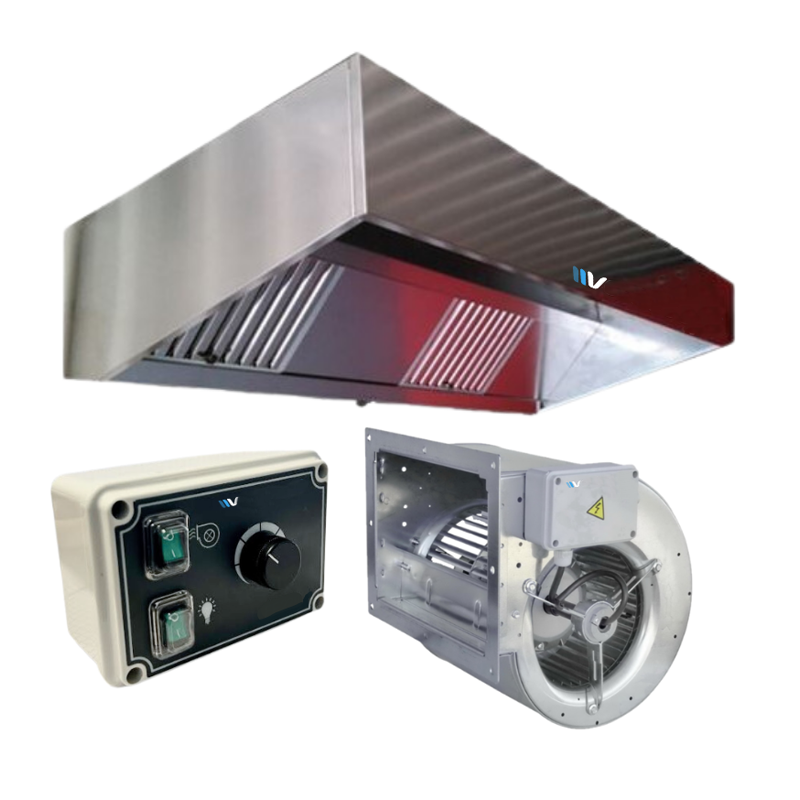

The Classic commercial kitchen hood package includes a stainless steel hood from 1 to 3 metres, a double-inlet centrifugal fan and a 220V speed controller, to fit out a restaurant, fast-food outlet, kebab shop, creperie or brasserie kitchen directly, without having to place several separate orders.

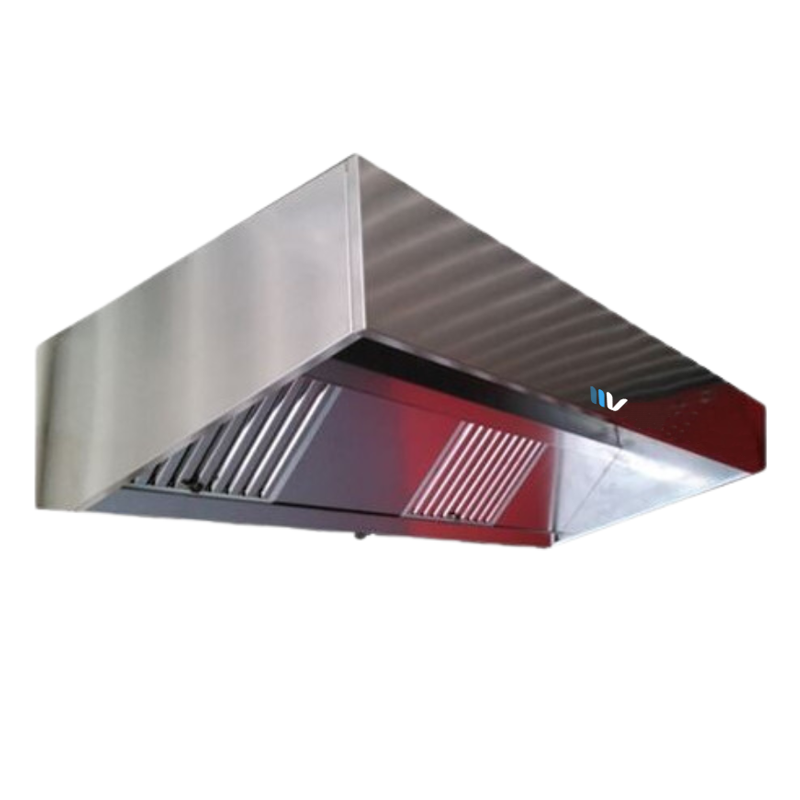

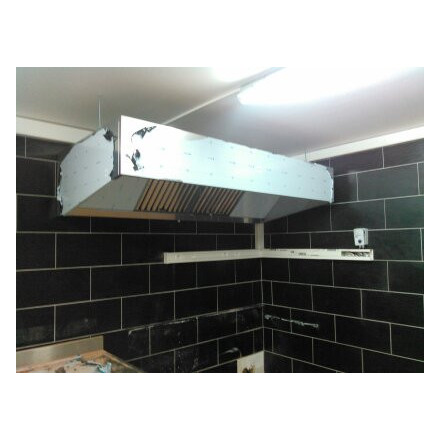

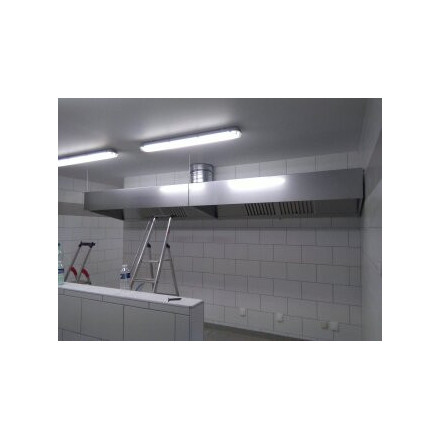

Classic stainless steel commercial kitchen hood

The Classic static hood suits commercial kitchens in restaurants, fast-food outlets, kebab shops, snack bars, creperies or brasseries. It is delivered flat-packed in a box, ready for assembly (allow around 20 minutes with two people), well protected for transport.

It is fitted with stainless steel baffle filters, stainless steel blanking plates and stainless steel drain screws. Its modular design allows the number of filters and blanking plates to be adjusted according to the length chosen. Stainless steel holds up well against heat and corrosion, and is easy to clean, a real plus for day to day hygiene in a commercial kitchen.

An LED light can be added to the hood depending on your cooking area lighting needs.

Technical specifications

Specification Value
Lengths available 1m, 1.5m, 2m, 2.5m, 3m

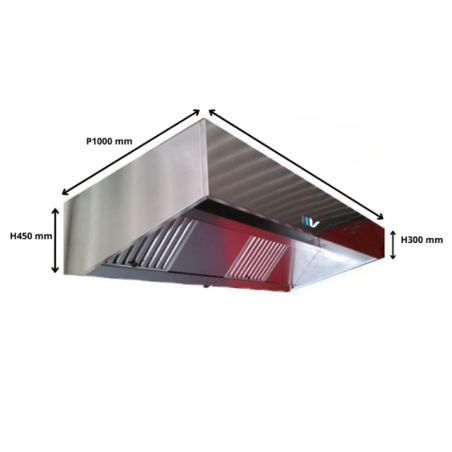

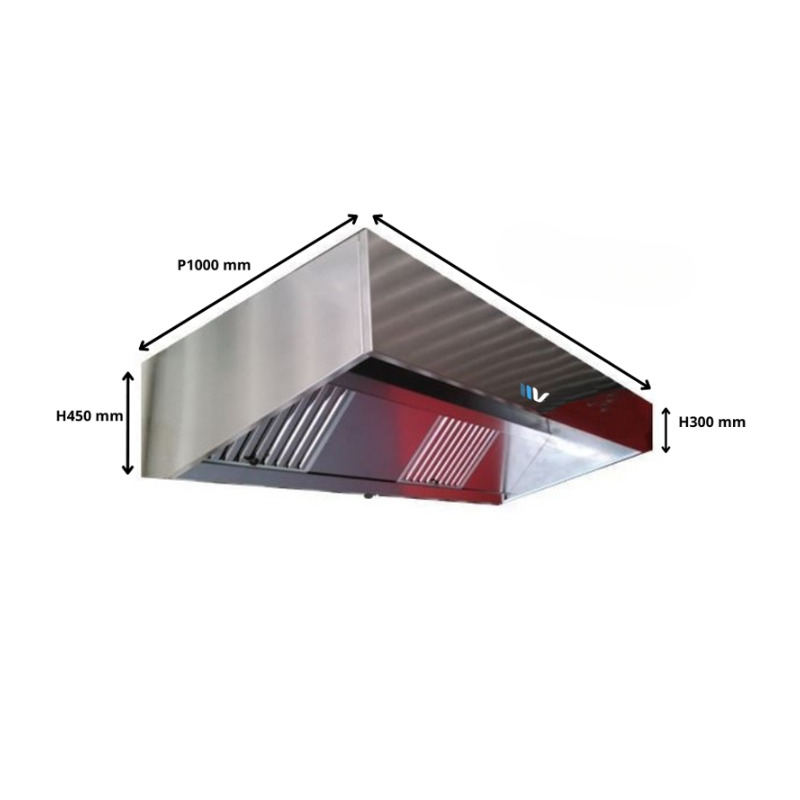

Hood dimensions 1m / 1.5m W 1000 or 1500 x D 1000 x H 450mm
Hood dimensions 2m / 2.5m / 3m W 2000, 2500 or 3000 x D 1000 x H 450mm
Canopy drop 300mm
Motor Double-inlet centrifugal fan 7/7, 7/9 or DDM 9/9T
Airflow, 7/7 motor 1500 m³/h (1580 m³/h depending on designation)
Airflow, 7/9 motor 2600 m³/h
Airflow, 9/9T or 8/9 motor (DDM) 3000 m³/h
Power, 7/7 motor 147 W
Power, 7/9 motor 300 W
Power, 8/9 motor (Nicotra Regal or 99T CMC/S&P) 420 W
Motor power supply 230V / 220V single-phase
Motor protection rating IP54
Speed controller 4.5A, 230V, with light switch
Recommended duct diameter (1m, 1.5m) 250mm (200mm minimum)
Recommended duct diameter (2m) 315mm
Recommended duct diameter (2.5m, 3m) 355mm

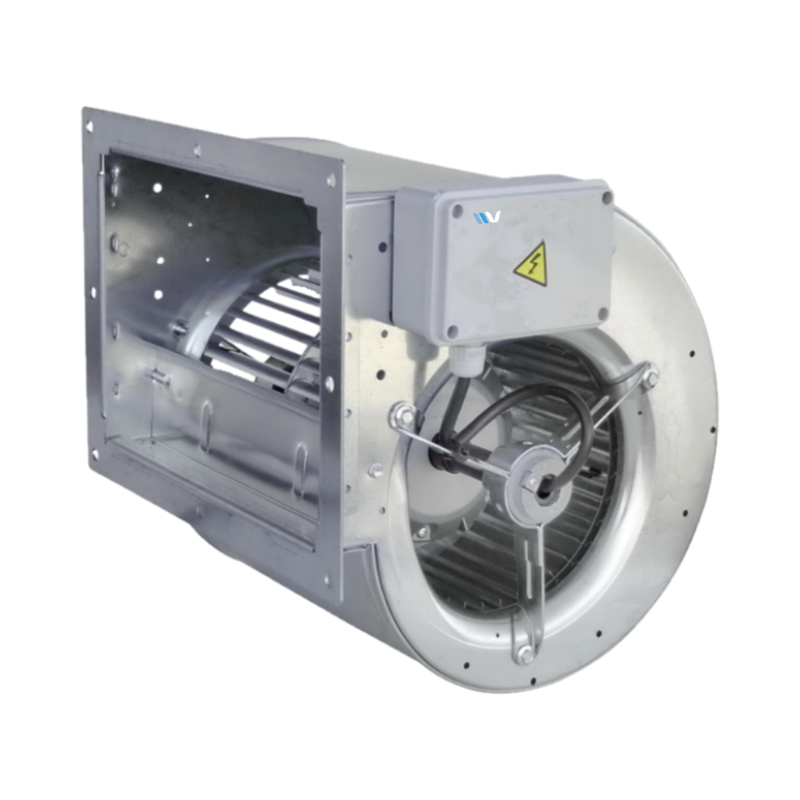

Double-inlet centrifugal fan motor

The double-inlet centrifugal fan is sized to fit a stainless steel hood from 1 to 3 metres and remains compatible with all standard commercial hoods with a 450mm height. Three sizes are offered depending on hood length: the DD 7/7 at 147W for 1580 m³/h, the DD 7/9 at 300W for 2600 m³/h, and the DDM 9/9T or 8/9, depending on the brand (Nicotra Regal or 99T CMC/S&P), at 420W for 3000 m³/h.

The motor is supplied unfitted: extraction can be set up from the top or the rear, with the hood supplied in 1 or 2 sections depending on length. A mounting frame is included to position it within the hood or in a separate fan box. The IP54 housing incorporates the capacitor, for decent protection against grease splashes and humidity in the kitchen.

Above 20kW of cooking equipment load, a 400°C 2 hour fire rated extraction system becomes mandatory: this package, in its standard version, does not cover that requirement.

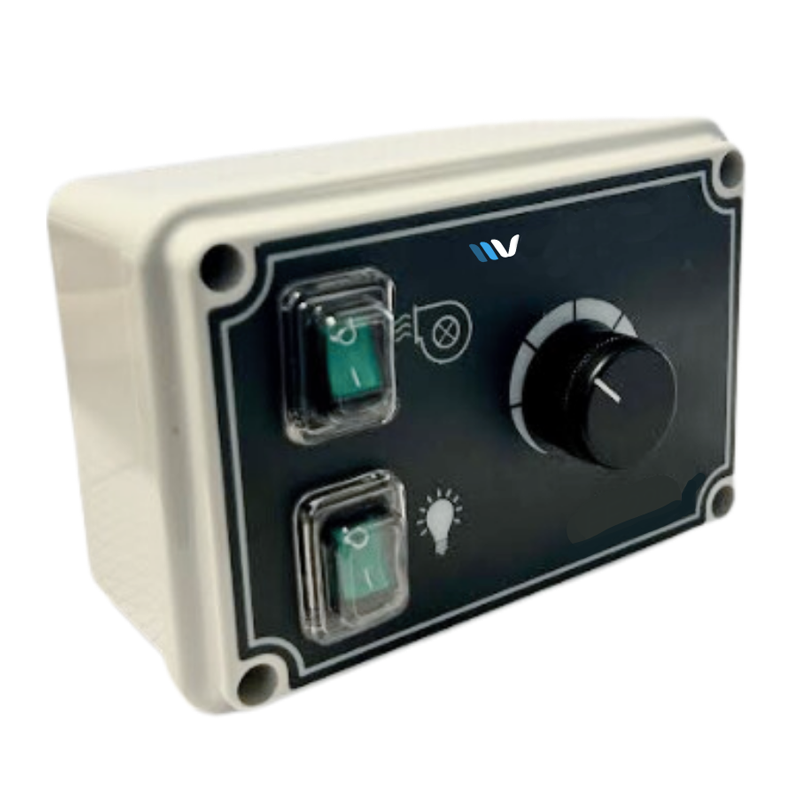

4.5A 230V single-phase speed controller

The speed controller supplied with this package is a 4.5A, 230V/220V single-phase voltage regulator, suited to 7/7, 7/9 and 8/9 double-inlet centrifugal fans as well as small motorised fan boxes under 500W. The on/off switch controls the motor directly, and the speed controller allows you to adjust its speed to suit service, whether quiet periods or peak rush.

It also protects the motor against overloads and voltage spikes, which helps preserve its working life. A dedicated output allows you to connect and control a light with its own switch, and another allows you to wire a gas solenoid valve. This speed controller is intended for single-phase 230V use only: it is not suitable for a three-phase motor.

Points to check before ordering

  • The duct diameter available: 250mm minimum (200mm possible) for 1 and 1.5m hoods, 315mm for 2m, 355mm for 2.5 and 3m.
  • The total power rating of your cooking equipment: above 20kW, a 400°C 2 hour fire rated extraction system is mandatory, not supplied with this package.
  • The extraction direction required (top or rear of the hood) to plan the motor fitting.
  • Availability of a 230V/220V single-phase power supply for the motor and speed controller.
  • Ducting and connection accessories, not supplied with this package.

Installation guide for 1 to 3m hoods at télécharger ici

Goes well with

This package is covered by a 1 year professional warranty.

Browse our full range of dynamic extraction hoods, as well as our pizza oven hood or our remote motor hood.

Product Details

Ventilsogood
PackC1-3m
Selected length
OPTION: More powerful engine
Available Length
1 meter
Available Length
1.5 meters
Available Length
2 meters
Available Length
2.5 meters
Available Length
3 meters
Warranty
1 year
Engine
Centrifugal Fan
Food
230V Mono
Engine power
0 to 2,000 m³/h
Engine power
2,000 to 4,000 m³/h
0657968550797

You might also like

8 other products in the same category:

Customers who bought this product also bought:

Frequently asked questions

Which motor should I choose for my hood length?

For a 1 or 1.5m hood, the DD 7/7 motor (147W, 1580 m³/h) is generally suitable. For a 2m hood, the DD 7/9 (300W, 2600 m³/h) is offered. For 2.5 or 3m, the DDM 9/9T or 8/9 (420W, 3000 m³/h) is the most powerful version in the package. The final choice also depends on your cooking equipment.

Does the supplied speed controller work with a three-phase motor?

No. The speed controller in this package is a 4.5A voltage regulator for single-phase 230V, designed for single-phase 7/7, 7/9 and 8/9 fans. It is not suitable for a three-phase motor, which would require a dedicated variable frequency drive.

What duct diameter should I plan for this hood?

For 1 and 1.5m hoods, a 250mm duct is recommended (200mm minimum). For the 2m hood, plan for a 315mm diameter, and 355mm for the 2.5 and 3m versions. These are guidelines to adjust based on the length and number of elbows in your ductwork.

Is this package suitable for a kitchen with more than 20kW of cooking equipment?

No, not in the standard version. Above 20kW of installed cooking power, a 400°C 2 hour fire rated extraction system becomes mandatory, which this Classic package does not cover.

Is it complicated to install? Do I need an installer?

Thanks to our tutorials available on our YouTube channel and our installation guides, most of our customers fit this hood package themselves. The only requirement for the warranty is that the electrical connection must be carried out by a qualified electrician.
